Hot-DIP Galvanized Steel Forged Eyebolt Pole Line Hardware
| Price: |
US $ 1/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union |
| Prod Model: |
YCG |
| Color: |
Silver |
| Packing Deteil: |
Box/ Carton or Customer's Need |
| Delivery: |
2 Weeks After Down Payment |
| Type: |
Round Head |
| Connection: |
Common Bolt |
| Head Style: |
Round |
| Standard: |
DIN |
| Finish: |
Hot Galvanizing |
| Material: |
Galvanized Steel |
| Application: |
Pole Line Hardware |
Product Description

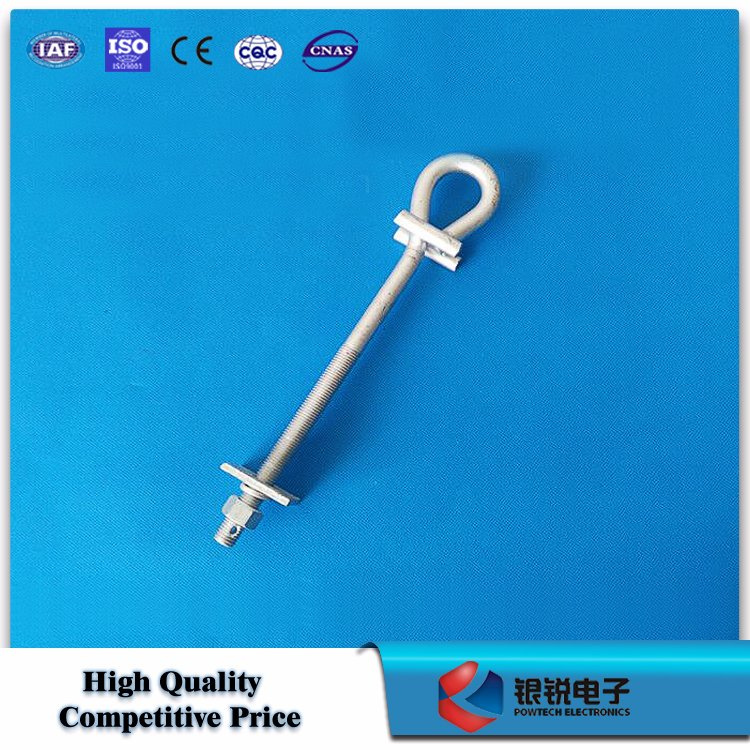

Name: Forged Oval Eyebolt
Nombre: PERNO CON OJAL
Model:CD
Material: Carbon steel
Finish: Hot Dip Galvanized
Size: 5/8", 3/4"
Length: 4" to 12"
Features: Used for guying, dead-ending, and attaching clevis, suspension insulators and other poleline hardware, herrajes galvanizados. Each oval eye bolts is provided with a regular square nut. All components are hot dip galvanized to meet ASTM A153, Class C specification. CATALOG
NUMBER | BOLT
DIMENSION
DIA. A B | MINIMUM
TENSILE
STRENGTH | APPROX.
WEIGHT
PER 100 |
| EB586S | 5/8'' 6'' 4'' | 12400 LBS. | 100 |
| EB588S | 5/8'' 8'' 4'' | 12400 LBS. | 118 |
| EB589S | 5/8'' 9'' 4'' | 12400 LBS. | 123 |
| EB5810S | 5/8'' 10'' 6'' | 12400 LBS. | 129 |
| EB5812S | 5/8'' 12'' 6'' | 12400 LBS. | 142 |
| EB5814S | 5/8'' 14'' 6'' | 12400 LBS. | 158 |
| EB5816S | 5/8'' 16'' 6'' | 12400 LBS. | 175 |
| EB5818S | 5/8'' 18'' 6'' | 12400 LBS. | 190 |
| EB5820S | 5/8'' 20'' 6'' | 12400 LBS. | 205 |
| EB5822S | 5/8'' 22'' 6'' | 12400 LBS. | 238 |
| EB5824S | 5/8'' 24'' 6'' | 12400 LBS. | 245 |
| EB5826S | 5/8'' 26'' 6'' | 12400 LBS. | 258 |
| EB5830S | 5/8'' 30'' 6'' | 18350 LBS. | 315 |
| EB5836S | 5/8'' 36'' 6'' | 18350 LBS. | 355 |
| EB348S | 3/4'' 8'' 4'' | 18350 LBS. | 190 |
| EB3410S | 3/4'' 10'' 6'' | 18350 LBS. | 215 |
| EB3412S | 3/4'' 12'' 6'' | 18350 LBS. | 225 |
| EB3414S | 3/4'' 14'' 6'' | 18350 LBS. | 255 |
| EB3416S | 3/4'' 16'' 6'' | 18350 LBS. | 275 |
| EB3418S | 3/4'' 18'' 6'' | 18350 LBS. | 298 |
| EB3420S | 3/4'' 20'' 6'' | 18350 LBS. | 330 |

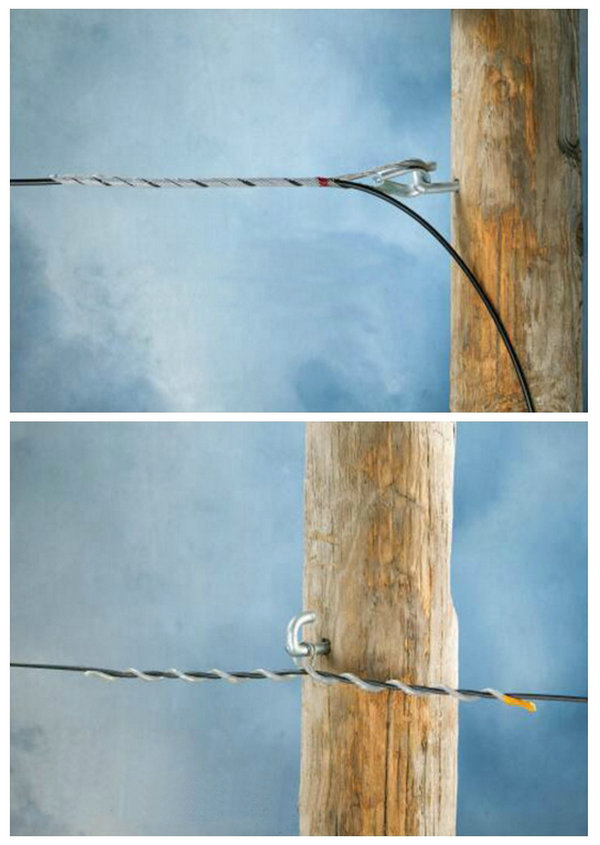

Installation:
Package:
Why choose us?
1. Strict quality control system (ISO, SGS, IEC certified)
2. Factory direct-sales, lower purchasing cost
3. Professional and Efficiency (one-stop professional solution for your project to save your time and cost)
4. Experienced workers team, advanced technicians, sophisticated equipment
5. Small trial order/OEM product/artwork is acceptable
6. ADSS/OPGW cable, cable accessories supplier for 20 years from China, ISO certificated
FAQ
Q1: Can u provide us with samples?
Powtech answer: Yes, we can provide 1-2 pieces free samples, but u should pay express cost or u provide us with express account number.
Q2: If we need customized/OEM product, can u supply?
Powtech answer: Yes, customized/ OEM product/ artwork is available for us. Professional designers, advanced technicians and mold modifications department ensure that we will make the exact model for u accordingly.
Q3: If u can accept small trial order?
Powtech answer: Yes, small trial order can be available also, but u should pay 100% T/T down payment before production.
Q4: What payment terms available for u?
Powtech answer: If order amount less than 10000 USD, 100% T/T; if amount more than 10000 USD, 30% T/T in advance plus 70% T/T before shipment. U can place an order via Alibaba website, which is also very safe and has payment protection for you.
Q5: Can u offer discount ?
Powtech answer: Yes, discount available on large order. The larger the order, the more discount we will offer.
Q6: What is ur delivery time?
Powtech answer: Usually, delivery will be made within 2 weeks after down payment. If order very large, one month we will need. Please note, delivery time is production, shipping time not included. If you want to know, we can help u consult shipping company for details.
Founded in 1994, POWTECH invested by Taiwan, is an independently owned international corporation dedicating to develop, produce & distribute JETPOWER brand power supplies and OPTELEC brand optical cables.
The first JETPOWER branded online high frequency UPS was developed in 1994. Driven by customer requirements, we have developed OFF LINE UPS, Line-interactive UPS, Industrial Online UPS, outdoor UPS, telecom inverter, power inverter and home inverter. Through a decade of great efforts, we have made our JETPOWER branded power supplies widely applied in the fields of finance, telecom, electric power, petrochemistry, custom and military field etc, and have been honorably commented by clients. Besides, we also cooperate with many famous power supply companies by OED/ODM, and now our products have been sold worldwidely, including Europe, South America, Africa, Middle East, Asia etc.
As the fast development of power supply, We also expand our business to optical cable and accessories. In 2006, we have set up our own OPTELEC brand to develop, manufacture and distribute ADSS cable, OPGW cable, optical cable, Fusion Splicer, OTDR, Terminal tool kit, ADSS fittings, OPGW fittings, link fittings, wire mesh cable tray, preformed cable tray, cable trunking, cable ladders, STG modules, STG magazines and accessories. Till now, our OPTELEC brand optical cable and accessories have been used in more than 20 countries' telecom lines' construction and power transmission lines' construction.
Powtech has passed the ISO9001 international quality system certification and has established a complete quality system from material source, process, assembling to testing. All Powtech products have been approved by KEMA, SGS and CE (LVD/EMC) or by customer-appointed safety agencies.
Not only do we pride ourselves on competitive price, Advanced technology and top quality products but also we have value-added technical support. We can dispatch our engineer to customer's site for site installation and training, Or we can provide online service to solve any problem during installation & operation. On the priniciple that there is no customer too big or too small, Every customer deserves most professional service. POWTECH people anticipate growing and prospering with you, Embarking on a way of success.
