| Prod Model: |
HW001 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Mesh Size: |
3/8''-4'' |
| Width: |
0.1-2.0m |
| Length: |
10-100m |
| Wire Diameter: |
0.4-2.8mm |
| Surface: |
Galvanized ,,Electro Galvanized,PVC Coated |
| Feature: |
Corrosion Resistant ,Long Life |
| Material: |
Galvanized Iron Wire |
| Application: |
Barbecue Wire Mesh |
| Weave Method: |
Twist |
| Weave Technique: |
Plain Weave |
| Surface Treatment: |
Galvanized ,PVC Coated |
Product Description
Hexagonal Wire Netting
Product Specification| Specification of hexagonal wire netting |
| Specifications | Wire Diameter | Width |
| Mesh(inch) | Size(mm) | Limit Error | BWG | Metric | Feet | Metric |
| 3/8" | 10 | 0.5 | BWG27-23 | 0.40-0.6mm | 1"-6" | 0.1-2m |
| 1/2" | 13 | -1.5 | BWG27-22 | 0.4-0.7mm | 1"-6" | 0.1-2m |
| 5/8" | 16 | -0.5 | BWG27-22 | 0.4-0.7mm | 1"-6" | 0.1-2m |
| 3/4" | 20 | -0.4 | BWG26-20 | 0.46-0.9mm | 1"-6" | 0.1-2m |
| 1" | 25 | 1.5 | BWG25-19 | 0.5-1.0mm | 1"-6" | 0.1-2m |
| 1-1/4" | 31 | -3 | BWG24-18 | 0.56-1.2mm | 1"-6" | 0.2-2m |
| 1-1/2" | 40 | -0.5 | BWG23-16 | 0.6-1.65mm | 1"-6" | 0.2-2m |
| 2" | 51 | -0.5 | BWG22-14 | 0.7-2.0mm | 1"-6" | 0.2-2m |
| 3" | 76 | -0.5 | BWG21-14 | 0.8-2.0mm | 1"-6" | 0.3-2m |
| 4" | 100 | -0.5 | BWG20-12 | 0.9-2.8mm | 1"-6" | 0.5-2m |
PVC Coated Hexagonal Wire Netting |
Mesh | Wire Gauge (MM) | Width |
Inch | MM | - | - |
1/2" | 13mm | 0.6mm - 1.0mm | 2' - 2M |
3/4" | 19mm | 0.6mm - 1.0mm | 2' - 2M |
1" | 25mm | 0.7mm - 1.3mm | 1' - 2M |
1-1/4" | 30mm | 0.85mm - 1.3mm | 1' - 2M |
1-1/2" | 40mm | 0.85mm - 1.4mm | 1' - 2M |
2" | 50mm | 1.0mm - 1.4mm | 1' - 2M |

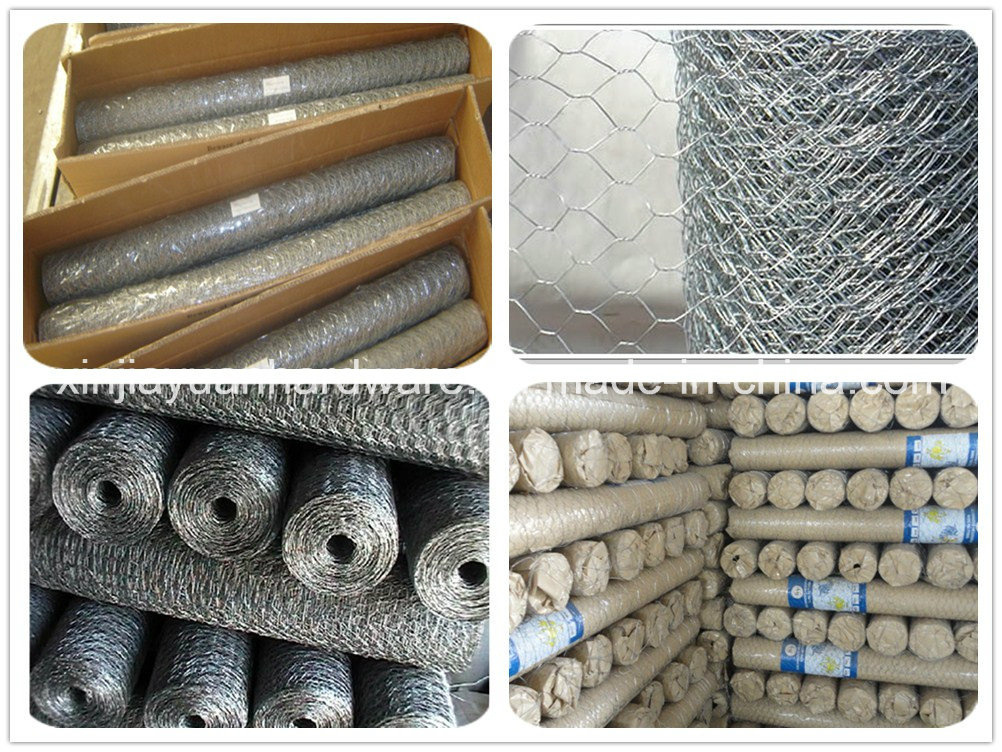

Packing
ApplicationReinforcement of plaster, screed;
Reinforcement surface for laying ceramic tiles;
Reinforcement plates facade insulation in heavy plaster systems (galvanized);
Production of gabions;

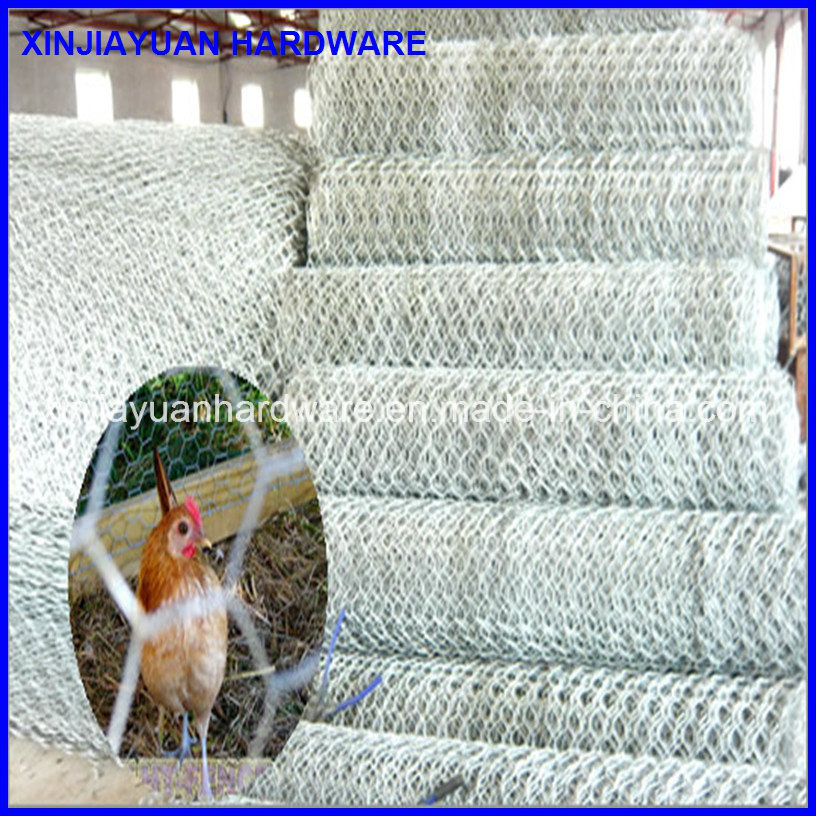

Mesh for chicken coop, enclosures for birds and animals;
For rabbits wire netting;
As garden fencing support for climbing plants;
Protection of trees, plants and crops;
Light fittings for sculptural works;
For protection against rockfall, strengthening the hillsides and riverbanks.

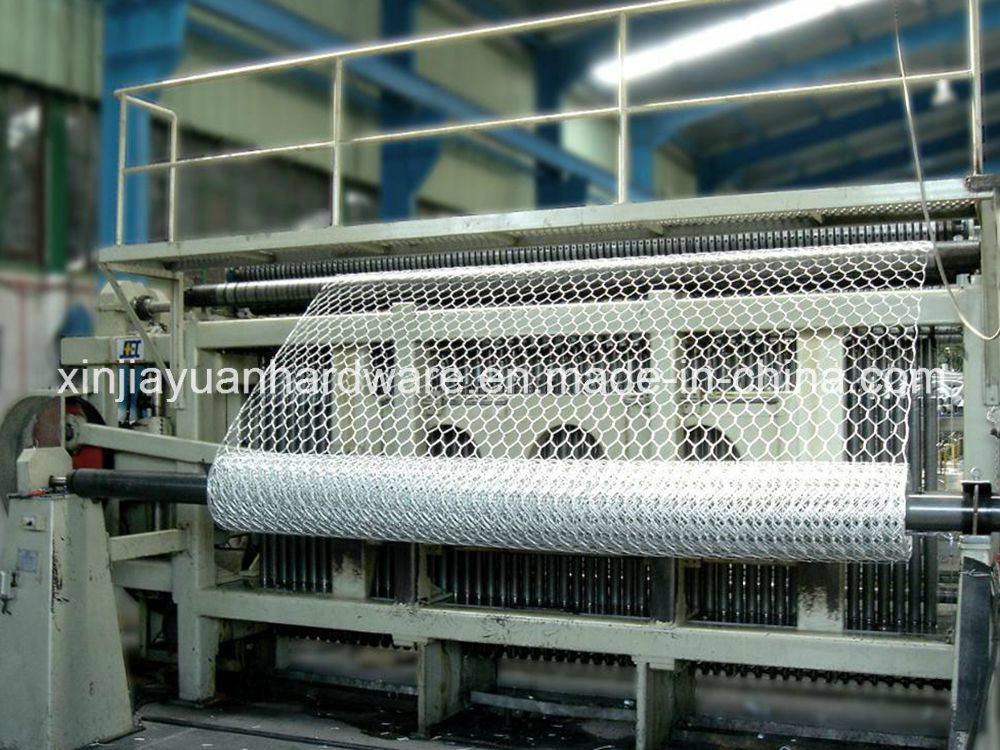

Production Line
Main FeaturesOxidation -resistant, good tensile strength.
Corrosion- resistant, rust-resistant.
Uniform mesh size, flat and even mesh surface, weave tightly.
Galvanized /pvc coated for longer life, low costs
Easy to handle and cut.
Dezhou Xinjiayuan Hardware Products Co., Ltd. We are manufacture and exporter for building hardware products and related products. We found this name in 2015. But our team has good and successful export experience for 15 years. We have established good and long business relationships with many importers all over the world.
Our major product are focused on the building hardware products, including Concrete Accessory, such as Anchor Bolt, Threaded Rods, Bar Support, Steel Nail Stakes, Flat Washers, Metal Lath, Double Loop Tie Wire, Snap Ties, Flat Ties, etc...And Metal Form, Scaffolding and Props, Plywood, PE Sheet, Conveyor Belt, Iron Nails and Concret Nails, Iron Wire and Wire Products, Wire Mesh, Earth Anchor and Pole Anchor, Farm and Fencing, HDG Corrugated Steel Sheets and making machine, Concrete Floor Making Machine, Wire Bending Machine and Other Related Hardware Products, etc...
Timely service, high quality products and competitive prices have given us a great reputation among clients worldwide. Looking forward to serving you!
