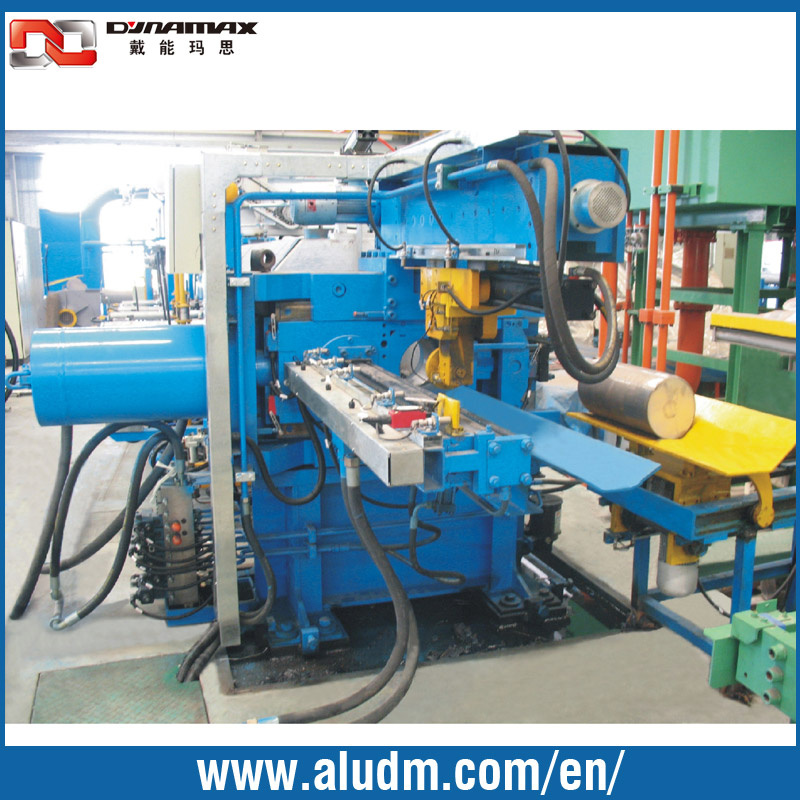

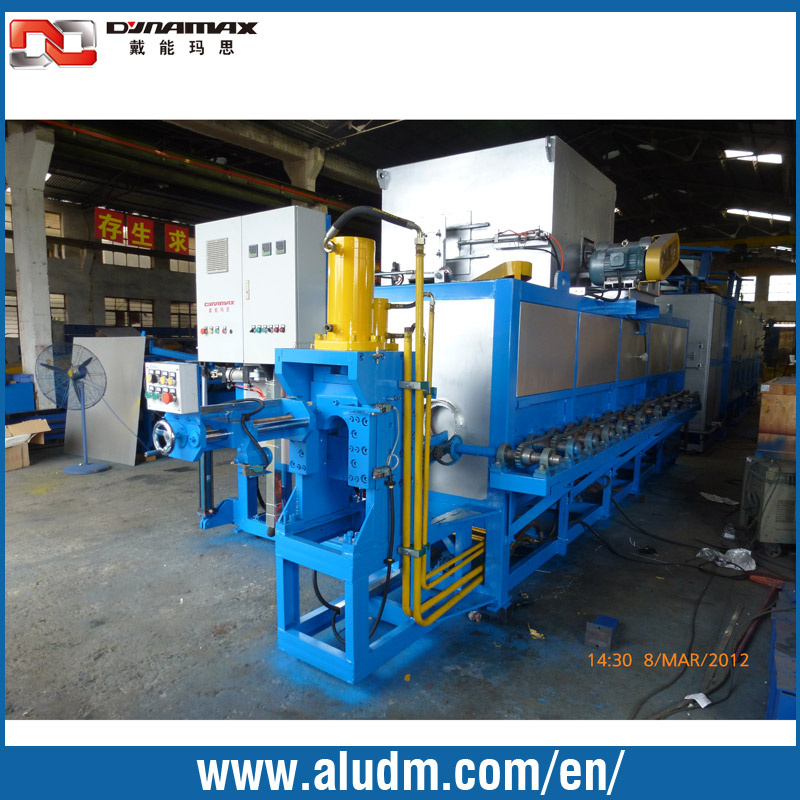

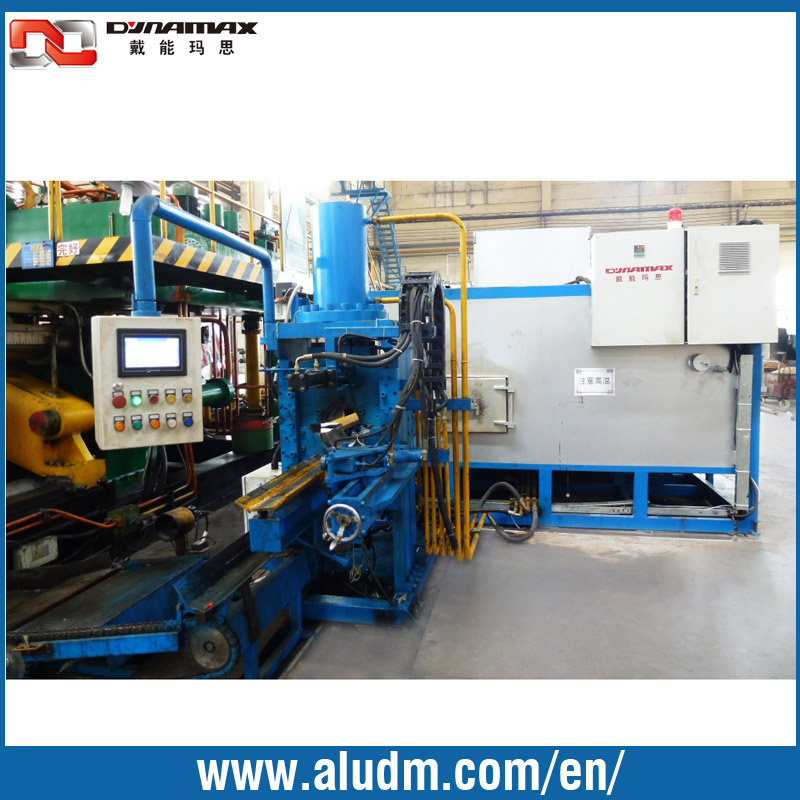

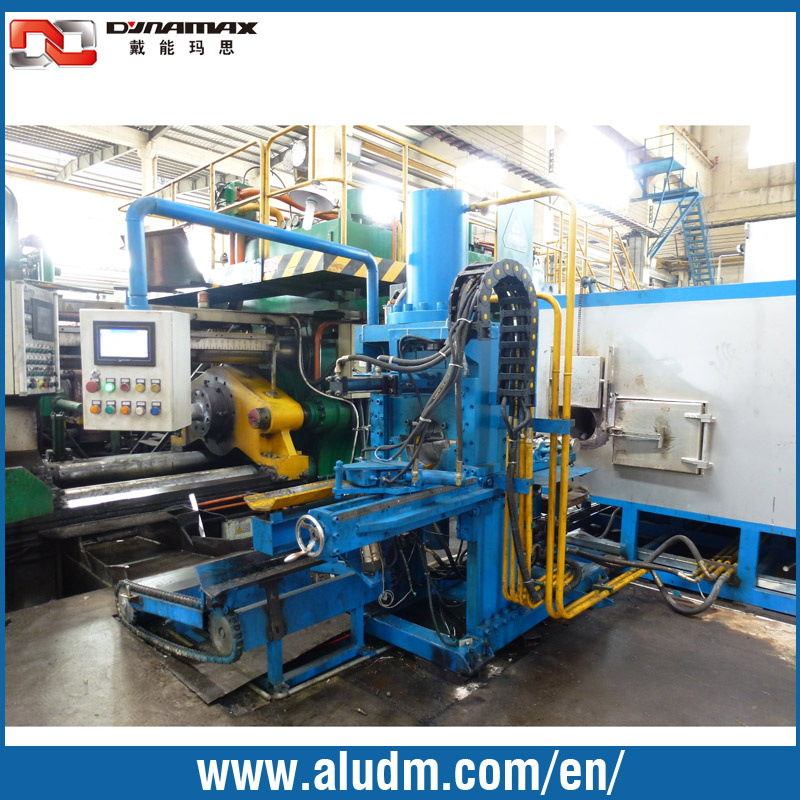

Hot Log Shear
| Price: |
US $ 30000/Piece |
| Trade Terms: |
FOB |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
| Prod Model: |
DM-291 |
| Markets: |
South America,Southeast Asia,Africa,Mid East,Eastern Asia |
| Size: |
2000X1000X1500 |
| Weight: |
14260 |
| Automatic: |
Fully Automatic |
| Container Size: |
40hq |
| PLC: |
Simens |
| Electrical Parts: |
Schneider |
| Shear Material: |
H13 |
| Gas Consumption: |
28cbm |
| Operation: |
Touch Screen |
Product Description
1
)The Tonnage of the extrusion press:1800 ton2)Size:178-60003
)Fuel:Natural gasNatural gas pressure: 20000-30000Pa; Max gas consumption: 65m³/h;
4)power producer: A,380V AC: B,air compressor producer: pressure 0.6MPa .natural gas:3m³/h C.circulating cooling water: pressure 0.4Mpa. Water: 4m³/hII. Technology Parameters: 1. Production capacity: 1500Kg/h2. Heating temperature: 0-550ºC3. Store billets number:84. Original heating time: 2.5-3h5. Billet shear length: 300-900mm (adjustable)6. Shear length precision: ±1mm7. Section deformation precision: ±3mm8. Process production index: gas 28 M³/ton. Profile (Condition: Natural gas calorific value no less than 8500 Kcal, the monthly capacity will not lower than 550T, the yield profile not lower than 80% )9. Total power: 43 KW10. Circulating fan power: 7.5 KW11. Hydraulic pressure: rated pressure: 16Mpa Independent hydraulic station: 15KW12. Operation mode: PLC, touch screen13. Temperature control system:3 groups temperature controller show furnace temperature. High temperature protection, thermal cycle air blower let.14,pre-cut billet minimum length: 4m15,straightness tolerance of log:± 10mm 16,Max. Temperature:550°C17,Furnace length: 7m18,burner quantity: 1Materials configuration:
| System name | Name | Material type | Origin | Remarks |
Hydraulic system | Main hydro-cylinder | ¢280×320 | Foshan |
|
| Hydraulic valve | YUTIEN or HUADE | Taiwan/Beijing |
|
| Oil pump | YBE100/63 | Guangye |
|
| Shear system | shear | H13 steel |
|
|
| rack | Q235 steel plate |
|
|
Oven body material | Outside frame | 100*50*4 tube steel,
A3 steel plate,2mm\3mm\6mm\8mm |
| National standard |
| Inner frame | SUS304,1mm\2mm\3mm |
| National
standard |
| Heat insulation cotton | Aluminum silicate wool T=320mm |
|
|
Burning room | Insulation brick
Alumina brick |
| Henan province |
|
| Burning machine | BG450 | Import |
|
| Circulating fan | 7.5kw | Yuejia Foshan |
|
| Billet access | reducer | 2.2kw (2 sets) | Changzhou
Jiangsu |
|
| Storage rack | Storage table | 10# U-bar, |
| National standard |
| Push table | 10# U-bar,Q235 steel plate |
| National standard |
Foshan Nanhai Dynamax Industry Engineering Co., Ltd was established in 2006. She is one of China's pioneer supplies of aluminum extrusion equipment. She specialized in manufacture single billet heating furnace, multi-billet furnace, hot log shear, single puller, double puller, extrusion handling system, cooling table, aging furnace, online quenching system, extrusion die oven and so on.
Dynamax good quality and excellent service gains a big market both in and out. Many brand name extrusion companies choose us, cooperate with us will bring you energy saving, high capacity!
We located in Foshan, nearby Guangzhou, 35 minutes can pick you up from Guangzhou airport.
Our main market is in Southeast Asia, Middle East, Estern European, South America, Africa and so on. Dynamax not only offer your aluminum extrusion machines but also can offer your a new workshop design and offer all the machines installation.
During the mechanical and electrical engineers installation peroid, our engineers will teach your workers how to operation the machines and how to maintenance the machines.
Before you buy the machines, buy some spare parts, its better for you running a new factory.
Don't worry about the new factory, we offer the key to you. We can make sure everything you can running smoothly!
