| Price: | US $ 0.6-1.5/Piece |
|---|---|
| Min Order: | 100/Piece |
| Pay Type: | L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: | HZDS |
|---|---|
| Material: | Diamond and Other Metal Powder |
| Technology: | Hot Pressed Sintered Diamond Segment |
| Shipment: | by Air/by Express/by Sea |
| Shape: | T, M, K,U,V,Slant,Incline,Turbo,Roof Type Segment |
| Welding Method: | Silver Welding |
| Diameters Of Saw: | 900-2500mm |
| Cutting Material: | Marble |
| Customized: | Yes |
| Quality Certification: | ISO 9001-2000;SGS |
| Usage: | Stone Cutting |
Product Description

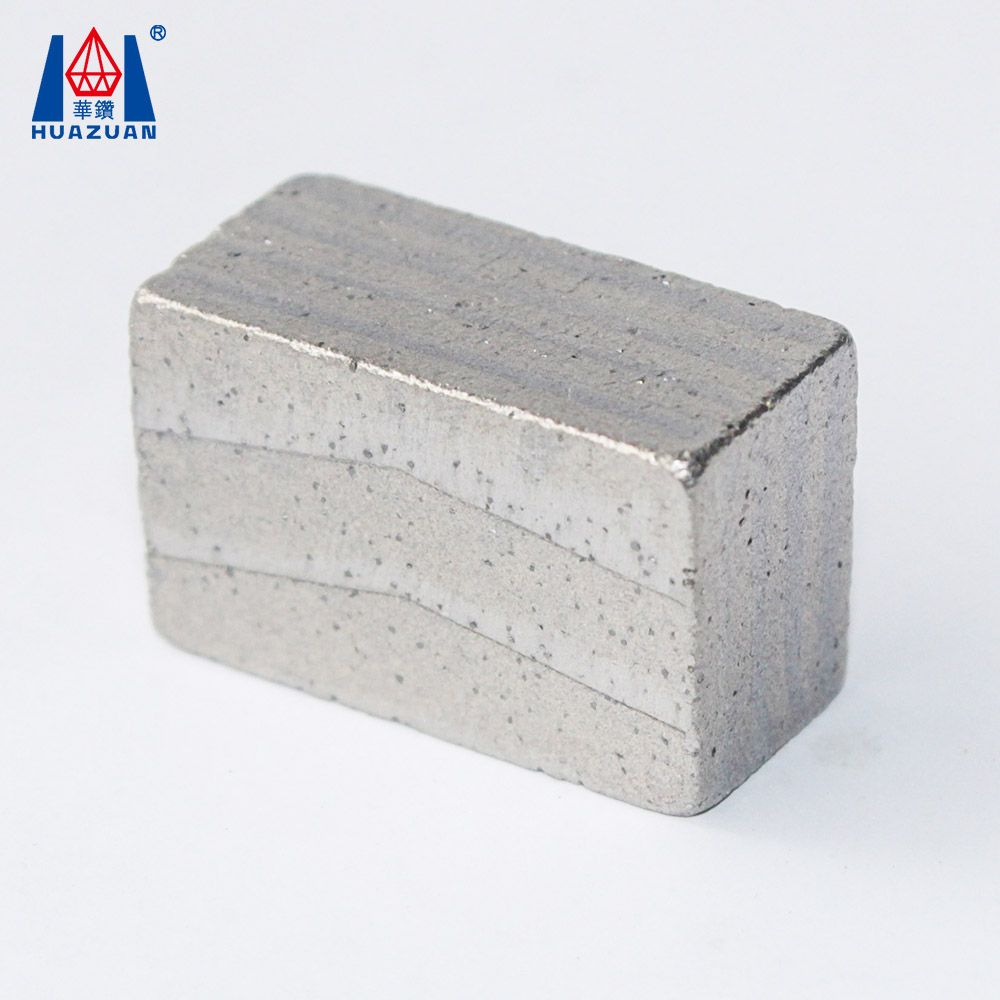

Product Name | Hot press diamond power tool segment for saw blade cutting |
Size | 24*9.2*10mm ( Specialized in making any sizes of diamond segment, we can make many different kinds of quality and sizes to fit your market and your stone. ) |
Diameter | 1800mm blade ( other blades 250mm-2500mm segments can make ) |
Application | Used for cutting Marble( also other more segments for marble, sandstone, limestone, lava, concrete ) |
Feature |
1. Fast cutting & long life & Stable performance, High grade of diamonds 2. Different bonds are for different applications & precise segment size 3. Working safe, quiet, and precise, reducing cutting & working time 4. Great adaptability & No chipping |
shippment | by air/by express/by sea |
Supply ability | 1000 sets/week(We accept mixed order) |
Quality | ISO9001&Gold Supplier Factory=Quality Control=Competitive Price=Owntechnology=OEM |
Granite blade segment dimension | |||||
Outer Diameter | Dimension of Teeth | No.of teeth | |||
Inch | mm | length | Thickness | Height |
|
10" | 250 | 40 | 3.0 | 12/15/20 | 17 |
12" | 300 | 40 | 3.0 | 12/15/20 | 21 |
14" | 350 | 40 | 3.2 | 12/15/20 | 24 |
16" | 400 | 40 | 3.4 | 12/15/20 | 28 |
18" | 450 | 40 | 4.0 | 12/15/20 | 32 |
20" | 500 | 40 | 4.2 | 12/15/20 | 36 |
24" | 600 | 40 | 4.6 | 12/15/20 | 42 |
28" | 700 | 40 | 5.6 | 12/15/20 | 42 |
32" | 800 | 40 | 5.6 | 12/15/20 | 46 |
Marble blades segment dimension | |||||
10" | 250 | 40 | 3.0 | 8/10 | 18 |
12" | 300 | 40 | 3.0 | 8/10 | 22 |
14" | 350 | 40 | 3.4 | 8/10 | 25 |
16" | 400 | 40 | 3.6 | 8/10 | 29 |
18" | 450 | 40 | 4.0 | 8/10 | 32 |
20" | 500 | 40 | 4.2 | 8/10 | 36 |
24" | 600 | 40 | 4.6 | 8/10 | 42 |
28" | 700 | 40 | 5.6 | 8/10 | 42 |
32" | 800 | 40 | 5.6 | 8/10 | 46 |
Other specifications are available upon request. | |||||

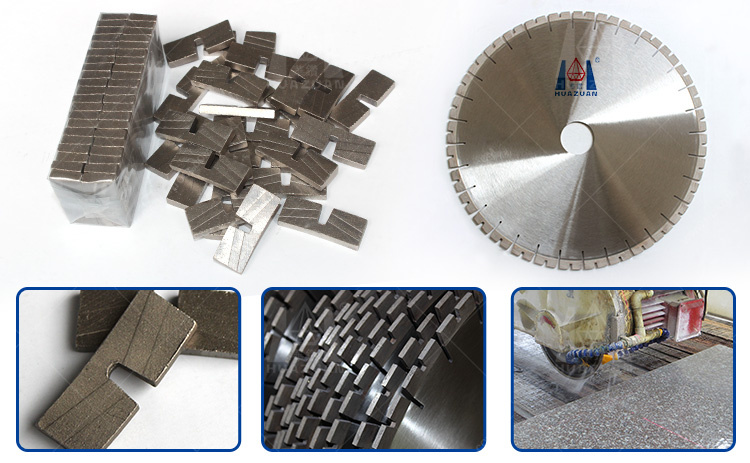

Application
About US - HUAZUAN
Q1:Are you a factory or trading company?
A:We are factory.
Q2:Where is your factory located?How can I visit you?
A:Our factory located in Quanzhou City,Fujian Province,China.You can fly to Xiamen International Air Port or Jinjiang Air Port,and we will you pick you up.Welcome you to visit our factory.
Q3. How is your quality?
A. We have a very seriously control system(PDCA principle and 7S) and . We guarantee the high performance of our products.
Q4.What we should do if your products can not run well?
A:Give us detailed report.Analyze the reason.
Try to find a way to solve the problem.If it's our problem and not possible to solve then will give replacement.
Q5. Do you have different quality for different kind of stone?
A. Yes, according hardness of stone and stone's feature, we have different typology respectively.
