| Prod Model: |
15DN0001 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Welding Method: |
Hot Sintered & Laser Welding |
| Body Material: |
65mn Steel |
| Surface Treatment: |
Spray Paint |
| Dimension: |
105-400mm |
| Segment Type: |
Segmented, Continuous Rim, Turbo |
| Slot: |
Key Slot, Narrow Slot, U Slot |
| Arbor Hole: |
22.23/25.4 |
| Segment Number: |
17-42 |
| Machine: |
Hand Tool or Cutting Machine |
| Shape: |
Round |
| Manufacturing Arts: |
Sinter |
| Usage: |
Stone Cutting |
| Customized: |
Customized |
| Thickness: |
2.6, 3.0, 3.2, 3.4, 3.6, 4.0, 4.2 |
| Kind: |
Circular Saw |
| Brand: |
Dm |
| Saw Blade External Diameter: |
250, 300, 350, 400, 450, 500 |
| Specification: |
10'', 12'', 14'', 16'', 18'', 20'' |
Product Description

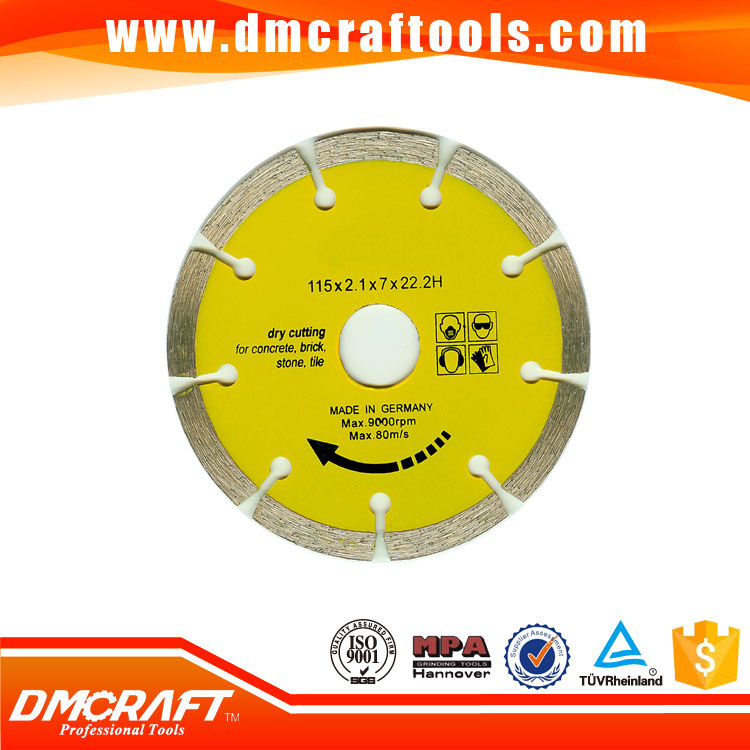

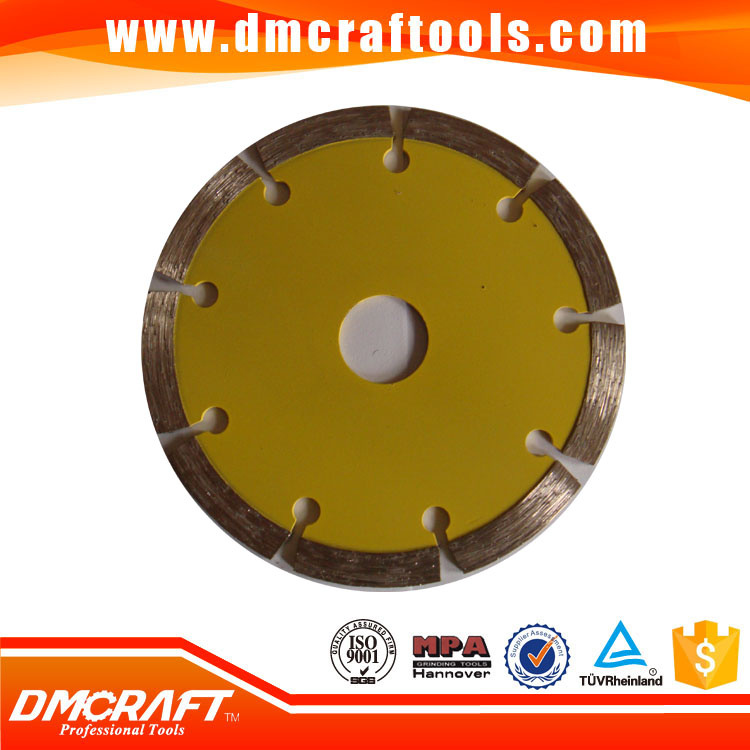

Hot Pressed Sintered Diamond Saw Blade for Fast Cutting Various Stone
Product Description
Type: Sintered turbo segmented concrete cutting blade, universal dry and wet cutting diamond saw blade for concrete, segmented turbo concrete cutting disc manufacturer and supplier.
Features: Fast and smooth cutting, high resistance, consistent performance.
Applications: Cured concrete, reinforced concrete, concrete slab, concrete block, concrete road, concrete pipe, hard brick, cobblestone, wall, pavers and general construction materials.
Machinery: Angle grinder, hand held circular saw, gas powered saw, walk behind saw.
Product Information| Laser General purpose saw blade |
| Item No | Diameter | Arbor | Segment | Seg. No |
| DM104 | 4'' | 105 | 7/8'' | 22.23~20 | 2.0X8/10MM | 8 |
| DM145 | 4.5'' | 115 | 7/8'' | 22.23~20 | 2.0X8/10MM | 9 |
| DM105 | 5'' | 125 | 7/8'' | 22.23~20 | 2.2X8/10MM | 10 |
| DM106 | 6'' | 150 | 7/8'' | 22.23 | 2.2X8/10MM | 12 |
| DM107 | 7'' | 180 | 7/8'' | 22.23 | 2.4X8/10MM | 13 |
| DM109 | 9'' | 230 | 7/8'' | 22.23 | 2.6X8/10MM | 16 |
| DM110 | 10'' | 250 | 1''-7/8'' | 25.4-22.23 | 2.6X8/10/12/14MM | 17/18 |
| DM112 | 12'' | 300 | 2''-1'' | 50-25.4 | 3.0X8/10/12/14MM | 20/21 |
| DM114 | 14'' | 350 | 2''-1'' | 50-25.4 | 3.2X8/10/12/14MM | 24 |
| DM116 | 16'' | 400 | 2''-1'' | 50-25.4 | 3.4X8/10/12/14MM | 28 |
| DM118 | 18'' | 450 | 2''-1'' | 50-25.4 | 3.6X8/10/12/14MM | 32 |
| Professional dry pr wet blades for cutting marble, granite,concrete,brick,black,and masonry material |
| Laser Wall Saw Blade |
| Item No | Diameter | Arbor | Segment | Seg. No |
| DM212 | 12'' | 300 | 2''~1'' | 50~25.4 | 3.0X8/10/12/14MM | 20/21 |
| DM214 | 14'' | 350 | 2''~1'' | 50~25.4 | 3.2X8/10/12/14MM | 24 |
| DM216 | 16'' | 400 | 2''~1'' | 50~25.4 | 3.4X8/10/12/14MM | 28 |
| DM218 | 18'' | 450 | 2''~1'' | 50~25.4 | 3.6X8/10/12/14MM | 32 |
| Premium laser blade for wall saw |
Product Picture
Packing &Shipping1. Each saw blade is packed in an inner cardboard case, and then several of these inner cases are put in an export standard carton; then reinforced with straps.
2. Normally we can make shipment within 20-30 days after receiving your payment or L/C.

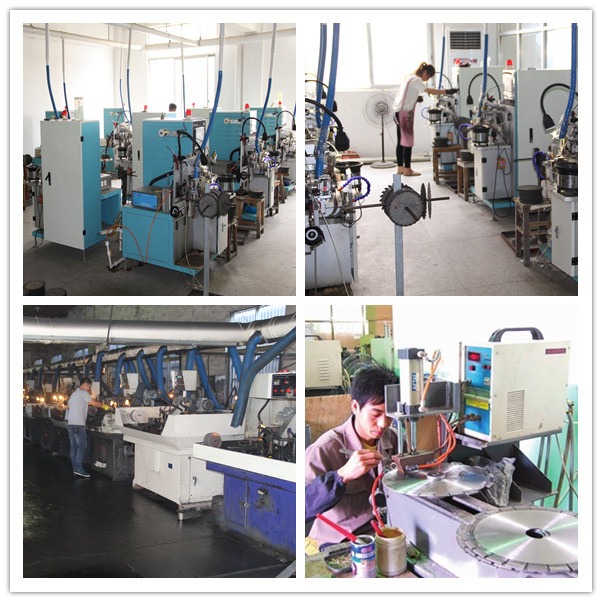

Our company
1) We're a direct manufacturer and 100% export to worldwide(USA, Isrel, Jordan, Iran, Thailand,Duabai, South Africa, Kenya, Egypt, Australia, UK, Spain, Brazil, etc)
2) We have around 15 years producing experience.
3) Our diamond product:laser welded saw blade, sintered saw blade, diamond segments, diamond polishing and grinding products, cup wheel, core bits and electroplated diamond products ect.
4) Above 95% customers will place a formal order after testing the samples.
More information about our products, welcome to visit :http://en.dmcraftools.com/
DANYANG DAMING TOOLS Co., Ltd. is one of the professional manufacturer of drill bits in China,
Now we can provide the following cutting tools:
1. HSS straight shank twist drills:
(DIN338, DIN340, DIN1897, DIN345; ASME B. 94.11M: Jobber length, Taper length, Screw Machine Length, Aircraft Ectension, etc);
2. HSS taper shank drills: ( Rolled, Milled);
3. Masonry drills (Chrome plated, Nickle Plated, Zinc plated);
4. SDS Hammer drills;
5. Wood working series: (Wood working drills, Wood Auger bits);
6. Various kind of drill sets in many different types;
7. TCT saw blades
8. Diamond saw blades
9. HSS Hole Saws;
10. HSS Tapes;
11. All kinds of drill sets.
Therefore, our products are well accepted by many customers from all over the world, mainly in North America, Asia, Europe, MID East, South America and other countries and regions.
For a completive quotation or any further information, please don't hesitate to contact us at any way. Our sales staff will be pleased to assist you with our best.
