Hot Sale Easy Operation Electric Metal Melter Oven Furnace

Name: Hot Sale Easy Operation Electric Metal Melter Oven Furnace
Brand: tool-buy.com
SKU: 691355731
Availability: InStock
Rating: 4.4 (65 reviews)

Price:	US $ 3200-3400/Set
Min Order:	1/Set
Pay Type:	L/C,T/T

Contact Supplier

Yongkang Yuelon Electronic Equipment Co., Ltd.

Showroom Product Company Profile

Prod Model:	MF-15
Weight:	95kg
Color:	White
Frequency:	1-20kHz
Duty Cycle:	100%
Applicant:	Melting / Heating / Welding / Heat Treatment
Certificate:	Ce
Operation:	Safe&Easy
Work Condiction:	24hours
System:	IGBT
Warranty:	One Year
Type:	Crucible Melting Furnace
Usage:	Steel Molding
Fuel:	Furnace

Product Description

Welcome to our company

Welcome to visit our factory at Yongkang city, Zhejiang province, China.
Very near hangzhou and shanghai city.
Just need 1 or 2 hours by high speed train.

Application

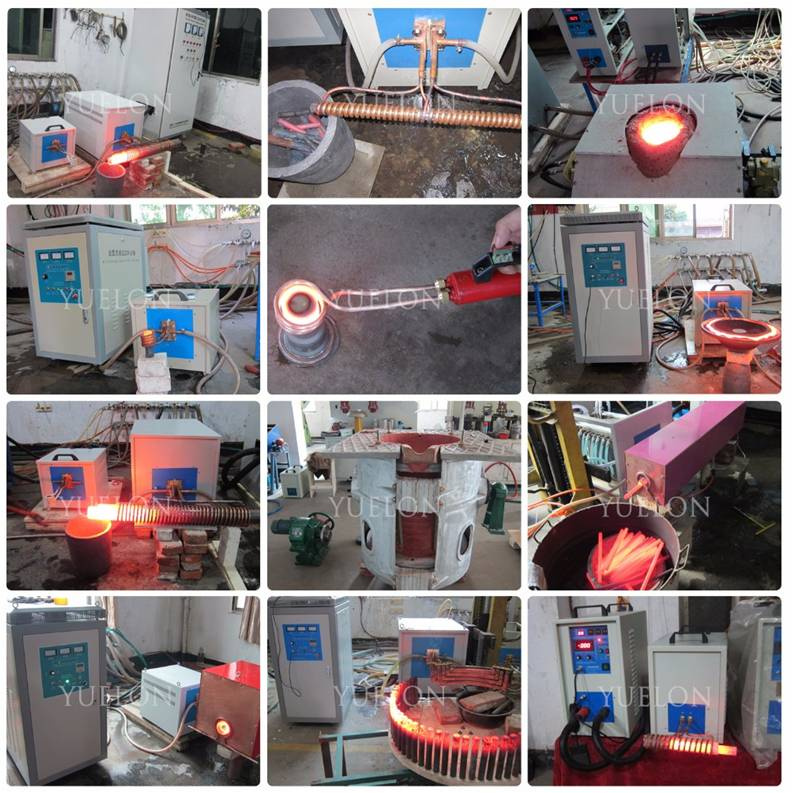

Application of Induction Heating Equipment:

A. Heating (hot forging, hot fitting and smelting):
1 Hot forging aims to fabricate the work pieces of certain temperature (different materials require different temperatures) into other shapes through forging press with the help of punch press, forging machine or other equipments, for instances, hot extrusion of watch case, watch flan, handle, mold accessory, kitchen and table ware, art ware, standard part, fastener, fabricated mechanical part, bronze lock, rivet, steel pin and pin.
2. Hot fitting refers to the connection of different metals or metals with nonmetals through the heating based on the principle of hot expansion or hot smelting, for instances, embedded welding of copper core of computer radiator with aluminum sheet and speaker web, compound of steel and plastic tube, sealing of aluminum foil (tooth paste peel), motor rotor and sealing of tubular electric heating element.
3. Smelting mainly aims to melt the metal into liquid by using the high temperature, which is mainly applicable to the smelting of iron, steel, copper, aluminum, zinc as well as various noble metals.
B. Heat Treatment (surface quench):
It is mainly aims to change the rigidity of the metal materials through the heat treatment to work pieces. Detail applications are stated as follows:
1. Quench for various hardware and tools, such as plier, wrench, hammer, ax, screwing tools and shear (orchard shear).
2.Quench for various automobile and motorcycle fittings, such as crankshaft, connecting rod, piston pin, chain wheel, aluminum wheel, valve, rock arm shaft, semi drive shaft, small shaft and fork.
3. Various electric tools, such as gear and axes.
4. Quench for machine tools, such as lathe deck and guide rail.
5. Quench for various hardware metal parts and machined parts, such as shaft, gear (chain wheel), cam, chuck and clamp etc.
6. Quench for hardware molds, such as small-size mold, mold accessory and inner hole of mold.
C. Welding (braze welding, silver soldering and brazing)
It mainly aims to melt the solder by heating it to a certain temperature for the purpose of connecting two types of metals of the same material or different materials.
1. Welding of various hardware cutting tools, such as diamond tool, abrasive tool, drilling tool, alloy saw blade, hard alloy cutter, milling cutter, reamer, planning tool and solid center bit.
2. Welding of various hardware mechanical gadget: Silver soldering and brazing of metals of the same variety or different varieties, such as hardware toilet and kitchen products, refrigerating copper fitting, lamp decoration fitting, precision mold fitting, hardware handle, eggbeater, alloy steel and steel, steel and copper as well as copper and copper.
3. Compound pot bottom welding is mainly applicable to the braze welding of circular, square as well as other irregular plain pot bottom. It is also applicable to plain braze welding of other metals.
D. Annealing (tempering and modulation):
1. Annealing of various stainless steel products, such as stainless steel basin, annealed and extruded can, annealed folded edge, annealed sink, stainless steel tube, tableware and cup.
2. Annealing of various other metal work pieces, such as golf ball head, cue, brass lock, hardware copper fitting, kitchen knife handle, blade, aluminum pan, aluminum pail, aluminum radiator and various aluminum products.

Product Description

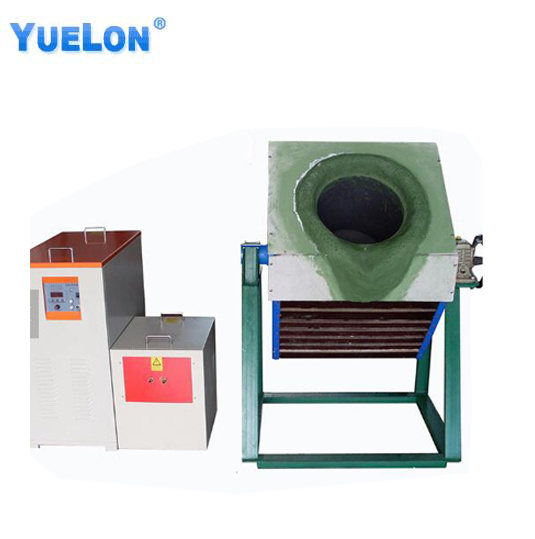

About Induction melting furnace:
Medium frequency induction melting furnace are mainly used for melting all kinds of metals: gold, silver, copper, brass, bronze, steel, iron, stainless steel, aluminum etc. melting capacity from 1kg to 300kg. compared with conventional melting method, induction melting machine can save energy 30%, high heating efficiency, melting fast, small size, heating uniformly, environmentally friendly, reduced the oxidation of burning, good working condition, etc.
Main Applications:
Medium frequency induction melting furnace are mainly used for the melting of gold, silver, platinum, copper, brass, bronze, zinc, steel, stainless steel, iron, aluminum and alloy materials, etc. melting capacity can be from 0.1kg to 500kg.

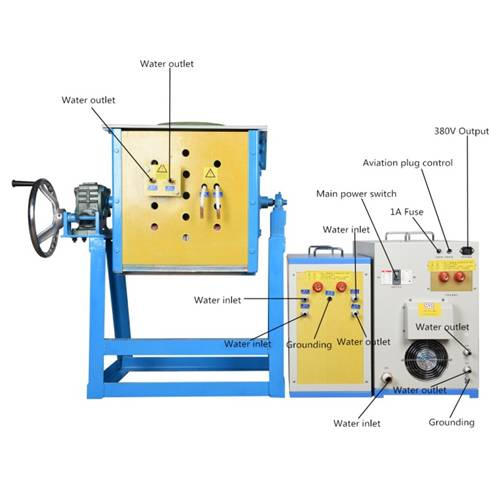

The composing of the Medium Frequency melting forging furnace:
1.Medium Frequency induction heating generator.
2.compensating capacitor.
3.melting furnace.
Infrared temperature sensor, temperature controller and water cooling system can also optional.
Types of induction melting furnaces
Three types of induction melting furnaces can be selected according to the way of pouring out, they are tilting furnace, push-up furnace and stationary furnace.
According to the method of tilting, tilting furnace is divided into three kinds: Manual tilting furnace, Electrical tilting furnace and Hydraulic tilting furnace.
Two sets of melting furnace that is available for you to choose according to your needs:
1. For small melting amount, crucible with power supply machine is enough.

2. For large amount melting, tilting machine is convenient to pour the metal liquid.

Main features of the MF induction melting furnace:
1. Medium frequency induction melting furnace can be used for the melting of steel, stainless steel, iron, brass, copper, aluminum, gold, silver, platinum , zinc, metal alloys and so on.
2. Because of the stirring effect which caused by the magnetic force, the melting pool can be stirred during the melting course to ease the floating of the flux and oxides to produce high quality casting parts.
3. Wide frequency range from 1KHZ to 20KHZ, working frequency can be designed by changing the coil and compensating capacitor according to the melting material, quantity, stirring effect desire, working noise, melting efficiency and other factors.
4. Compared with SCR medium frequency induction furnace, it can save energy at least 20% and up.
5. Small and light weight, a lot of modes can be selected to melt different amount of metals. Not only it is suitable for the factory, but also suitable for the college and researching companies to use.
6. 24hours non-stop melting ability.
7. It's easy to change melting furnace for different capacity, different material, different way of pouring out, to suitable for all kinds of requirements.
Main models and melting ability:
The table below lists the main models and recommended maximum melting abilities. First time About 50 to 60 minutes are needed to finish one melting process at cool status of the induction furnace, at hot status of the induction furnace, only 20 to 30 minutes are needed.

Model	Max input power	Maximum melting capacity
Model	Max input power	Iron, steel, stainless steel	Brass, copper, silver, gold, etc.	Aluminium
MF-15 induction melting furnace	15KW	3KG	10KG	3KG
MF-25 induction melting furnace	25KW	5KG	20KG	5KG
MF-35 induction melting furnace	35KW	10KG	30KG	10KG
MF-45 induction melting furnace	45KW	18KG	50KG	18KG
MF-70 induction melting furnace	70KW	25KG	100KG	25KG
MF-90 induction melting furnace	90KW	40KG	120KG	40KG
MF-110 induction melting furnace	110KW	50KG	150KG	50KG
MF-160 induction melting furnace	160KW	100KG	250KG	100KG
MF-240 induction melting furnace	240KW	150KG	400KG	150KG
MF-300 induction melting furnace	300KW	200KG	500KG	200KG

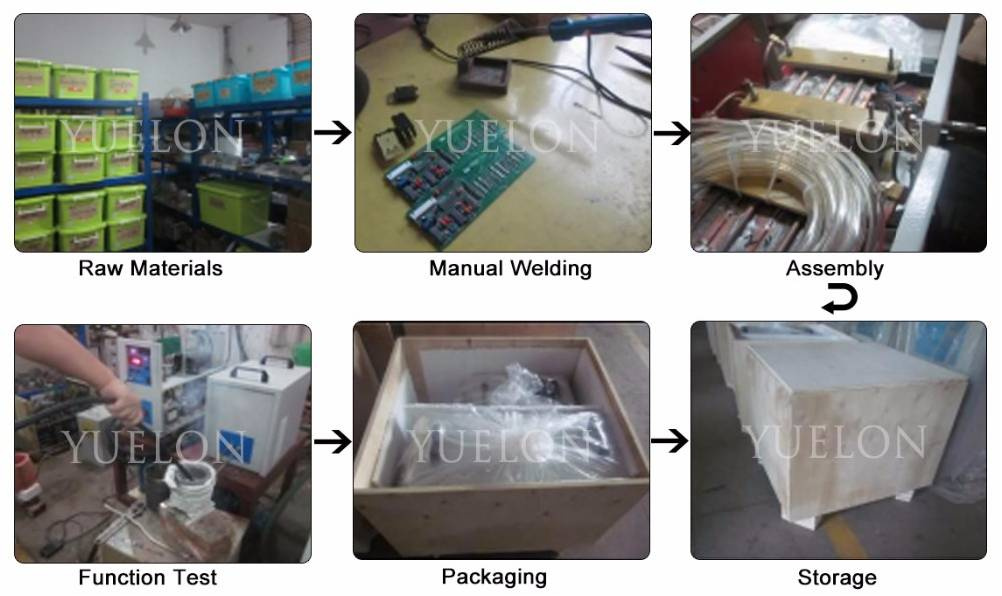

Production Workflow Chart

Packaging & Shipping

Packing process

Company Information

Yuelon is specialized in researching and manufacturing of solid-state medium to ultrahigh frequency induction
heating equipment and systems. our company was established in 1998 and is privately held. Precision
induction heating solutions are our specialty. Use induction heating to improve the efficiency and
effectivenesfor industrial heating process. That are used for application such as brazing. annealing,hardening,
forging, melting, shrink fitting etc.
Our induction heating machine are Available from 3kw to 1500kw deliverable output power with 0.5KHZ to1.1M
HZ operating frequency range. All our products are divided into four major series according to the frequency:
Medium frequency series (abbr. MF series):0.2-20KHZ
High frequency series (abbr. HF series):30-100KHZ
Superaudio frequency series (abbr. SF series):5-40KHZ
Ultrahigh frequency series (abbr. UF series):100-1100KHZ

Our service

1. Reply the email within 24hours. 6 staffs work for Export Department.
2. Two of them who have experience in sales, installing and after-service more than 7 years.
3.  on-site engineering service.
4.  12 months warranty.
5.  Color, language and logo can be printed according to your demands.
6. Plywood cases customized for sea transport.

FAQ

1. Which countries your products are exported to?
Our products are sold all over the world and with related certifications.
2. How about the warranty?
All our products have one year quality warranty, during the warranty time, the spare parts replacement is free. And we provide life long time technical support and other assistance.
3. How to install your machine?
We have paper installation instructions and videos, we will teach till you learn it.
4. Which export port you use?
Any China port, commonly we will use Shanghai, Ningbo port, it can appoint as you like.
5. How about the payment terms and delivery time ?
Payment terms for machines: 100% T/T/ Western Union
(we will shoot total delivering process for customer's confirmation)and the related papers. You can pay by T/T,L/C, Western Union or other ways.
The small machine delivery time is within 15 days ,we will delivery goods on time.
6. If I have paid but can not receive the goods, how should I do?
Made-in-China international website is a famous trade platform and has been mature those years ,every supplier on it has paid large integrity fund,and we have Chinese business licenses which can be checked on China official website or we can show it to you,so that situation will never appear, please be assured.

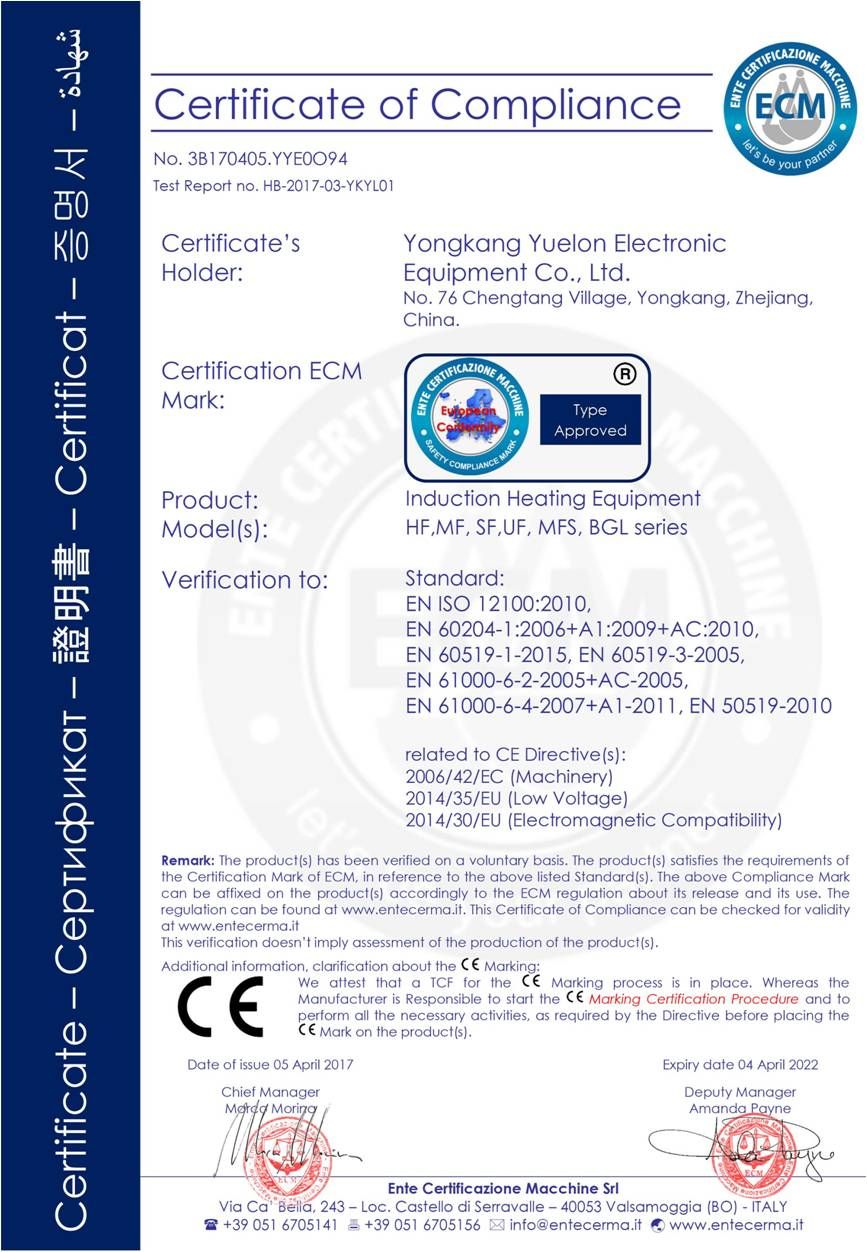

7. Is your goods has ISO9001 or CE certificate ?
Yes, all our goods has CE certificate. All machines are high quality goods.
8. What is your nature of your company:dealer or factory ?
We are manufacturer and have a big factory ,warmly welcome to visit our factory and contact us.

What can we do for you?
1. Choosing a suitable machine for you.
2. meet your special needs to provide machines work best.
3. To be your best partner, solve all your problem about induction heating.
(with us your money in safe your business in safe)
Our identification

We are specialized in the researching and manufacturing of transistor type medium and high frequency induction heating machine and related equipments. Our company was established in 1998 and is privately held.

Precision induction heating solutions are our specialty. Use induction heating to improve the effiency and effectiveness of your industrial heating process. That are used for application such as brazing, heat treating, annealing, hardening, bonding, hot forging, melting, shrink fitting etc.

Our induction heating machines are available from 2kw to 750kw deliverable output power with 0.5kHz to 1.1MHz operating frequency range. And 100% solid state technology. All our products are divide into three major series according to the frequency:
Medium Frequency series (MF series)
High Frequency series (HF series)
Ultrahigh Frequency series (UF series)

Depend on our advanced technologies, reliable solutions and excellent after service, our induction heating machines are sell well at home and abroad.
Welcome to enquiry more information, any questions or technique support, please contact us via e-mail for details. Your satisfaction are our team's goal.
