| Prod Model: |
MC-275C |
| Product Name: |
Pipe Cutting Machine |
| Max. Pipe Cutting Ability: |
80mm |
| Saw Blade Drive Motors: |
2.0/2.4kw/380V/50Hz |
| Saw Blade Speed: |
60/120rpm |
| Clamping Vise: |
Bilateral |
| Measurement Size Of Machine: |
650X800X1530mm |
| Warranty: |
1 Year, Life-Long Maintenance |
Product Description

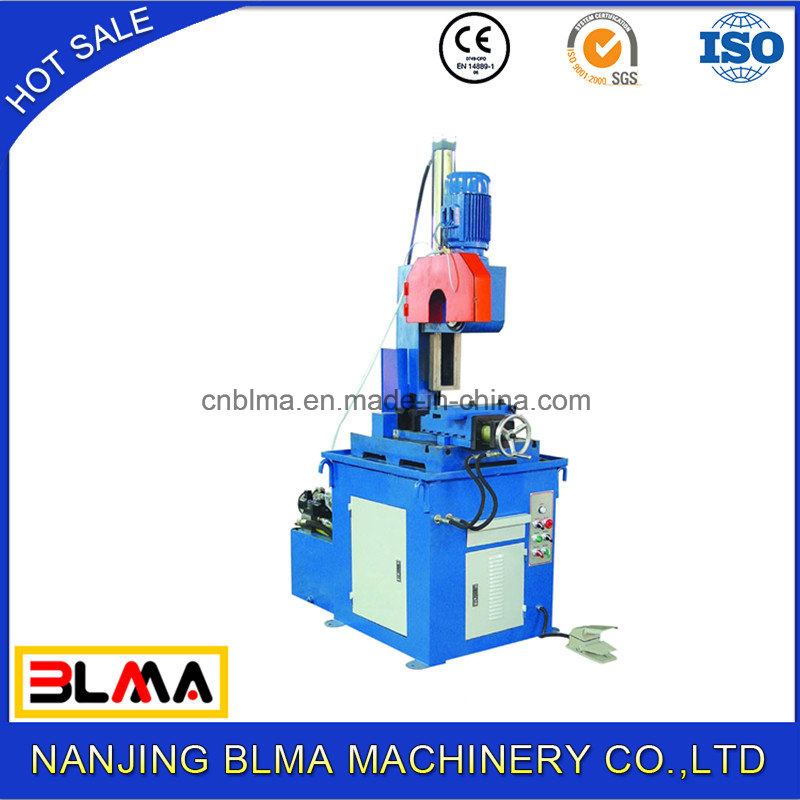

Hot sale electric stainless steel pipe cutting machine cutter
Machine video link in youtube: https://youtu.be/VKopxuOa6A8Main features:European-style high-strength machine head, high-efficiency worm provided, turbine drive, reaching high cutting efficiency, no noise or burrs. The machine head can turn for 45° on the left and right, angle is made clearly, which makes adjustment easier. Manual and pneumatic bi-directional clamp, automatic cooling system and hand regulated retaining ruler are provided.
No burrs and no dust
The bilateral and bi-directional clamps at both sides fix parts and ensure smooth cutting face without burrs. The saw cutting causes low noise and pollution.
Accurate-quick-bright and clean
Cutting prevision and speed are superior to that of band saw and bow saw. Meanwhile, the cutting face is bright and clean without heat generation, avoiding secondary processing.
Beveling or groove milling
Machine head can be adjusted to left or right for beveling or groove milling. The angle is accurate and the joint is perfect.
Cooling pump
The circulating cooling system has a large-capacity water tank to ensure service life of saw web and smooth cutting face. Technical parameters:| Model | MC-275C | MC-315C | MC-355C |
| Cutting angle | 90° | 45° | 90° | 45° | 90° |
| Round pipe | Φ80mm | Φ60mm | Φ100mm | Φ80mm | Φ100 |
| Square pipe | 60x60mm | 45x45mm | 100x100mm | 80x80mm | 100x100mm |
| Profile pipe | 60x60mm | 45x45mm | 100x100mm | 80x80mm | 100x100mm |
| Rectangle pipe | 60x80mm | 45x60mm | 100x90mm | 90x80mm | 100x100mm |
| Round bar | 38mm | 25mm | 55mm | 40mm | 75mm |
| Square bar | 38x38mm | 25x25mm | 50x50mm | 40x40mm | 75x75mm |
| Main motor | 2.0/2.4kw | 2.0/2.4kw | 2.4/3.0kw | 2.4/3.0kw | 2.4/3.0kw |
| Main axis roate speed | 96/48rpm | 48/24rpm | 100/50rpm | 80/42rpm | 36/18rpm |
| Suitable sawblade | 250/275 | 250/275 | 250/300/315 | 250/300/315 | 300/350/370 |
| Cooling water pump | 90w | 90w | 90w | 90w | 90w |
| Air compress | 0.4-0.6Mpa | 0.4-0.6Mpa | 0.4-0.6Mpa | 0.4-0.6Mpa | 0.5-0.8Mpa |

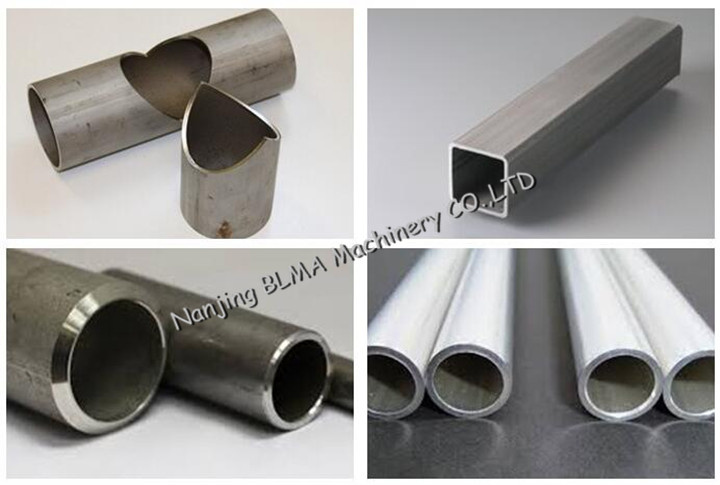

Sample pictures:

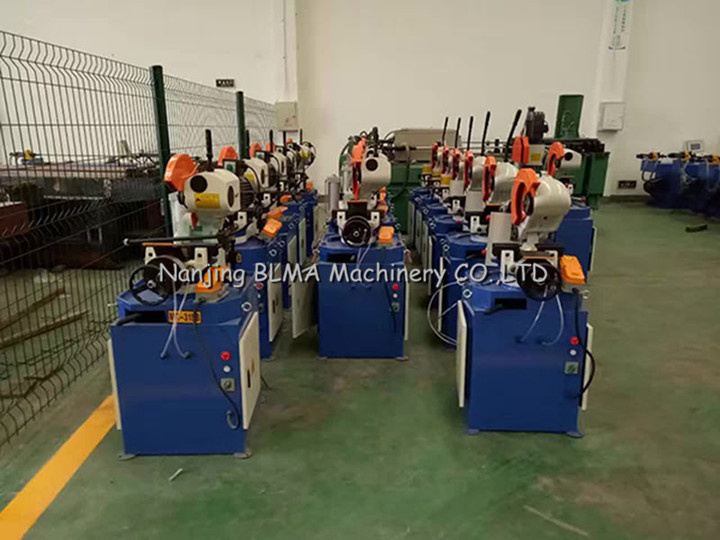

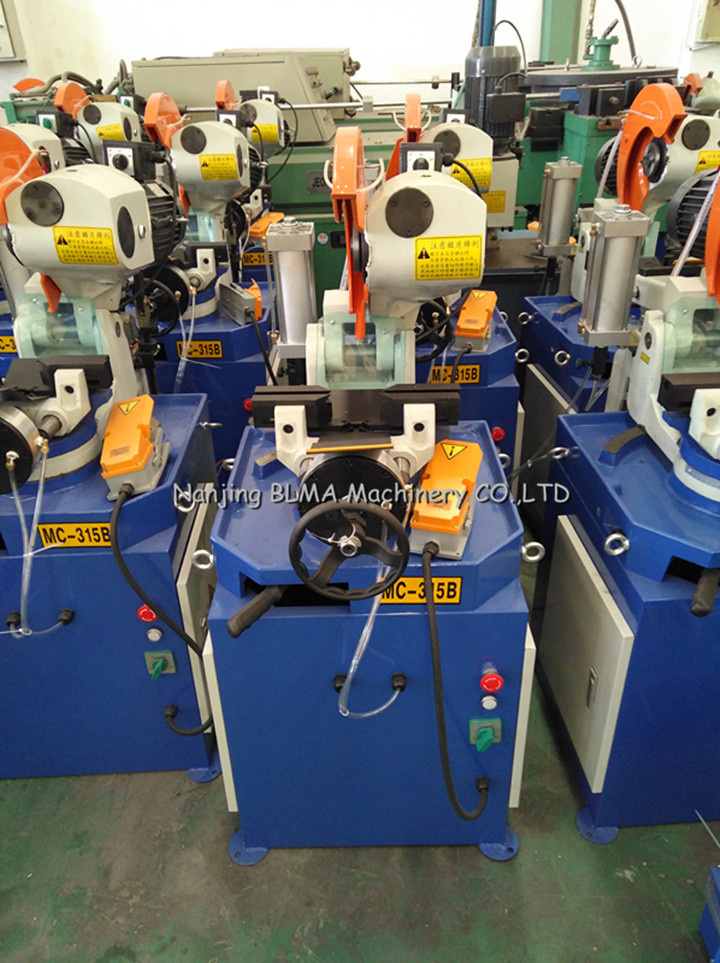

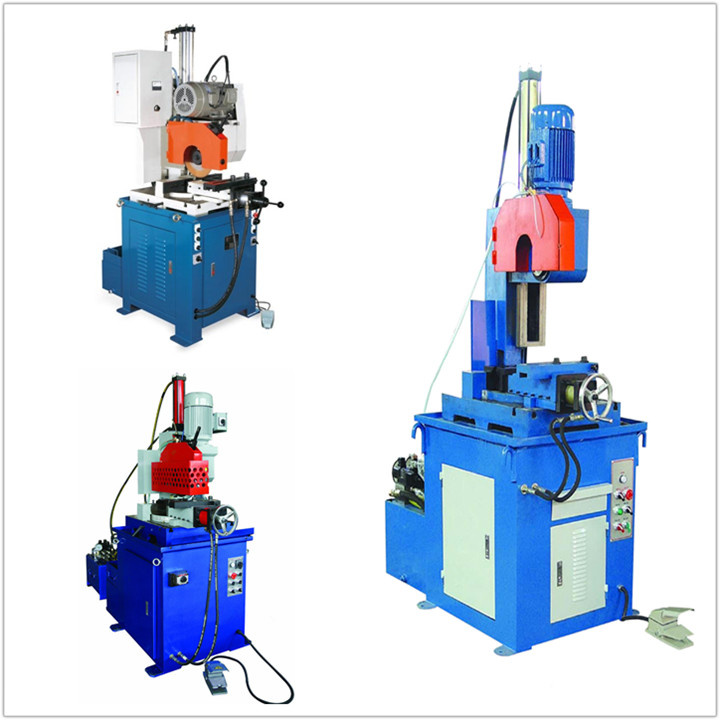

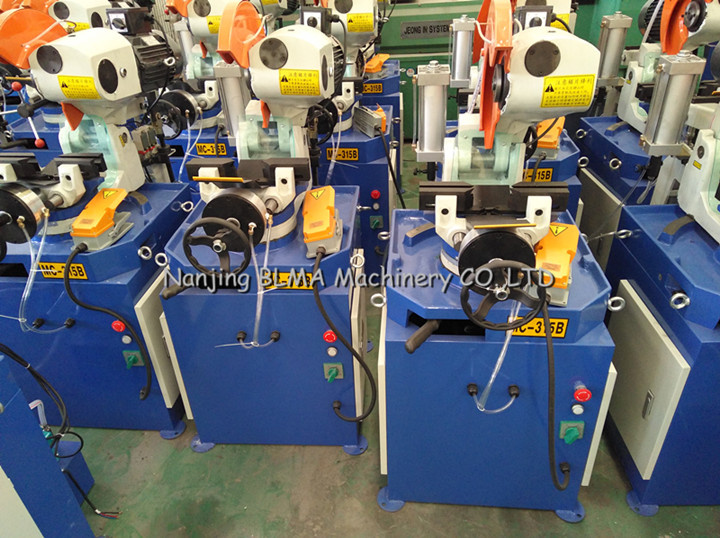

Machine photos:
Packing and Delivery:| We have our pipe cutting machine in stock,at most one week delivery. |
| The machine is usually packed in a professional exported case by shipping way. |
FAQ:1.Can I have your quotation?Please offer us the information of your pipe size,without parameter,we are not able to recommend you the suitable model of our pipe bending machine.2.Are you a manufacturer or trading company? Yes, we are a manufacturer.We are focusing on metal pipe/tube processing machinery. 3.Do you provide any training to make sure our user can operate the machine very well?1)We will provide detailed video and instruction book for this machine;
2)We also offer training in our factory to all the clients,and we will arrange everything for you during these days in our city,to make sure every client will be the expert in using our machine!4.You price are high?You get what you pay for, our price is based on good quality,We sell the machines all over the world with good feedback from our customers.5.What about your machine warranty?Our machine warranty is one year,and we use all the stable compoenents with long working life!
And we can also send our technician to do the after-sale service in client's factory!Contact way:If you have any inquiry or requirement about our pipe end forming machine,please feel free to contact me at any time:
