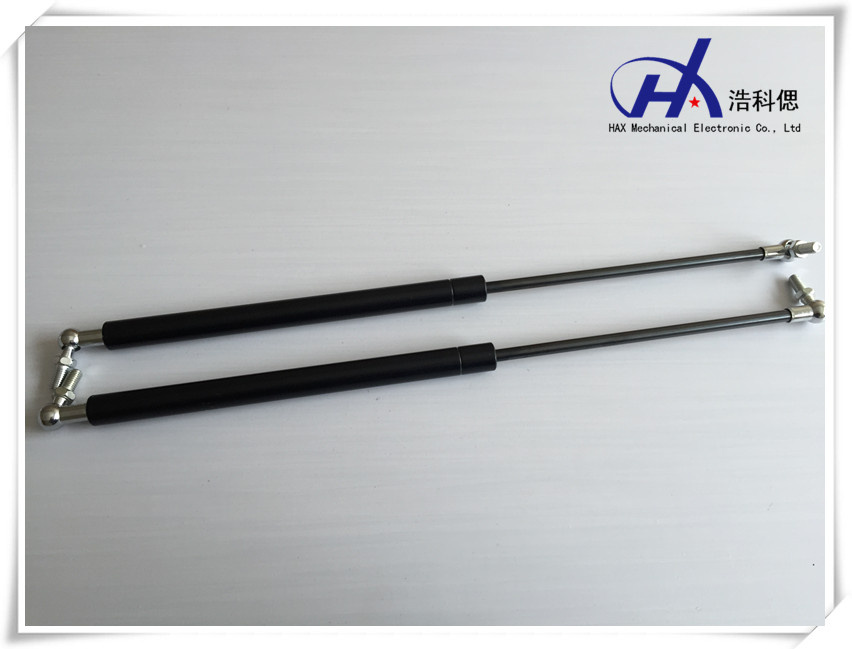

Hot Sale Gas Spring for Tool Box/Gas Strut for machinery
Price: |
US $ 1-2/Piece |
Min Order: |
2/Piece |
Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
Prod Model: |
HAX -YQL |
Delivery Time: |
3-5 Working Days After We Received The Payment |
Samples: |
Free Sample |
Size: |
Can Be Customized |
OEM: |
Is Available |
Gas Type: |
Nitrogen |
Color: |
Black or Silver-White or Other Color |
Fitting System: |
Ball Connector/Metal Eye/Clevis, etc |
Type: |
Pneumatic Cylinder |
Piston Rod: |
Chrome or Galvanized |
Characteristic1: |
Very Good Quality with Reasonable Price |
Usage: |
Boat |
Load Type: |
Compression |
Shape: |
Cylinder |
Material: |
Steel or Stainless Steel |
Extension Spring Classification: |
Lift Gas Spring |
Compression Spring Shape: |
Long |
Diameter Coil Spring: |
Can Customized According to The Customers Require |
Production Process: |
Produce |
Product Description
Why choose us? " QUALITY IS OUR CULTURE ""WITH US YOUR MONEY IN SAFE YOUR BUSINESS IN SAFE"1. Competitive Advantage Products2. Full REFUND in case of Bad quality OR Late Delivery3. Payment By Paypal, Western Union, TT etc we all can accept. 4. Confidentiality Agreement " Business Secret CONTRACT "5. Quality Assurance CONTRACT6. Small Order WelcomedSpecifications: Name | hot sale gas spring for tool box/gas strut for machinary |
Quality | 1.80, 000 times -passed SGS fatigue test |
2. RoHS certificated by SGS |
3. Passed ISO9001 and ISO/TS 16949 International Quality System Certification |
Use | Automobile; Auto, car; Furniture; Machines, mechanical equipment; Boat, container, etc. |
Material | Steel/ss304/ss316 |
Color | Silver/black/others |
Connector | Ball connector/metal eye/clevis and so on |
Advantage | 1. Pass 80, 000 times fatigue times |
2. We can supply samples for free |
3. Competivite price |
4. Fast delivery time: 1000 PCS 3 days |
The size could be made according the customer requirment. |

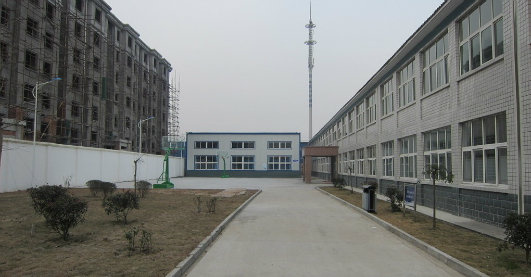

Features1. Gas: Nitrogen(99.999%). 2. Material: Finishing rolling seamless steel tube for cylinder, steel for piston rod. 3. Surface: Spray painting for cylinder, chrome plating for piston rod. 4. Color: Black, or as your requirement. 5. Quality: 100, 000 cycles; ISO/TS16949; ISO9001: 2008. 6. Operating Temperature Range: -15~+80ºC(5~176ºF)as standard; -50~+80ºC(-58~+176ºF) or -15~200ºC(5~392ºF) available. Packaging & Shipping1.1 piece in bubble pack or poly bag, 20PCS/carton or as your requirement. 2. Delivery time: 3-5 working days after we received the deposit. 3. Delivery term: FOB & CIF & CFR & EXW. 4. Shipment: Your appointed forwarder is acceptable or we send to your Chinese agentOur Services1. Customization and OEM are welcome. 2. Free samples are available. 3. Trade assurance orders are favored. 4. Other service which you need. About Us: Changzhou HAX Mechanical Electronic Co., Ltd, establish in 2011, located in Yangtze River Delta economic
Zone, Changzhou City. We are the factory which gathers production and sales of all kind gas springs and liner actuators. Our mainly products are:
Lift gas springs, lockable gas springs, tension springs, dampers and all kinds of linear actuators. Our gas springs and liner actuators are mainly used for all kinds of cars, buses, furnitures, boats, medical equipment,
Beauty chairs, aviation, many machines, agriculture machine equipment and so on. HAX has strict quality control system, and full sets of advanced equipment. We have flexible mode of operation, stable quality,
Complete catalog, excellent quality. HAX enjoys a good reputation in domestic and foreign market. Our product exports to
Europe, America, Southeast Asia, the Middle East, Russia, Africa and other countries. HAX now is growing and expanding, we have customers throughout the world. We sincerely hope: Hand in hand, we together create a better future! Certificates

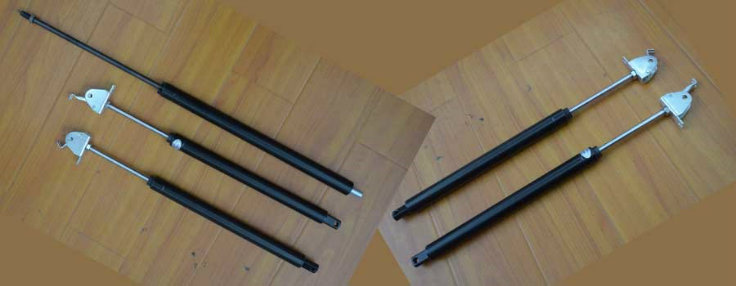

Other products: Lockable Gas spring
Applications:
Gas springs have multiple use which we didn't list here,
Please contact me freely to got more details! YQL Lift Gas Spring Catalogue |
MODE | EXTENDED LENGTH /mm | STROKE /mm | CYLINDER DIA/mm | PISTON ROD DIA /mm | MIN FORCE/N |
YQL001 | 113 | 30 | 12 | 4 | 35 |
YQL002 | 160 | 50 | 12 | 4 | 50 |
YQL003 | 219 | 80 | 12 | 6 | 40 |
YQL004 | 160 | 40 | 15 | 6 | 50 |
YQL004-1 | 195 | 65 | 15 | 6 | 100 |
YQL005 | 200 | 60 | 15 | 6 | 60 |
YQL006 | 220 | 65 | 15 | 6 | 75 |
YQL007 | 245 | 70 | 15 | 6 | 190 |
YQL008 | 250 | 90 | 15 | 6 | 50 |
YQL009 | 250 | 90 | 15 | 6 | 70 |
YQL010 | 250 | 90 | 15 | 6 | 80 |
YQL011 | 250 | 85 | 15 | 6 | 100 |
YQL012 | 280 | 100 | 15 | 6 | 90 |
YQL013 | 330 | 120 | 15 | 6 | 40 |
YQL014 | 380 | 140 | 15 | 6 | 100 |
YQL015 | 247 | 80 | 18 | 8 | 250 |
YQL016 | 280 | 100 | 18 | 8 | 150/250 |
YQL017 | 300 | 100 | 18 | 8 | 200 |
YQL017-1 | 315 | 115 | 18 | 8 | 150 |
YQL017-2 | 320 | 115 | 18 | 8 | 150 |
YQL018 | 350 | 130 | 18 | 8 | 150 |
YQL019 | 380 | 140 | 18 | 8 | 70 |
YQL020 | 400 | 150 | 18 | 8 | 150 |
YQL021 | 435 | 170 | 18 | 8 | 130 |
YQL022 | 450 | 180 | 18 | 8 | 340 |
YQL023 | 510 | 210 | 18 | 8 | 130/200 |
YQL024 | 550 | 220 | 18 | 8 | 300 |
YQL025 | 700 | 290 | 18 | 8 | 150/350 |
YQL026 | 200 | 40 | 22 | 10 | 500 |
YQL027 | 310 | 110 | 22 | 10 | 400 |
YQL028 | 350 | 130 | 22 | 10 | 200 |
YQL029 | 380 | 140 | 22 | 10 | 180 |
YQL030 | 450 | 170 | 22 | 10 | 700 |
YQL031 | 500 | 200 | 22 | 10 | 300 |
YQL032 | 600 | 240 | 22 | 10 | 400 |
YQL033 | 730 | 300 | 22 | 10 | 430 |
YQL034 | 280 | 100 | 25 | 12 | 900 |
YQL035 | 280 | 100 | 25 | 12 | 1350 |
YQL036 | 820 | 260 | 25 | 12 | 850 |
YQL037 | 640 | 260 | 28 | 14 | 1100 |
YQL038 | 1000 | 305 | 28 | 14 | 1500 |
YQL039 | 1500 | 600 | 28 | 14 | 1000 |
YQL040 | 2000 | 900 | 28 | 16 | 1600 |
YQL041 | 1200 | 500 | 40 | 20 | 4000 |
| | | | | |
Please referance the lift gas spring parameters range |
DIA | FORCE RANGE |
12*4 | 10N-100N |
15*6 | 10N-300N |
18*8 | 50N-700N |
22*10 | 100N-1500N |
25*12 | 100N-1400N |
28*14 | 100N-3000N |
28*16 | 100N-3000N |
40*20 | 300N-4000N |
| | | | | |
Note: The size and force we can produce according to the customer's requirements. |
