Hot Sale Laser Cutting Cutter 700W Fiber Laser Cutting Machine
| Price: |
US $ 58300-61000/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
| Prod Model: |
EETO-FLS3015-700W |
| Paint: |
Red and White |
| Lead Time: |
Within 40 Days |
| Accelerated Speed: |
1.2g |
| Assistant Gas: |
Oxygen,Nitrogen, Compressor Air |
| Total Electrical Power Consumption: |
8.5kw |
| Dimension: |
4600*2150*1700mm |
| Load Capactiry: |
1000kg |
| Machine Body Technology: |
Tube Sheet Welding |
| Annealing: |
Yes |
| Abrasive Blasting: |
Yes |
Product Description
Hot Sale Laser Cutting Cutter 700W Fiber Laser Cutting MachineFiber laser cutter is a type of laser cutter. And our EETO-FLS3015 Series fiber laser cutter have the best cost performance in China's laser cutter industry! Why I say this? After you read the information as follow you will know the reason and you will find every machine of us is an excellent work you have never seen before!Why choose fiber laser cutting machine?Firstly let me show you what our fiber laser cutting machine can do for you, you can find what you need to do by fiber laser cutting machine in the follow pictures:
So now do you have a little interest about fiber laser cutting machine? But in order to save your time, here still need to let you why should you choose fiber laser cutting machine not other machine or other kinds laser machine, kindly list for you as follow:(Anyway, if you have used fiber laser cutting machine before, please just skip over this part and start reading from the blue words below several paragraphs)
Here is a comparison between laser cutting machine and other cutting machines:| Processing Technics | Laser Cutting Machine | Plasma Cutting | Water-jet Cutting |
| Metal cutting thickness | Thin (≤25mm) | Thick (≤80mm) | Thickest(≤100m) |
| Processing precision | Highest (≤ ±0.03mm) | Low (≥ ±0.5mm) | High(≤ ±0.1mm) |
| Cutting speed | Fastest(≤60m/min) | Medium(≤10m/min) | Slow |
| Cutting quality | Smooth | Rough | Smooth |
| Workable materials | CS/SS/Alu/Brass/Gal
(Sensitive to high reflective metals) | CS/SS/Alu/Brass/Gal
(Sensitive to high reflective metals) | All the metal materials |
| Processing efficiency | Highest | Medium | Low |
| Noise | Low | High | High |
| Power consumption | Low | High | High |
| Maintenance cost | Low | High | High |
You can see laser cutting machine is very suitable for cutting thickness below 25mm metal materials compare with other cutting machines. And compare with Co2 laser cutting machine, fiber laser cutting machine can do better:
1. Excellent Laser Beam Quality: Fiber laser has smaller focus diameter, high work efficiency and high cutting quality.
2. High Cutting Speed: Cutting speed is more than 24m/min, almost 2~3 times more than same laser power Co2 laser cutting machine.
3. High Stability: Using the best import fiber laser generator, and all critical components' lifetime up to 100,000 hours.
4. Save Cost: Low electric power consumption, it is only about 20%-30% of traditional CO2 laser cutting machine; Save gas, fiber laser cutting machine has unique air cutting technology, low gas consumption.
5. High Efficiency For Photoelectric Conversion: Compare with CO2 laser cutting machine, fiber laser cutting machine have 3 times photoelectric conversion efficiency.
6. Easy Operation: Fiber line transmission, no adjustment of optical path and suitable for flexible manufacturing requirements.
7. Low Maintenance: Fiber optical transmission no need reflect lens and xenon lamps, save a lot of maintenance cost.
8. Low Environmental Pollution: With cover and exhaust fan there is less radiation and dust.
According to these information you can know fiber laser cutting machine is truely has many advantages for metal cutting compare with many other cutting methods. So just keep looking and let me tell you more attractive things of this fiber laser cutting machine!Why choose our EETO-FLS3015-700W not any other model?(Blue words is here! Welcome your attention dear Specialist!) First of all, still need to show you some short technical parameters of this model so you can decide this model is meet your cutting requirement or you can change to scan our other models: http://eetolaser.en.made-in-china.com/
Technical parameters of EETO-FLS3015-700W:| MODEL | EETO-FLS3015-700W | STRUCTURE | Gantry type |
| OUTPUT POWER | 700W | DRIVEN STRUCTURE | Duel-driven |
| CUTTING AREA (L*W) | 3000*1500mm | DRIVEN MODE | Servo control(X axis 1.8KW, Y axis 3KW) |
| RATED CUTTING THICKNESS | 8mm CS; 4mm SS | X AXIS STROKE | 3020mm |
| MAX CUTTING SPEED | 320mm/s | Y AXIS STROKE | 1520mm |
| RATED IDELING SPEED | 80m/min | Z AXIS STROKE | 150mm |
| POSITIONING ACCURACY | ±0.03 mm | COOLING | Water chiller |
| RE- POSITIONING ACCURACY | ±0.02 mm | AMBIENT TEMPERATURE | 5ºC-45ºC |
| CUTTING GAP | 0.1mm | BEARING WEIGHT OF TABLE | 1000Kg |
| CONTINIOUS WORK TIME | 24H | PROTECTION LEVEL | IP54 |
| POWER SUPPLY | AC380V±5%(50Hz/60Hz) | TOTAL GROSS WEIGHT | 6000kg |
| TOTAL POWER | <8.5KW | TOTAL DEMENTION(L*W*H) | 4600*2150*1700mm |
From the above chart you can see our main paramters is better a lot than many other same laser power machine. And then let us see its cutting ability.
Cutting Ability of EETO-FLS3015-700W:| Material | Thickness(mm) | Cutting Speed(mm/s) | Gas |
| Carbon Steel | 1 | 230 | Air |
| 2 | 65 | Oxygen |
| 3 | 33 | Oxygen |
| 4 | 25 | Oxygen |
| 5 | 20 | Oxygen |
| 6 | 15 | Oxygen |
| 8 | 11 | Oxygen |
| Stainless Steel | 1 | 320 | Nitrogen |
| 2 | 60 | Nitrogen |
| 3 | 30 | Nitrogen |
Note: Glad to tell you a secret here! 1mm CS is too thin, if cut with Oxygen will make the CS material out of shape! So we usually suggest customer cut 1mm CS with Air, many other manufacturers don't know this!
After scan the above information I think you have already got an impression for this model. And if you have scan some other supplier's cutting information you will find our model is fast a lot! So now I guess you have interest to know more about our EETO-FLS3015-700W. Don't worry, let me show you some more amazing things we did before and can provide for you in the future!What attractive advantages you can find in our EETO-FLS3015-700W fiber laser cutting machine?
* Best cost performance configuration in China
A professional buyer always care about several points for configuration, include the technology used for machine body, main parts of the machine and other value-added details. Our configuration has been verified by thousands of customers and I believe you will be the new one!
For machine body, we use tube sheet welding structure, which is the best stable structure so far, total weight up to 6 tons, and every machine should apply annealing and abrasive blasting, which can strengthen the welding spots' stability and get a neat and beautiful machine. I think every customer buy this machine in China will have a look in China, whatever you will choose in the last, but don't come our factory to have a look will be a big lost for you!

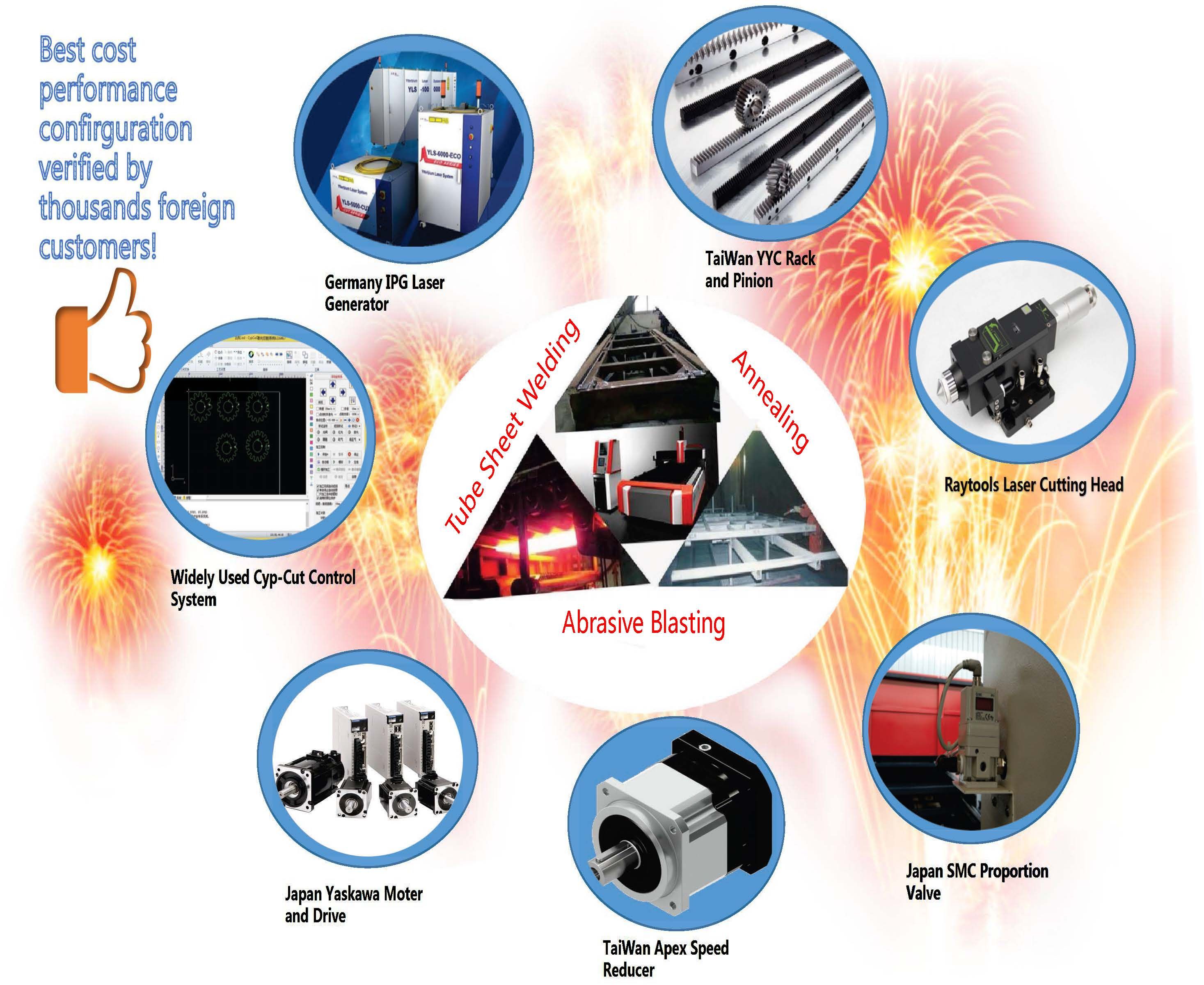

Then let's take a look for the main parts of this model, you can see our EETO-FLS3015-700W has used only famous and good quality parts:
What's more, this model even has many value-added details, include voltage stabilizer, air conditioner for laser, many innovative designs to improve the machine's appearance, sheet feeding device, additional accessories package and so on. More value-added details welcome come to our factory and you will find by your own eyes!
* Strict quality inspection and testing before shipping
Here I really want to complain our quality inspection department, because their strictness can even make you crazy! From the inflow of materials to the output of finished equipment, our quality inspection department's work interspersed the whole processing. In addition to deal with the statements in the office, each quality inspection staff in EETO always stay in the production line in other times!
Their work is abundant, include feeding inspection, processing control, testing before shipping, collecting suggestions. This indicates that our quality department begin functioning at the moment the material flowed into the production line!
1. For feeding inspection, we usually used both full inspection and sample testing.
2. During processing control, the quality department will make a plan for the production technics, to test the production department's installation practices and installation procedures meet the international standard or not, and ensure the final products can meet user's requirements. During this period, there will be questioned directly to the individual if any problem happened.
3. Testing before shipping includes the machine's appearance, sports performance and cutting accuracy. To test the machine's appearance is also a slow work out of the processing, it's include inspecting sizes, machine cover, zero, limit, oil, air, water, table flatness, distance from laser head to table and so on. And sports performance is a series of running testing by more than 3 days. Cutting accuracy will be measured by 3D projector after cut round, square and oval patterns.
4. In order to improve our quality, our inspection department will collect the feedback from our customers regularly and provides countermeasures, then apply the optimized design to our machine in time.
* Fast and safety packing and delivery
After finished the quality inspection and testing then we need pay attention to the delivery of the machine. Some customers maybe wonder that is there any big difference for delivery? Because delivery generally include packing and shipping, now many factories can meet international standard. But my friend, what I want to tell you is that the international standard can't stop us doing better! And in fact we did better, at least these points we did as follow many factories never did:
1. We can pack the machine ready before customer pay the balance payment, so our delivery speed always faster than many other factories.
2. If you have imported laser cutting machine before, you will know the machine body is easy to rust. In order to avoid that, we always stick a seal on the machine body to separate it from air, and will make a vacuum packing before wooden packing to strengthen this.
3. We usually add an insurance for free to customer.
4. Every parts of our fiber laser cutting machine will have an individual packing, and we will give serial number to every packing so customer can find every box very easy.
* Various and convenient after-sales service
For many factories, after-sales service always only include warranty of the machine or even some of them don't have any warranty, what we can do is outdistance this. Just list several things you will know why I said we did better:
1. Additional warranty and low prices for consumable parts: For generally warranty, we can not only have warranty of our machine, but also have warranty for the consumable parts of our machine. And even though out of the warranty time, we will still offer the consumable parts for you with cost prices. (If you have doubts welcome send email to me and I can send you our consumable parts' prices list so you can compare with other factories.)
2. Complete industry solution for every customer: As you see we are the integration of industry and trade enterprises, so compare with the general factories, what we can provide for you is not only an excellent fiber laser cutting machine, but also a series great industry solutions to expend your business. And whatever other business you want to know related to laser machine, we can give you enough good advice.
3. Perfect assistance to our new agent: Some customers will be have interest to be our agent in the future, because we have the similar case before, what we can do for you is to send our professional engineers to your site to help you build your own team! What's more, we will be glad to help these new agents in exhibitions and sales, for example, send machine to the exhibition for free, undertake the fees of the exhibition together with our agents and so on.
And there are more things want to tell you face to face! But before visit us you will only have exciting imagine for our fiber laser cutting machine, after come and see our machine you will know all of the exciting imagine will be true and better!
Words here, I think you will have some questions about our fiber laser cutting machine, so kindly list some FAQ to save your time:
FAQ:
Q: What's the working area of our fiber laser cutting machine?
A: Our standard working area is 3000*1500mm. But we can also do customized sizes as request.
Q: What's the laser power of our fiber laser cutting machine?
A: Now our standard laser power include 300W, 500W, 700W, 750W, 1000W, 1500W, 2000W, 3000W and 4000W. And usually use Germany IPG laser generator, but can also choose Raycus Laser as your request to save money.
Q: What materials can we cut? What's the cutting thickness of fiber laser cutting machine?
A: Fiber laser cutting machine can cut most metal materials, but generally used for cutting carbon steel and stainless steel. Cutting thickness is from 0.5mm to 25mm according to different laser power.
Q: How to install the fiber laser cutting machine?
A: We will send our technician to customer's place for machine installation, commissioning and training. Our quotations include all the installation fees.
Q: In case machine gets problem when customer use it, how to do after sales service?
A: We provide two years machine warranty. During the warranty, in case machine exists problem, we will provide parts free of charge by express. After the warranty, we still provide lifetime technical support service. And we have agents in many countries, which can offer local door-to-door technical services to our customers.
Q: If we need to cut work-piece with different height, is it available?
A: Yes, it can cut work pieces with different height. The focus length can be adjusted automatically of our fiber laser cutting machine.
Q: Can we cut both sheet plate and pipe in one machine?
A: Yes, our sheet and pipe laser cutting machine can do that.
Q: What's the delivery time?
A: Generally speaking, lead time is within 40 days after receive the deposit.
Now do you want to get one? If you want our fiber laser cutting machine, you just need let us know following information:
1.What kind of materials you want to cut ?
2.What is the frequently cutting thickness and what is the maximum cutting thickness?
3. What is the MAX. dimension of your materials ?
4. After cut, what will be the work-pieces used for? (Application)
5. Are you an end user or broker?
According to the above information, we can recommend the most suitable laser cutting machine to you! Welcome your inquiry and let me show you more amazing advantages of our fiber laser cutting machine!
