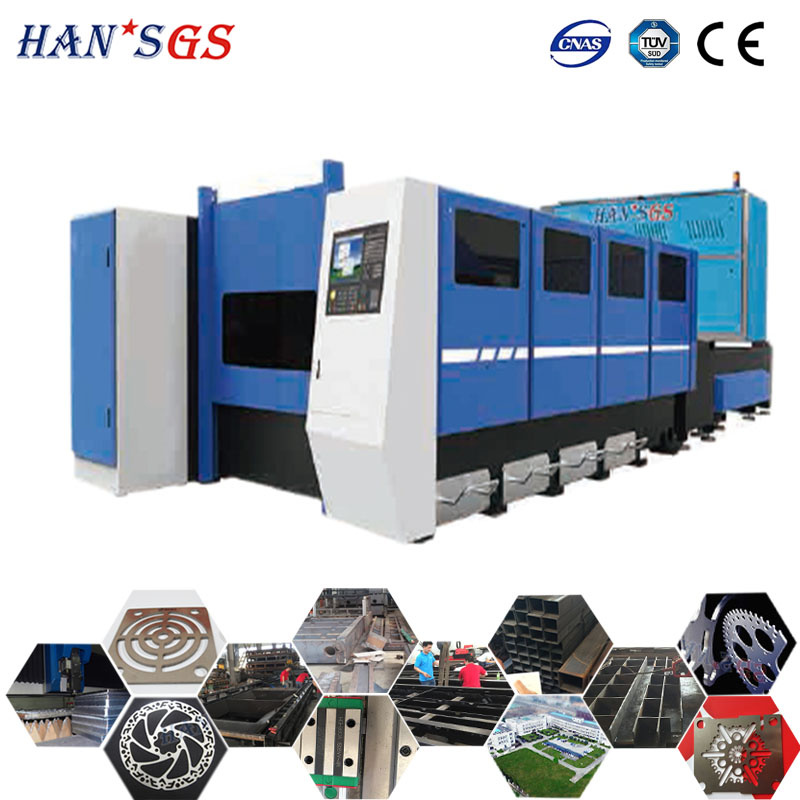

Hot Sale Laser Cutting Machine Low Cost Laser Cutter
| Price: |
US $ 152000/Piece |
| Trade Terms: |
FOB,CIF,EXW |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
| Prod Model: |
GS-LFDS3015 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Power Source: |
Fiber Laser |
| Size: |
3000*1500mm |
| Laser Source Medium: |
Fiber |
| Cooling Form: |
Water Cooling |
| Driven Model: |
Imported Servo Motor |
Product Description
Hot Sale Laser Cutting Machine Low Cost Laser Cutter
Fiber Laser Cutting Machine Technical Parameters | Model | GS-LFDS3015 | GS-LFDS3015 | GS-LFDS3015 |
| Laser source medium | Fiber |
| Cutting range(L*W) | 3000mm × 1500mm | 3000mm × 1500mm | 3000mm × 1500mm |
| Z axle stroke | 150 mm |
| Max cutting speed | 40m/min | 42m/min | 45m/min |
| Max positioning speed | 140m/min |
Wok platform size/Max
height of feeding material | 4250x2500mm/more than 120mm |
| Cooling form | water cooling |
| Laser wavelength | 1070nm |
| Output power of laser source | 1000W (imported) | 1500W (imported) | 2000W (imported) |
| Min. cutting gap | ≤0.1mm | ≤0.125mm | ≤0.125mm |
Positioning accuracy of X,
Y and Z axles | ±0.03 mm |
Repeated positioning accuracy
of X, Y and Z axles | ±0.02 mm |
Thickness of cutting material
(according to material) | 0.2-8mm | 0.2-12mm | 0.2-16mm |
| Drive model | Imported servo motor |
| Power requirement | 380V,50/60Hz |
| Working temperature | 5ºC-45ºC |
| Continuous working time | 24 Hours |
| Machine weight | About 5950Kgs |
| Outer dimension | 7828mm x 3741mm x 1940mm |
Total protection level of power
supply | IP54 |

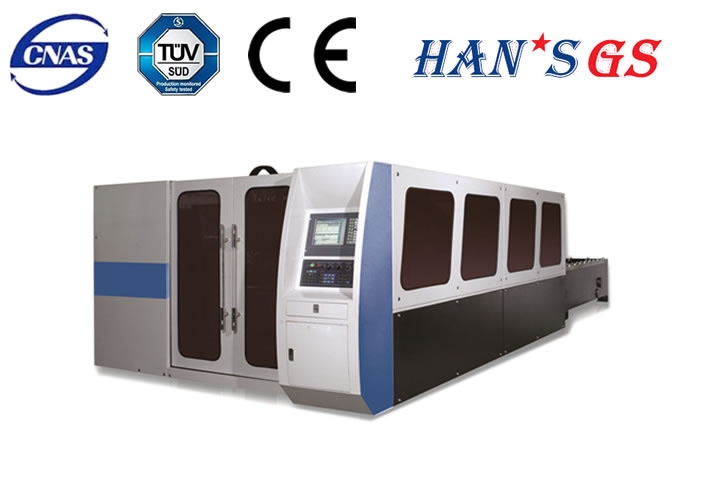

Functions of GS-LFDS3015 laser cutter1. Excellent overall performance, changeable working tables, 7 seconds to finish high speed changing, improve working efficiency of more than 48%.
2. The machine tool includes loading area and processing area, standard configuration is changeable working tables, auto change the workpiece between processing area and loading area by motor, convenient to upload and download. With the design of changeable working table, could prepare the next uploading while processing, highly improved working efficiency.
3. Equipped with exhaust device, have good exhausting effect and little pollution.
4. Small occupied area, high system integration, convenient to operate and maintenance, 24 hours continuous working.

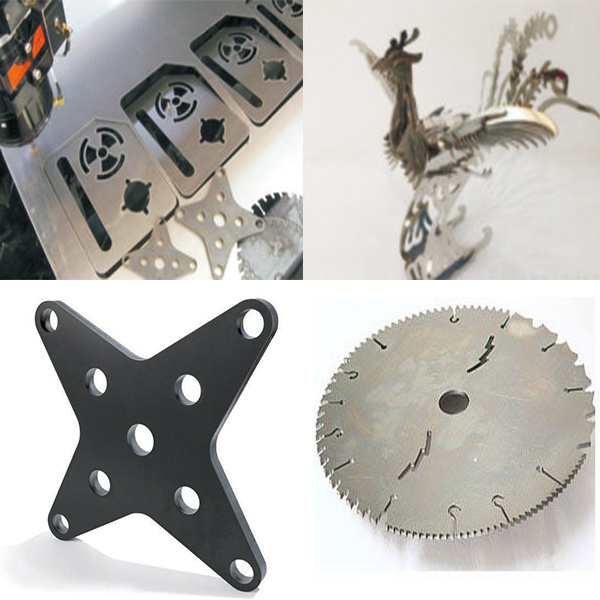

5. The water chiller has good safety protection function, such as over temperature, lack phase, pressure, water-break, undervoltage, overload, etc. With stable performance, satisfied the cooling requirement of laser source.Cutting Machine Sample
Wuhan Hans Goldensky Laser System Co., Ltd is subsidiary company of Han's Laser Technology Industry Group Co., Ltd, (stock code: 002008). We are high-tech enterprise specialized in R&D, manufacture and sales for complete equipment of high-power laser source, laser cutting, laser welding, laser fusion covering, laser heat-processing and high-speed laser punching machine. We also provide automatic processing solving plans.
Company has been successively undertaken the national development and reform commission (NDRC) national high-tech industrialization demonstration projects, the top ten key projects in Hubei province, Wuhan city top ten industrial projects of science and technology, and other government science and technology projects, including three products listed as a key project of national torch plan by the national ministry of science and technology. We successively obtains the national innovation fund, the electronic information industry development fund and a number of special fund support of Hubei province and Wuhan city, to be listed as the key innovation enterprise in east lake development zone, the key support leading enterprise in "large-scale laser equipment system integration and the new type laser manufacturing field" in Wuhan's 11th five-year plan.
Most of the products of our company has fully independent intellectual property rights, widely used in steel metallurgy, petroleum, tobacco, automobile, machinery, aerospace, chemical, home appliances and other manufacturing industries. In the future, the company will continue to be based on innovation of new and high technology, using its own technology advantages to contribute to the industrialization development of laser processing complete equipment.
