| Prod Model: |
RZCAM5-0906A |
| Working Area: |
900mm X 600mm |
| Machine Dimesion: |
1320mm X 1000mm X 970mm |
| Weight: |
175kg |
| Cutting Speed: |
0mm - 800mm/S |
| Cutting Thickness: |
0.5mm - 2.0mm |
| Original Place: |
Guangdong, China |
| Name Brand: |
Ruizhou |
| Voltage: |
220V±10%; 380V ± 10% |
| Cutting Material: |
Plastic Sheet, Cardboard, Paper, PVC Film, etc. |
| Tools: |
Drawing Pen, Knife |
Product Description

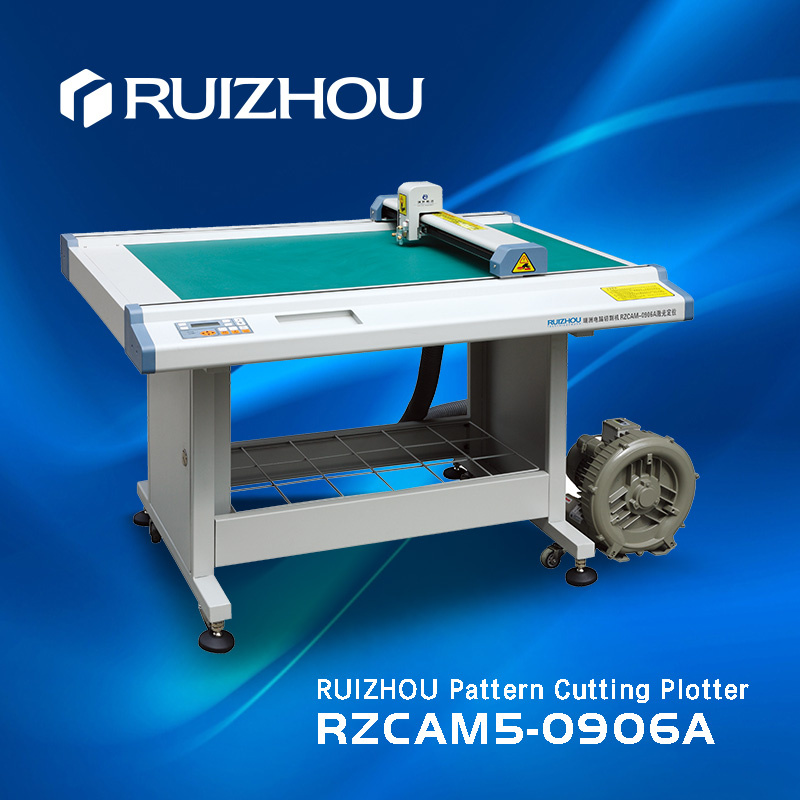

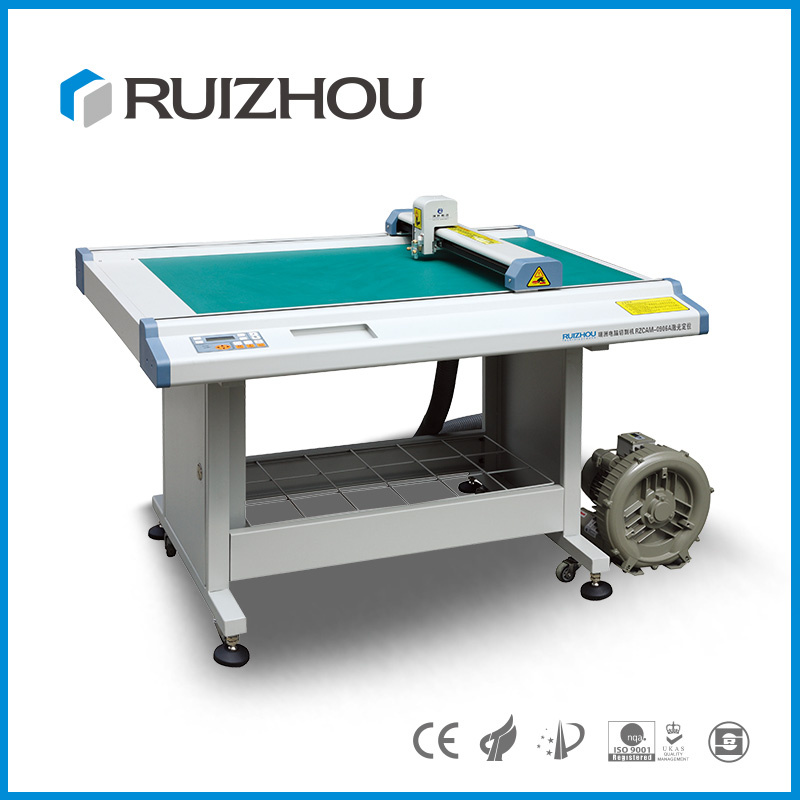

Hot-Sale Paper Cutter Machine Dieless Cutting Machine
Ruizhou pattern cutting plotter is speciallized in pattern cutting.
Ruizhou cutting plotter can be applied to industries as footwear, apparel, bag, decoration, etc.
Generally, the material of these patterns are cardboard, kraft, PVC film, or thin plastic sheets, etc.
Parameter of Paper Cutting Machine| Model of patterncutting machine | RZCAM5-0906A |
| Effective working area | 900mm×600mm |
| Cutting speed | 0-800mm/s |
| Cutting thickness | 0.5-2mm |
| Method of fixing material | Vacuum absorption Electrostatic absorption Adhesive adherence |
| Cutting tools | Vector knifes |
| Types of pen | Gel pen, Mark pen, ball pen, silver pen |
| Knife property | 8 different types of cutting property, complete cutting, kiss-cutting. |
| Motor | Servo Motor, Stepper Moter |
| Cutting accuracy | ±0.1mm |
| Machine resolution | 0.01mm |
| Software resolution | 0.025mm |
| Computer connecting | RS232 serial part, LPT, RJ45 network port |
| Memory | 4MB |
| Software program | HP-GL and GP-GL compatible mode |
| Human Machine Interface (HMI) | LCD display, Touch control button, Touch screen |
Characteristics of Paper Cutting Machine1.Computerized. The machine receives data from the computer and run. Therefore, the accuracy is high and speed is high.2.Compatible. The plotter supports any design software which can output files in DXF or PLT formats (Such as AutoCAD, AI, CorelDraw).3.Competitive. Easy to modify old designs and make new ones, 3-5 times faster than manual cutting, these helps you to be more competitive.4.Userfriendly. This cutting machine was designed easy to install, set-up and operate. Within a 3-day training, a new operator can master the machine quite well.Tools and Functions of Paper Cutting Machine
Functions1.Cutting. The machine cuts with knife.2.Drawing. A pen holder is also installed on the machine, which can be used for marking, drawing or noting.3.Pressing. A sapecial needle can also be optional for pressing folding lines. It is only needed when the material is thin plastic sheet.Cutting Samples of Paper Cutting Machine
Our Advantages of Paper Cutting Machine
Innovative Features
| Advantages |
Imported American CPU Precise electronic components | To make the stability and operability of pattern cutting machine reachs world-class level. |
| Self-developed built-in CNC control system | Full intellectual property rights of this system can ensure constant upgrade on this control system. |
Accurate lase registration system Precise cutting head | Suitable for high accurate cutting |
| mported linear guide rail & famous driving motors | Ensuring fast cutting speed, smooth cutting process, high accurate and the repeatability of cutting result can reach down to zero error. |
Warranty & afert sale service
1.One year guarantee for whole machine except of consumables such as knife blade, mat.
2. A free training at our company
3. 24 hours technical support
4. Calling or door-to-door service
5. User friendly English software, usual manual and videos.
Packaging of Our CNC Cutting Machines

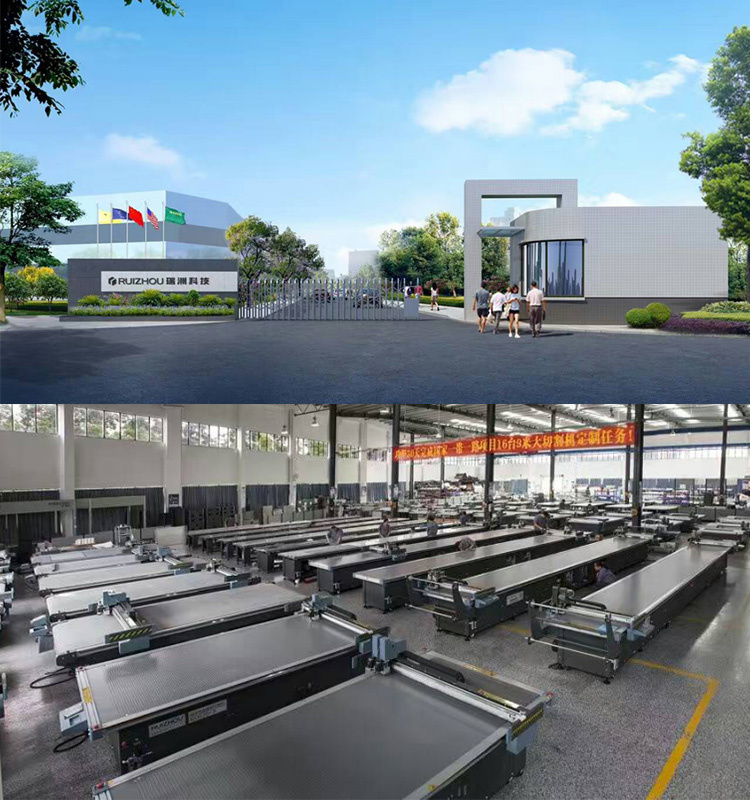

Factory ShowGuangdong RUIZHOU Technology Co., Ltd is a national Torch Plan High-tech Enterprise, specialized in the research, development, sales and technique service of soft material intelligent CNC cutting machine.
RUIZHOU Technology has been dedicated in supplying informationized and automatic design and whole solution of intelligent production for a broad community of soft material manufacturers, which achieves the realization of the confluence of informatization and industrialization.
Certifications
Related Products of Our Paper Cutting Machine
| Item Number | Working Area |
| RZCAM5-0906A | 900X600MM |
| RZCAM5-1209A | 1200X900MM |
| RZCAM5-1509A | 1500X900MM |
| RZCAM5-1512A | 1500X1200M |
| RZCAM5-1812A | 1800X1200MM |
Note
Please contact with us for an accurate price;
It will be appreciated if you could kindly advise us your requirements in details!
Ruizhou Technology Co., Ltd., specializes in the development and application of digital cutting plotter and related CAD/CAM software for such industries as footwear, garments, suitcases & bags, lamps and autos. Located in Foshan City, China, our company is a high-tech enterprise which integrates the development, manufacture and marketing & sales of flat computerized cutting plotter and related mechanical-electrical products.
Guided by the corporate motto "we strive for what you demand", Ruizhou teams have, for the past decades, continuously made progress both technically and intellectually. And the corporate spirit "The Client Comes First and Striving Constantly For The Better" has been fully expressed in the development of digital cutting plotter and RZCAM/CAM software. We meticulously select every component for our products and attach great importance both in functions and appearance of our products. In addition to the acquisition of several patents as Chinese practical new-tech products and designs, Ruizhou, being accredited by ISO9001: 2000, is also granted the title of "Private High-Tech Enterprise" by the Department of Science and Technology of Guangdong Province.
With reliable technological supports, reasonable prices, excellent and prompt service, and efficient management as cornerstones for progress, Ruizhou serves clients with great sincerity, making its way into world market with quality services, establishing brand with credibility and striving for the best so as to win the trust and recognition of clients. Our current markets include South Korea, Indonesia, Mexico, Malaysia, Vietnam, as well as Hong Kong and Taiwan region, our products have been well received by numerous enterprises and designing institutes from across the world.
Ruizhou is waiting for you in the new IT era!
