Hot Sale Portable CNC Plasma Cutting Machine/Portable Plasma Cutter/Plasma Cut CNC
| Price: |
US $ 5000-6000/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union |
| Prod Model: |
1325/1530 |

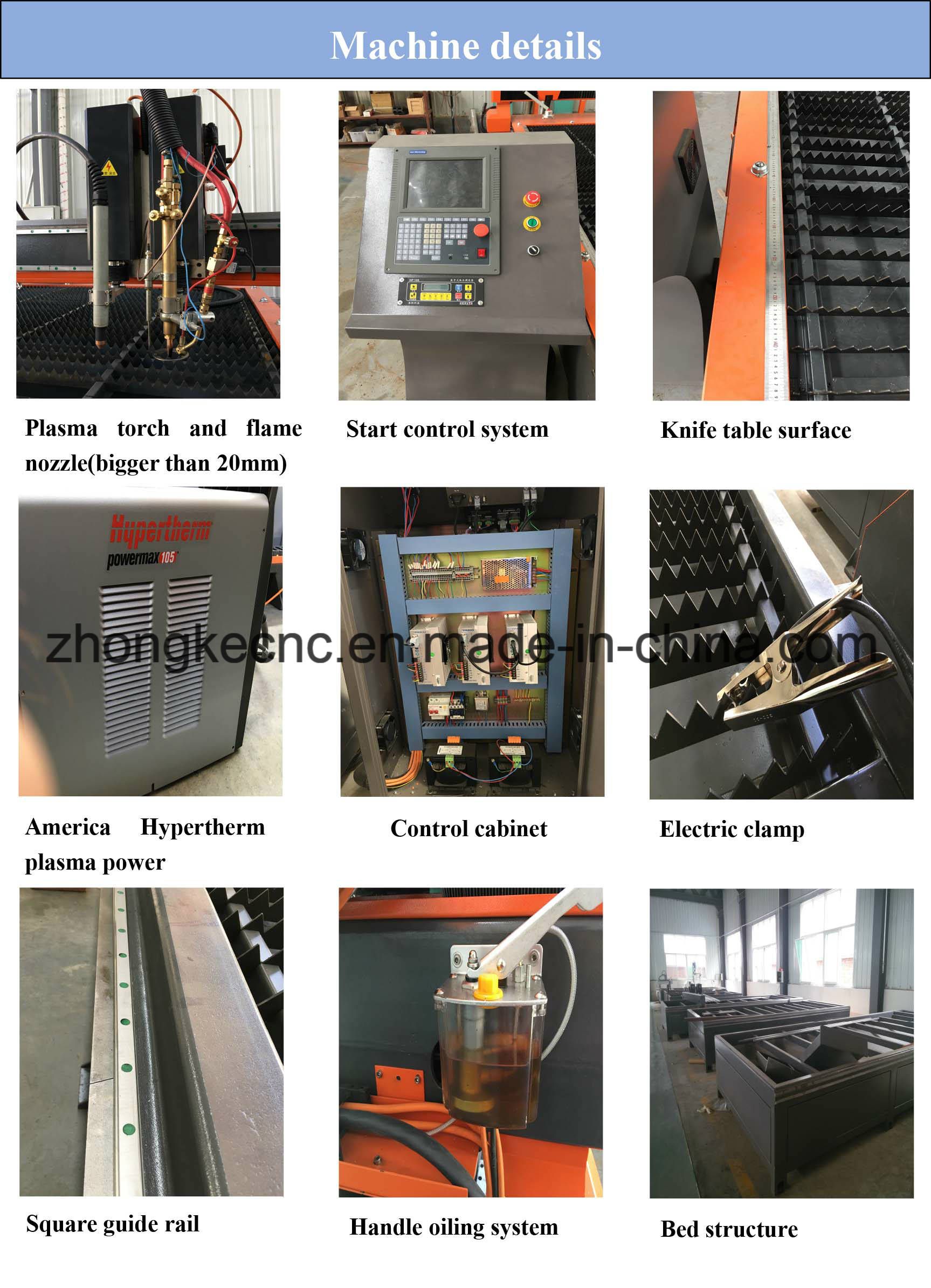

| Torch: |
Plasma Torch and Flame Nozzle(Op) |
| Rail: |
Hiwin Square Guide Rail |
| Transmission: |
Helical Rack |
| Table: |
Knife Table |
| Bed: |
Weled Bed Structure |
| Control System: |
Start Control System |
| Power Supply: |
China Lgk/America Hypertherm |
| Motor: |
Stepper Motor |
| Lubricating: |
Handle Oiling System |
| Application: |
Indusrtrial Metal Cutting |
Product Description
Features:1 .The machine is all welded as seamless steel structure. Steady structure and long life time
2. High configuration, high cutting speed and precision.
3. Cutting material: steel, copper, iron, aluminum, galvanized sheet, titanium plates.
4. File format: G-code
5. Suitable Software :ARTCUT, Type3, ArtCAM. Beihang Haier.
6. Different power: 100A /160A /200A for different thickness cutting
7. Higher configuration is optional, such as, servo motor and America HP plasma power
Technical parameters:| Model | ZK 1325 |
| X,Y working area | 1300×2500mm |
| Bed structure | Steel structure with water sink |
| Cutting speed | 0-8m/min |
| Working speed | 0-50m/min |
| Power | 8.5KW-10.5KW |
| Voltage | 380V/50HZ |
| Driver motor | stepper motor |
| Interface | USB |
| Arc starting way | Contactless arc starting |
| Driving mode | Wheel gear |
| Highly of Z axis | Arcing voltage to reset to higher(optional) |
Applied area:

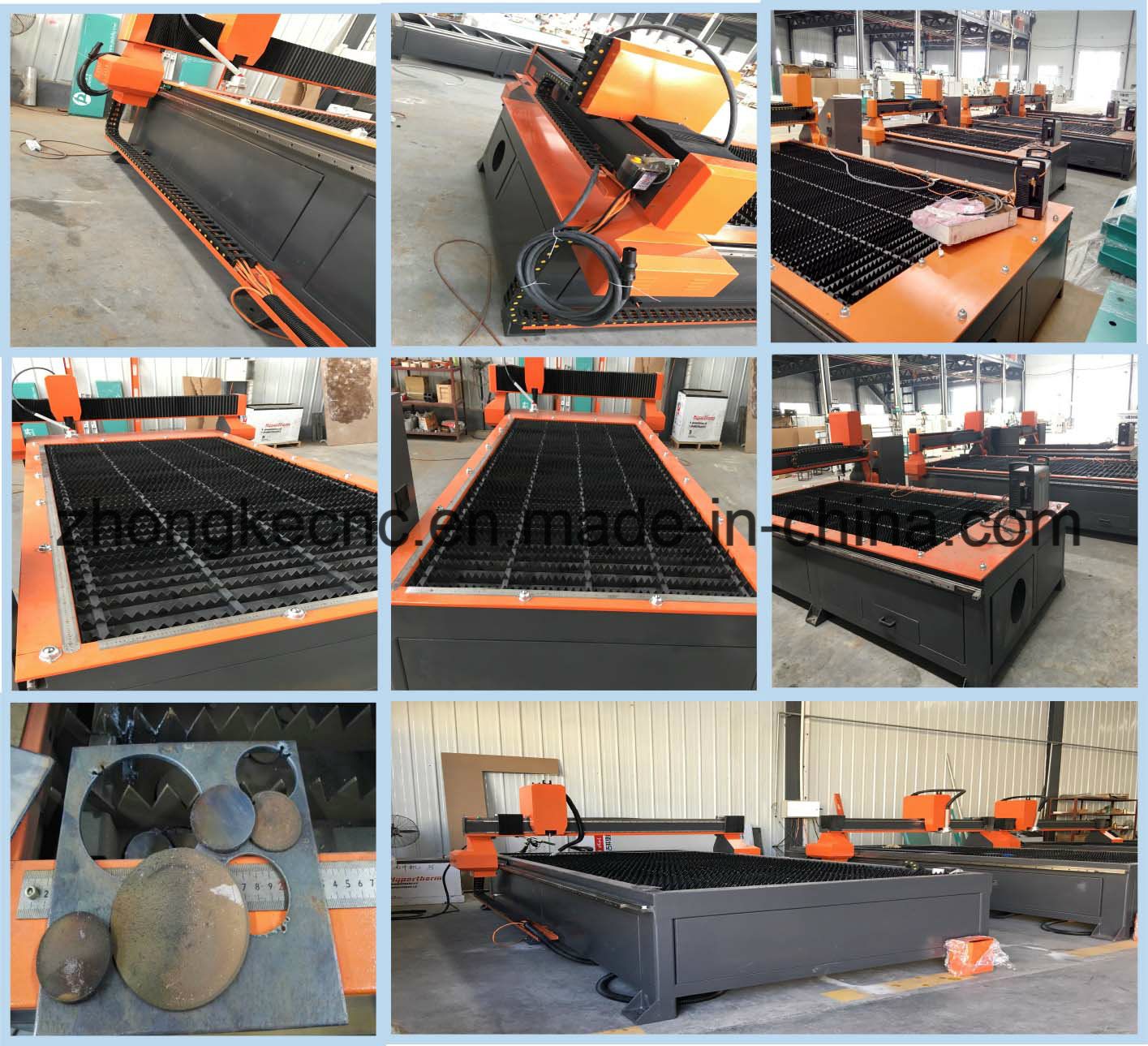

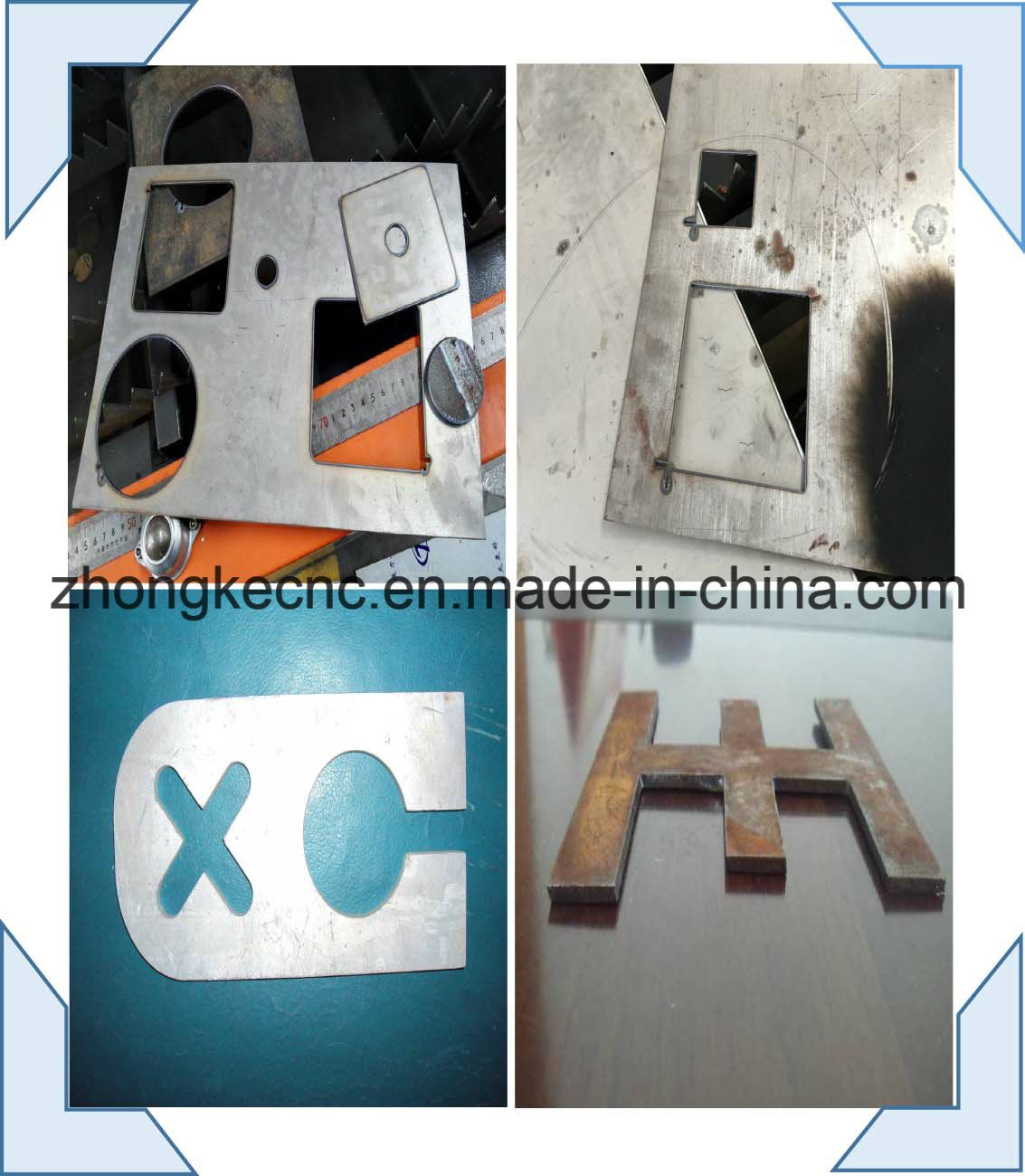

Processing shells of machinery and electronic products, advertising signs, crafts, iron garden, car manufacture, boat building, electrical accessories, board cutting.Samples:
Technical support:
- Warranty is 1 year
- 24 hour technical support by email or calling
- User-friendly english manual for machine using and maintaining
- We will send you manual and guide video in English,if you still don't know how to operate it, we can help you by phone or Whatsapp,Skype.
Payment terms:
- You can do 30% prepayment at first, then we will start to make machine. when the machine is ready , we will take pictures to you, after we got you payment.We will send the machine to you.
Packing and shipping:
Contatc info:
JINAN ZHONGKE CNC EQUIPMENT Co., Ltd is a specialized CNC router manufacturing company which focuses not only on machine production but also on R&D activities as well. Our company is devoted in the research and development of carving CAD/CAM technology and CNC technology. ZHONGKE CNC routers have obtained remarkable achievements in the precise carving machine design as well as artistic carving technology, and also have realized industrialization of computerized numerical control technology.
Our company produces ZHONGKE series routers which are sold in various markets of Europe and America, Asia, Africa etc. We have received a good reputation and established a leading position in carving machine lines in those countries. With several years of rapid development, our products are applied for advertisement decoration, marking, label industry, woodworking, mold manufacturing as well as crafts and gifts. We are still trying our best to innovate our products to assist our worldwide customers in lowering their costs and increasing their return.
