Prod Model: |
TF-045A |
Model No.: |
TF-045 |
Brand Name: |
C-Yark |
Certificate: |
CCC,Ce,ISO9001 |
Lead Time: |
5-15 Days |
Place Of Origin: |
Guangzhou,China |
HS Code: |
8518290000 |
Rated Power: |
3W-6W |
Sensitivity: |
91±2dB |
Frequency Response: |
130-16kHz |
Application: |
Shop,Fire Control,Super |
Category: |
Speaker |
Cone: |
Paper Cone |
Transducer Principle: |
Permanent Magnetic Speaker |
Style: |
Head-mounted |
Transmission Mode: |
Wire |
Usage: |
Fire Control,Shop,Supermarket |
WORD NChannels: |
Without |
Brand: |
C-Yark |
Product Description

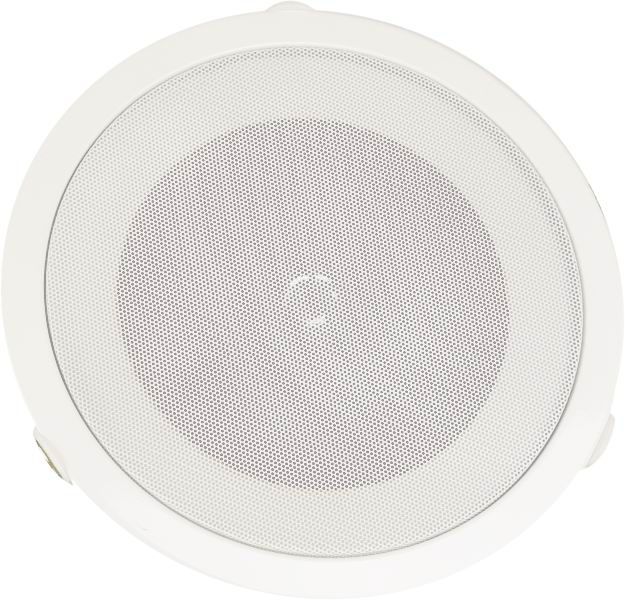

Hot Sell Good Quality Ceiling Speaker with Tweeter for PA 1.Typical FeatureCoaxial tweeter made of Mylar silver 0.05 thick film |
Compound paper cone and damped disposition surround |
Sound quality is clear and powerful. |
It feature spring clip for easy speaker mounting to the ceiling. |
Widely used in supermarkets, hotels, subways and so on. |
2.Techinical SpecificationItem No. | TF-045A | TF-056A | TF-068A |
Rated Power | 3W-6W | 3W-6W | 3W-6W |
Power supply | 70V-100V | 70V-100V | 70V-100V |
Sensitivity(1M/1W) | 91±2db | 91±2db | 91±2db |
Frequency Response | 130-16Khz | 110-16Khz | 110-17Khz |
Material | metal housing+metal grill | metal housing+metal grill | metal housing+metal grill |
Speaker unit | 4'' X 1,1" x 1 | 5" X 1,1" x 1 | 6" X 1,1" x 1 |
Hole Dimension | 155mm | 170mm | 220mm |
Outer size | 180*51mm | 198*51mm | 245*66mm |
G.W | 0.75kg | 0.81kg | 1.15kg |
3.ApplicationsFire control |
Subway |
Super market |
Hotel |
4.Company Introduction5. We attend Canton Fair and Professional audio show every year.6.Our Office and showroom7.Our CertificationsFAQ
1.Q: Are you a factory or trading company?
A: We are a manufacturer(with our own factory),we have more than 15 years experience.
2.Q:Where is your factory located? How can I visit there?
A: Our factory is located in Baiyun District, Guangzhou City, Guangdong Province, China.
Nearly Airport,just need 30min to there by car.
3.Q: Can you do OEM and ODM?
A: Yes, both. We can put your idea into products.
4. How many days do you need to prepare the goods?
We need about 30 working days for large order.
Our Mission:
1.Your time is as valuable to us as it is to you.
2.We will treat you and your business with the utmost respect.
3.We will always keep you informed and answer any questions you may have.
4.We will immediately resolve any issues.
5.We will help you find the best product for your needs, even if we don't carry it.
6.Feel free to stop by call or email us anytime. we'd be delighted to hear from you.
Guangzhou C-yark Electronic Technology Co., Ltd. is a professional public address system manufacturer. Our products cover power amplifier series, ceiling speaker, indoor and outdoor speaker series, MP3 public broadcasting system, conference system and IP system. All of Our products have received CCC, CE and ISO9001 approvals
C-yark owns best equipment, normative management, professional design and technology. With an aim of providing our customers the most stable and excellent performance products, and to satisfy customer with perfect service, we stick to improving our existing products and developing new products every year. We successfully launch various new products to domestic and foreign market; So, OEM or ODM order is welcomed.
With 10-year effort, C-yark has achieved great successful in domestic and foreign market. Our products are exported to all over the world, such as India, Pakistan, Poland, Serbia, Australia etc. We have also cooperated with a group of domestic agents and provided superior qualified PA system equipment to a lot of big projects, such as Beijing Olympic games in 2008, Guangzhou Asian Games in 2010 and Shenzhen 2011 The 26th Summer Universiade
We sincerely hope to establish a long term business cooperation relationship with customers from all over the world.
