Prod Model: |
MJ162 |
Feeding Speed: |
6-24m/Min |
Workebeach Cimension: |
2290X270mm |
Saw Spindle Speed: |
4500r/Min |
Votage: |
380V/Customized |
Motor: |
3 Phase |
Type: |
Rip Saw |
Layout: |
Horizontal |
Controlling Mode: |
Hydraulic Semi-automatic |
Automatic Grade: |
Automatic |
Precision: |
Precision |
Certification: |
ISO |
Product Description

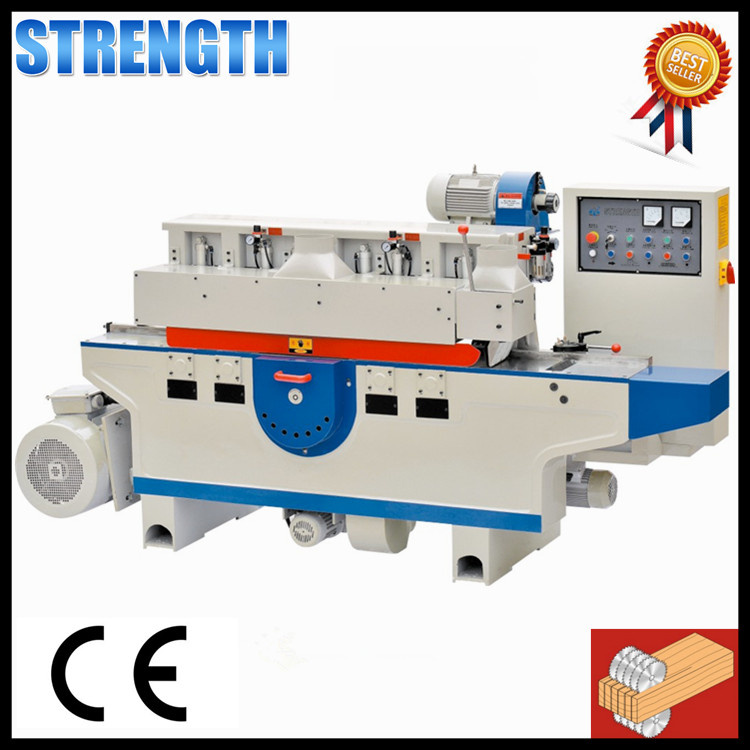

Woodworking multiple rip saw machine
Model:MJ162
Main technical data | MJ162 |
Max. cutting width | 200mm |
Working thickness | 10-75mm |
Min working length(continual feeding) | 250mm |
Feeding speed | 6-24m/min |
Saw spindle key slot | 20mm*8.5 |
Saw spindle diameter | Φ50mm |
Sleeve diameter | Φ70mm(customize 65mm) |
Spindle speed | 4500r/min |
Suitable saw blade diameter | Φ255mm(cutting thickness 10-45mm) Φ305mm(cutting thickness 10-75mm) |
Spindle motor | 22kw/30kw |
Spindle elevator | 0.37kw |
Feeding motor | 1.5kw |
Feeding elevator | 0.75kw |
Dust-collection cover diameter | Φ150*3 |
Workbench dimensions | 2290*270mm |
Workbench height | 840mm |
Machine dimensions | 2920*1080*1480mm |
Machine weight | 1900kg |
Wood multiple rip saw MJ162 main features:
1, Good stability and cushioning effect as the machine processing for case iron.
2, Best intensity and high precision as main spindles using special steel with good processing.
3, Easy structure and convenient maintain as using roller feeding system.
4, Best endurance as special processing for workbench.
5, High sensitive and safety as using French Schneider electric system with protection.
6, Smooth feeding and less maintain.

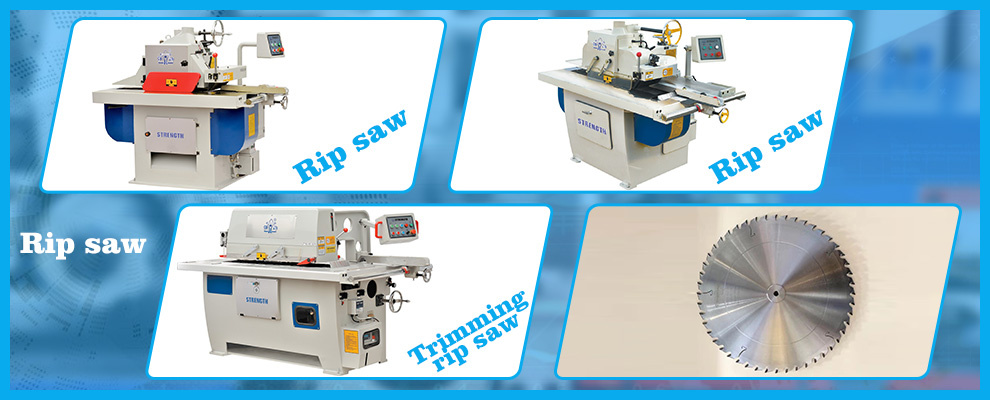

We are producing different types wood rip saw

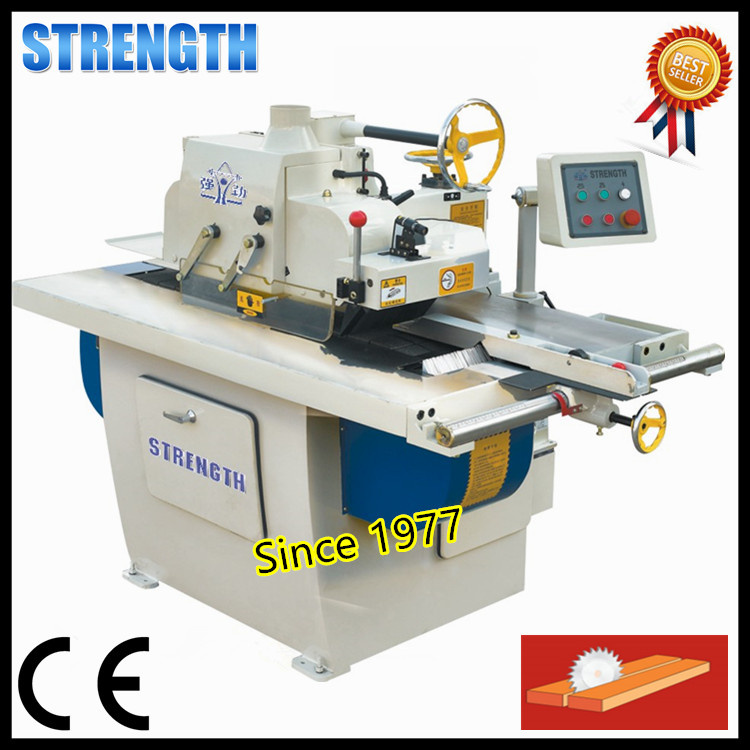

Wood straight line rip saw
Model: MJ153/MJ154
Main technical data | MJ153A | MJ153C | MJ153D | MJ154 |
Max. working thickness | 85mm | 85mm | 85mm | 125mm |
Min. working length | 120mm | 200mm | 200mm | 220 |
Saw blade and fuselage distance | 460mm | 365mm | 460mm | 610mm |
Saw spindle aperture | Φ30mm | Φ30mm | Φ30mm | Φ30mm |
Saw blade diameter and working thickness | Φ250(10-60)mm Φ305(10-85)mm | Φ250(10-60)mm Φ305(10-85)mm | Φ250(10-60)mm Φ305(10-85)mm | Φ305(10-80)mm Φ400(10-125)mm |
Spindle speed | 3500r/min | 3500r/min | 3800r/min | 3500r/min |
Feeding speed | 13,17,21,23m/min | 13,17,21,23m/min | 15,20,25,31m/min | 13,17,21,23m/min |
Saw blade motor | 7.5kw | 7.5kw | 7.5kw | 11kw |
Feeding motor | 0.75kw | 0.75kw | 1.5kw | 0.75kw |
Chip removal diameter | Φ100mm | Φ100mm | Φ100mm | Φ100mm |
Machine dimension | 2024*1337*1480mm | 1730*1050*1380mm | 1785*1100*1415mm | 2200*1350*1550mm |
Machine weight | 1000kg | 950kg | 1000kg | 1450kg |

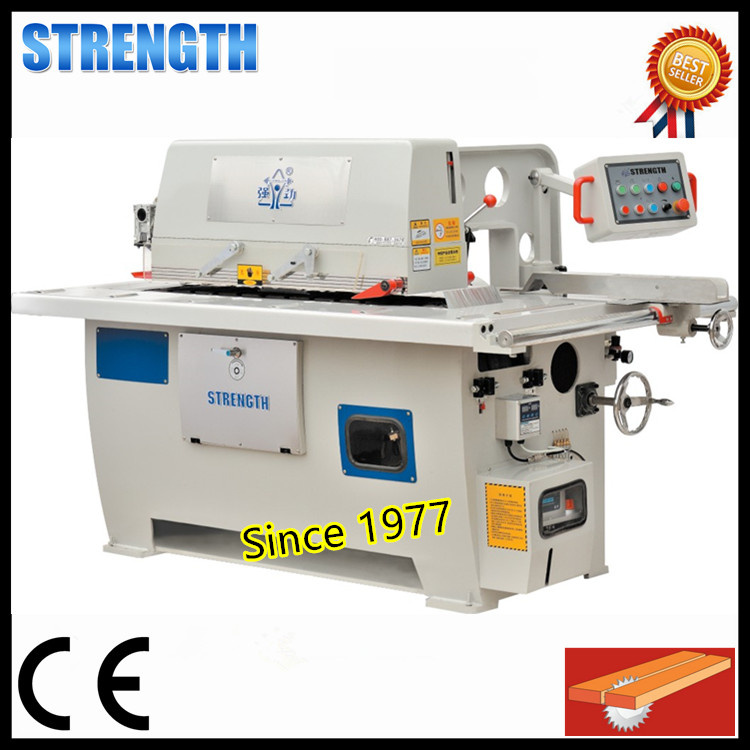

Model: MJ163D/MJ164D
Main technical parameter | MB163D | MB164D |
Working thickness | 10-70mm | 10-115mm |
Min. working length | 120mm | 120mm |
Throat capacity | 460mm | 660mm |
Saw spindle aperture | Φ50.8mm | Φ50.8mm |
Saw blade diameter | 250-355mm | 355-455mm |
Spindle speed | 2930r/min | 2930r/min |
Feeding speed | 0-26m/min | 0-26m/min |
Spindle motor | 10HP | 15HP |
Feeding motor | 2HP | 3HP |
Machine dimension | 1880*1400*1360mm | 2150*1600*136mm |
Machine weight | 1200kg | 1850kg |
Company Profile
Q: What is your leading time?
A: Within 7 days for motor 3 phase, 380V, 50Hz, 10-20 days if the motor is different.
Q: Where is your loading port?
A: Shanghai or Ningbo. etc, China port
Q: What are your payment term?
A: 30% deposit and balance T/T before shipment.
Q: What's your warranty time?
A: 12 months for machining parts and 6 months for electronic parts.
Q: Can you do the OEM or ODM?
A: Our brand is STRENGTH, but we can make us your brand and color.
Jinghua Powerful(STRENGTH) Woodworking Machinery Co., Ltd., is an advanced enterprise of ministry & technology advanced enterprise of Zhejiang province. It lies in Yangbu town by the south of Qu River, the upper reach of Qianjiang River, which is the central section of Zhejiang province. Preponderance in location, convenient in traffic, with 03 provincial road & Hangjingqu autobahn pass through the town. The company occupies 78 thousand sq. M., with 31 thousand sq. M. Architectural area. The company, which is specialized in manufacturing "STRENGTH" brand woodworker machine series, has excellent technicians, complete machine equipments, advanced inspection & account method, and has passed ISO9001-2000 and CE System of Quality Certification. After thirty years development, the company enlarges gradually and has owned eight series, more than forty kinds of products from the original single product. It also accepts the order of special specs. The products are well sole all over the country and the Southeast Asia, among which the produce and sale quantity of single side planer is No. 1 China. The products are favorable to the consumers. With the improverment of the market demand, we will continue to develop new products to meet different consumers`requirementS.
"manufacture high quality products, create value for consumers" is our target.
"quality first, consumer foremost" is our tenet
We always embrace the market principle of "satisfy the consumer"
We believe "Qiangjin will boost its own development with powerful motility & bring powerful development to the consumers at the same time. "
We are looking forward to cooperating with you!
We are the manufacturer for woodworking machinery 40 years with good quality and best price.
Main machines has: 1, Wood Jointer; 2, Wood Single Planer; 3, Wood Double Sided Planer; 4, Wood Four Side Moulder; 5, Wood Rip Saw; 6, Wood Ede Trimming Saw; 7, Wood Multiple Rip Saw; 8, Wood Horizontal Band Saw.
