Hot Selling Brass Forged Female Ball Valve with Iron Handle (AV1001)
| Price: |
US $ 1.15-2.0/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1000/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal |
| Prod Model: |
AV1001 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Surface Color: |
Brass/Nickel/Chromed |
| Test Pressure: |
Pneumatic 0~0.8MPa |
| Inner Ball Material: |
Polishing Brass |
| Seal: |
Plug and PTFE |
| Material: |
Brass |
| Connection Form: |
Thread |
| Channel: |
Straight Through Type |
| Structure: |
Fixed Ball Valve |
| Type: |
Fixed Ball Valve |
| Application: |
Household Usage |
Product Description

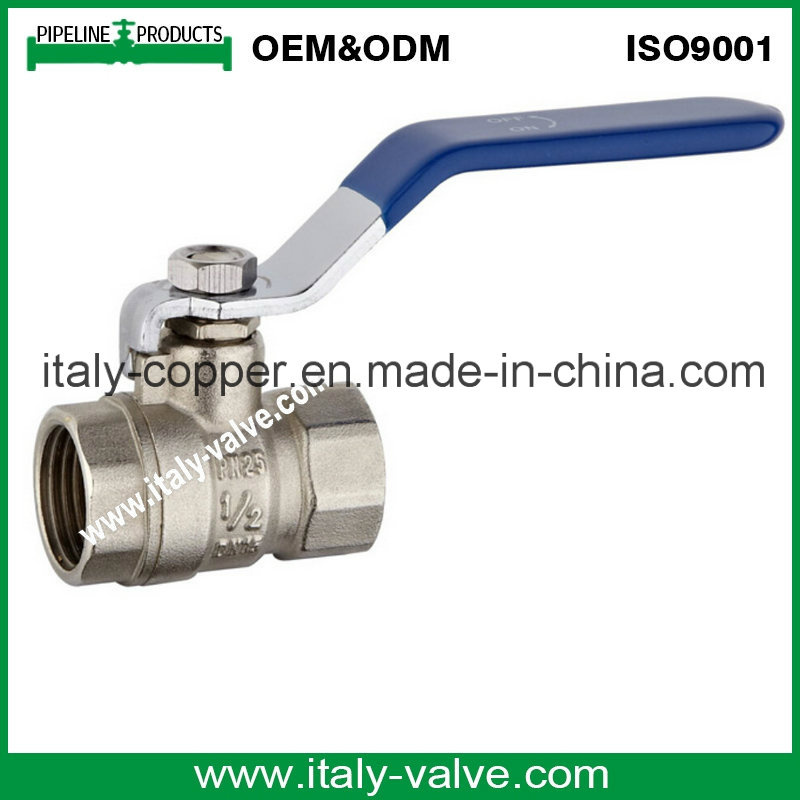

Brass Forged Female Ball Valve with Iron handle (AV1001)
Quality Warranty*Mould NO: AV1001
*Size: 1/2" FxF, both sides BSP. Size 1/2"~4" FF/FM/MM avaiable
*Medium: Water, oil, gas
*Working pressure: PN25
*Surface treatment: Nickel plated, chromed or brass color aslo can be done
*Material: Brass.(CU>57%,Pb<2.5%) (HPb59-1, CW602N, CW614N. CW617N)
*Skill :Forging and plating
*Thead standard: ISO228**Technical Data ***
ITEM | Designation | Materials |
| 1 | Handle | Steel Q235 |
| 2 | Stem | Brass CW627 N accoring to EN12165 |
| 3 | Body | Brass CW627 N accoring to EN12165 Nickel |
| 4 | Stem | Brass CW627 N accoring to EN12165 |
| 5 | O-ring | NBR |
| 6 | Plug | Brass CW627 N accoring to EN12165 Nickel |
| 7 | Bonnet | Brass CW627 N accoring to EN12165 Nickel |

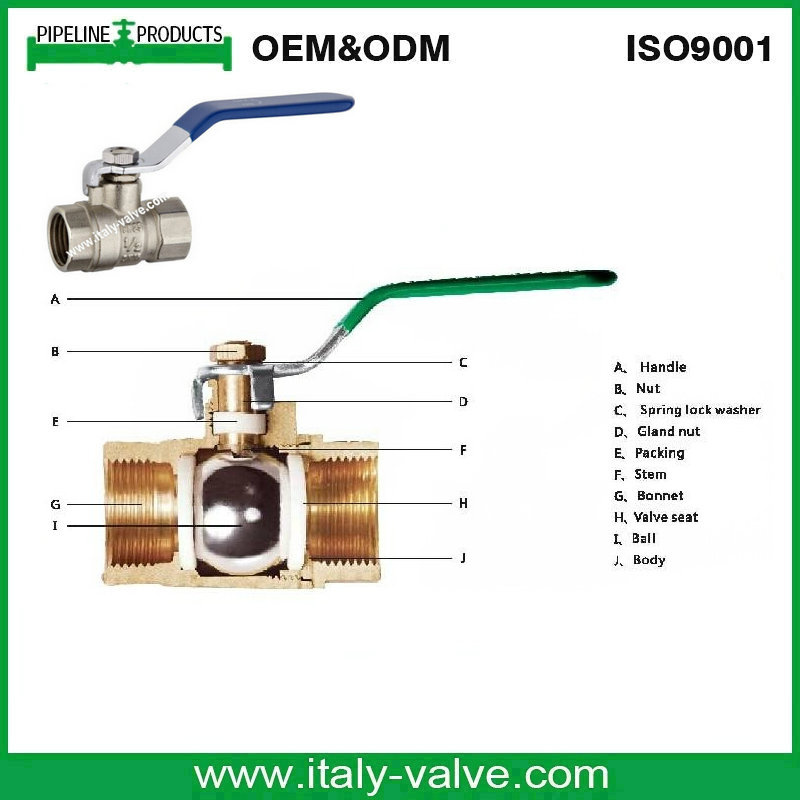

***Inside view ***

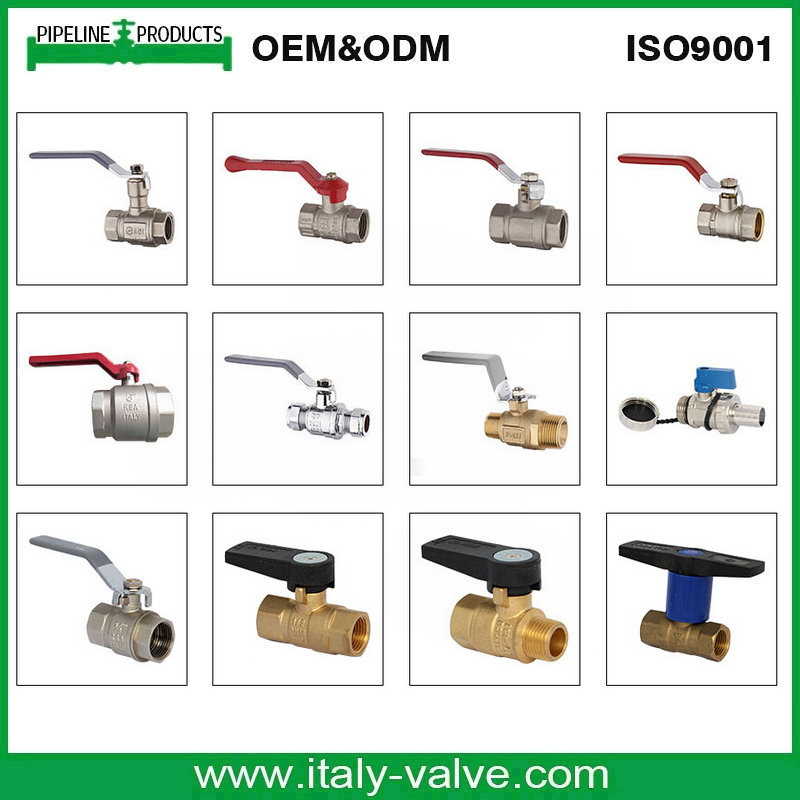

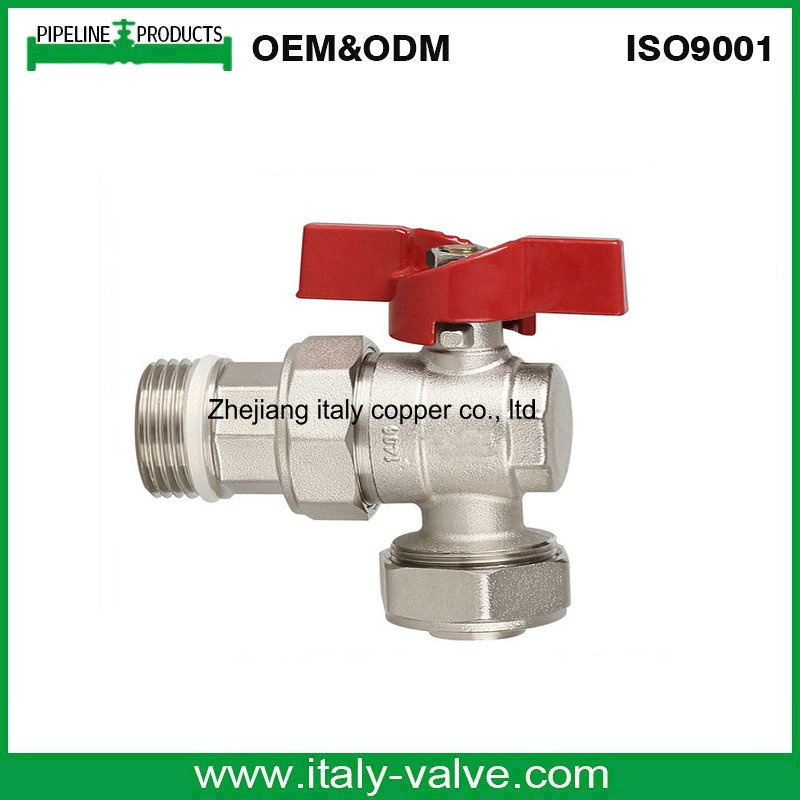

**Products Types**

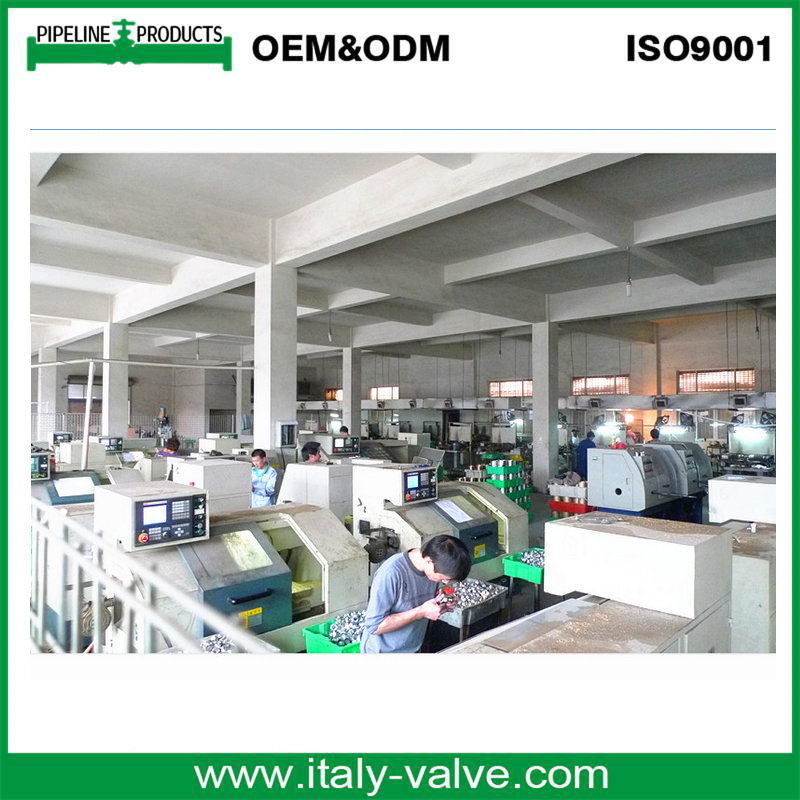

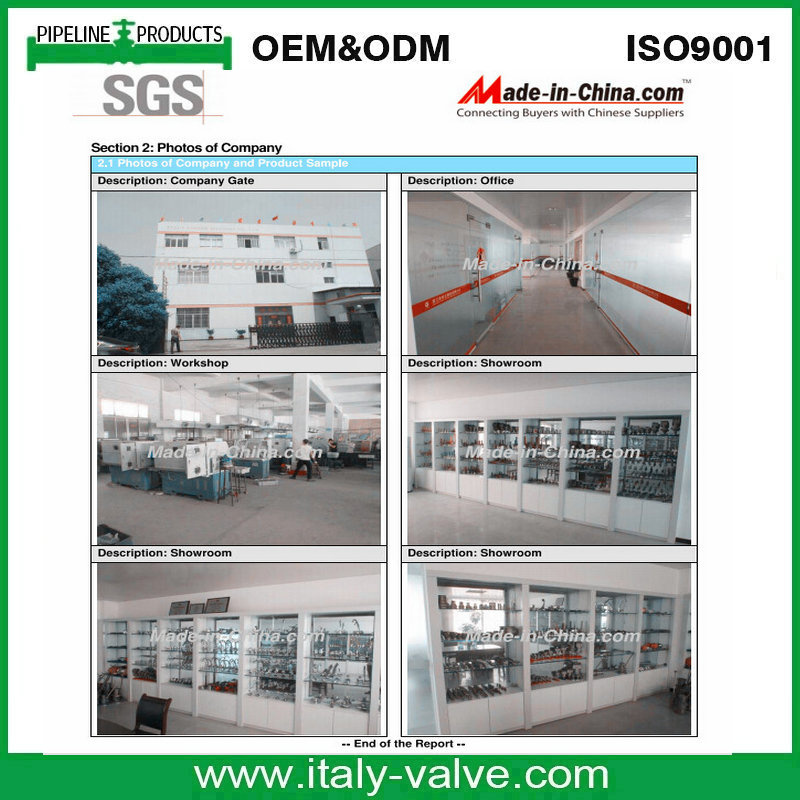

**Company & Process ***

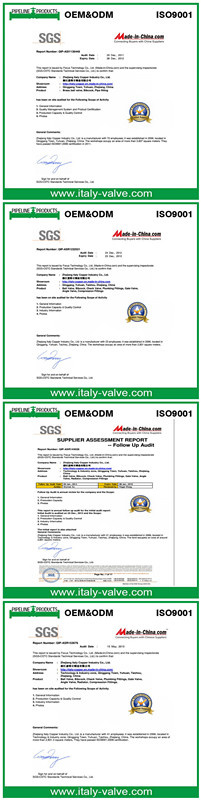

**Certificate& Quality control **
*** OUR SERVICES Samples: 1) we can make the samples according to customer's samples or designs.2) Our designer team can finish the samples timely, the exact sample delivery time depends on thesample's style, usually in 15 working days.3) For New design samples, the buyers have to pay for the relative model fee. (When your order reach a certain amount, we will return back the model fee to youPrice Terms:FOB, CNF,CIF.etc.WE ACCEPT MANY RATE , SUCH AS RMB, US DOLLAY, EUR, KORAD, POUND..ETC Payment Terms: 1) T/T, 30% T/T deposit before production, pay the balance before shipment.2) L/C at sight (for large quantity order)3) 100% T/T in advance, D/POrder and Mass Production:1) We will send PROFORMA INVOICE to you when the order is confirmed.2) We will start to have mass production when confirm our sample and 30% T/T deposit received.3) Quality is under the control and supervision during the production.4) Packing information will be confirmed before the production finished, If no special requirment, using our normal package. Quality control and inspection:1) Will be check by QC when Material & accessories inspection up arrival2) In line control on Each Step 3) Every one valve will be comprehensive review before packing4) Sales will be spot check before shipping 5) Third Party inspection Such as CE, SABS and so on 6) Original authorization through ISO9001:2008
Zhejiang Italy Copper Industry Co., Ltd. is a Chinese OEM and ODM manufacturer, be good at R&D and production plumbing & sanitary applications, such as brass ball valve, angle valve, check valve, gate valve, air vent valve series, pipe fittings, faucets, floor-drains etc. Besides copper-alloy productions, we also provide stainless-steel, and zinc-alloy alternatives to fulfill various demands.
Being an ISO9001: 2000 certified manufacturer, we strictly implement quality control throughout processes of designing, procurement, manufacturing, logistics arrange-ment, and archival management. In the past ten years history of business, we never got batch rejection and claims for quality failure, which win for us sound reputations and long-term cooperations.
By constantly adopting human-oriented policy, we gather a loyal team of experienced professionals engaged in technological study and improvement. Thanks to their great contributions, we successfully obtained many high-end projects. Today, Italy copper is one of the seldom manufacturers in the world who are able to produce hot-pressed brass float valves up to 6" size.
With headquarters and production base being located at "valves and plumbing wares capital of China"--yuhuan, we enjoy not only strong industry background and active economy surroundings, but also convenient trasportations to Chinese main cities of ningbo and Shanghai.
Insist on "win-win" philosophy, we always look forward to cooperation opportunities with friends all over the world.
