| Prod Model: |
6'' M1655 |
| Machine Type: |
Drilling Tools |
| Use: |
Well Driling |
| Body Type: |
Steel Body / Matrix Body |
| Processing Type: |
Casting,Forging |
| Cutting Size: |
13/16/19mm |

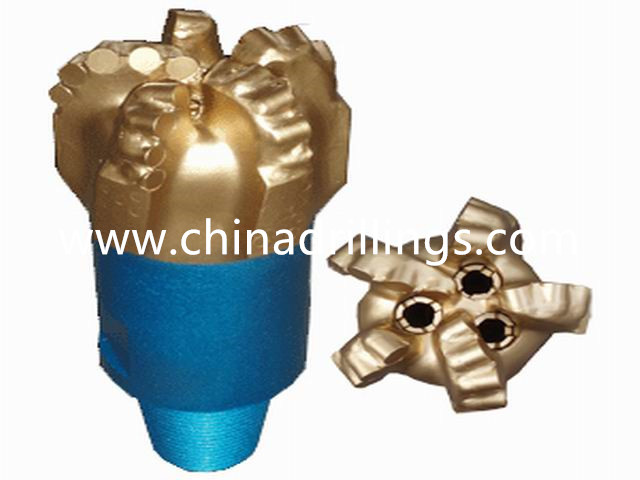

Product Description
PDC bit,diamond bit
High wear resistance cutters.
Oppose-circumnutation design.
suitable for medium to hard formation.
PDC bit,diamond bit,PDC core bit
1.Six Blades and Capacious Flume
Symmetrical parabola crown profile,asymmetrical bit blades ,the cutters are distributed as the curve and the gauge is designed spiral so that the stability of the bit is encouraged.Besides that the edge of gauge is enhanced by extra cutters. The flow roomage is optimal designed so that the mud and rock granule can be clear easily in drilling.
2.High wear resistance cutters.High performance PDC cutters optimal designed highly increased the efficiency of drilling.
3.Oppose-circumnutation designed.The load on bit is balanced,and the journal libration is decreased as well as the stabilization of directional drilling is enhanced.
4.This type of bits are suitable for soft to medium-hard formation.
| SIZE(inch) | Cutters | Blades | Flow rate | Rotary speed | Weight on bit |
| 5 1/2 | 21 | 5 | 400~600GPM/25~38L/S | 60~350RPM | 3~15Kibs/14~67KN |
| 7 7/8 | 38 | 5 | 400~600GPM/25~38L/S | 60~350RPM | 3~15Kibs/14~67KN |
| 8 1/2 | 48 | 6 | 400~600GPM/25~38L/S | 60~350RPM | 3~15Kibs/14~67KN |
| 9 1/2 | 67 | 7 | 475~700GPM/30~90L/S | 60~350RPM | 3~20Kibs/14~90KN |
| 12 1/4 | 87 | 7 | 475~700GPM/30~60L/S | 60~350RPM | 3~29Kibs/14~129KN |
| 16 | 66 | 6 | 950~1450GPM/60~90L/S | 60~300RPM | 5~36Kibs/22~160KN |
| 17 1/2 | 65 | 5 | 950~1450GPM/41~63L/S | 60~300RPM | 4~30Kibs/18~134KN |
Weifang Sunny Power Machinery Co., Ltd. is located in China Power Center - Weifang City. Our main machinery covers as following:
1. Professionally producing diesel engines 15-318KW, diesel generators 5-2000KW, diesel hydraulic pump station and relative diesel engine driven machinery;
2. Professionally producing high quality diesel engine driven water pumps, fire fighting water pumps, mining pumps, high pressure washing pump station, piston mud pumps, sand pumps and ship used water pumps and relative pump equipments;
3. Professionally assembling diesel engine intelligent CTRL system, which can fulfill automatic control, remote CTRL, remote test, remote message communication, even off duty care.
4. Managing Drilling machinery, drilling tools and spare parts;
5. Producing and managing mining machinery, agricultural machinery and spare parts;
6. Professional producing power machinery wheel trailer, skid mounting base, sound proof case, weather proof case and spare parts.
With professional and experienced workers, supported by strong technology and advanced equipments, we successfully formed strict and perfect production procedure from design, production, testing, to after-service, which guarantee the stable quality and technology innovation. We have been approved by ISO9001 and CE.
Because of good quality and stable performance, we have been working with clients in long term worldwide. Our main markets cover European countries, American counties, Asia, Africa, Australia and so on.
We hope to work with any client, hope to win bilateral benefits.
