| Prod Model: |
VCL |
| Frequency Response: |
50Hz-16kHz(+/-3dB) 40Hz-18kHz(-10dB) |
| Nominal Cverage: |
90degree;(H)7.5degree(V) |
| Sensitivity: |
Hf:113dB/ Mf:105dB/ Lf:99 dB Spl |
| Power Rating: |
Hf/Mf/Lf:160W/350W/900W |
| Nominal Impedance: |
Hf/Mf/Lf:16/16/16ohm |
| Maximum Spl: |
Hf135/141dB/ Mf130/136dB/ Lf128/134 dB |
| Lf: |
2X12"(75mm Voice) Woofer |
| Mf: |
1X10"(65mm Voice) MID Range |
| Hf: |
2X3" Compression Driver |
| Dimension: |
374X1030X565mm |
| Noise: |
<95dB |
| Hi-Fi: |
Hi-Fi |
| Operation Mode: |
Wire / Remote Control |
| Speaker System: |
Optional Combination |
| Speaker Material: |
Wood |
| Application: |
Commercial |
| Certification: |
SGS |
| THD: |
<0.03% |
| Monitor: |
None |
Product Description
Guangzhou supplier pa 12" neodymium speakers stage line array audio VCL system advantage

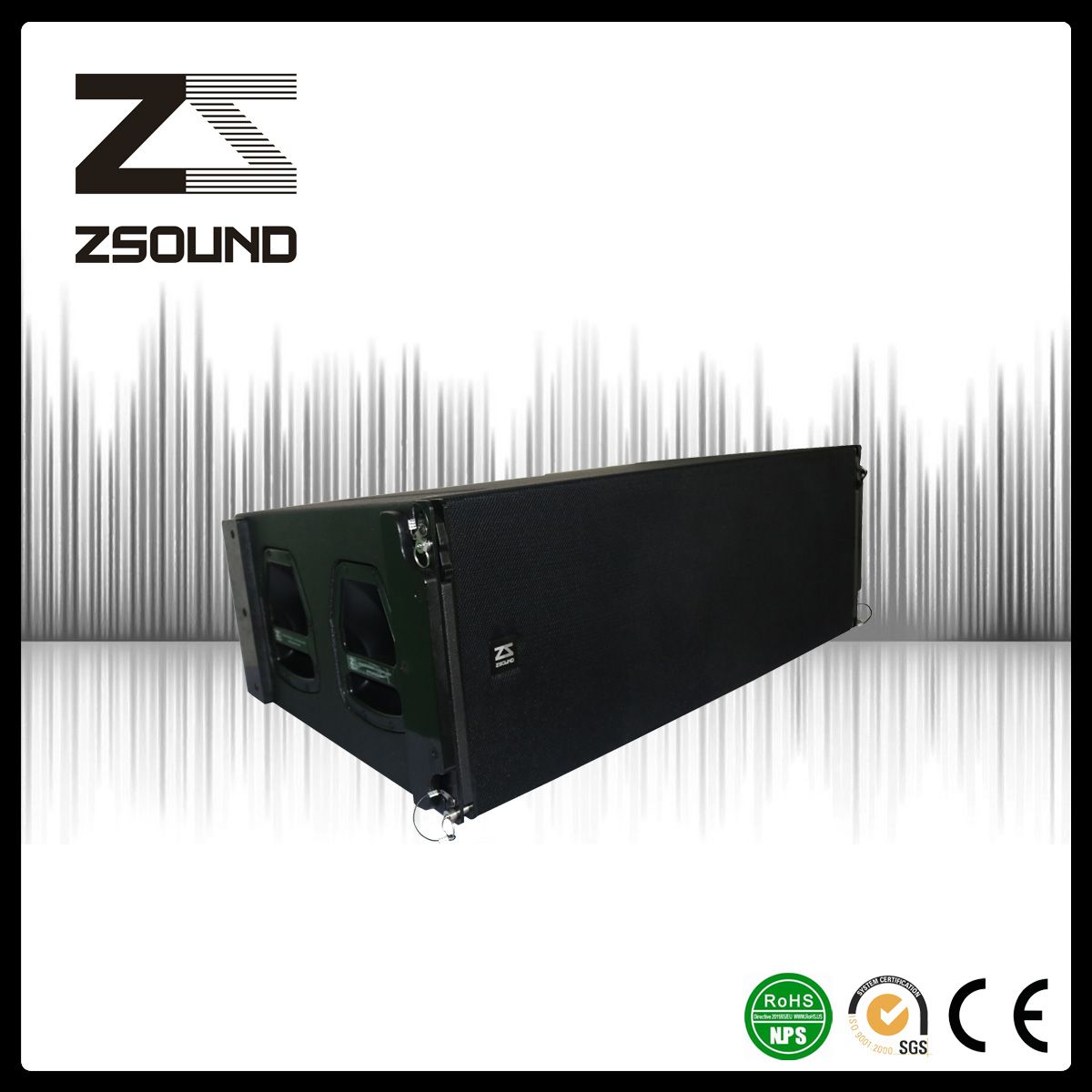

VCL line array is a dual 12" trip-amped three points suspension system. can be presettable angle in the air when working with palm hoister under hanging. And this speaker uses neodymium drivers. Light weight, MF&HF parts are coaxial structure to optimize image. Rubber edge LF driver,
1) 2*12" rubber edge woofer,
1* high sentivity 10" MF driver
2x75mm (voice coil) neodymium HF driverst.
2) The speaker is finished with black polyurea coatings, more resistant to climate.
3) VCL adjustable angle of the cabinet is 0-7.5°,1° per step,
4) VCL rigging harware is made of high strength steel. It is safe enough to hand 16 enclosures together, as the safety factor reaches up to 7:1.
5) The enclosure is constructed by 18mm, 24mm brichplywood,
6) 4 recessed handle cups are mounted on both sides of the enclosure for easy lifting and carrying. A rear panel connector plate carries 2 Neutrik Speakon NL4MP connectors for loopp in and loop out connections to additional enclosure.
Applications:
Touring performance
Stadium
Theatre
Feature:
Large-scale,thri-amp,three-way line array system
Presettable angles
Neodymium high-sentivity driver, maximum headroom
rubber edge LF driver, extend low frequency
| TECHNICAL SPECIFICATION |
| Frequency Response: | 50Hz-16KHz(±3dB) 40Hz-18KHz(-10dB) |
| Nominal Coverage: | 90°(H)7.5°(V) |
| Sensitivity (@1w/1m): | HF:113dB SPL MF:105 dB SPL LF:99 dB SPL |
| Power Rating (AES): | HF/MF/LF:160W/350W/900W |
| Nominal Impedance: | HF/MF/LF:16/16/16Ohm |
| Maximum SPL: | HF135/141 dB MF:130/136 LF;128/134 dB |
| Drivers: | LF 2*12"(75mm Voice coil)neodymium woofer;
MF 1*10"(65mm voice coil)neodymium mid-range;
LF 2*3" neodymium compression driver |
| |
| PHYSICAL DATA |
| Dimension (H*W*D): | 374*1030*565mm |
| Weights: | 60kg |
| Connectors: | 2*WP7 or NL8 connectors |
| Speaker Cables: | 1-2+…LF 3-4+…MF 5-6+…HF |
| Materials: | 18mm,24mm birch multi-plywood |
| Finish: | Black polyurea coatings |
| Grille: | Black epoxy mesh grille with acoustically reticulated cloth |
| Rigging: | 0,1 ,2,3,4,5,6,7.5 degree adjustable |
Our Advantage
1) Global leading professional Manufacturer of professional speaker and amplifier.
2) Product quality: Superior speaker and amplifier, top technology and quality.
3) Certificate: CE,RoHS,GS,SGS,ISO9001
4) Monthly Production Capacity: 2000pcs
5) Fast delivery: Get your order when you need it.

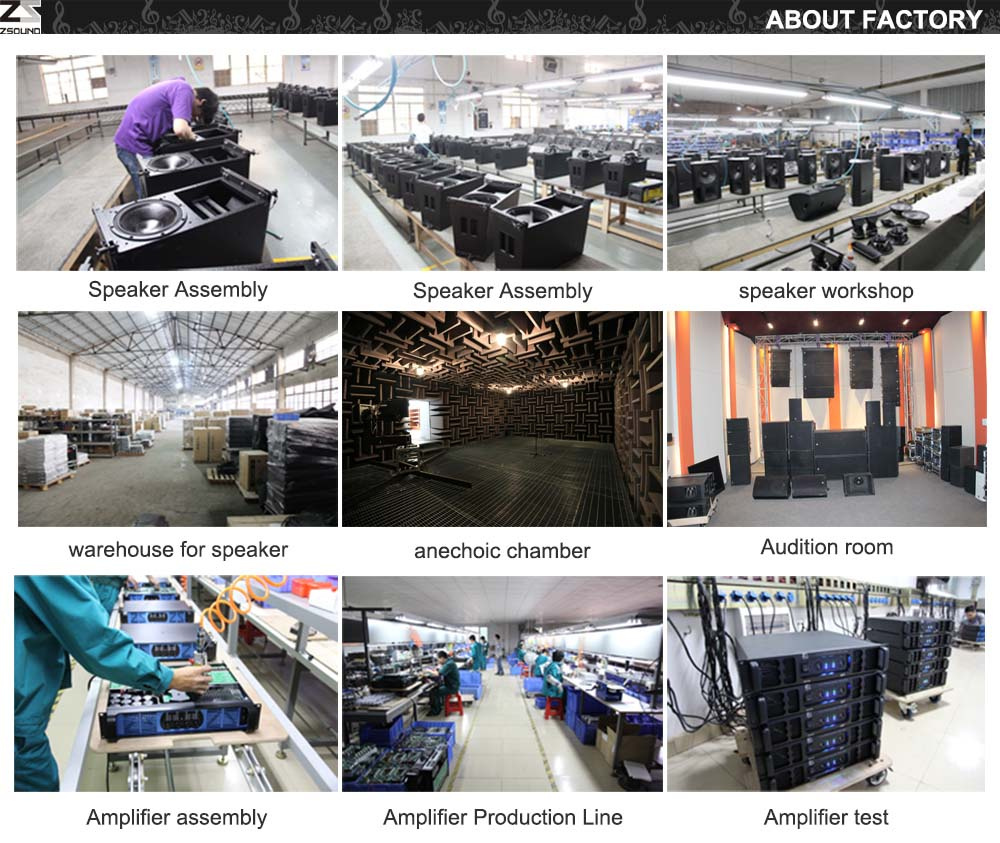

6) 4000 square meters workshop, with about 200 workers and 20 professional engineers
7) Convenient Transportation: 1 hour to Baiyun Airport
8) 24 hours on line service.Sunny Yan
Phone number:0086-15818739656
Welcome to receive your informations!
Guangzhou Zsound Proaudio Technology Co., Ltd. Specilizes in developing and manufacturing a wide range of superior, advanced technology loudspeakers for the professional touring and installation market. With more than ten-years R & D experience, we've successively achieved numerous patents for Zsound speakers.
Designed and constructed to exacting specifications, every component of Zsound loudspeaker is critically extracted. This meticulous craftsmanship and attention to detail shows how seriously we believe in our ideas. Our pursuit for sonic excellence LED to an outstanding reputation in this industry.
During the long-term persistent efforts, Zsound loudspeakers are extensively used in rental and installation markets for events, multimedia, musicals, concert halls, theatres, broadcast and many other applications from the smallest conference room to the largest stadium.
What's most important, ZSOUND won the specified audio title of the Milan World Expo (China Pavilion) theatrical performances, and provides sound equipment and technical support service for China Pavilion theatrical performance
In March 2013, ZSOUND set up performance alliance, the purpose is "achieve resource sharing under the premise of the law of the market, promote the growth of alliance members". And now there're more than 17 members from ZSOUND performance alliance, users of line array system are up to 1000 throughout the country.
After two-years development, alliance members have successfully made a cooperation with some performance project, such as Kenny'G Tour, Lang Lang Concert, Zero Band Tour and Inner Mongolia Sport etc.
Meanwhile, ZSOUND's desire is to provide the best professional audio system and technology service for user, as well as audio company which becomes worthy of audio industry's respect, the goal is to be the leading international professional audio brand.
