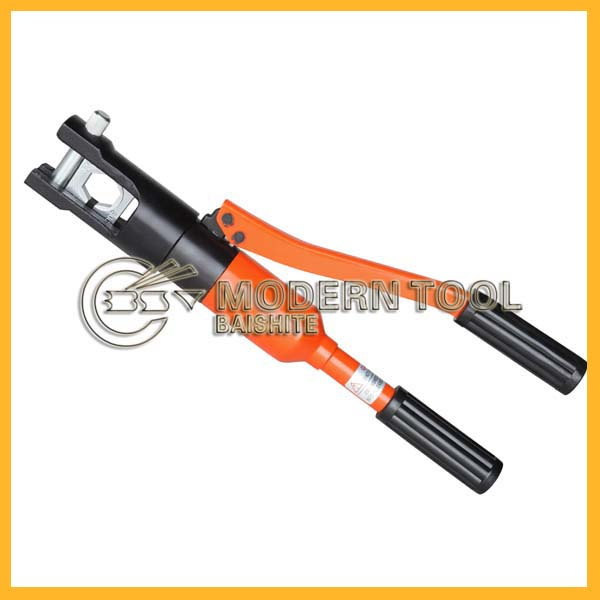

(HP-300B) Hydraulic Crimping Tool 16-300mm2
| Price: |
US $ 42-50/Piece |
| Trade Terms: |
FOB,CFR,EXW |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
| Prod Model: |
HP-300B |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Applicable For: |
Crimping on Power Cable and Wire |
| Output: |
12t |
| Crimping Capacity: |
16-300mm2 |
| Crimping Style: |
Hexagon |
| Two Speed Equipment: |
Assure Rapid Piston Advance |
| Safety Valve Inside: |
Protect Tool From Over Pressure |
| RAM Stroke: |
18mm |
| Standard Dies: |
11 Sets |
| Dies Size: |
16 25 35 50 70 95 120 150 185 240 300mm2 |
| Package: |
Plastic Carrying Case |
| Type: |
Crimping Tool |
Product Description
Tools Introduction
HP-300B is designed with Bolt-Locked H type head, Safety Valve, quick speed pumping, 11 pairs dies, pressure release button, plastic case, used to crimp Cu/Al cable lugs and connectors (16-300mm2)

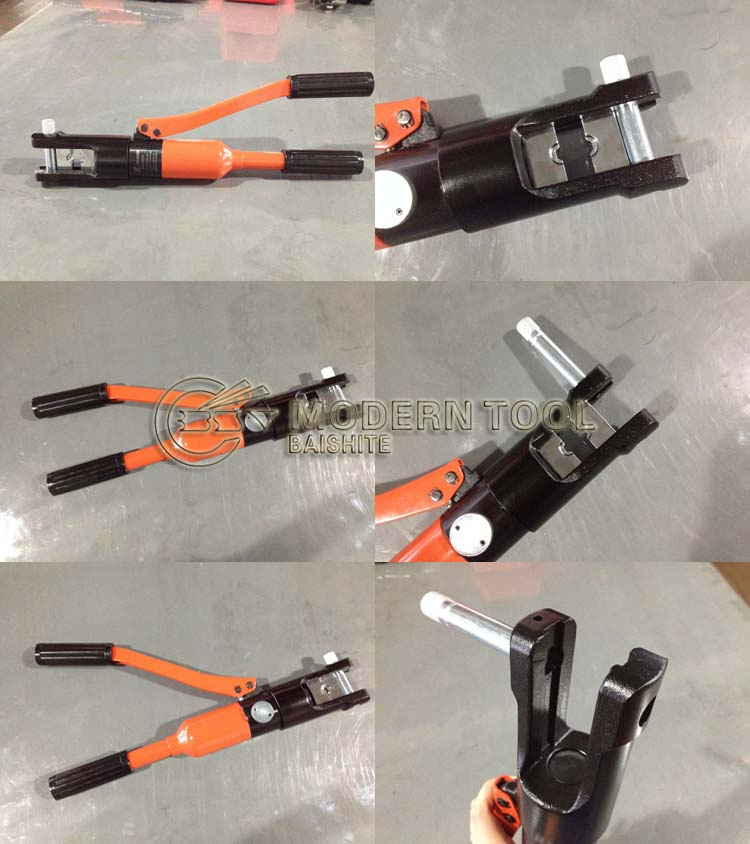

Tools Pictures
------------------------------------------------------------------------------------------------------------------------------------------------
Tools Specification
------------------------------------------------------------------------------------------------------------------------------------------------
1. Crimping Capacity: 16-300mm2
2. Crimping Style: Hexagon
3. Output: 12T RAM Stroke: 18mm
4. Standard Dies: 11 pairs 16 25 35 50 70 95 120 150 185 240 300mm2
5. Equipped with safety valve
6. Equipped with Quick Speed Unit
7. Package: Packed with Plastic Case for easy carrying
8. Size: 490*130*70mm
9. Weight: 4.0kg
Tools Features
------------------------------------------------------------------------------------------------------------------------------------------------
1. Applicable for Crimping Cu and Al connectors onto cables. Can be widely used in electric transmission and distribution job, make work easy and fast.
2. H-Type Crimping Head for easily change crimping dies, no other tools are required: Removing Bolt------Sliding Dies-----Inserting Bolt
3.11 pairs crimping dies are attached for precise crimping: Select proper dies according to the application
4. With safety valve, automatically relief pressure when rated pressure is reached, well protect tool from overpressure
5. Quick speed unit ensure rapid dies movement with ram advancement under no load condition, achieve quick crimping operation

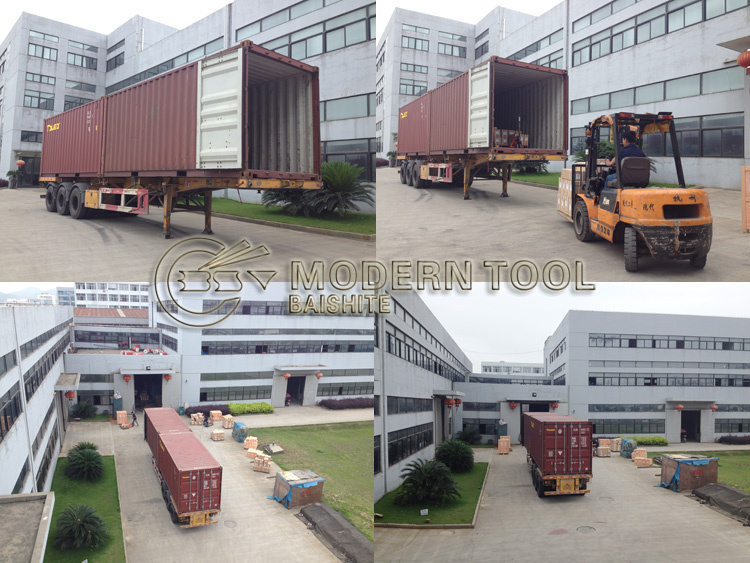

Goods Delivery
------------------------------------------------------------------------------------------------------------------------------------------------
Exhibition
------------------------------------------------------------------------------------------------------------------------------------------------
We, Yuhuan Modern Tools Co., Ltd, a professional tool manufacturer, was established in 2002, officially start our business with the hydraulic crimping tool, then with the development of our factory and also in order to keep pace with the demand of our customers, we gain our own brand "BAISHITE" in our local market and extend our product range step by step to: Hydraulic cutting tool, busbar punching, bending, cutting tool, puncher, compatible hydraulic pump, hydraulic jack, Ratchet Cable cutter, mechanical crimping pliers, long-Arm cutters, all these tools can be widely used in electric construction and distribution project for cutting, crimping, lifting, to make the job easy, quick and safe.
In order to expand our production and make our company more competitive, we bid for the land, built and moved to our current factory in 2007 (Factory Address: Bingang Industrial Area Shamen Yuhuan Zhejiang China 317607), the new machines (CNC Machine, Linear Cutting Machine, Grinding Machine, Punching Machine, Heat Treatment Machine etc) are also purchase accordingly. Now, we produce tools and provide service for customers from Germany, Russia, Ukraine, UAS, Japan, Korea, Taiwan, Thailand, Singapore, Hongkong etc., relative Certificate (ISO CE) are also applied and gained. With the feedback from our customers, we also improve tools and change tools design, to make our tools more qualified and meet the changing demand of the target market. Now, we officially add the battery powered tools (crimping, cutting, punching) in our products range, to aim to the high-level market.
Considering the potential of Plumbing tools in Australia, Brazil, Germany, Russia and also our domestic market, based on our current tools, we also start to design and produce crimping tools, pressing tool, expanding tools for PEX pipe, Multi-layer Composite Pipe, Stainless Steel Pipe and Copper Pipe in hydraulic, Mechanical and battery powered style. Thanks to the contribution of our workers and the support our customers, these brand new pluming tools also get positive market feedback.
Keep improving current tools, Never Stop designing New tools for new application, we are confident that we'll make our factory more competitive with more qualified tools and better service
