| Prod Model: |
HP-300 |
| Capacity: |
3000 |
| Pressure: |
31.5 |
| Trval: |
300+405 |
| Table Size: |
700X1200 |
| Net Weight: |
4200 |
| Package Size: |
210X95X270 |
Product Description

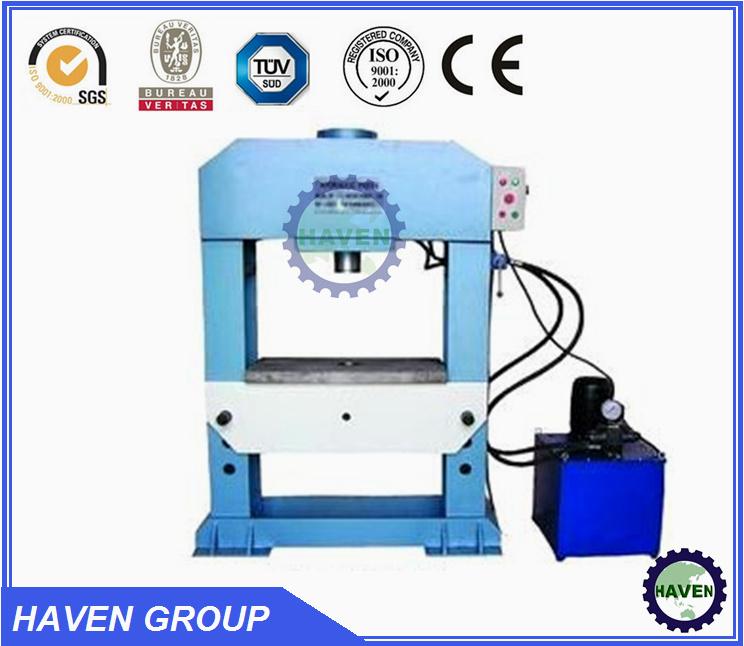

HP type hydraulic press machine power press
Characteristic
1. hydraulic Single column press machine is one of the new generation of plate process and developed by Huachuang company.,The press is for cutting,
punching, blanking, bending and light stretching work.
2. Totally European design,streamlined looking,Steel-welded frame, Wide body frame eliminating vibration for improved ide life and machine,
High rigidity and less deformation Compact.
3. C- frame provides maximum rigidity and minimum deflection for accurate parts and long tool life. Thick plates and large columns provide you
with the stable platform you need for your demanding application.
4. Fully enclosed drive, easily accessible for maintenance, eliminates, exposed over hanging parts and mechanism.
5. High accuracy, high efficiency, simple and convenient operation, good performance, favorable price and best service.
6. The machine by the European Union CE certification and ISO quality system certification.
assembly machine C type Single-column Hydraulic Press Machine
options
• cutting dampening system
• proportional regulation for slide speed
• moving table
• Light curtain safety device
• Oil heating/cooling unit
• Die protection unit
• Displacement sensor
• Die exchange cart
• Industrial touting screen monitor
• Upper ejector (hydraulic or mechanical type)
• Floating guide-way and rolling bracket for die exchange
• Working area lighting
• Power socket
• Hydraulic driving system upon upper platform
• Quick die clamping device
• Imported PLC
• Slide upper locking device
Main specification:
| Model | Capacity | Pressure(Mpa) | Trval(mm) | Table size | Package size | Net weight |
| HP-30 | 300 | 25 | 200+270 | 300x400 | 116x55x160cm | 420 |
| HP-50 | 500 | 25 | 330+405 | 400x500 | 150x65x195cm | 980 |
| HP-63 | 630 | 30 | 220+405 | 400x500 | 150x65x195cm | 1020 |
| HP-100 | 1000 | 30 | 250+405 | 460x1000 | 182x73x225cm | 1220 |
| HP-150 | 1500 | 30 | 250+405 | 460x1000 | 184x75x225cm | 1350 |
| HP-200 | 2000 | 31.5 | 300+405 | 500x1000 | 194x95x225mm | 2200 |
| HP-300 | 3000 | 31.5 | 300+405 | 700x1200 | 210x95x270mm | 4200 |
| HP-400 | 4000 | 31.5 | 300+405 | 800x1200 | 230x100x290mm | 5500 |
| HP-500 | 5000 | 31.5 | 300+405 | 900x1200 | 230x100x290mm | 6500 |
| HP-630 | 6000 | 31.5 | 400+405 | 900x1200 | 230x100x290mm | 7500 |
This machine is also can be customized
Nantong Haven Machinery Co., Ltd. is specialized in manufacture metal forming machinery
And equipment, such as Hydraulic Press, Hydraulic Press Brake, Hydraulic Shearing Machine, Hydraulic Rolling Machine and other metal forming machine. Our business scope also includes
Contracting overseas projects and engineer training services with over 20 years experience, our
Products have been exported to more than 40 countries and regions, that including German, USA,
Canada, UK, Poland, Spain, Netherlands, Denmark, Greece, Australia, New Zealand, Singapore,
Malaysia, Thailand, India, Indonesia, Middle East countries etc. To supply better service for Euro
Customer and South East Asia customer, we also have set branch company in Poland and Malaysia.
HAVEN has its own workshop in Haian county of Nantong city, we have professional quality control
Team who can inspect every machine carefully in our workshop before delivery. Our target is: High
Quality, excellent service, efficient co-operation, reliable honesty.
HAVEN releases products information through Made-in-China over 9 years ( has passed the SGS
Certificate for AUDITED SUPPLIER ) and Alibaba over 8 years ( has passed GOLDEN SUPPLIER
ASSESSMENT, Bureau Veritas Certificate), we will keep spirit of innovation to improve our machine
Both inner quality and appearance. You are welcome to visit our website and contact us, We will give
You quick response upon any of your requirement.
