| Prod Model: |
Hs7125 |
| Cutting Capacity ( Round Bar): |
250mm |
| Cutting Capacity (Square Bar): |
220X220mm |
| Cutting Capacity (Oblique Saw): |
45 Degree |
| Power: |
220V/380V/440V |
| Type: |
Hack Sawing Machine |
| Controlling Mode: |
Hydraulic Semi-automatic |
| Automatic Grade: |
Semiautomatic |
| Precision: |
High Precision |
Product Description

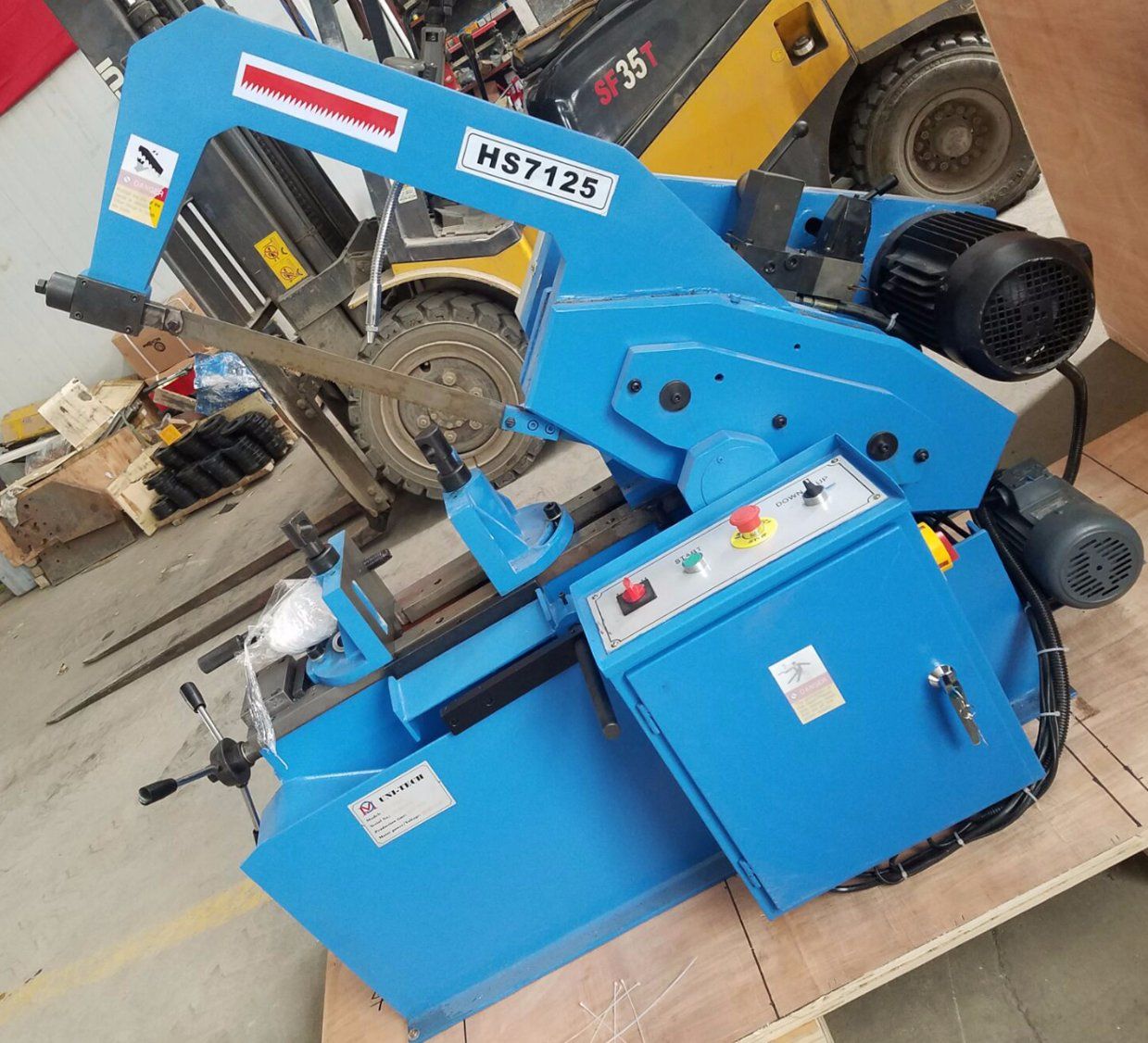

METAL HACKSAW MACHINE
1.Automatic cutting process
2.With clamping feeding device
3.With safety protection device
4. It has different speeds and wide cutting scope.
5. Hydraulic transmission, simple running, easy upkeep.
SPECIFICATIONS:
| MODEL | HS7125 | HS7132 | HS7140 | HS7150 |
| Cutting capacity | Round bar | 250mm | 320mm | 400mm | 500mm |
| Square bar | 220x220mm | 290x290mm | 330x330mm | 400x400mm |
| Oblique saw | 45° | 45° | 45° | 45° |
| Sawing speed | 43,50,60,86,100,120 | 34,60,84 | 34,60,84 | 34,60,84 |
| Blade size | 450x45x2.25mm | 600x50x2.5mm | 650x55x2.5mm | 750x63x2.5mm |
| Main motor | 3.22kw | 3.44kw | 4.34kw | 4.34kw |
| Coolant pump motor | 0.04kw 2step | 0.04kw 2step | 0.04kw 2step | 0.09kw 2step |
| Saw blade rapid down | 0.25kw 4step | 0.25kw 4step | 0.25kw 4step | 0.25kw 4step |
| Packing size | 2000x950x1300mm | 2440x1020x1600mm | 2440x1020x1600mm | 2440x1190x
1760mm |
| N.W./G.W. | 600/830kg | 1100/1350kg | 1200/1450kg | 1450/1700kg |
- Please do not hesitate to contact us for more details or data sheets, all other questions would be fully welcomed too.
- Latest MACHINERY CATALOGUES are available now! Download them on our official website or directly contact us.
- CJ Machinery always insist on the concept of providing our customers the most enjoyable metal working experiences. Every need or request would be answered at our best considering customer's greatest interests.
- CJ Machinery values each relationship among our worldwide customers and hopes every unique requirement of our customers could be satisfied.
