| Prod Model: |
JL-BMSC |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
14mm-210mm |
| Surface Finish: |
Yellow or Other |
| Package: |
Blister Card, Box, Set Case |
| Min Qty: |
100PCS/Size |
Product Description

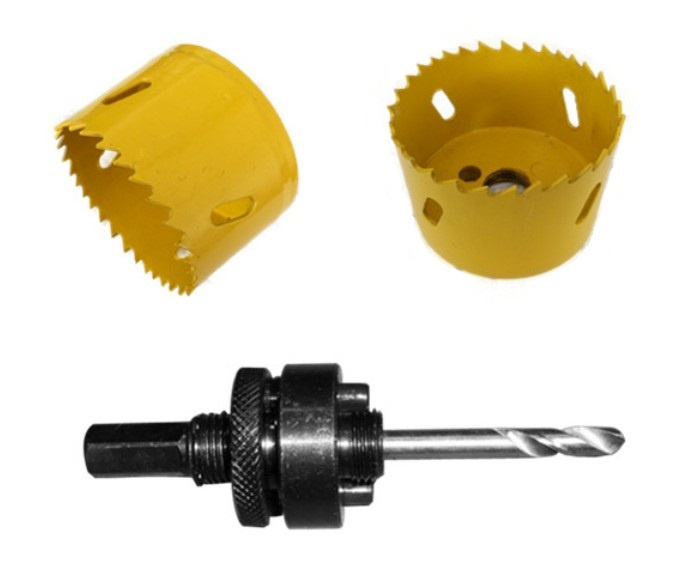

Hole Saw/M3 HSS Bi Metal Hole Saw for stainless steel (JL-BMSC)
HSS Bi Metal Hole Cutter 14mm to 210mm 9/16" to 8-17/64" with 38mm 1-1/2" cutting depth
1, High speed teeth electron welded to a high alloy steel body ensuring maxium durability and a long working life.
2, Shatter resistant.
3, 4/6 variable pitch tooth design with improved chip clearance and lower feed pressure required with varying gullet depth.
4, Less heat build up ensures the teeth stay sharp longer.
5, Faster and more aggressive cutting performance. Using a cooling lubricant will extend the life of your hole saw by 500%
6, Bimetal Hole Saws with HSS teeth are rugged cutting tools designed to cut accurate holes in machinable materials up to 38mm thick.
7, Ranging in size from 14mm to 210mm in diameter, that can be used in portable electric tools, air tools, drill press, lathes, boring mills, milling machines and some other machines, which have rotating spindles.
8, The HSS teeth of our Bimetal hole saws are recommended for cutting steel, cast iron pipe, steel plates, aluminium, copper, brass, stainless steel, wood and plastic.
9, 14mm to 30mm diameter hole saw with 1/2-20UNF threaded connecting; 32mm to 210mm diameter hole saw with 5/8-18UNF threaded connecting.
Color: Red, Black, Yellow and other colors
| Diameter size | Diameter size |
| Inch | Metric | Inch | Metric |
| 9/16" | 14mm | 2-9/16" | 65mm |
| 5/8" | 16mm | 2-5/8" | 67mm |
| 11/16" | 17mm | 2-11/16" | 68mm |
| 3/4" | 19mm | 2-3/4" | 70mm |
| 25/32" | 20mm | 2-7/8" | 73mm |
| 13/16" | 21mm | 3" | 76mm |
| 7/8" | 22mm | 3-1/8" | 79mm |
| 15/16" | 24mm | 3-1/4" | 83mm |
| 1" | 25mm | 3-3/8" | 86mm |
| 1-1/16" | 27mm | 3-1/2" | 89mm |
| 1-1/8" | 29mm | 3-5/8" | 92mm |
| 1-3/8" | 30mm | 3-3/4" | 95mm |
| 1-1/4" | 32mm | 3-7/8" | 98mm |
| 1-5/16" | 33mm | 4" | 102mm |
| 1-3/8" | 35mm | 4-1/8" | 105mm |
| 1-7/16" | 37mm | 4-1/4" | 108mm |
| 1-1/2" | 38mm | 4-3/8" | 111mm |
| 1-9/16" | 40mm | 4-1/2" | 114mm |
| 1-5/8" | 41mm | 4-3/4" | 121mm |
| 1-11/16" | 43mm | 5" | 127mm |
| 1-3/4" | 44mm | 5-1/4" | 133mm |
| 1-13/16" | 46mm | 5-1/2" | 140mm |
| 1-7/8" | 48mm | 5-3/4" | 146mm |
| 2" | 51mm | 6" | 152mm |
| 2-1/16" | 52mm | 6-19/64" | 160mm |
| 2-1/8" | 54mm | 6-1/2" | 165mm |
| 2-1/4" | 57mm | 6-5/8" | 168mm |
| 2-5/16" | 59mm | 6-31/32" | 177mm |
| 2-3/8" | 60mm | 7-7/8" | 200mm |
| 2-1/2" | 64mm | 8-17/64" | 210mm |
To cater the need of various industries, Hongkong Joylight International Industrial Co., Ltd is one of dynamic companies in China which is specializing in Manufacturing and Supplying a wide range of drill bits, diamond tools, woodworking tools, power tools accessories etc including diamond saw blades, HSS drill bits, SDS drill bits, TCT saw blade, diamond tools, chisels, grinding cup wheels, auger drill bits, hole saw, tools set, household tools kit, hand tools, power tools etc for past over 16 years.
We have been emphasizing on quality and service from the beginning. Improving the quality-price ratio of the products and helping clients strengthen their market competition are not only our everlasting aims but also the steps for improving our competitive forces.
Therefore, our products are well accepted by many customers from all over the world, mainly in North America, Asia, Europe, MID East, South America and other countries and regions.
For a completive quotation or any further information, please don't hesitate to contact us at any way. Our sales staff will be pleased to assist you with our best.
