| Prod Model: |
HZ-DBG35 |
| Thread Cap: |
1/4"-7 or 5/8"-11 |
| Diameter: |
20-75mm |
| Machine: |
Hand Tool Drill |
| Use: |
Granite Stone |
Product Description

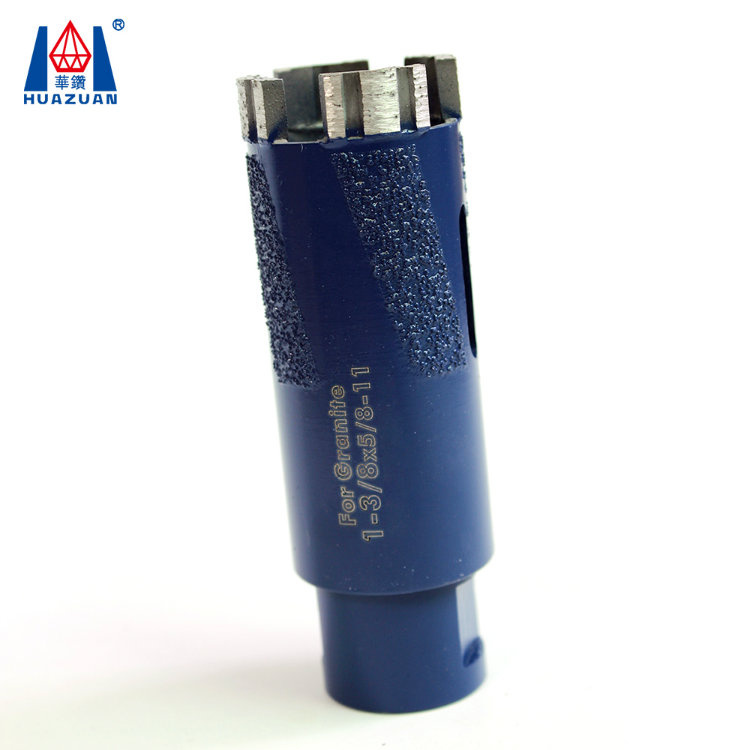

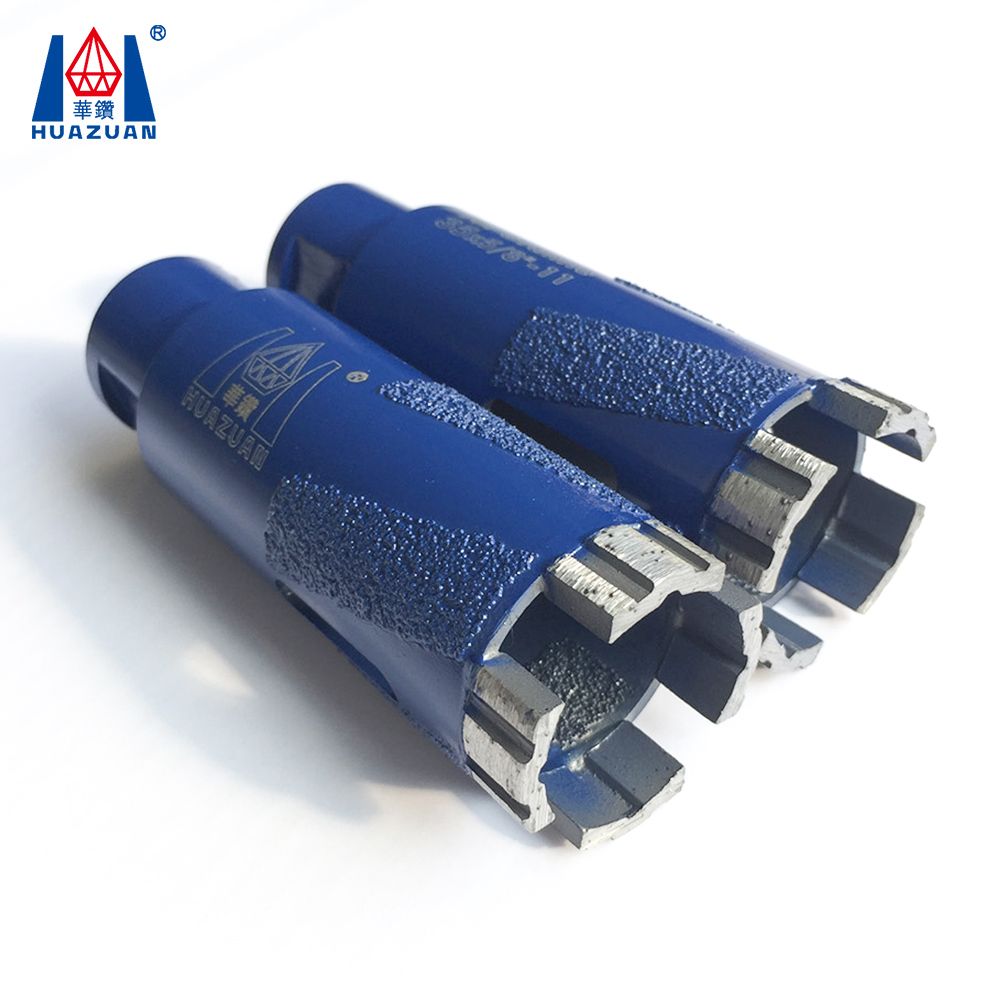

Huazuan Dry Diamond Stone Drill Bit for Granite| Brand | Huazuan or OEM |
| Types | Core drill bit |
| Compose | Segment + core bit matrix |
| Diameter | 19mm-70mm |
| Length | 104mm, other length is available upon request. |
| Thread | 1 1/4-7" , 5/8-11" , M14,m16,m22,other thread is available upon request. |

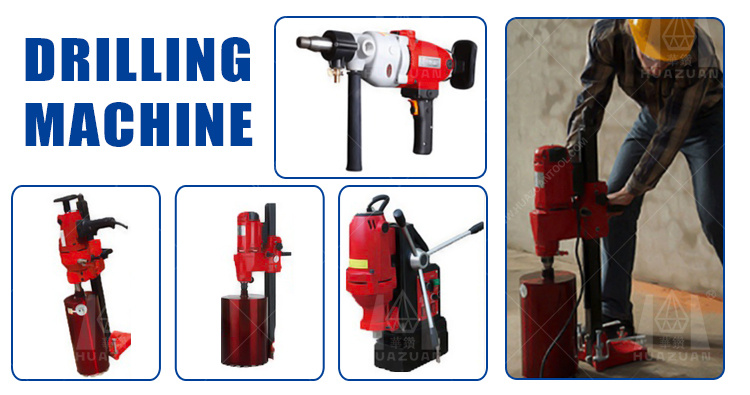

| Machine | Drilling machine |
| Application | Drilling granite natural stones |
Quality Control |
1. Strict Raw material inspection
2. Professional formula
3. Production process control(PDCA+7S Principle)
4. Do some cutting testing to sure the using function
5. Products pass ISO9001 and SGS inspection
|
| Payment term | TT,Western union,Paypal etc |
| Package | As customers' requirement. |
| Delivery | 7-10 days after receiving the payment. |
| Certification | ISO9001 and SGS Product quality control. |

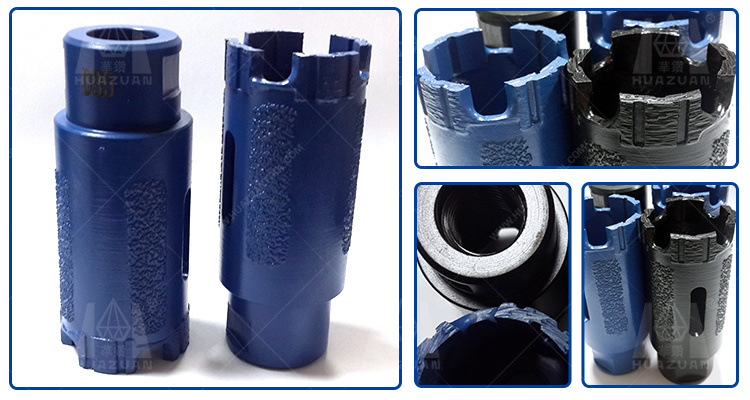

Description of stone diamond drill bit:
Diamond Core Drill Bit is a cylinder used for plunge cutting out materials. It is composed of a heat treated steel core and the working part which consists of diamond and metal powder. Vacuum brazed diamond core drill bit usually have a single layer of diamonds, held by a touch durable nickle alloy. Vacuum brazed core bit are able to retain their original shape and dimensions through their working life. Unlike sintered (metal bond) where diamond particles are buried in bond and held together by metal binder deep inside. The vacuum brazed core bit allows diamond particles to protrude from the bond matrix, providing a free, faster drilling action with minimum heat generation.
Application of dry stone diamond drill bit:
The most common uses for core bits would be small projects, such as drilling out sink holes for faucets, while vacuum brazed diamond core bit is suitable for fast drilling, marble, limestone, slate, ceramic, porcelain, glass, fiberglass, etc.
Features:
• Better removal rates and less thermal damage to the body
• hold simple and intricate forms through the entire working life
• Maximum exposure of diamond particle
• Faster drilling and more consistent performance
Specification for drill bit diamond granite:
| Item No. | Diameter | Overall Length | Shank | Grit |
| HZ-VCB20 | 20mm | 60mm | M14,5/8"UNC,Straight | 30/40,40/50 |
| HZ-VCB25 | 25mm | 60mm | M14,5/8"UNC,Straight | 30/40,40/50 |
| HZ-VCB28 | 28mm | 60mm | M14,5/8"UNC,Straight | 30/40,40/50 |
| HZ-VCB32 | 32mm | 60mm | M14,5/8"UNC,Straight | 30/40,40/50 |
| HZ-VCB35 | 35mm | 60mm | M14,5/8"UNC,Straight | 30/40,40/50 |
| HZ-VCB43 | 43mm | 60mm | M14,5/8"UNC,Straight | 30/40,40/50 |
| HZ-VCB50 | 50mm | 60mm | M14,5/8"UNC,Straight | 30/40,40/50 |
| HZ-VCB55 | 55mm | 60mm | M14,5/8"UNC,Straight | 30/40,40/50 |
| HZ-VCB60 | 60mm | 60mm | M14,5/8"UNC,Straight | 30/40,40/50 |
| HZ-VCB65 | 65mm | 60mm | M14,5/8"UNC,Straight | 30/40,40/50 |
| HZ-VCB68 | 68mm | 60mm | M14,5/8"UNC,Straight | 30/40,40/50 |
| HZ-VCB70 | 70mm | 60mm | M14,5/8"UNC,Straight | 30/40,40/50 |
| HZ-VCB75 | 75mm | 60mm | M14,5/8"UNC,Straight | 30/40,40/50 |
| Other specifications are available as per your request. |
Please try best to inform information below when you are placing order:
Drilling Target (Marble, Granite, Concrete, etc.)
Core bit Type (one piece, three pieces)
Diameter of core bit (Inch or mm)
Thread Type of drill bit (M14, 5/8"-11, 1-1/4"UNC7)
Length of core drill bit/Maximum Drilling Depth (mm)
Quantity(pieces)
Expected delivery time
