| Price: | US $ 6000-1500000Set |
|---|---|
| Min Order: | 1Set |
| Pay Type: | L/C,T/T,Western Union,Paypal,Money Gram |
| Prod Model: | CW-200GFJ |
|---|---|
| Rated Power: | 200kw/ 250kVA |
| Continuous Power: | 160kw/200kVA |
| Rated Voltage: | 400V/230V |
| Rated Frequency: | 50Hz |
| Rated Speed: | 1500r/Min |
| Rated Current: | 360A |
| Rated Power Factor: | 0.8 |
| Certificate: | ISO 9001 & Ce & BV |
| Service: | Accept OEM & ODM Production |
| Experience: | 20 Years Professional Experience to Produce Gen-Se |
| Certification: | BV |
Scope of Application

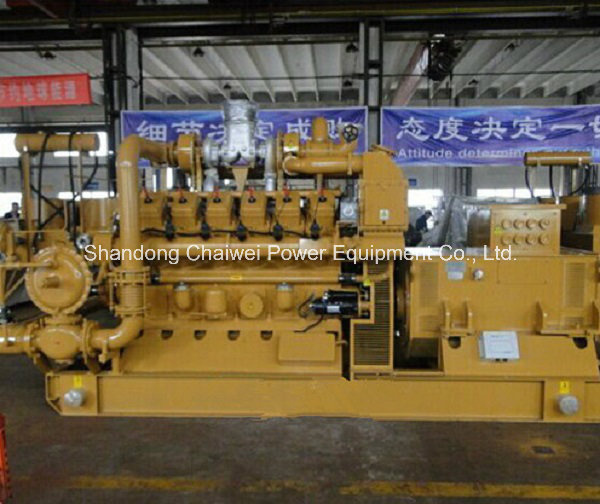

Waste to electricity, such as the wood chips, saw dusts, rice husk, straw, nut shell and so on, gasified by biomass gasifier to get the biomass gas and realize electricity generation.
Advantage
Within 1m from pressure regulating valve of gas intake
LHV ≥ 4.2MJ/Nm3Pressure of natural gas: 5-20kpa, rate of pressure change ≤ 1kpa/minH2S ≤ 200mg/Nm3Tar content ≤ 20mg/Nm3Nm3 ≤ 20mg/Nm3Impurity particle size ≤ 5μm, impurity content ≤ 30mg/Nm3Moisture content ≤ 40g/Nm3High Configuration
Ignition system: ALTRONIC(USA)Starting system: DC24V electric motor. Mixer: IMPCO(USA) Sparking plug:STITTEngine Control System: Woodward(USA), HEINZMANN(Germany)Electric Control System: ComAp(Czech), Deepsea(UK)Alternator: Siemens, LEROY-SOMER, MarathonModel Number (Engine Type) | CW-200GFJ |
| Brand Name | CHARGEWE |
| power | 200kw |
| Rated Speed | 1500RPM |
| Rated Frequency | 50/60Hz |
| Rated Voltage | 400V/230V |
| Phase | AC 3-Phase, 4 wire |
| Voltage Stability | ≤±2% |
| Voltage transient | ≤±10% |
| Voltage Stable time | ≤1 |
| Heat consumption | ≤9.8mj/kw.h |
| Lubricant consumption | ≤1.63g/kw.h |
| Engine Capacity | 4.33 L |
| Cylinder Number | 12V |
| Cylinder Bore | 135mm |
| Stroke | 150mm |
| Starting System | DC 24V electic motor |
| Cooling method | water cooler |
| Lubricant method | Passive and flying lubricant |
| Isolation class | H |
| Protection | IP23 |
| Alternator | ENGGA |
| Power Factor | 0.8 lagging |
| Exciting method | brushless |
| Colour | your choice |
| Certificates | ISO 9001:2008, CE |
| Warranty | 1 year or 1500 running hours |
| Type | Open |
| Control system | Automatic alarm system |
| Size | 3700x1700x1900mm |
| Weight | 4400kg |
FAQ:
1.How to choose the right model?
A: It depends on continuous output power, Voltage, Frequency and fuel type. Please tell me what fuel (natural gas, biogas, biomass gas,wood syngas, methane,coal gas) or raw material(like wood, grass, nutshell and so on) The right model of generator will be recommend soon.
Me and our engineers are always available at your service.
2.What is the oil consumption and capacity per hour?
A: 1.0g of lubricant oil consumption per hour.
1.0-1.8KG biomass produce 1kw.h power
3.What is the overhaul?
A: About 30000 working hours. A week is enough to finish. We offer manual for weekly, monthly and overhaul maintenance.
4. How is the after sale service and maintenance?
A: We offer installation,repair and maintain service abroad. And online guide service if needed anytime. Our before-sale, in-sale and after-sale service are all trustable, you can name it.
5. What products we offer?
Biomass gasifier,Biomass/syngas generator,biogas generator,Natural gas(CNG,LNG) / methane generator,Coal gas generator,Diesel generator.
Generators can parallel together to form large power, E.g. 5 sets 400kw biomass generator form 2000kw biomass generator system.
Our Services
1.Pre-sale service:
A.Our engineers are available for onsite prospect before installation free to charge.
B. Foundation drawing and detailed Dimension free form us.
2.Sale service:
A. Onsite overall guide installation,operation and maintenance training .
B. Assistance and instruction of trial running.
3.After-sale service:
A. 24 hours online or in person after sale service.
B.12 months warranty. We take care of all errors/breakdowns in this period.
4.Spare parts service:
A.All spares parts on our gensets supplied by us.
B. Free spare parts together with genset when shipping.
Any questions, please contact me freely.
