| Prod Model: |
HXY-8 |
| Frequency: |
750/680r/Min |
| Eccentric Moment: |
0-4671/0-5684nm |
| Amplitude: |
0-18.3/0-22nm |
| Max. Extraction Force: |
1176kn |
| Type: |
Vibratory Pile Hammer |
| Motor Power: |
240kw |
Product Description
The EP series vibratory hammer with adjustable eccentric moment is jointly developed by Beijing Construction Machinery Comprehensive Research Institute,Kencho Co.,Ltd Japan and our company.This series products was science and technology progress award first prize from China Ministry of Construction,was honored as New Era Vibratory Hammer in Japan;They are one of the most advanced piling equipment in the world,have a lot of advantages in safety and efficiency.
Tandem Vibratory Hammer is a big machine that the same two machine work at the same time, to drive heavy piles
Product SpecificationModel | EP650 | EP1600 |
Motor Power | 240KW x2 | 1200KW x2 |
Frequency | 750/680r/min | 750r/min |
Eccentric moment | 0-4671/0-5684nm | 0-1120nm |
Centrifugal force | 0-2940kn | 0-7000kn |
Amplitude | 0-18.3/0-22nm | 0-21.3nm |
Max. Extraction Force | 1176kn | 3600kn |
Overall Dimensions | H | 7.8m | 5.96m |
L | 2.8m | 4.95m |
W | 2.16m | 2.2m |
Total weight | 34900kg | 72000kg |
Wire cable | 95mm²×4 | 95mm²×8 |
Clamp | DOUBLE /QUATERNION | DOUBLE /QUATERNION |
Diameter of the pile | Φ1000-3000mm | Φ1500-6000mm |
Generator capacity | 1200KW | 2400KW |
Min crane capacity | 200T | 500T |

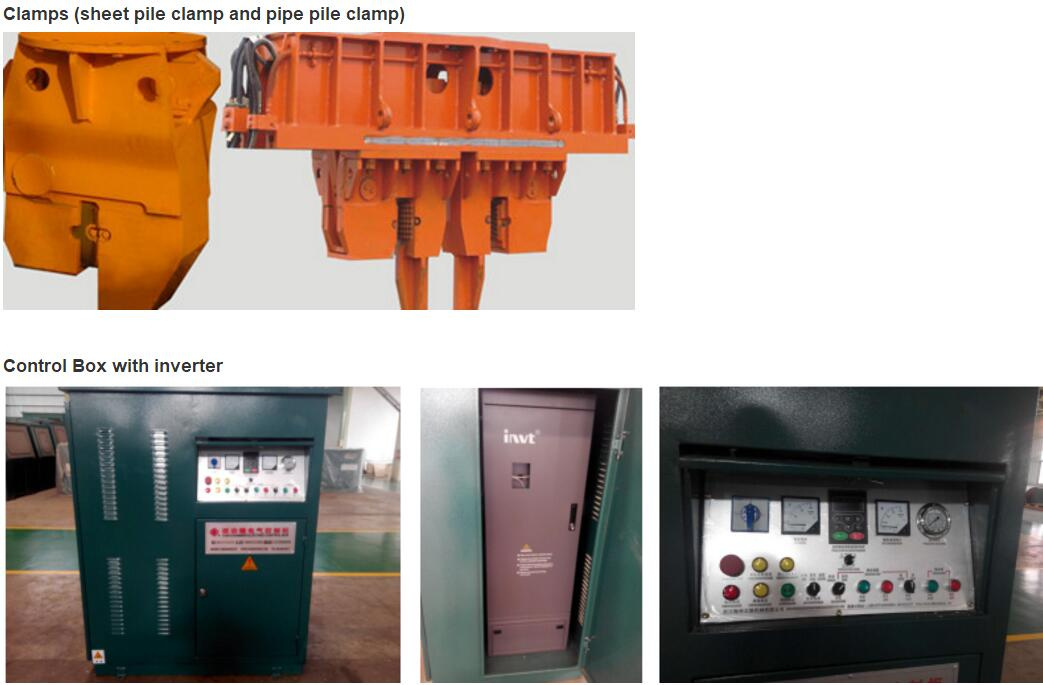

Photos:
