| Prod Model: |
HHY-100TF |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Application: |
Compress Cable Sleeve for Cable Connection Work |
| Working Force: |
100 Ton |
| Stroke: |
24mm |
| Die Sets: |
2 Sets |
| Standard Crimping Dies: |
Steel Sleeve Pipe 36mm |
| Standard Crimping Die: |
Aluminum End of Copper 76mm |
Product Description
Hydraulic crimping tool head, to work with hydraulic pump.
Double acting
Feature high quality, long service life and high portability.
|

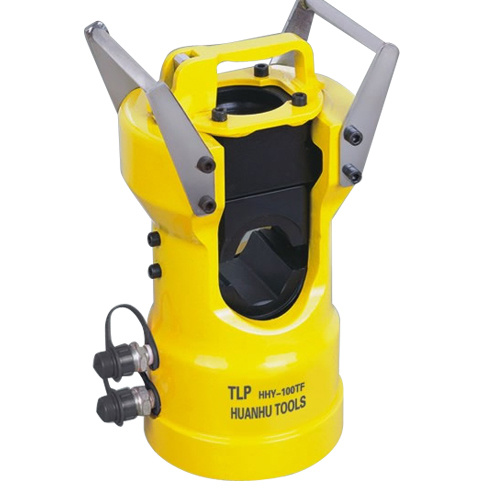

Hydraulic crimping tools head HHY-100TF |
|
Max.force |
100 ton |
|
Max.stroke |
24mm |
|
Size of standard size supplied |
Φ 76mm(for copper & alu. Ferrules), Φ 36mm(for steel ferrules) |
|
Crimp pattern |
Hexagonal type |
|
G.W. |
43.5KG |
|
Volume |
280*210*430mm |
Established in 1997, Yuhuan Huanhu Machinery-Electric Tools Factory is an experienced manufacturer of hydraulic tools and machinery in Zhejiang, China. From the very beginning we focus on delivering high quality products as well as professional service to our customers.
With over 18 years development, we have set up an extensive product range that includes pipe benders, hydraulic cylinders, hydraulic crimping tools, hydraulic bearing pullers, hydraulic knockout punches, hydraulic busbar processors, hydraulic cable cutters, hydraulic pumps, etc. Benefiting from high and stable quality performance, the products have been sold worldwide and gained positive feedbacks from customers and users.
Now we're looking forward to creating even brighter future with domestic and overseas customers.
The Reasons to Work with TLP
Very broad product range
Over 18 years manufacturing experience
Guaranteed quality
Highly competitive price
Commitent to customer service
Professional sales and technical teams
Able to customize hydraulic tools for your special need
Advanced manufacturing facilities, strong
Technical forces and well-trained employees
Enable us to offer first class products to the
Markets.
Our entire production is carried out internally,
Without third party intervention, to enable
Optimum control of quality, cost and service
