| Prod Model: |
NWA |
| Material: |
Stainless Steel |
| Connection: |
Push & Pull |
| Standard: |
ISO7241A |
Product Description

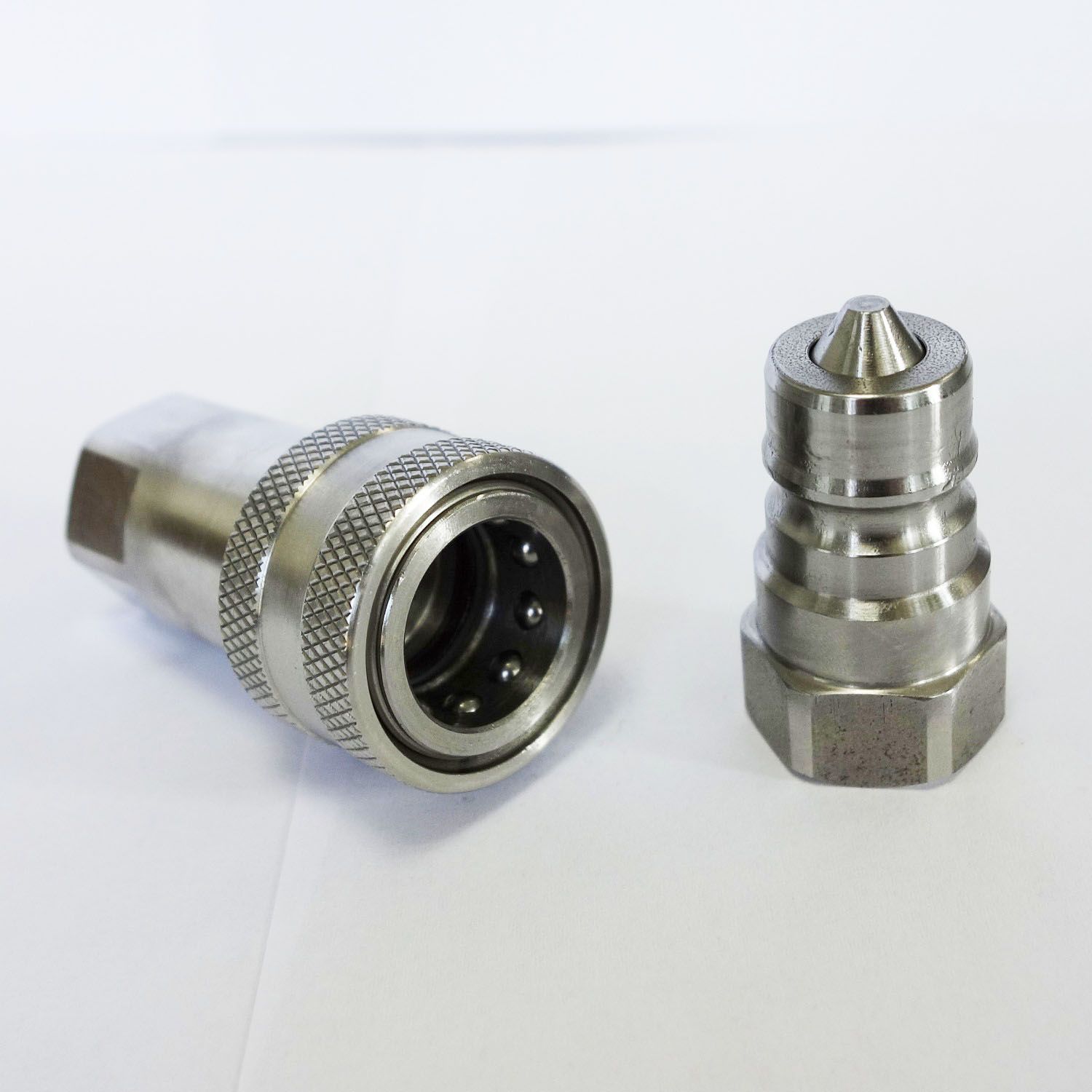

NWA Series quick coupling (stianless steel)
Product Feature

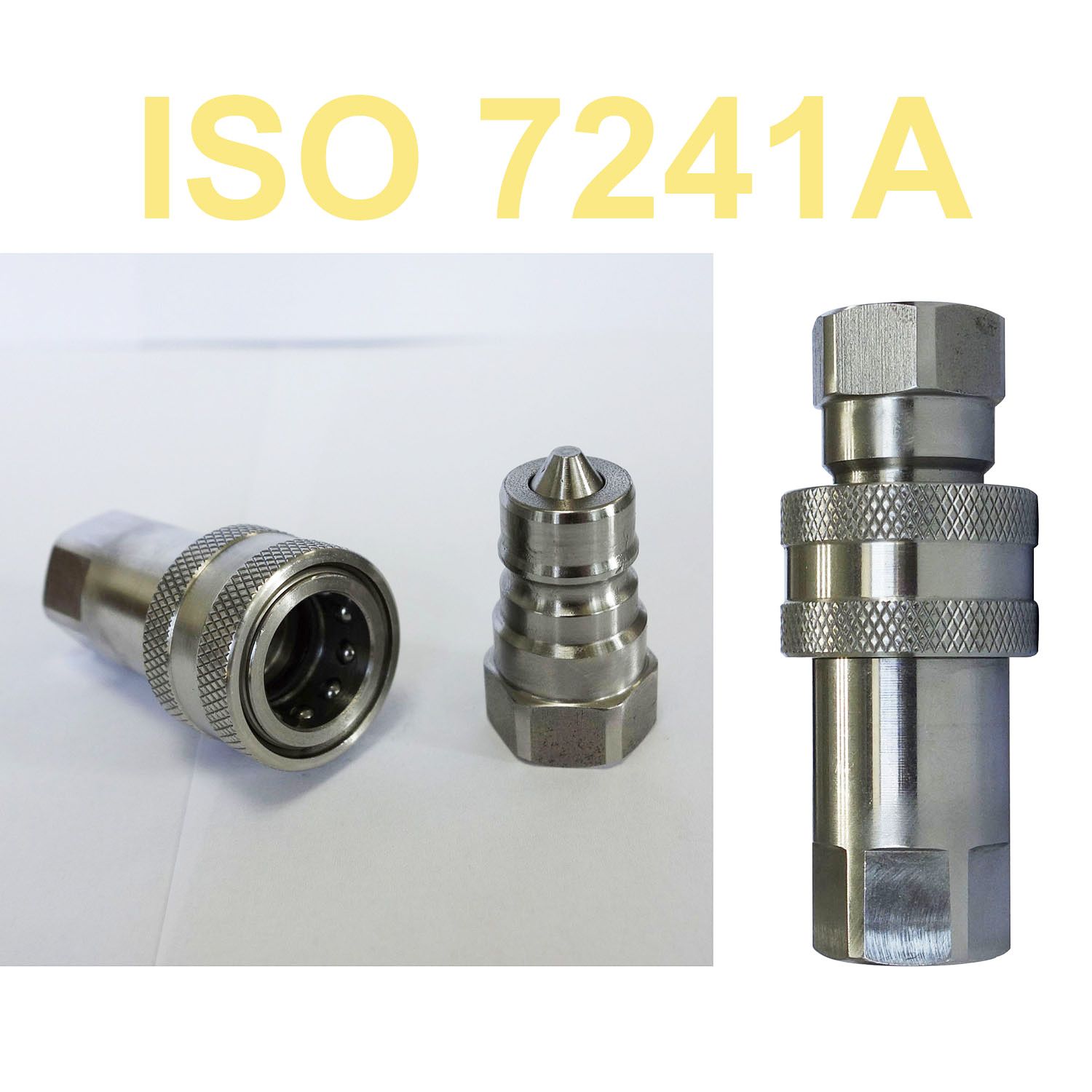

- Meet the standard ISO 7241-A
- Corrosion resistance for bad environment
- Standard material:corrosion resistance stainless steel 304/316
- Standard seal:nitrile rubber,fluoride rubber
| Seal elastomer data |
| Seal | Maximum working temperature range |
| Nitrile rubber | -20ºC to +100ºC |
| Fluoride rubber | -25ºC to +150ºC |
Product Parameter
Size
(in) | ISO
(mm) | Max Working Pressure
(bar) | Rated Flow
(l/m) | Min Blast Pressure
(bar) | Fluid Loss
(ml-cc) |
| connection | connection |
| 1/4 | 6.3 | 315 | 12 | 1450 | 0.5 |
| 3/8 | 10 | 315 | 23 | 1590 | 1.9 |
| 1/2 | 12.5 | 250 | 45 | 1240 | 2.7 |
| 3/4 | 20 | 250 | 106 | 1100 | 8.2 |
| 1 | 25 | 250 | 189 | 1000 | 14.2 |
Application Range
Hydraulic & fluid delivery
Agriculture machine
Building equipment
Steel rolling machine
Factory manufacturing & processing
Garbage truck,snow clearer truck and maintenance truck
Interchangeability
FASTER ANV series
STUFF H-1500 series
PARKER 6600 series
AEROQUIP FD56 series(5600 series)

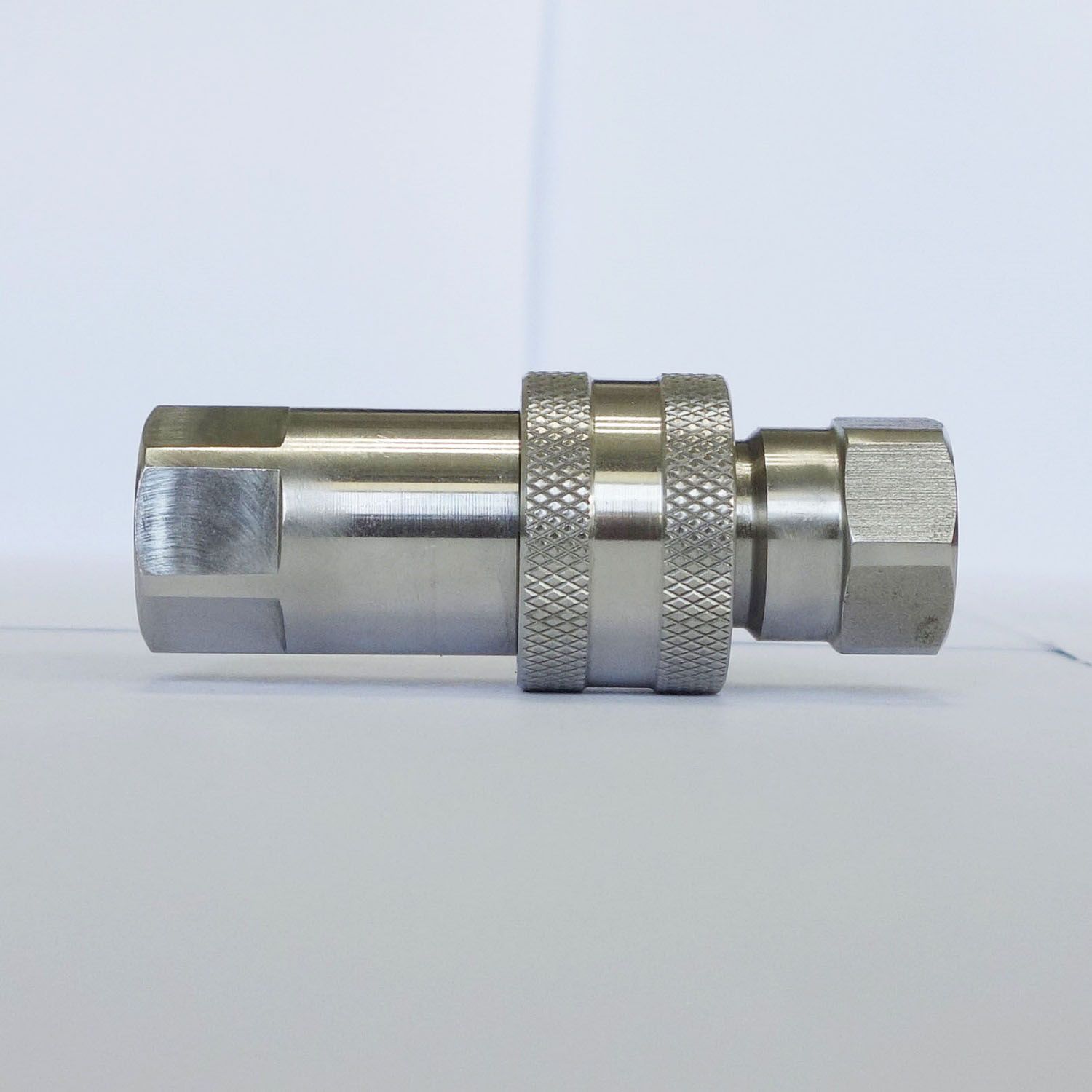

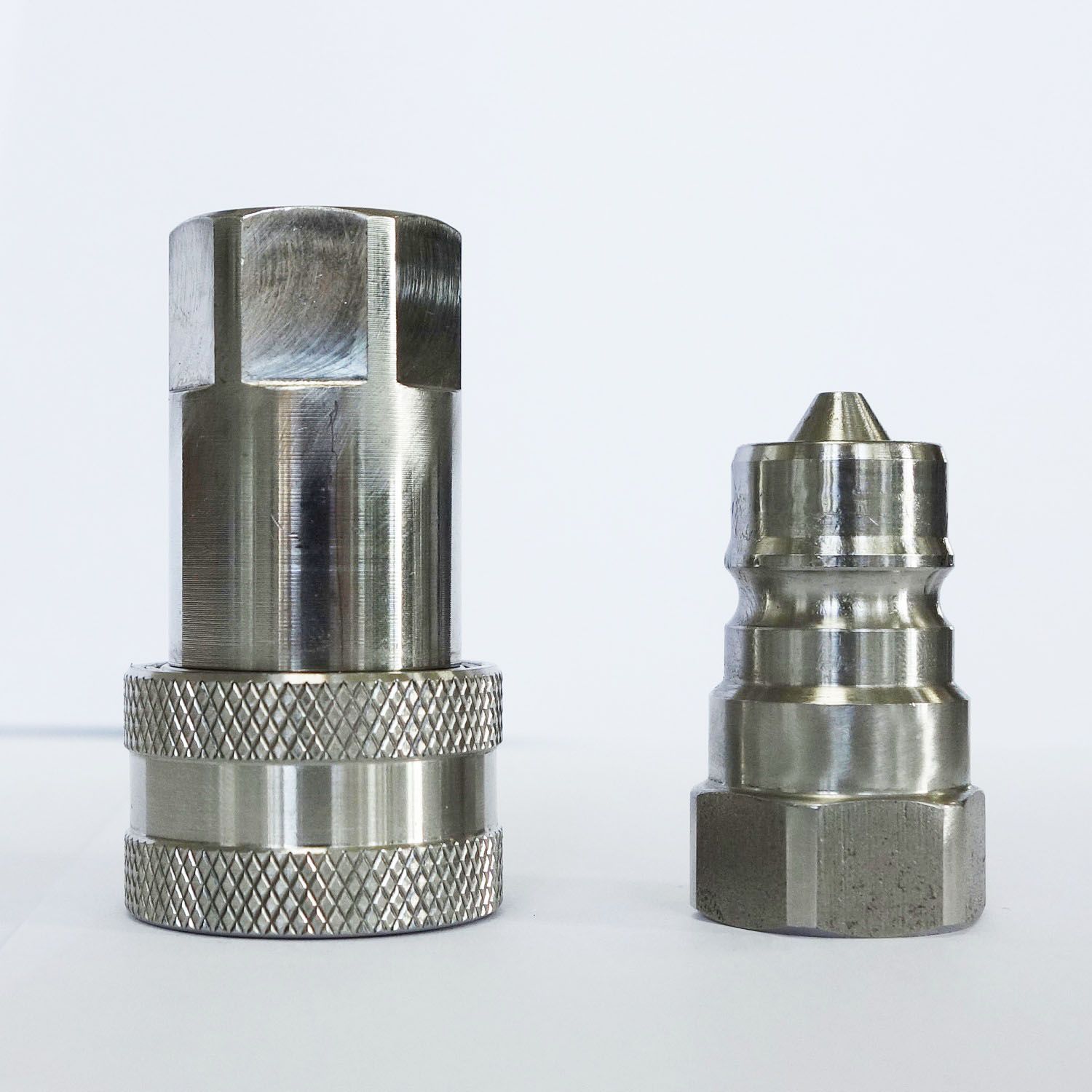

Photo Details
