| Prod Model: |
HHY-510 |
| Applicable For: |
Crimping on Power Cable and Wire |
| Output: |
11 Ton |
| Crimping Capacity: |
50-400mm2 |
| Crimping Style: |
Hexagon |
| Two Speed Equipment: |
Assure Rapid Piston Advance |
| Max Stroke: |
38mm |
| Standard Dies: |
9 Sets |
| Dies Size: |
50 70 95 120 150 185 240 300 400mm2 |
| Package: |
Plastic Carrying Case |
| Size: |
770*240*130mm |
Product Description

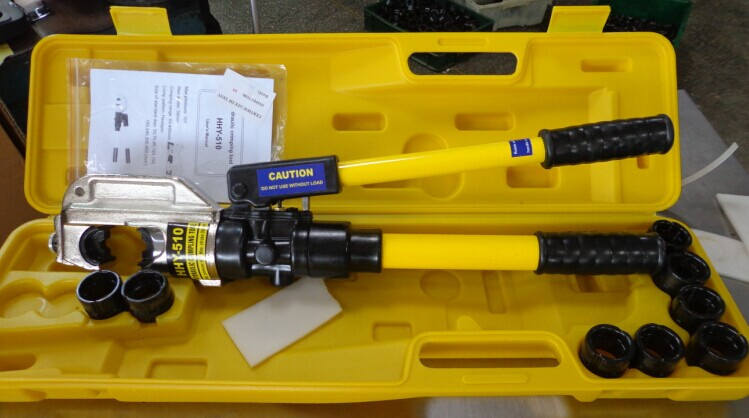

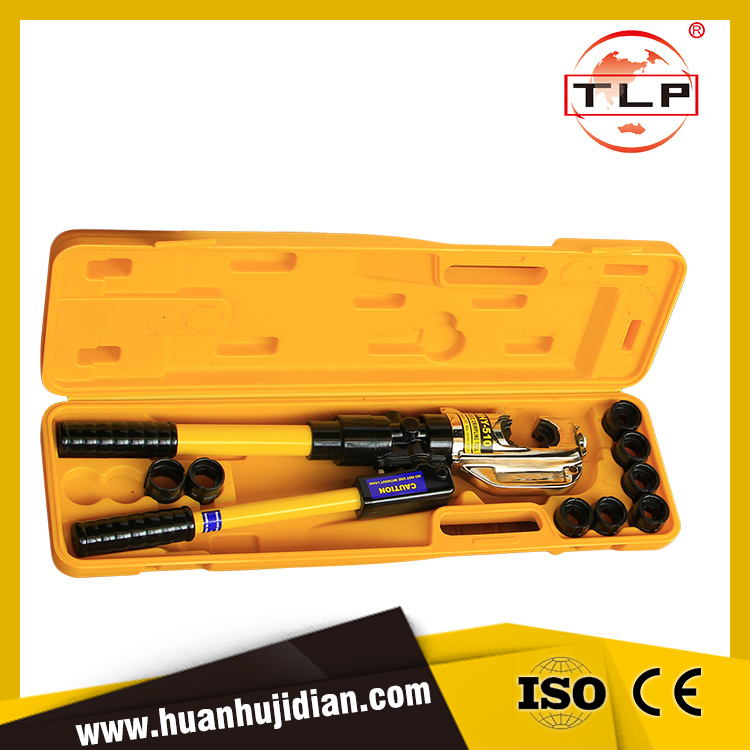

Hydraulic Crimping ToolHHY-510 is a professionla tool for crimping copper and aluminum terminals with hexagonal type and the crimping range is 50-400mm2 with automatic safety device.
SpecificationsElegant design and fine looking
Two-speed ram advances fast and shifs to low speed to complete the crimp
Built-in safety valve, automiatic pressure release when rated pressure is reached
Main body forged ,with strong intensity
Handles are made of glass fiber reinforced plastics,
insulated
| Model | HHY-510 |
| Max. pressure | 16T |
| Max. stroke | 38mm |
| Crimping range | 50-400mm2 |
| Size of standard dies | 50, 70, 95, 120, 150, 185, 240, 300, 400 |
| Crimp pattern | hexagonal type |
| G. W. | 11.5kg |
| Package | plastic box |
Established in 1997, Yuhuan Huanhu Machinery-Electric Tools Factory is an experienced manufacturer of hydraulic tools and machinery in Zhejiang, China. From the very beginning we focus on delivering high quality products as well as professional service to our customers.
With over 18 years development, we have set up an extensive product range that includes pipe benders, hydraulic cylinders, hydraulic crimping tools, hydraulic bearing pullers, hydraulic knockout punches, hydraulic busbar processors, hydraulic cable cutters, hydraulic pumps, etc. Benefiting from high and stable quality performance, the products have been sold worldwide and gained positive feedbacks from customers and users.
Now we're looking forward to creating even brighter future with domestic and overseas customers.
The Reasons to Work with TLP
Very broad product range
Over 18 years manufacturing experience
Guaranteed quality
Highly competitive price
Commitent to customer service
Professional sales and technical teams
Able to customize hydraulic tools for your special need
Advanced manufacturing facilities, strong
Technical forces and well-trained employees
Enable us to offer first class products to the
Markets.
Our entire production is carried out internally,
Without third party intervention, to enable
Optimum control of quality, cost and service
