| Prod Model: |
HHY-300G |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Applicable For: |
Crimping on Power Cable and Wire |
| Output: |
12 Ton |
| Crimping Capacity: |
50-300mm2 |
| Crimping Style: |
Hexagon |
| Two Speed Equipment: |
Assure Rapid Piston Advance |
| Max Stroke: |
17mm |
| Standard Dies: |
8 Sets |
| Dies Size: |
50 70 95 120 150 185 240 300mm2 |
| Package: |
Steel Case |
| Weight: |
4.2 Kg |
Product Description

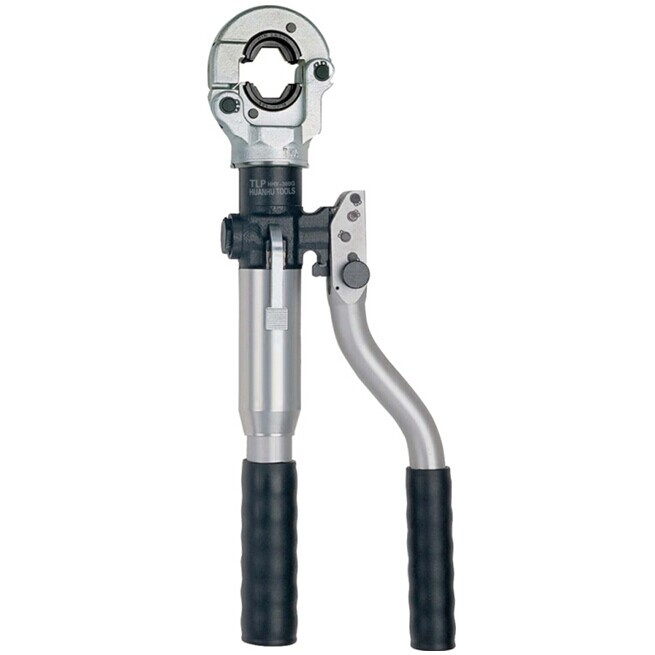

Hydraulic Crimping Tool
HHY-300G is a professionla tool for crimping copper and aluminum terminals with hexagonal type and the crimping range is 50-300mm2 with automatic safety device.
Specifications
Closed crimping head, flip top style, totatable
Two-speed ram advances fast and shifs to low speed to complete the crimp
Built-in safety valve, automiatic oil return when rated pressure is reached
Handle are made of Aluminum
|
Model |
HHY-300G |
|
Max pressure(T) |
12T |
|
Max stroke(mm) |
17mm |
|
Crimping range(mm2) |
50-300mm2 |
|
Size of standard dies(mm2) |
50, 70, 95, 120, 150, 185, 240, 300 |
|
Crimp pattern |
hexagonal type |
|
G. W. |
4.2kg |
|
Package |
plastic box |
