| Prod Model: |
ZBJ-PTSJ/YJSJ |
Product Description

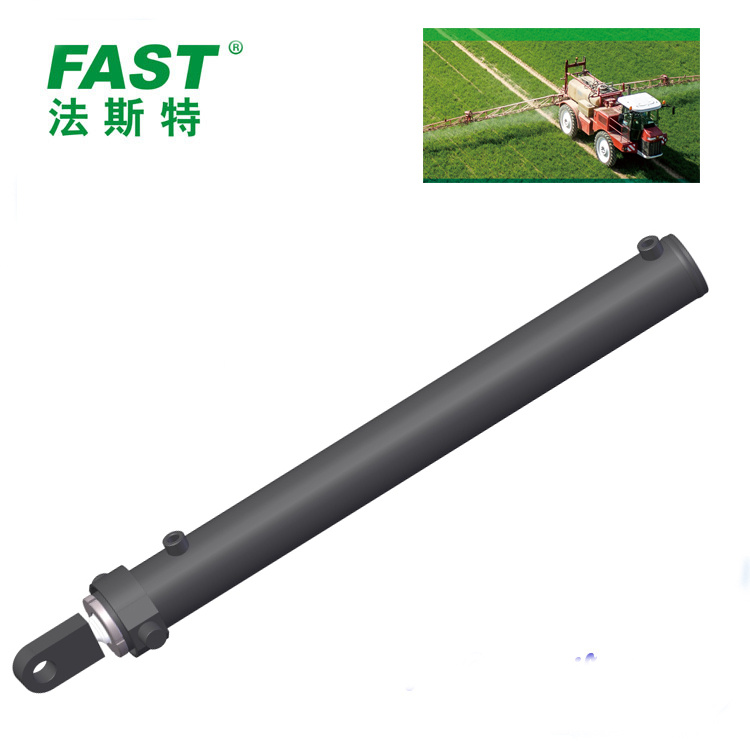

Hydraulic cylinder introduction:
Hydraulic cylinders for plant protection machine have 12 models and 29 sets hydrauliccylinders, including 2 steering hydraulic cylinders with MTS sensors. Main features of plant protection machine are as following:- Range of outside temperature is very large, requests for lowest temperature is -40ºC.
- Short operation time, long resting period.
- Small working load, the cylinders are mainly used for requested movements.
These features decided the hydraulic cylinders for plant protection machine are low temperature resistance, low friction and low pressure hydraulic cylinders which have a high requests for sealing performance. FAST has years of design experience and professional processing technique, cylinder are with reliable quality and PPM ≤5000.Technical parameters:
| FAST Standard code |
Name |
Parameter |
Qty |
Ps |
| ZBJ-PTSJ/YJSJφ40/20-314 | ladder lifting hydraulic cylinder
| 40/20X314-480 | 2 | |
| ZBJ-YJZK-2φ40/20-310 | 2pesticide frameexpansion hydraulic cylinder2 | 40/20X310-480 | 2 | |
| ZBJ-JZSJφ50/25-150 | cover lifting hydraulic cylinder | 50/25X150-300 | 1 | |
| ZBJ-GTZDφ50/35-225 | slasher frame folding hydraulic cylinder | 50/35X225-585 | 2 | |
| ZBJ-GTSJφ60/35-280 | slasher frame lifting hydraulic cylinder | 60/35X280-520 | 6 | |
| ZBJ-YJZK-1φ50/35-567 | 1pesticide frame expansion hydraulic cylinder1 | 50/35X567-760 | 2 | |
| ZBJ-ZX-Mφ63/32-215 | steering hydraulic cylinder | 63/32X215-170 | 2 | with sensor |
| ZBJ-ZXφ63/32-215 | steering hydraulic cylinder | 63/32X215-170 | 2 | |
| ZBJ-LTSZφ63/35-455 | tire stretching hydraulic cylinder | 63/35X455-658.5 | 4 | |
| ZBJ-YJXZφ63/35-525 | pesticide frame rotary hydraulic cylinde | 63/35-525-110 | 2 | |
| ZBJ-YJSJφ63/40-460 | pesticide frame lifting hydraulic cylinder | 63/40X460-645 | 2 | |
| ZBJ-YJQLφ75/35-286 | pesticide frame lifting hydraulic cylinder | 75/35X286-534 | 2 | |
Company Introduction1. Built in 1973
2. Total area 45600m
23. 400 employees, 70 engineers
4. More than 400 sets equipment
5. National Patents: 71
Management System ISO9001 System ISO/TS16949System IPR System
Quality Control1. We use Solidworks to design cylinders and do force analysis.

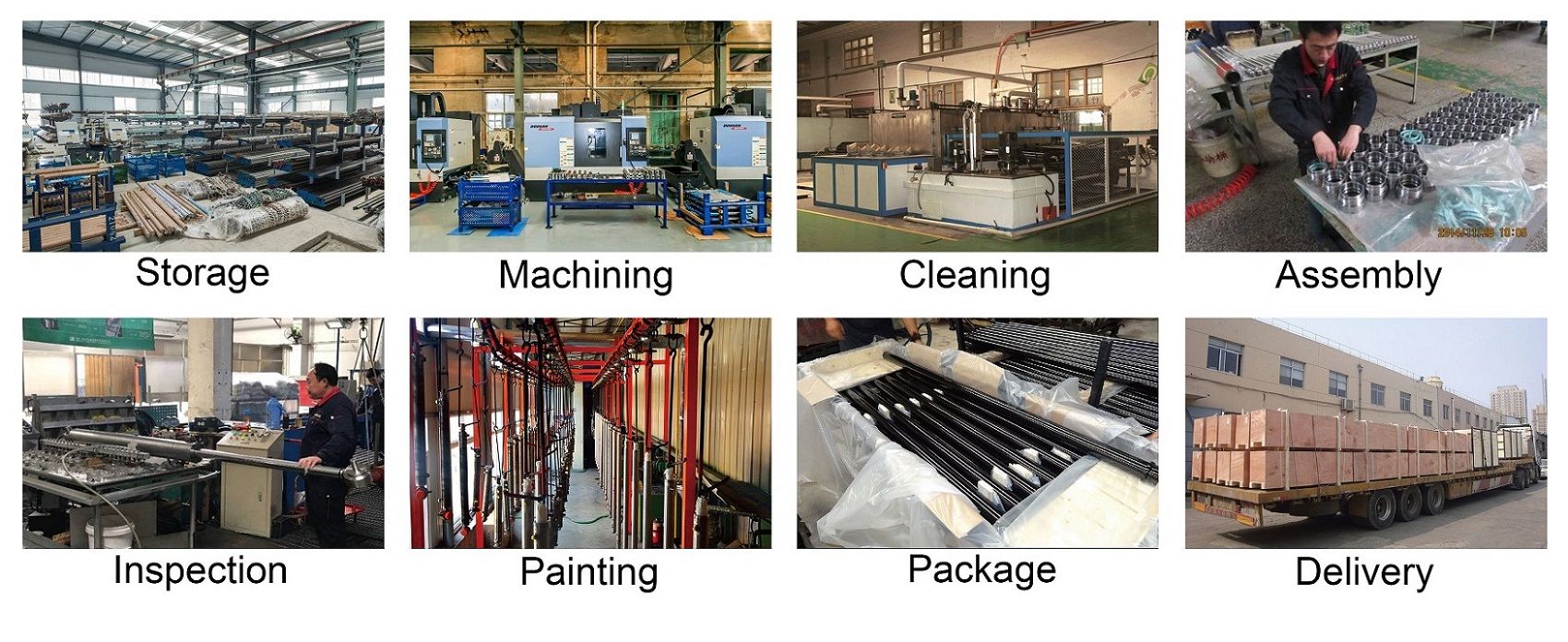

2. Inspection process: incoming inspection, sampling inspection, process inspection and pre-shipment inspection.
3. Before the production, we will do chemical composition tests. The uninspected materials are stored in special positions and all inspected materials are able to be traced by size, supplier and date.
4. During the production, the process cards are placed around to make sure that the workers understand every step clearly. The products are marked for tracking.
Packing & DeliveryThe products are fully protected by metal shelves, wood boxes and plastic fillers.
Products ApplicationOur products are mainly used in following industries like car lift, agricultural machines and environmental vehicles. With high quality products and considerate after-sales service, we have established a well-known reputation.
Sales NetworkOur products have been exported to North America, Europe, Russia and Southeast Asia, etc. We have established a branch in USA.
FAQQ1: Are you a trading company or manufacturer?
A1: We are the manufacturer with Exporting License.
Q2: How long have you been in Hydraulic Cylinder industry?
A2: Our factory is built in year 1973 and start by manufacturing Pneumatic Cylinder. From year 1985, we start manufacturing Hydraulic Cylinder.
Q3: How long is your warranty period?
A3: We offer 13 months warranty period after on board.
Q4: How long does it take to process orders?
A4: It usually takes 20-30 days to process. We don't have stock.
Q5: What's your cylinder PPM?
A5: 5000 PPM. We do 100% inspection before delivery.
Q6: Have you been exported to overseas?
A6: We have been exporting to USA, Canada, Germany, Italy, France, Russia, etc.
Contact: Lily Liu Website: www.fasthydraulic.com www.yantaifuture.cn
Yantai Future Automatic Equipments Co., Ltd (used to be called Yantai Pneumatic Works) is founded in 1973. It's one of the defined industry of Mechanical Department. In year 2001, we changed to Yantai Future Automatic Equipments Co., Ltd.
In 1989, we get the National Second-class Enterprise. In 2000, we passed ISO9001. In 2002, we passed ABS certificate. In 2008, we get the certificate of great contribution industry. In 2010, we get the title of high & new technology industry of Shandong Province.
The birthplace of first Chinese pneumatic cylinder; The standard creator of Chinese pneumatic cylinder; The member of HSPA; The member of special vehicle; The member of Chinese steel industry; The member of Chinese rubber industry.
It occupies a area of 45600 square meters, construction area 26316 square meters, with total employee of over 500.
We mainly manufacture Hydraulic Cylinder, Hydraulic Powerpack, Pneumatic Cylinder & Pneumatic Powerpack.
Our products are used in many industries, like auto industry, rubber industry, chemical industry, military industry, engineering industry, casting machinery, etc. We have established long-term relationship with our customers and get good reputation by high quality & good service.
Quality creates Future
