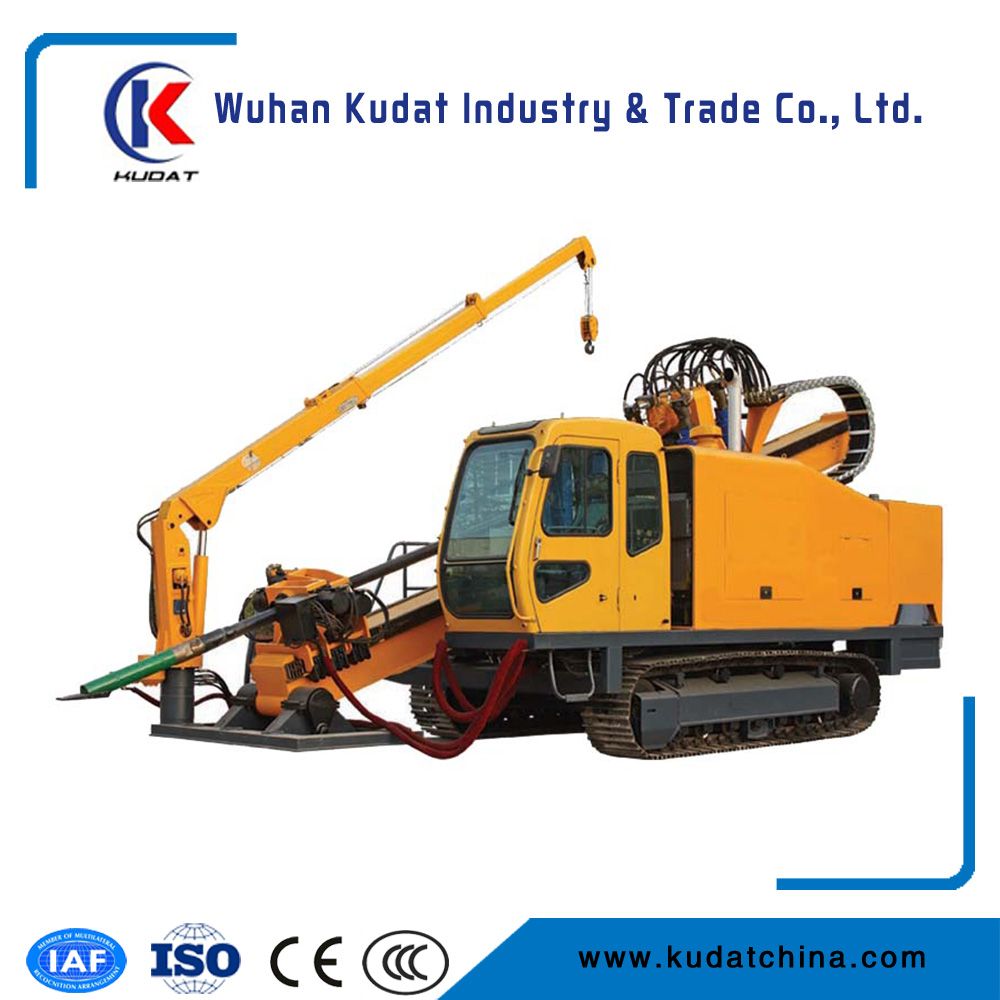

Hydraulic Directional Drilling Rig, Non Excavation Drilling Machine (KPD-60)

Hydraulic Directional Drilling Rig, Non Excavation Drilling Machine (KPD-60)
Price: Negotiable/Set
Trade Terms: FOB,CFR,CIF
Min Order: 1/Set
Pay Type: L/C,T/T,D/P,Western Union,Paypal
Prod Model: KPD-60
Markets: South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia
Power Of Engine:  Wd615 Styre 225 Kw
Max Push: 610 Kn
Max Pull Capacity: 610 Kn
Feed Travel: 6500-7000 mm
Drilling Angle: 8-18 0
Move Mode: Propelled with Track Assemblies
Dimension L×w×h: 9000*2750*2800 mm
Weight: 22000 Kg
Mud Pump: Bwf-600
Max. Discharge: 600 L/Min

Product Description

Specification
Power of Engine WD615 Styre 225 KW
Max push capacity610 kN
Max pull capacity610 kN
Rated torqueLow27000 N.m
High135 N.m
Rated speedLow0-45 r/min
High0-90 r/min
Feed travel6500-7000 mm
Drilling angle8-18 0
Move ModePropelled with Track Assemblies
Dimension L×W×H9000×2750×2800 mm
Weight22000 kg
Mud Pump
ModelBWF-600
Max. Discharge600 L/min
Peak Pressure8 MPa
Drilling tools and auxiliary system
Specification of Rod102×5000 mm
Guide Bit170(230) mm
Reamer400;500;600;720;830;900;1000,1100
Rotary connecting swivel80T
Product sample

our company



Since 1990, Kudat Industry and Trade Company has exported engineering machinery, construction machinery and agricultural machinery to international markets. Satisfying customers' stated and implied needs have always been the focus of business policy of Kudat. As a further step to satisfy customers and to give them confidence in our quality & production capabilities, Kudat has adopted ISO 9001: 2000, the international quality management system. And some of our products have also passed CE and EPA certification.

With a rich inventory of numerous products and vast sourcing capabilities (more than 60 famous manufacturers) cater to the requirements of its customers. Except abundant of products, we also set up factory for studying and producing relative machinery products. From base to top, Kudat holds a unique position in the global market of machinery products which is combination of production and trade.

With 16 years experience in the export of machinery products, Kudat has gained reputation and confidence as a reliable Chinese supplier. By virtue of committed management and dedicated employees, Kudat has gained recognition from the government of China as an excellent exporter.
