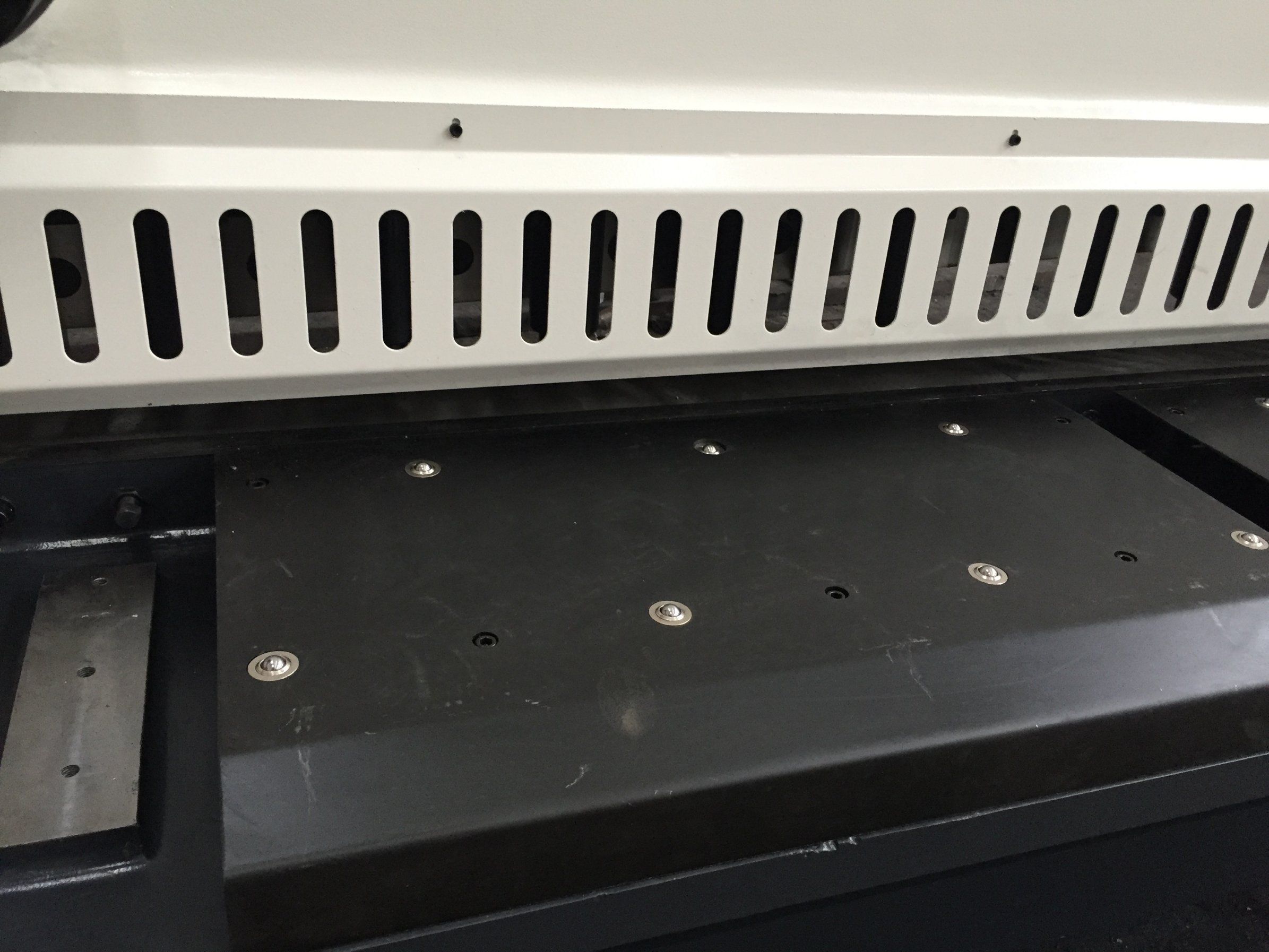

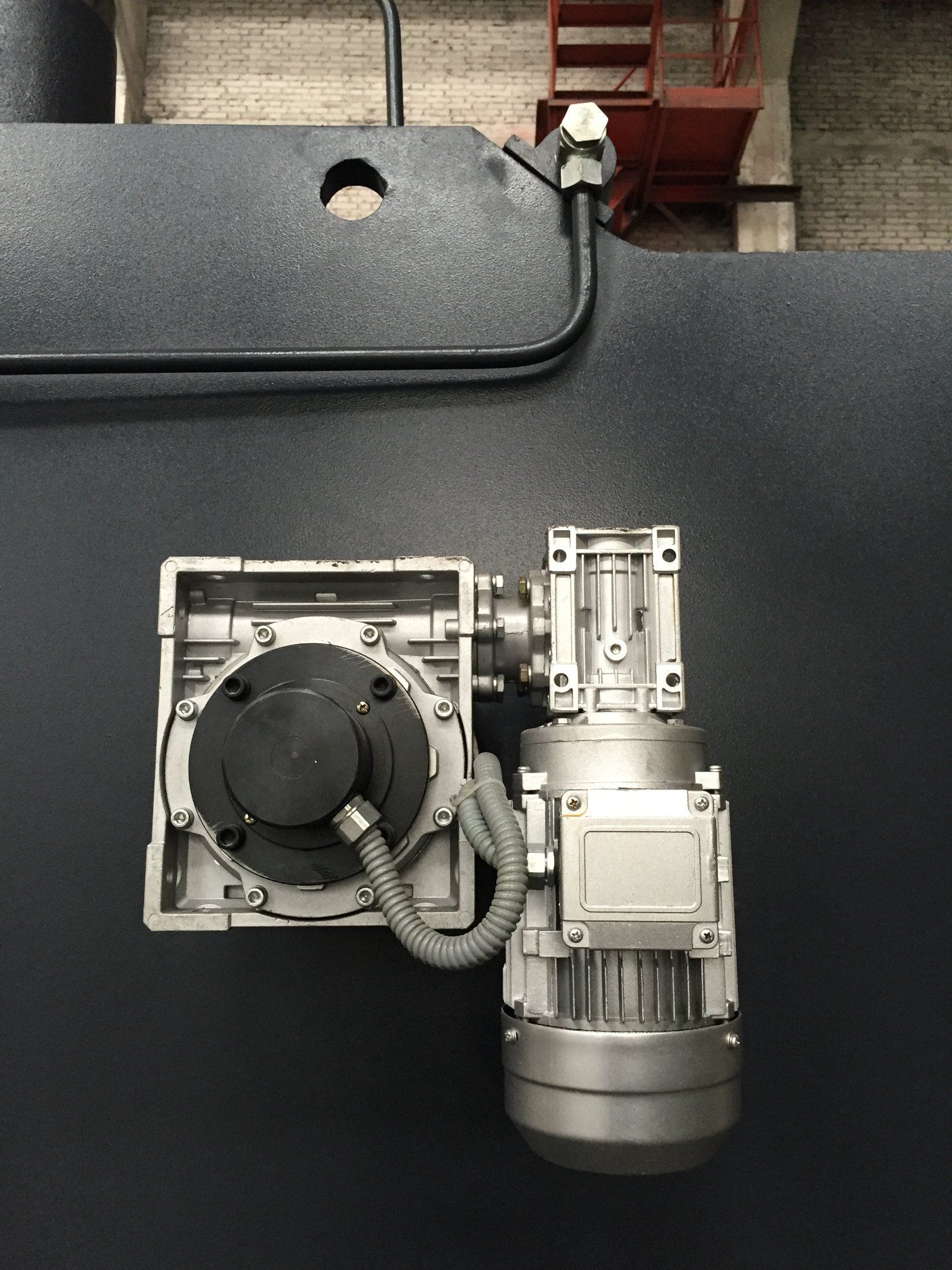

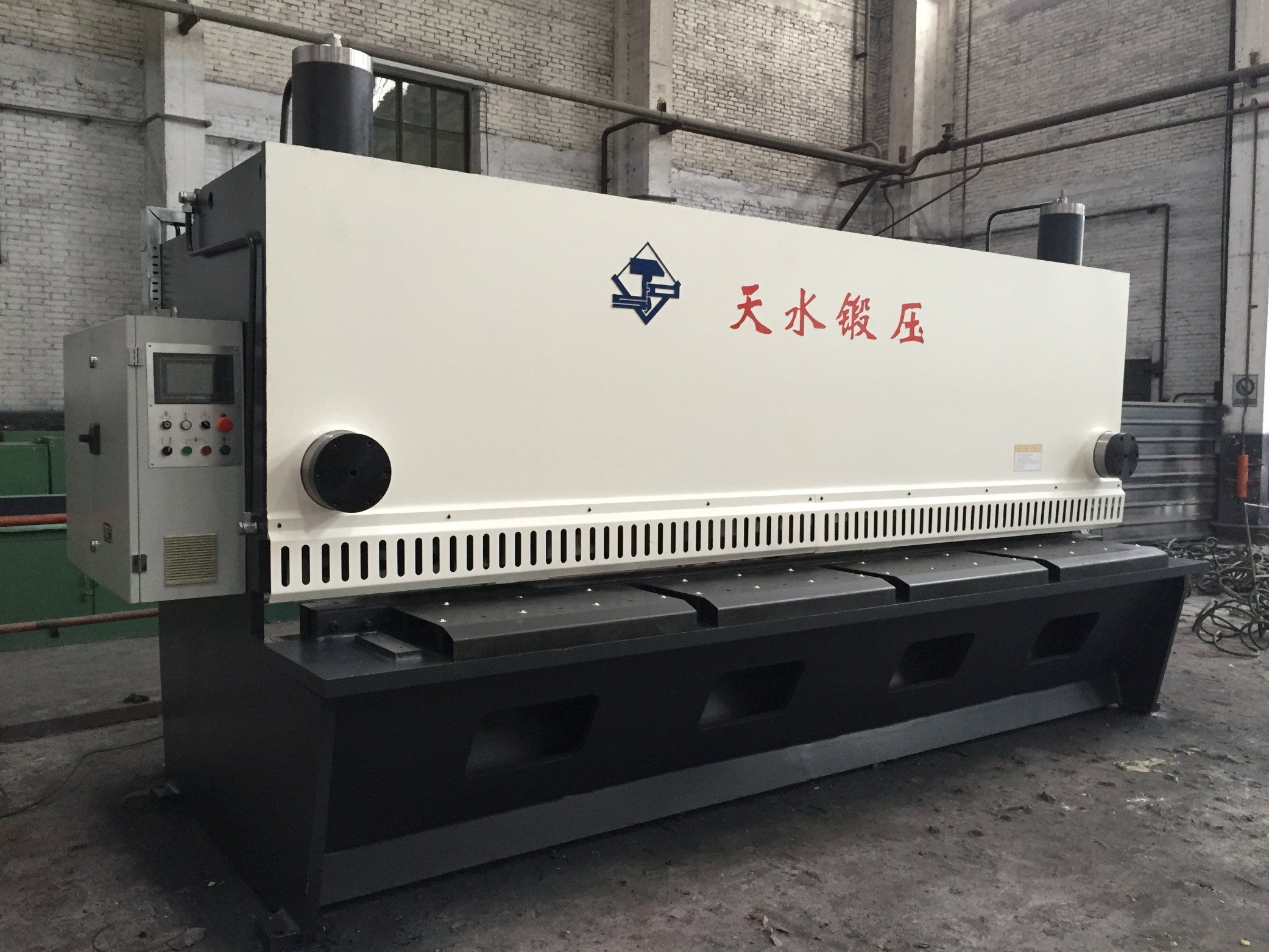

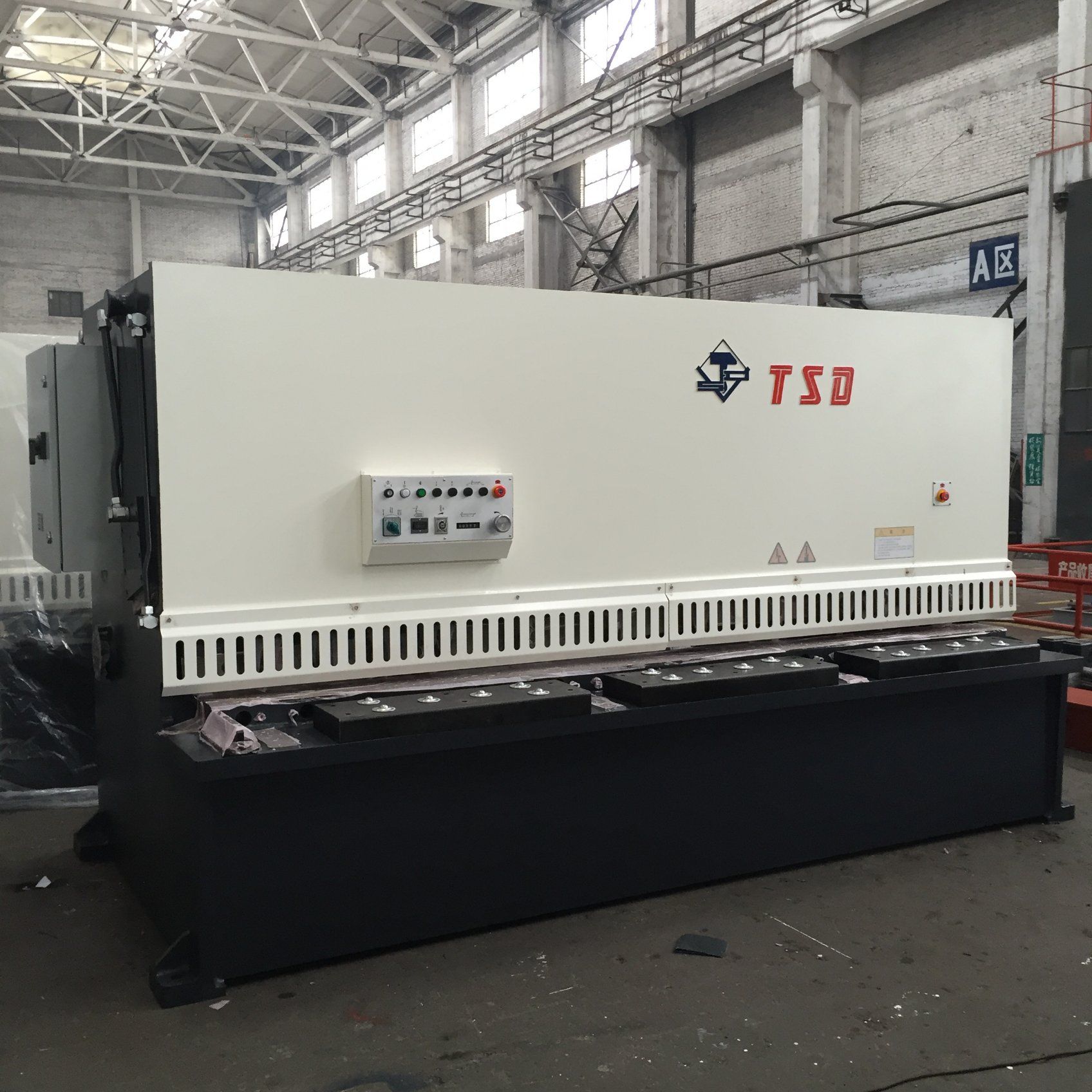

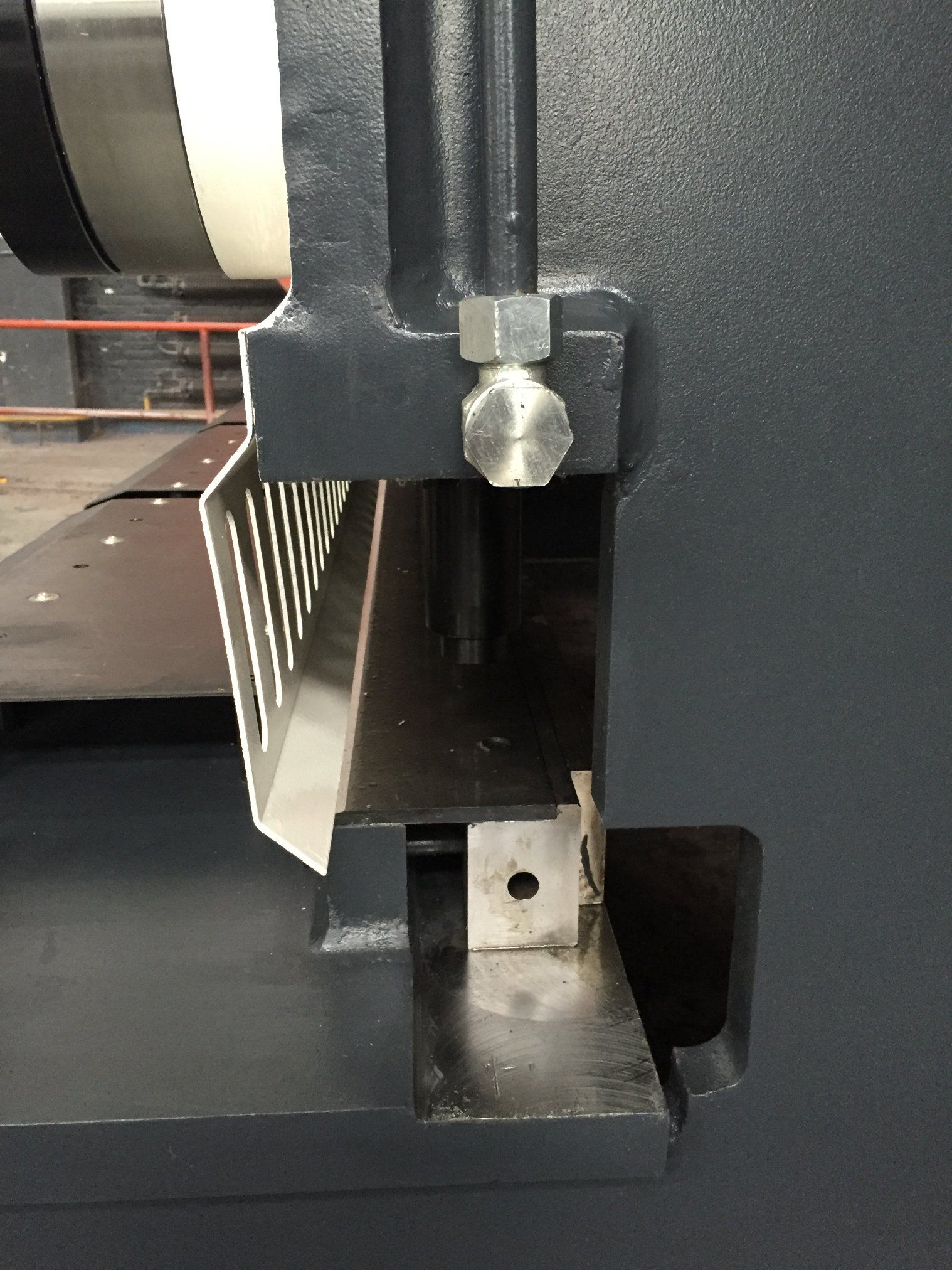

Features: - ASTM283M Gr.D steel to be used for fully welded construction with stress relief - Knife beam consisted of knife body, double oil cylinders in series, 3 points roll guide rail and clearance adjusting device - Adjustable cutting angle - Rolling ball on front supporter and working table for conveniently feeding - Motorized blade clearance adjustment with displayer - Returning by nitrogen gas accumulator - Hold-down clamped hydraulically - Motorized back gauge - 6CrW2Si blades - Lighting alignment cutting device - Hydraulic manifold valve block - International standard electrical components - Electrical cabinet wind cooling - Movable foot pedestal with emergency stop button
Technical Specifications
Thickness(mm)
12
Width(mm)
3200
Shear angle(°)
1.5
Strokes(n/min)
≥11
Back gauge range(mm)
800
Motor power(kw)
22
Overall dim(L*W*H)(mm)
3920×1815×2120
Name Type
Thickness (mm)
Width (mm)
Shear angle (°)
Strokes (n/min)
Back gauge range(mm)
Motor power (kw)
Overall dim (L*W*H)(mm)
QC11Y-6×4000
6
4000
0.5-2
≥8
600
11
4815×2345×2490
QC11Y-8×4000
8
4000
0.5-2
≥7
800
15
4868×2387×2380
QC11Y-8×5000
8
5000
0.5-2
≥6
800
22
5800×2500×2300
QC11Y-8×6000
8
6000
0.5-2
≥5
800
22
6700×2560×2300
QC11Y-10×6000
10
6000
0.5-2
≥6
800
37
7342×3625×3797
QC11Y-10×8000
10
8000
0.5-2
≥5
800
37
8935×2710×3670
QC11Y-10×12000
10
12000
0.5-2
≥4
800
45
13115×6740×5580
QC11Y-12×4000
12
4000
0.5-2.5
≥7
800
22
5044×2342×2622
QC11Y-12×5000
12
5000
0.5-2.5
≥6
800
22
5655×3570×2841
QC11Y-12×7200
12
7200
0.5-2.5
≥6
800
45
8000×3910×3750
QC11Y-13×6000
13
6000
0.5-2.5
≥7
1000
37
7035×2740×3825
QC11Y-13×8000
13
8000
0.5-2.5
≥6
1000
55
8950×2710×3060
QC11Y-13×9000
13
9000
0.5-2.5
≥5
1000
55
11450×7310×3760
QC11Y-14×12000
14
12000
0.5-2
≥4
1000
2×45
13275×5470×6610
QC11Y-16×4000
16
4000
0.5-2.5
≥7
800
22
4905×3142×2580
QC11Y-16×5000
16
5000
0.5-2.5
≥8
1000
45
5928×3845×2848
QC11Y-16×6000
16
6000
0.5-2.5
≥8
1000
45
6952×2540×2820
QC11Y-16×7000
16
7000
0.5-2.5
≥8
1000
45
8050×2770×3535
QC11Y-16×8000
16
8000
0.5-2.5
≥4
1000
45
9378×3545×4882
QC11Y-16×9000
16
9000
0.5-2.5
≥4
1000
55
11110×7860×4982
QC11Y-16×10000
16
10000
0.5-2.5
≥4
1000
55
11870×7728×5322
QC11Y-16×12000
16
12000
0.5-2.5
≥4
1000
2×45
13943×4170×6800
QC11Y-20×4000
20
4000
1-3
≥5
1000
45
5160×3250×3050
QC11Y-20×6200
20
6200
1-3
≥4
1000
55
7438×2673×3875
QC11Y-20×8200
20
8200
1-3
≥4
1000
55
9976×7680×4631
QC11Y-25×4000
25
4000
1-3
≥4
1000
45
5250×3458×3235
QC11Y-25×6200
25
6200
1-3
≥3
1000
55
7800×5750×3930
QC11Y-25×10000
25
10000
1-3
≥3
1000
2×45
12050×4250×6700
QC11Y-25×12000
25
12000
1-3
≥2
1000
2×55
14050×4750×6900
QC11Y-32×4000
32
4000
1.5-3.5
≥4
1000
2×45
5250×2646×3412
QC11Y-35×4000
35
4000
1.5-3.5
≥5
1000
2×55
10336×3900×4092
Standard configuration: - Chinese famous brand's main electrical components - Motor:Xi'an SIMO, http://www.simo.com.cn - Hydraulic system: Beijing Huade, China - Seal rings of main cylinders: NOK, Japan - 380 Volts/3 Phases/50Hz
Options - Whole length blade - Cr12MoV/H13K material blade for stainless steel cutting - Pneumatic back supporter - Extended side arm
Packing:Coating with anti-rust oil on working surface, with plastic film layer for whole machine. Packed in container
After-sale-service: 1. The Seller has passed ISO9001 quality system certification since 1997, and always execute strictly this quality management system in our company and on our products. All products before ex-works have been strictly tested and are in conformity with technical agreement and standard. 2. Warranty is one year since the date of B/L, or final acceptance date of heavy duty machinery. Longer warranty could be purchased by the user. 3. Commissioning: For heavy-duty machinery, the Seller sends technicians (electrical hydraulic & mechanical) to guide the installation, testing and training the operators from 7 days to 45 days after the machine reaches the factory of user. But the round-trip air tickets, local accommodation and allowance (USD100/person·day) in the User's country will be burdened by the Buyer. The above charges do not be included in the offer. This clauses will be shown in the contract. 3. For middle and small standard machinery, it is easy to operate according to operating manual. The User is firstly suggested to carefully read operating manual, then start the machine. Any unclear issues, please feel free to contact the Seller. If the User insists on supplying the technical service at use's factory, please refer to No.2 clauses of after-sale- service. 4. All products of the Seller can be tracked by Ex-works number. Spare parts can be supplied same as the former, which is helpful for customers' special designing requirements. 5. Consumable parts can be supplied free of charge to customer within one year warranty from B/L date, and the long term technical consultant service is available. 6. Common failure could be solved by E-mail, Phone and long distance video diagnose. The User must supply full failure description, clear pictures and videos, if possible. Once the serious quality problem is appeared due to the Seller's manufacturing reason within one year since B/L date or final acceptance date of heavy duty machinery. The Seller will send their technician to repair it . 7. After one year warranty, the Seller will provide free technical consultation and spare parts and technician service at lowest cost.

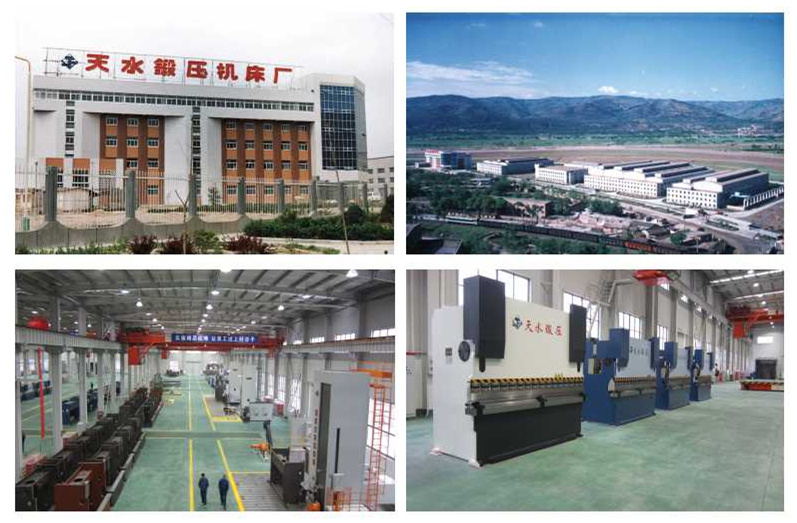

Tianshui Metalforming Machine Tool (Group) Co., Ltd(TSD)is located in Maiji District, Tianshui city, Gansu Province, China. The earliest name is Tianshui Metalforming Machine Tool Works.
Built in 1966, TSD company as a traditional manufacturer has always been manufacturing and distributing high quality press brake, hydraulic press, rolling machine, guillotine shear, roll forming machine as well as Turn-key project of JCOE Longitudinal Sub-merged Arc Welding (LSAW) pipe mill and customerized sheet metal machinery. TSD machines have been exported to more 40 countries and regions. The company's R&D center is awarded as National R&D Center. There are 300, 000 square meter floor space, 450 sets of processing machines.
- 70% of main machine parts finished by ourselves
- Strict quality control distributed over each processing steps
- Customerized heavy duty press brake, guillotine shear, hydraulic press available specially
- Turn-key project for Electrical tower pole line and LSAW pipe mill
- Permanent machines file management with tracking
- High price performance ratio
With registered trade mark TSD, it is honored as Chinese famous trademarks. TSD has always been contributing to "national Hi-tech industrialization demonstration projects", National "863 plan" project, and the state Torch Plan project. TSD has been awarded more than 40 items of National, Provincial and Municipal Prizes for Progress in Science and Technology, and 115 patents of national invent and utility model.
The company is the council member of China Machine Tool and Tool Builder's Association(CMTBA) as well as the committee member of National Committee for Standardization Techniques of Metal Forming machinery.
It has got ISO9001 1994 in 1997 and ISO9001 2000 in 2001 quality management system certification, and ISO14001 1994 environmental management system certification and OHSAS18001 1999 occupational health and safety management system certification in 2008.
