Hydraulic Guillotine Shear/Shearing Machine/Metal Cutting Machine (QC11Y-8X2500)

Name: Hydraulic Guillotine Shear/Shearing Machine/Metal Cutting Machine (QC11Y-8X2500)
Brand: tool-buy.com
SKU: 839049645
Availability: InStock
Rating: 4.6 (120 reviews)

Price:	US $ 18810/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T

Contact Supplier

TIANSHUI METALFORMING MACHINE TOOL (GROUP) CO., LTD.

Showroom Product Company Profile

Prod Model:	QC11Y-8X2500

Product Description

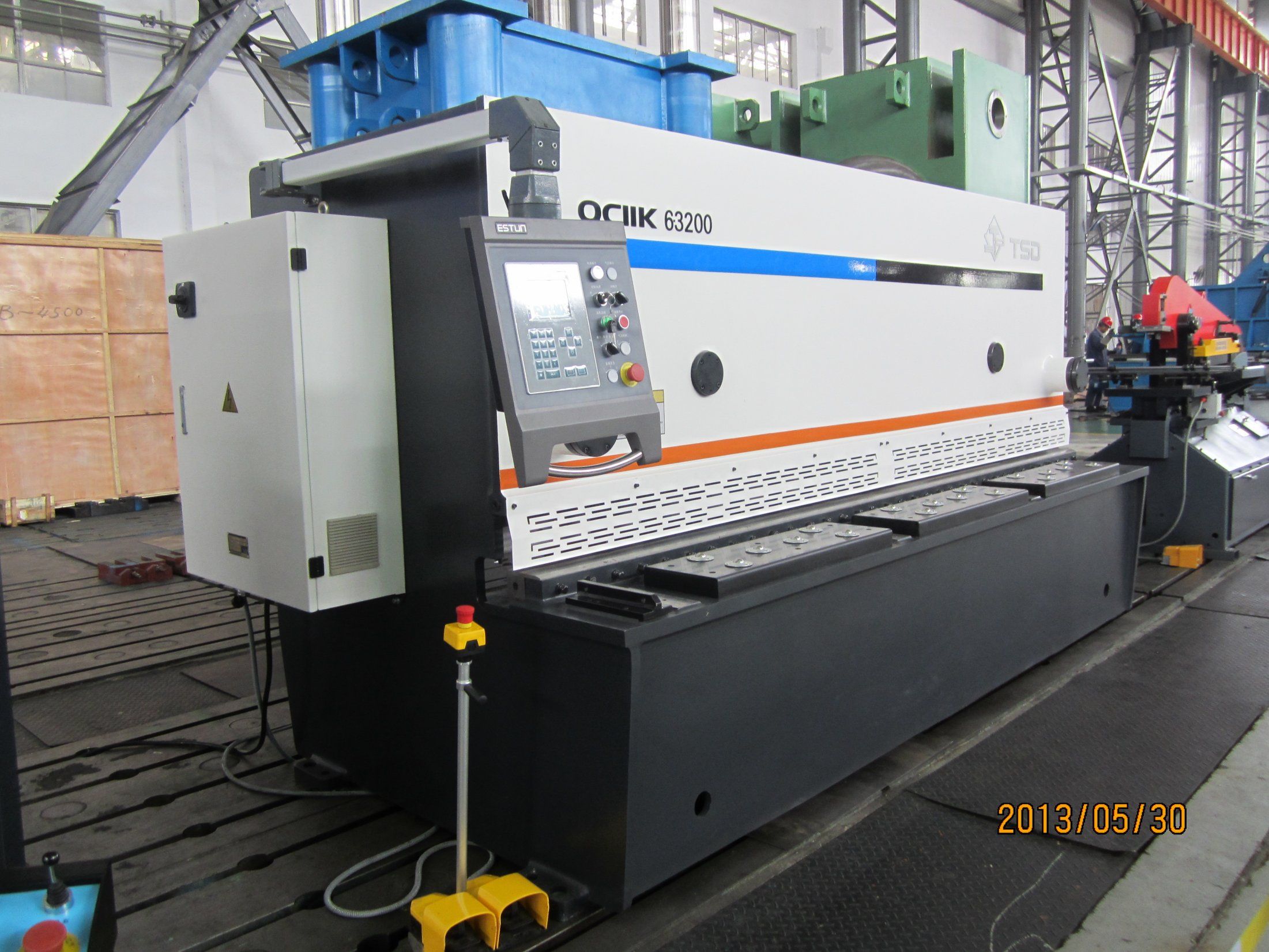

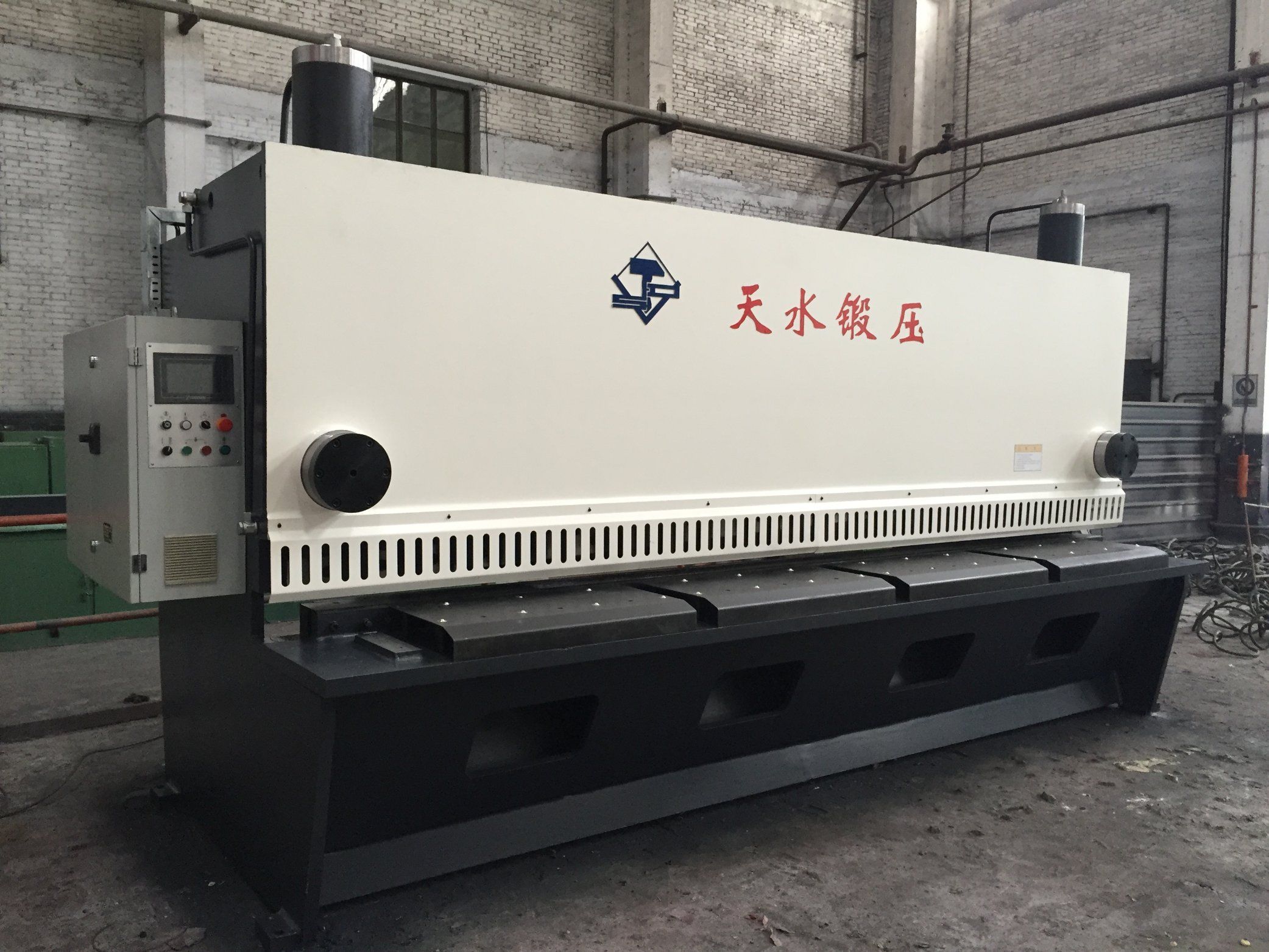

Hydraulic Guillotine Shear
ModelQC11Y-8X2500

Features:
- ASTM283M Gr.D steel to be used for fully welded construction with stress relief

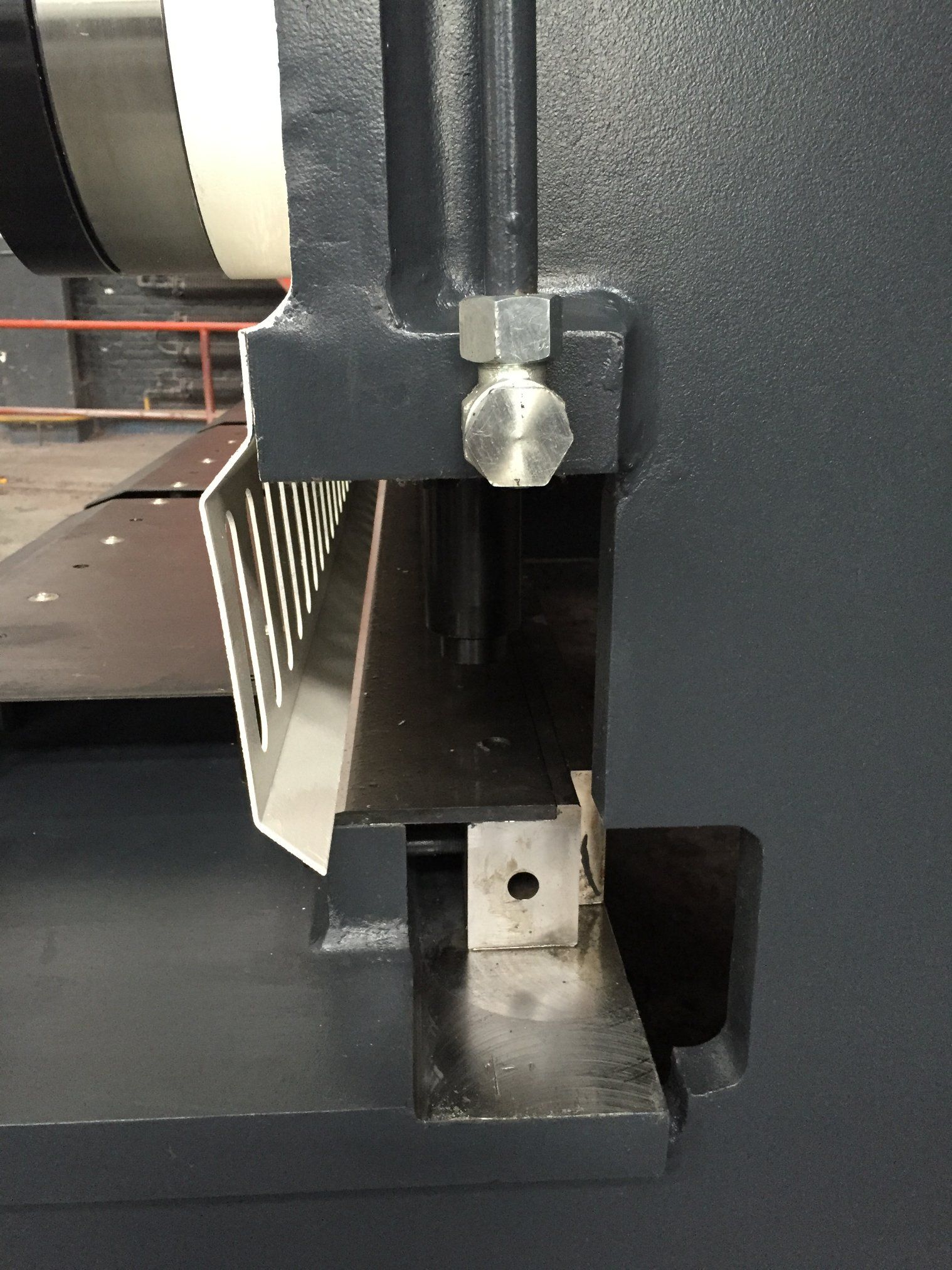

- Knife beam consisted of knife body, double oil cylinders in series, 3 points roll guide rail and clearance adjusting device
- Adjustable cutting angle

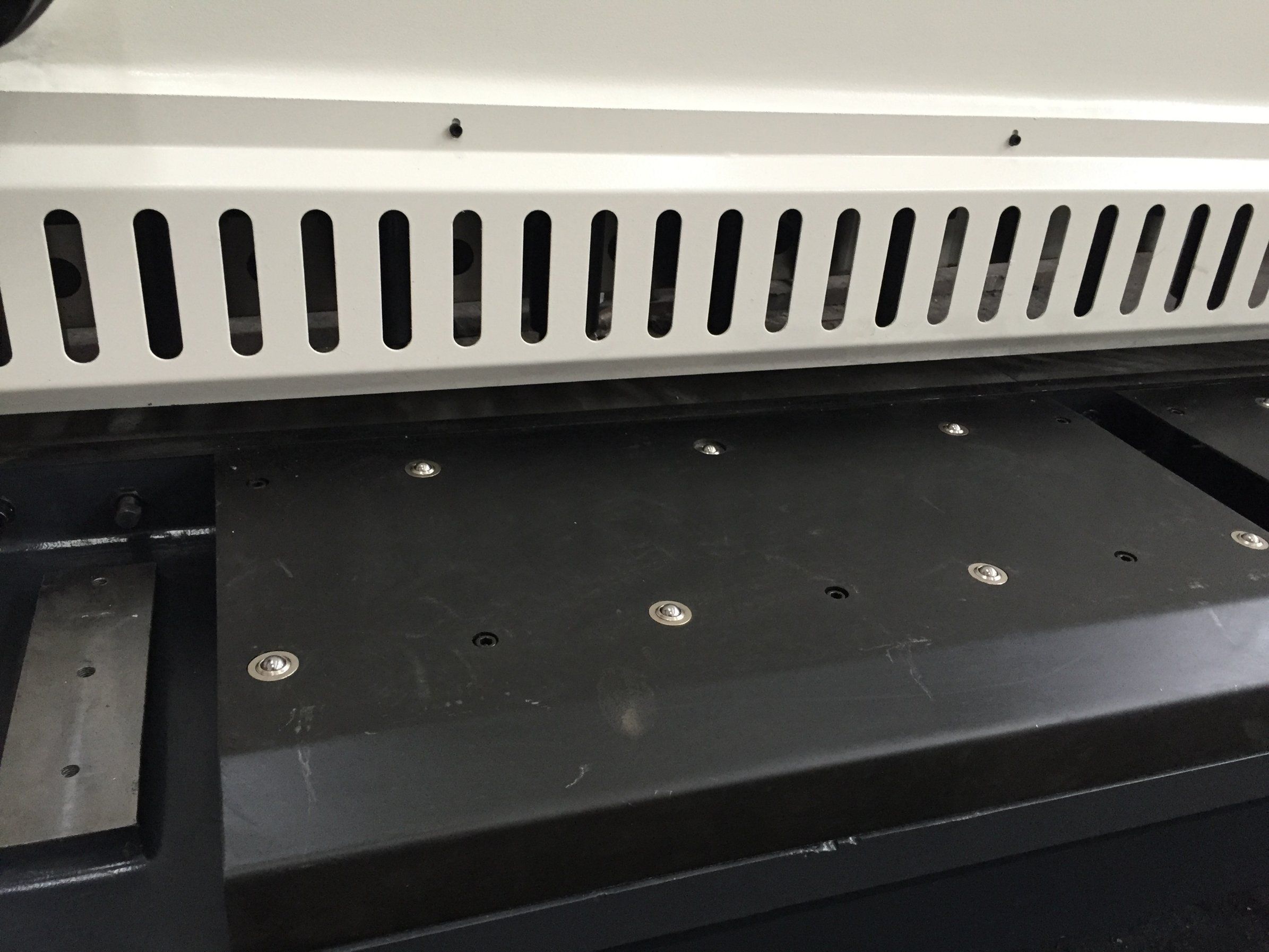

- Rolling ball on front supporter and working table for conveniently feeding

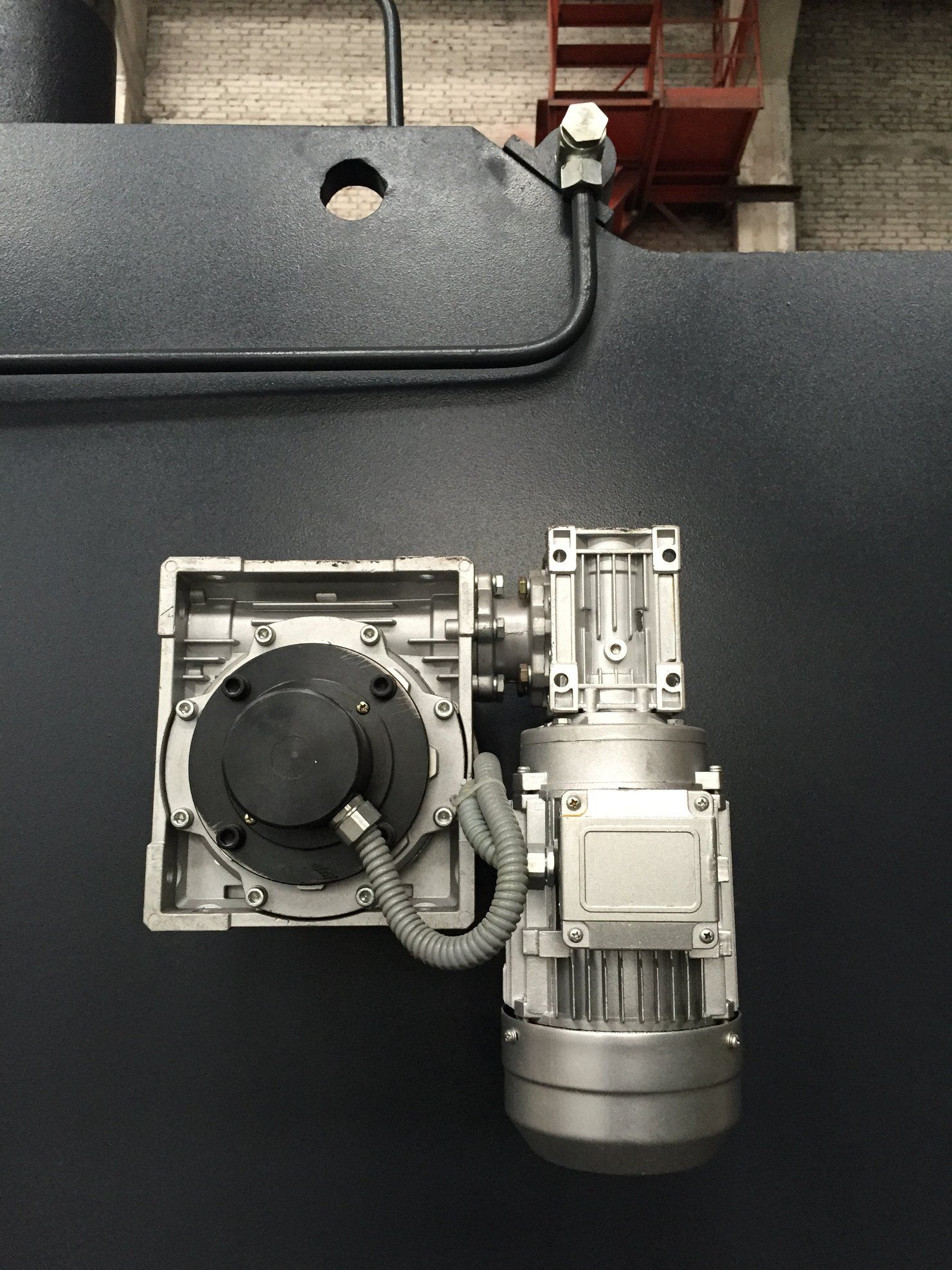

- Motorized blade clearance adjustment with displayer
- Returning by nitrogen gas accumulator
- Hold-down clamped hydraulically
- Motorized back gauge
- 6CrW2Si blades
- Lighting alignment cutting device
- Hydraulic manifold valve block
- International standard electrical components
- Electrical cabinet wind cooling
- Movable foot pedestal with emergency stop button

Technical Specifications

Thickness(mm)	8
Width(mm)	2500
Shear angle(°)	0.5-2
Strokes(n/min)	≥11
Back gauge range(mm)	800
Motor power(kw)	15
Overall dim(LWH)(mm)	3032×2387×2380

Name Type	Thickness (mm)	Width (mm)	Shear angle (°)	Strokes (n/min)	Back gauge range(mm)	Motor power (kw)	Overall dim (LWH)(mm)
QC11Y-6×4000	6	4000	0.5-2	≥8	600	11	4815×2345×2490
QC11Y-8×4000	8	4000	0.5-2	≥7	800	15	4868×2387×2380
QC11Y-8×5000	8	5000	0.5-2	≥6	800	22	5800×2500×2300
QC11Y-8×6000	8	6000	0.5-2	≥5	800	22	6700×2560×2300
QC11Y-10×6000	10	6000	0.5-2	≥6	800	37	7342×3625×3797
QC11Y-10×8000	10	8000	0.5-2	≥5	800	37	8935×2710×3670
QC11Y-10×12000	10	12000	0.5-2	≥4	800	45	13115×6740×5580
QC11Y-12×4000	12	4000	0.5-2.5	≥7	800	22	5044×2342×2622
QC11Y-12×5000	12	5000	0.5-2.5	≥6	800	22	5655×3570×2841
QC11Y-12×7200	12	7200	0.5-2.5	≥6	800	45	8000×3910×3750
QC11Y-13×6000	13	6000	0.5-2.5	≥7	1000	37	7035×2740×3825
QC11Y-13×8000	13	8000	0.5-2.5	≥6	1000	55	8950×2710×3060
QC11Y-13×9000	13	9000	0.5-2.5	≥5	1000	55	11450×7310×3760
QC11Y-14×12000	14	12000	0.5-2	≥4	1000	2×45	13275×5470×6610
QC11Y-16×4000	16	4000	0.5-2.5	≥7	800	22	4905×3142×2580
QC11Y-16×5000	16	5000	0.5-2.5	≥8	1000	45	5928×3845×2848
QC11Y-16×6000	16	6000	0.5-2.5	≥8	1000	45	6952×2540×2820
QC11Y-16×7000	16	7000	0.5-2.5	≥8	1000	45	8050×2770×3535
QC11Y-16×8000	16	8000	0.5-2.5	≥4	1000	45	9378×3545×4882
QC11Y-16×9000	16	9000	0.5-2.5	≥4	1000	55	11110×7860×4982
QC11Y-16×10000	16	10000	0.5-2.5	≥4	1000	55	11870×7728×5322
QC11Y-16×12000	16	12000	0.5-2.5	≥4	1000	2×45	13943×4170×6800
QC11Y-20×4000	20	4000	1-3	≥5	1000	45	5160×3250×3050
QC11Y-20×6200	20	6200	1-3	≥4	1000	55	7438×2673×3875
QC11Y-20×8200	20	8200	1-3	≥4	1000	55	9976×7680×4631
QC11Y-25×4000	25	4000	1-3	≥4	1000	45	5250×3458×3235
QC11Y-25×6200	25	6200	1-3	≥3	1000	55	7800×5750×3930
QC11Y-25×10000	25	10000	1-3	≥3	1000	2×45	12050×4250×6700
QC11Y-25×12000	25	12000	1-3	≥2	1000	2×55	14050×4750×6900
QC11Y-32×4000	32	4000	1.5-3.5	≥4	1000	2×45	5250×2646×3412
QC11Y-35×4000	35	4000	1.5-3.5	≥5	1000	2×55	10336×3900×4092

Standard configuration:
- Chinese famous brand's main electrical components
- Motor: Xi'an SIMO, http://www.simo.com.cn
- Hydraulic system: Beijing Huade, China
- Seal rings of main cylinders: NOK, Japan
- 380 Volts/3 Phases/50Hz

Options
- Whole length blade
- Cr12MoV/H13K material blade for stainless steel cutting
- Pneumatic back supporter
- Extended side arm

Packing: Coating with anti-rust oil on working surface, with plastic film layer for whole machine. Packed in             container

After-sale-service:
1. The Seller has passed ISO9001 quality system certification since 1997, and always execute strictly this quality
management system in our company and on our products.
   All products before ex-works have been strictly tested and are in conformity with technical agreement and
   standard.
2. Warranty is one year since the date of B/L, or final acceptance date of heavy duty machinery. Longer warranty
    could be purchased by the user.
3. Commissioning: For heavy-duty machinery, the Seller sends technicians (electrical hydraulic & mechanical)
    to guide the installation, testing and training the operators from 7 days to 45 days after the machine
    reaches the factory of user. But the round-trip air tickets, local accommodation and allowance
   (USD100/person·day) in the User's country will be burdened by the Buyer. The above charges do not be
    included in the offer. This clauses will be shown in the contract.
3. For middle and small standard machinery, it is easy to operate according to operating manual. The User is
    firstly suggested to carefully read operating manual, then start the machine. Any unclear issues, please feel
    free to contact the Seller.
    If the User insists on supplying the technical service at use's factory, please refer to No.2 clauses of after-sale-
    service.
4. All products of the Seller can be tracked by Ex-works number. Spare parts can be supplied same as the former,
    which is helpful for customers'  special designing requirements.
5. Consumable parts can be supplied free of charge to customer within one year warranty from B/L date, and the
    long term technical consultant service is available.
6. Common failure could be solved by E-mail, Phone and long distance video diagnose. The User must supply full
    failure description, clear pictures and videos, if possible.
    Once the serious quality problem is appeared due to the Seller's manufacturing reason within one year since
    B/L date or final acceptance date of heavy duty machinery. The Seller will send their technician to repair it .
7. After one year warranty, the Seller will provide free technical consultation and spare parts and technician
    service at lowest cost.

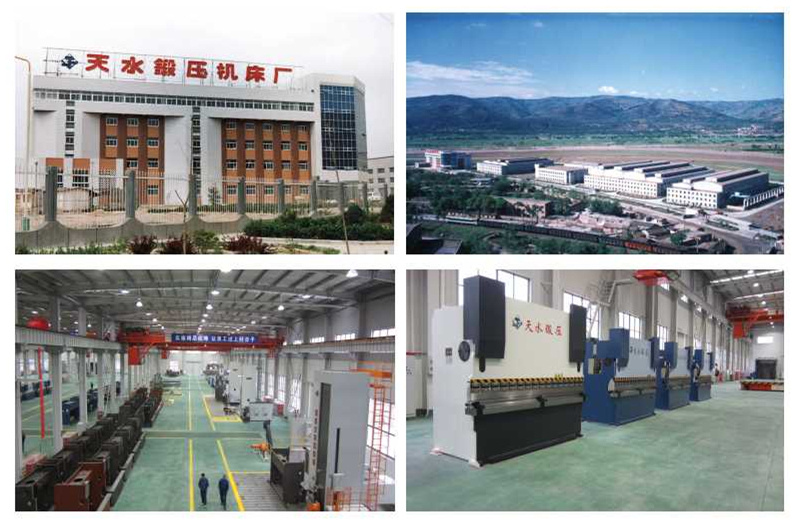

Tianshui Metalforming Machine Tool (Group) Co., Ltd(TSD)is located in Maiji District, Tianshui city, Gansu Province, China. The earliest name is Tianshui Metalforming Machine Tool Works.

Built in 1966, TSD company as a traditional manufacturer has always been manufacturing and distributing high quality press brake, hydraulic press, rolling machine, guillotine shear, roll forming machine as well as Turn-key project of JCOE Longitudinal Sub-merged Arc Welding (LSAW) pipe mill and customerized sheet metal machinery. TSD machines have been exported to more 40 countries and regions. The company's R&D center is awarded as National R&D Center. There are 300, 000 square meter floor space, 450 sets of processing machines.

- 70% of main machine parts finished by ourselves

- Strict quality control distributed over each processing steps

- Customerized heavy duty press brake, guillotine shear, hydraulic press available specially

- Turn-key project for Electrical tower pole line and LSAW pipe mill

- Permanent machines file management with tracking

- High price performance ratio

With registered trade mark TSD, it is honored as Chinese famous trademarks. TSD has always been contributing to "national Hi-tech industrialization demonstration projects", National "863 plan" project, and the state Torch Plan project. TSD has been awarded more than 40 items of National, Provincial and Municipal Prizes for Progress in Science and Technology, and 115 patents of national invent and utility model.

The company is the council member of China Machine Tool and Tool Builder's Association(CMTBA) as well as the committee member of National Committee for Standardization Techniques of Metal Forming machinery.

It has got ISO9001 1994 in 1997 and ISO9001 2000 in 2001 quality management system certification, and ISO14001 1994 environmental management system certification and OHSAS18001 1999 occupational health and safety management system certification in 2008.
