| Prod Model: |
HHK-8D |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Tonnage: |
11 Ton |
| Max. Thickness: |
Iron Sheet 3.2mm , Stainless Steel 1.6mm |
| Punching Dies: |
22 27 34 43 49 60mm |
Product Description

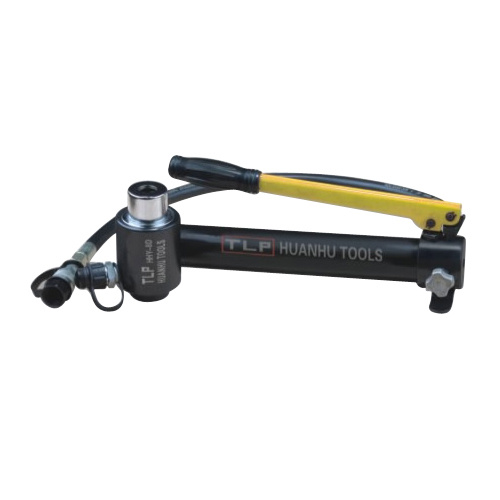

Hydraulic hand hole making tool / hydraulic puncher / hydraulic punch set / hydraulic hole maker / hydraulic hole digger
1. Suitable for punching holes on electric switch boxes and metal sheets. Easy to change dies. Make clean punch and cause no damage to the surroundings.
2. Customized punch dies are available.
3. Please let us know the right dimensions if you want to order square and rectangle dies.
HHK-8DSpecification:
Capacity: 11 ton
Stroke: 22mm
Punching thickness: 3.2 mm for steel, 1.6 mm for stainless steel.
Punching range: 16-60 mm.
Standard punching dies supplied: Φ 22, Φ 27, Φ 34, Φ 43, Φ 49, Φ 60 mm
Packed by plastic carry case.
|
Model |
Tonnage |
Max. stroke |
Max. thickness(mm) |
Punch range
|
Punch dies |
G. W.
|
Volume
|
|
|
(T) |
(mm) |
Stainless steel |
Iron Sheet |
(mm2) |
(mm) |
(kg) |
(cm) |
|
HHK-8 |
9 |
16 |
1.6 |
3.2 |
16-60 |
Φ 22Φ 27Φ 34Φ 43Φ 49Φ 60 |
10.4 |
45*40*16 |
|
HHK-8A |
11 |
20 |
1.6 |
3.2 |
16-60 |
Φ 22Φ 27Φ 34Φ 43Φ 49Φ 60 |
8 |
48*26*14 |
|
HHK-8B |
11 |
22 |
1.6 |
3.2 |
16-60 |
Φ 22Φ 27Φ 34Φ 43Φ 49Φ 60 |
13 |
45*40*16 |
|
HHK-8C |
11 |
22 |
1.6 |
3.2 |
16-60 |
Φ 22Φ 27Φ 34Φ 43Φ 49Φ 60 |
9 |
50*32*15 |
|
HHK-8D |
8 |
22 |
1.6 |
3.2 |
16-60 |
Φ 22Φ 27Φ 34Φ 43Φ 49Φ 60 |
11.6 |
45*40*16 |
|
HHK-8E |
8 |
22 |
1.6 |
3.2 |
16-60 |
Φ 22Φ 27Φ 34Φ 43Φ 49Φ 60 |
5.5 |
50*30*16 |
|
HHK-15 |
13 |
22 |
2 |
4 |
16-114 |
Φ 63Φ 76Φ 80Φ 89Φ 100Φ 114 |
27 |
48*26*13 |
