| Prod Model: |
YQK series |
| MOQ: |
100PCS |
| Sealing O-Ring: |
One Set |
Product Description
Product Description(Hand Tool)2017 new design hand Tool

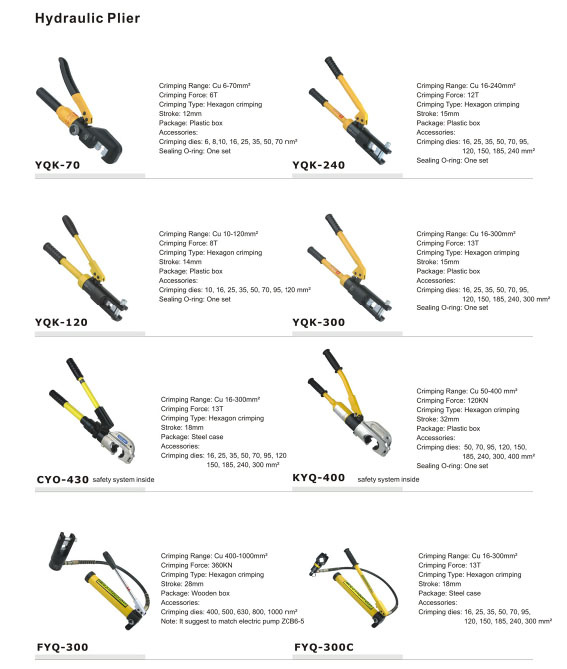

1, Specifications(hand Tool):
| Model | Details |
| YQK-70 | Crimping range:6-70mm2 Crimping Force:6T. Crimping Type:Hexagon crimping, Stroke:12mm Package: Plastic box. Accessories: Crimping dies: 6 8 10 25 35 70mm2 Sealing O-ring: one set. |
| YQK-240 | Crimping Range:Cu 16-24mm2 Crimping Force:12T. Crimping Type:Hexagon crimping, Stroke:15mm Package: Plastic box. Accessories: Crimping dies: 16 25 35 50 70 95 120 150 185 240mm2 Sealing O-ring: one set. |
| YQK-120 | Crimping Range:Cu 10-120mm2 Crimping Force:8T. Crimping Type:Hexagon crimping, Stroke:14mm Package: Plastic box. Accessories: Crimping dies: 10 16 25 35 50 70 95 120 mm2 Sealing O-ring: one set. |
| YQK-300 | Crimping Range:Cu 16-300mm2 Crimping Force:13T. Crimping Type:Hexagon crimping, Stroke:15mm Package: Plastic box. Accessories: Crimping dies: 16 25 35 50 70 95 120 150 185 240 300mm2 Sealing O-ring: one set. |
| CYO-430 | Crimping Range:Cu 16-300mm2 Crimping Force:13T. Crimping Type:Hexagon crimping, Stroke:18mm Package: steel case. Accessories: Crimping dies: 16 25 35 50 70 95 120 150 185 240 300mm2 Sealing O-ring: one set. |
| KYQ-400 | Crimping Range:Cu 50-400mm2 Crimping Force:120kn. Crimping Type:Hexagon crimping, Stroke:32mm Package: plastic box. Accessories: Crimping dies: 50 70 95 120 150 185 240 300 400mm2 Sealing O-ring: one set. |
| FYQ-300 | Crimping Range:Cu 400-1000mm2 Crimping Force:360kn. Crimping Type:Hexagon crimping, Stroke:28mm Package: wooden box. Accessories: Crimping dies: 400 500 630 800 1000mm2 Note: it suggest to electric pump ZCB6-5 |
| FYQ-300C | Crimping Range:Cu 16-300mm2 Crimping Force:13T. Crimping Type:Hexagon crimping, Stroke:18mm Package: Steel case Accessories: Crimping dies: 16 25 35 50 70 95 120 150 185 240 300mm2 |
Why us(Hand Tool)?1. We have extensive experience in low tension electric items and illumination products. We have been dealing the line for more than 21 years.
2. The prices of our products are very reasonable because our network of raw material supply, spare parts and goods. And our factory is efficient, covering an area of 13,000 m².
4. Our group of professional inspectors supervising the quality for your every order. Our products have obtained TUV, SEMKO, CE, CB, and ROHS certificates.
5. We have particular designers in charge of packing.
6. We have experienced salesmen to handle business for you specially.
About usnearly 20 years for Crimping Tool
1. More than 23 years' experience. We have extensive experience in low tension electric items illuminaiton products.
2. Reasonable price. Good network of raw material supply, spare parts and goods and efficient factory covering an area of 13,000 m².
3. Reliable quality. We have professional inspectors supervising the quality during the production. Our products have obtained TUV, SEMKO, CE, CB and RoHS certificates.
4. Favorable service. We have experienced salesmen to handle business for you specially.
5. Attractive packing. We have particular designers in charge of packing material in a unique style.

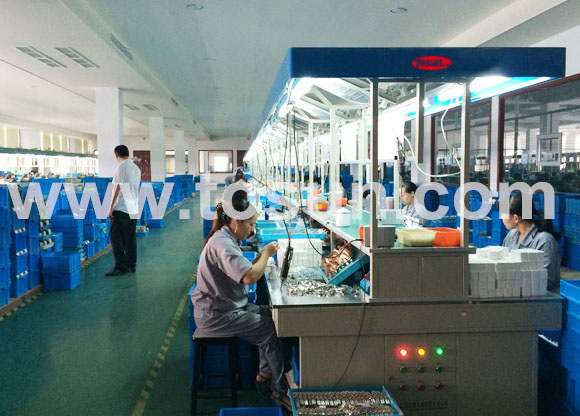

OUR PRODUCING LINE (Crimping Tool)
Our office (Crimping Tool)
For Further Information
www.tosun.com / www.tosunlux.com
Contact person: Jason Lee
Contact us
We are one of the most reliable manufacturers and exporters of low tension electrical items and illumination products in China. We have successfully developed and dealt with numerous electrical products in high quality, such as Circuit Breaker, AC Contact, Panel Enclosure, Electrical Accessories for Panel Enclosure, Pushbutton, Switch, Fuse, Meter, Temperature Controller, Cable Tie, Wiring System products as well as illumination items.
· Qualifications and Technological Strength
We possess full line of high-tech production equipment and great strength of technology support besides advanced designing forces powered by the first class engineering teams with super industrial computer systems. Thus, Our products are novel in designs, excellent in workmanship and tope reliable in quality. A lot of our products have obtained "RoHS", "CB", "CE" and "IRAM", and other international quality approvals. The products now are being well sold in more than 82 countries and regions in the world.
· Contact Us Today
We have always pays special attention to protecting the benefits of clients' so that both the clients ans our company are able to gain the maximum benefits from the relations between us. We warmly look forward to establishing, reinforcing and expanding long term fruitful relationship with the reliable clients all over the world.
Let's get busy and pull together to create a better future.
