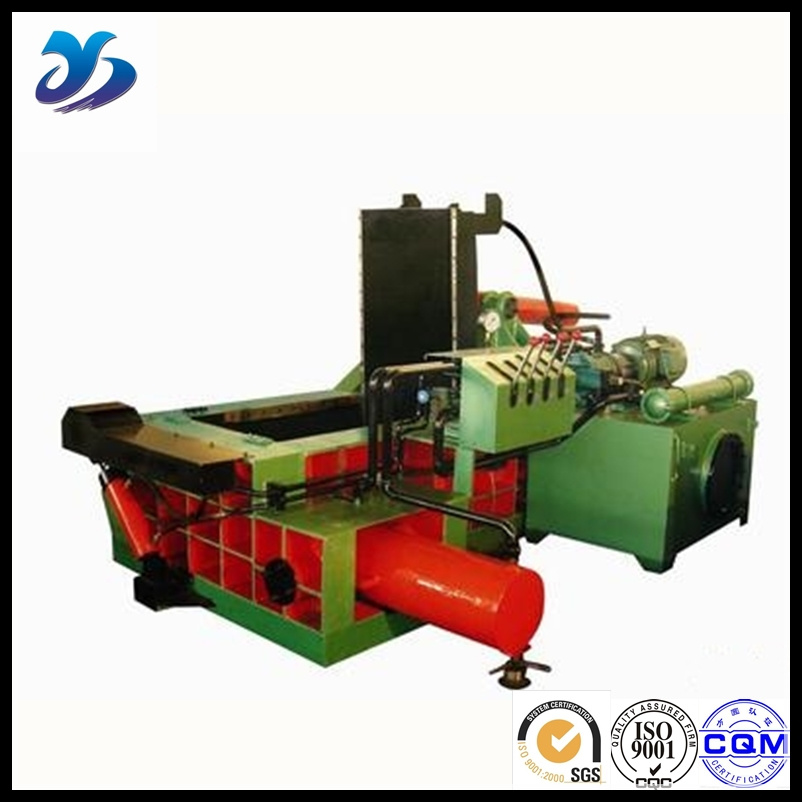

Hydraulic Metal Baler And Shear Machine (Quality Gurantee)
Y81 series metal hydraulic baling machine mainly suitable for the steel works and the recovery and process industries, colored and black metal smelt industries. It can extrude every kinds of metal leftover materials, steel paring, waste copper and waste aluminum into qualified charging such as square column, cylinder, octagon body and other sharps. The purpose is to reduce the costs of transportation and smelting.
1. PRODUCT FEATURES: 1.The hydraulic driving is adopted for all types of machines. 2.The manual and PC automatic control operations are optional. 3.No foundation bolts for installation. The diesel engine can be equipped as driving at the place without power supply. 4.3 Option: Turning over bag type and pushing bag type are used for bag coming out. 4.Extruding force has 8 classes, from 63 tons to 400 tons and production rate is from 0.5 tons per hour to 20 tons per hour. 5.Customize chamber box size are acceptable.
Turn over bag type series
Model
Nominal Force(kn)
Press Box Size (mm) (LxWxH)
Bale Size (mm) (WxH)
Bale Weight (kg)
Power (kw)
Y81-63A
630
600x450x400
200x200
10-20
7.5
Y81-63B
630
800x500x450
200x200
15-25
7.5
Y81F-63A
630
800x500x450
200x200
15-25
7.5
Y81F-63B.A
630
1000x600x500
200x200
15-25
7.5
Y81F-63B.B
630
1000x600x500
300x300
15-25
7.5
Y81F-100A.A
1000
1000x700x550
230x230
15-30
11
Y81F-100A.B
1000
1000x700x550
250x250
15-30
11
Y81F-100B
1000
1000x800x600
220x220
15-30
11
Y81F-125A.
1250
1100x700x550
220x220
15-35
15
Y81F-125B
1250
1100x700x600
230x230
25-40
15
Y81F-125C
1250
1150x700x600
250x250
30-50
15
Y81F-125D
1250
1200x600x600
300x300
50-70
15
Y81F-125E
1250
1200x700x600
300x300
50-70
15
Y81F-125F
1250
1200x800x600
300x300
50-70
15
Y81F-125G
1250
1200x900x600
300x300
50-70
15
Y81F-125H
1250
1400x700x700
300x300
60-90
18.5
Y81F-125J
1250
1400x800x700
300x300
60-90
18.5
Y81F-125K
1250
1400x900x700
300x300
60-90
18.5
Y81F-125L
1250
1400x1000x600
260x260
65-80
18.5
Y81F-160A
1600
1400x900x700
320x320 350x350
65-80
15x2
Y81F-160B
1600
1600x1000x800
350x350
75-150
22
Y81F-160B
1600
1600x1000x800
400x400
100-180
22
Y81F-160C
1600
1600x1200x800
400x400
100-200
18.5x2
Y81F-200A
2000
1600x1000x800
400x400
120-200
37
Y81F-200B
2000
1600x1200x800
400x400
120-200
18.5x2
Y81F-200C
2000
1800x1400x900
450x450
180-350
22x2
YR81F-200/250
2500
2000x1400x900
450x450
180-350
22x2
Y81F-250B
2500
2000x1750x1000
500x500
250-450
22x2
Y81F-250BKC.A
2500
2000x1750x1000
450x450
250-450
22x2
Y81F-250BKC.B
2500
2000x1750x1000
500x500
250-450
22x2
Y81F-250C
2500
2500x2000x1000
500x500
200-380
30+18.5
Y81F-315
3150
2000x1750x1200
600x600
400-1100
30x2
Y81F-315A
3150
2500x2000x1200
600x600
400-1100
37+45
Y81F-315B
3150
2500x2500x1200
600x600
400-1500
37+45
Y81F-315C
3150
3000x2000x1200
600x600
500-1500
37+55
Y81F-315D
3150
3000x2500x1200
600x600
500-1500
37+55
Y81F-315E
3150
3000x3000x1200
600x600
500-1500
45+55
Y81F-315F
3150
3500x3000x1300
600x600
500-1500
55x2
Y81F-400A
4000
2500x2000x1200
600x600
500-1200
45x2
Y81F-400B
4000
2500x2500x1200
600x600
500-1200
45x2
Y81F-400C
4000
3000x2000x1200
600x600
500-1500
45x2
Y81F-400D
4000
3000x2500x1200
600x600
500-1500
55+45
Y81F-400E
4000
3000x3000x1300
700x700
700-1600
55x2
Y81F-400F
4000
3500x3000x1300
700x700
700-1600
55x2
Y81F-500A
5000
2500x2000x1200
600x600
500-1100
45+55
Y81F-500B
5000
2500x2500x1200
700x700
700-1600
45+55
Y81F-500C
5000
3000x2000x1200
700x700
700-1600
45+55
Y81F-500D
5000
3000x2500x1200
700x700
700-1600
55+55
Y81F-500E
5000
3000x3000x1300
900x900
1500-2900
75x2
Y81F-500F
5000
3500x3000x1300
900x900
1500-2900
75x2
Y81F-500H
5000
4000x3000x1300
900x900
1500-2900
75x2
2.Package and Shipping: Package:Seaworthy package for Metal Baler (Film package,Naked package or Shrink-pack).
3.Our serivce: 24 hours online service Enquiry will be replied in 2 hours One year guarantee and lifelong maintenance. Spare parts: supply one set of spare parts for free, tool box, operation book. Free parts for any breakdown with convincing evidence Any problem, you can call us directly.
4.FAQ: Q1: How can i get the after-service? A: We provide one year guarantee and lifelong maintenance. We will send you the spare parts by free if the problems caused by us. If it is the men-made problems,we also send the spare parts,however it is charged. Any problem, you can call us directly.
Q2: Can I have a visit to your factory before the order? A: Sure,welcome to visit our factory. Our factory address: No. 201 Yungu Road, Yunting Street, Jiangyin City, Wuxi, Jiangsu, China Our factory is near Shanghai Pudong Airport.We can pick you up in the airport. Hotel booking service is available .
Q3:Are you a factory or trade company? A: We are manufacturer with own factory for 8 years, and be the famous supplier on the domestic market. Oversea market will be the most important strategy plan on 2017
Q4:How can i trust your company? A:With 8-years-professional design, we can provide you suitable suggestion and lowest price 1. Assessed by third party, national patents and CE, ISO for all equipment, . 2. Welcome to inspect anytime. We are near to Shanghai Pudong airport. 3. For our machine, we do very well on hydraulic balers,hydraulic shears.
Q5 :Is your price competitive? A: Only good quality machine we supply. Surely we will give you best factory price based on superior product and service. Send your inquiry Details in the Below Box, Click "Send"Now!
Jiangyin Chengyun Machinery Co., Ltd. is located in the economic prosperous Yunting Town of Jiangyin City, which is adjacent to Shanghai, Suzhou, Nanjing and other opening up to the city and port, geographical position is superior, transportation is convenient.
Chengyun Machinery is a professional design and manufacture company of hydraulic machinery. We are a backbone company in manufacturing all kinds of hydraulic equipment and metal machineries in domestic.
Our products have 13 series, a total of more than one hundred varieties, including Y81 series hydraulic metal baling machine, Y82 series non-metal hydraulic baling machine, Y82 series scrap tire baling machine, Y83 series hydraulic scrap metal briquetting press, HBS series large shearing baler, Q43 series crocodile hydraulic shears, Q15 series gantry plate shears, Y32 series four-column hydraulic press, EPM series automatic waste paper baler, KSB series waste shredder and so on.
"Quality first, prestige supreme" is our slogan. We have rich experience in designing and manufacturing equipment and machineries. Our export rate has reached more than 70%. Our products have a great influence in waste recycling industry. We are one of the most potential hydraulic machinery companies in manufacturing metal baler, shearing machine, and briquetting press.
Our products are widely used in steel mills, scrapping yard, metallurgical casting, textile industry, agriculture, machinery, renewable resources recovery industry, etc.
Our company has passed ISO9001: 2000 quality system certification, CE certification, SGS audit, TUV audit, and became the member of China National Resources Recycling Association.
We adopt Germany Siemens motor, Schneider electric, Japan NOK seals as main parts. Our products' technical and performance has reached the industry leading level, and has already won the trust of customers.
Our products have been exported to more than 20 countries, such as Russia, Australia, the United States, Britain, Germany, Ukraine, Iran and so on.
