Hydraulic Motor A6vm Series for Logging Machine

Hydraulic Motor A6vm Series for Logging Machine
Price: US $ 1000-2000/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union
Prod Model: A6VM200
Model: A6vm
Original: China
Application: Construction Machinery

Product Description

hydraulic piston motor A6VM55, A6VM80, A6VM107, A6VM140, A6VM160, A6VM200, A6VM250

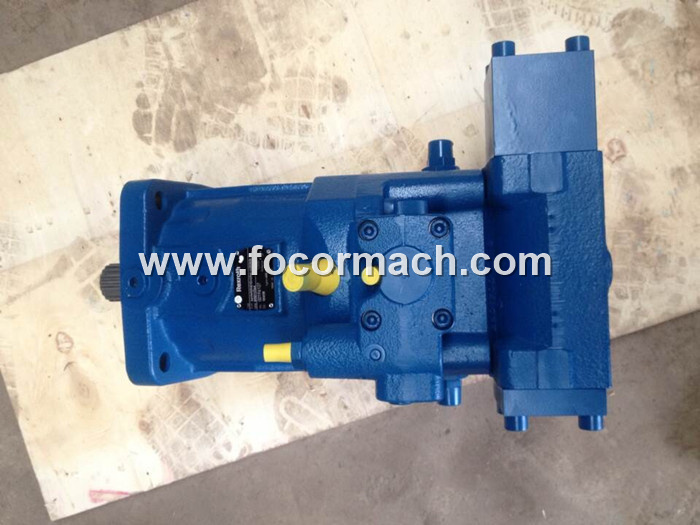

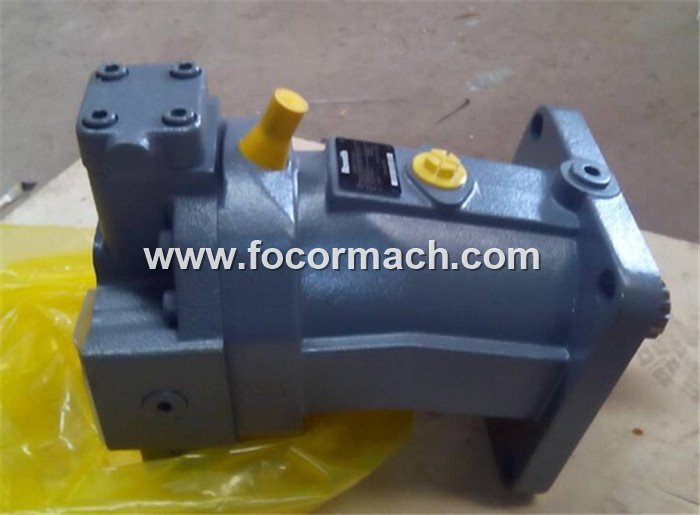

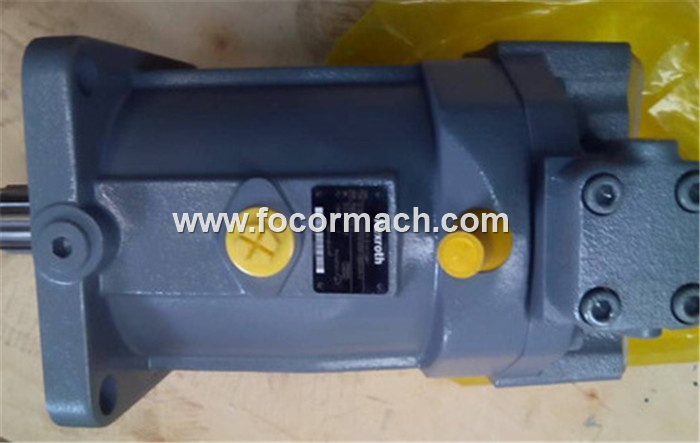

 hydraulic motor A6VM series for Logging machine

Hydraulic Variable motor A6VM55, A6VM80, A6VM107, A6VM140, A6VM160, A6VM200, A6VM250
Description
Open and closed circuits
Series 63
Size Nominal pressure, 28 to 200 (400 bar/450 bar)
250 to 1000 (350 bar/400 bar)

- Variable A6VM motor with axial tapered piston rotary group of bent axial design, for hydrostatic drives in open and closed circuits
- For use in mobile and stationary applications
- The wide control range enables the variable motor to satisfy the requirement for high speed and high torque.
- The displacement can be infinitely changed from Vg max to Vg min = 0.
- The output speed is dependent on the flow of the pump and the displacement of the motor.
- The output torque increases with the pressure differential between the high-pressure and low-pressure side and with increasing displacement.
- Wide control range with hydrostatic transmissions
- Wide selection of control devices
- Cost savings through elimination of gear shifts and possibility of using smaller pumps
- Compact, robust motor with long service life
- High power density
- Good starting characteristics
- Small swing torque

Technical Data of Brueninghaus Hydromatik Rexroth A6VM Motor
Table of values (theoretical values, without efficiency and tolerances; values rounded)
Rexroth A6VM motorA6VM55A6VM80A6VM107A6VM140A6VM160A6VM200A6VM250
Nominal pressureNbar400400400400400400350
Maximum pressurepmaxbar450450450450450450400
DisplacementVg maxcm³54.880107140160200250
Speedat V g maxn maxrpm4450390035503250310029002700
Speedat V g<g maxn maxrpm7000615056005150490046003600
Inlet flowat nmaxq V maxl/min244312380455496580675
TorqueΔ p = 400 barTNm349509681891101912731391
Weight (approx.)mkg26344760648090
Hydraulic fluid
Before starting project planning, please refer to our data sheets RE 90220 (mineral oil), RE 90221 (environmentally acceptable hydraulic fluids), RE 90222 (HFD hydraulic fluids) and RE 90223 (HFA, HFB, HFC hydraulic fluids) for detailed information regarding the choice of hydraulic fluid and application conditions.
The variable motor A6VM is not suitable for operation with HFA hydraulic fluid. If HFB, HFC, or HFD or environmentally acceptable hydraulic fluids are used, the limitations regarding technical data or other seals must be observed.
Details regarding the choice of hydraulic fluid
The correct choice of hydraulic fluid requires knowledge of the operating temperature in relation to the ambient temperature: in a closed circuit, the circuit temperature, in an open circuit, the reservoir temperature.
The hydraulic fluid should be chosen so that the operating viscosity in the operating temperature range is within the optimum range.
We recommended that the higher viscosity class be selected in each case.
Example: At an ambient temperature of X °C, an operating temperature of 60 °C is set in the circuit. In the optimum viscosity range, this corresponds to the viscosity classes VG 46 or VG 68; to be selected: VG 68.
Note: The case drain temperature, which is affected by pressure and speed, can be higher than the circuit temperature or reservoir temperature. At no point of the component may the temperature be higher than 115 °C. The temperature difference specified is to be taken into account when determining the viscosity in the bearing.
Temperature range
The FKM shaft seal may be used for case drain temperatures from -25 °C to +115 °C.
Note: For application cases below -25 °C, an NBR shaft seal is required (permissible temperature range: -40 °C to +90 °C).
State NBR shaft seal in plain text when ordering.
Shaft seal
The service life of the shaft seal is influenced by the speed of the axial piston unit and the case drain pressure (case pressure).
The mean differential pressure of 2 bar between the case and the ambient pressure may not be enduringly exceeded at normal operating temperature. For a higher differential pressure at reduced speed, see diagram. Momentary pressure spikes (t < 0.1 s) of up to 10 bar are permitted. The service life of the shaft seal decreases with an increase in the frequency of pressure spikes.
The case pressure must be equal to or higher than the ambient pressure.
HD - Proportional control hydraulic
The proportional hydraulic control provides infinite setting of the displacement, proportional to the pilot pressure applied to
port X. - Beginning of control at Vg max (maximum torque, minimum speed at minimum pilot pressure) - End of control at Vg min (minimum torque, maximum permissible speed at maximum pilot pressure)
Note
- Maximum permissible pilot pressure: pSt = 100 bar
- The control oil is internally taken out of the high-pressure side of the motor (A or B). For reliable control, an operating pressure of at least 30 bar is required in A (B). If a control operation is performed at an operating pressure < 30 bar, an auxiliary pressure of at least 30 bar must be applied at port G via an external check valve. For lower pressures, please contact us.
Please note that pressures up to 450 bar can occur at port G.
- Please state the desired beginning of control in plain text when ordering, e. g.: beginning of control at 10 bar.
- The beginning of control and the HD characteristic are influenced by the case pressure. An increase in case pressure causes an increase in the beginning of control and thus a parallel shift of the characteristic.
- A leakage flow of maximum 0.3 L/min can escape at port X due to internal leakage (operating pressure > pilot pressure).
The control is to be suitably configured to avoid an independent build-up of pilot pressure.
EP - Proportional control electric
The proportional electric control provides infinite setting of the displacement, proportional to the control current applied to the
solenoid (sizes 28 to 200) or proportional valve (sizes 250 to 1000). For sizes 250 to 1000, the pilot oil supply at port P requires an
external pressure of pmin = 30 bar (pmax = 100 bar). - Beginning of control at Vg max (maximum torque, minimum speed at minimum control current) - End of control at Vg min (minimum torque, maximum permissible speed at maximum control current)
Note
The control oil is internally taken out of the high-pressure side of the motor (A or B). For reliable control, an operating pressure of at least 30 bar is required in A (B). If a control operation is performed at an operating pressure < 30 bar, an auxiliary pressure of at least 30 bar must be applied at port G via an external check valve. For lower pressures, Please note that pressures up to 450 bar can occur at port G.
The following only needs to be noted for sizes 250 to 1000:
- The beginning of control and the EP characteristic are influenced by the case pressure. An increase in case pressure
causes an increase in the beginning of control and thus a parallel shift of the characteristic.
HZ - Two-point control hydraulic
The two-point hydraulic control allows the displacement to be set to either Vg min or Vg max by switching the pilot pressure at
port X on or off. - Position at Vg max (without pilot pressure, maximum torque, minimum speed)  - Position at Vg min (with pilot pressure > 10 bar activated, minimum torque, maximum permissible speed)
Note
- Maximum permissible pilot pressure: 100 bar
- The control oil is internally taken out of the high-pressure side of the motor (A or B). For reliable control, an operating pressure of at least 30 bar is required in A (B). If a control operation is performed at an operating pressure < 30 bar, an auxiliary pressure of at least 30 bar must be applied at port G via an external check valve. For lower pressures, Please note that pressures up to 450 bar can occur at port G.
- A leakage flow of maximum 0.3 L/min is present at port X (operating pressure > pilot pressure). To avoid a build-up of pilot pressure, pressure is to be relieved from port X to the reservoir.
EZ - Two-point control electric
The two-point electric control with switching solenoid (sizes 28 to 200) or control valve (sizes 250 to 1000) allows the displacement to be set to either Vg min or Vg max by switching the electric current at the switching solenoid or control valve
on or off. Note: The control oil is internally taken out of the high-pressure side of the motor (A or B). For reliable control, an operating pressure of at least 30 bar is required in A (B). If a control operation is performed at an operating pressure < 30 bar, an
auxiliary pressure of at least 30 bar must be applied at port G via an external check valve. For lower pressures, Please note that
Note
- Maximum permissible pilot pressure: 100 bar
- The control oil is internally taken out of the high-pressure side of the motor (A or B). For reliable control, an operating pressure of at least 30 bar is required in A (B). If a control operation is performed at an operating pressure < 30 bar, an auxiliary pressure of at least 30 bar must be applied at port G via an external check valve. For lower pressures
Please note that pressures up to 450 bar can occur at port G.
- A leakage flow of maximum 0.3 L/min is present at port X (operating pressure > pilot pressure). To avoid a build-up of pilot pressure, pressure is to be relieved from port X to the reservoir.
HA - Automatic control high-pressure related
The automatic high-pressure related control adjusts the displacement automatically depending on the operating pressure.
The displacement of the A6VM motor with HA control is Vg min (maximum speed and minimum torque). The control unit measures internally the operating pressure at A or B (no control line required) and upon reaching the beginning of control, the
controller swivels the motor from Vg min to Vg max with increase of pressure. The displacement is modulated between Vg min and Vg max, thereby depending on load conditions. - Beginning of control at Vg min (minimum torque, maximum
speed) - End of control at Vg max (maximum torque, minimum speed)
Note:
- For safety reasons, winch drives are not permissible with beginning of control at Vg min (standard for HA).
- The control oil is internally taken out of the high-pressure side of the motor (A or B). For reliable control, an operating pressure of at least 30 bar is required in A (B). If a control operation is performed at an operating pressure < 30 bar, an auxiliary pressure of at least 30 bar must be applied at port G via an external check valve. For lower pressures, please contact us.
Please note that pressures up to 450 bar can occur at port G.
- The beginning of control and the HA characteristic are influenced by the case pressure. An increase in case pressure causes an increase in the beginning of control and thus a parallel shift of the characteristic. Only for HA1T (sizes 28 to 200) and HA1, HA2, HA.T, (sizes 250 to 1000).
- A leakage flow of maximum 0.3 L/min is present at port X (operating pressure > pilot pressure). To avoid a build-up of pilot pressure, pressure is to be relieved from port X to the reservoir. Only for control HA.T.
