Hydraulic combined punching&shearing

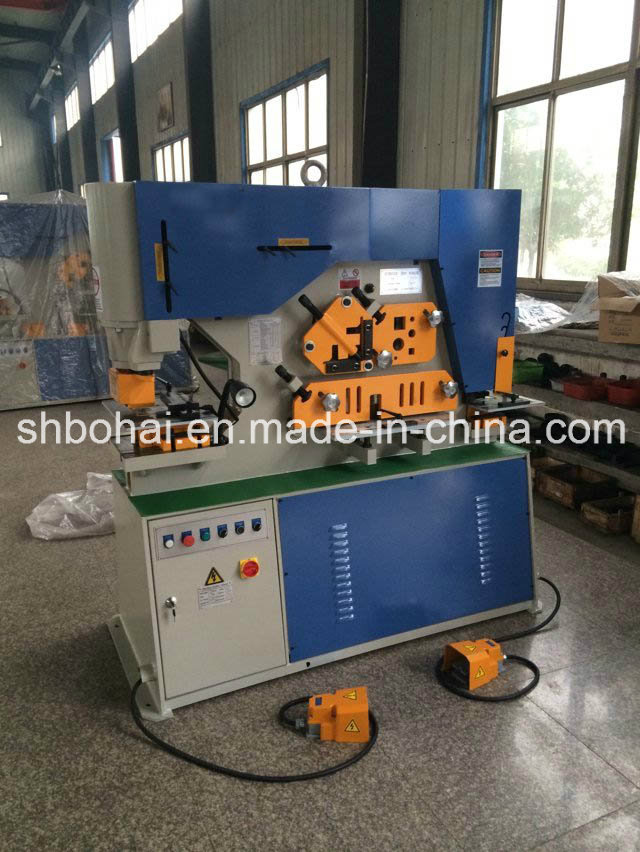

I. Mchine featureQ35Y Series hydraulic combined punching&shearing machine can cut and punch
all kinds of materials such as plate, square bar, angle, round bar, channel and so on.
KRRASS Industrial hydraulic ironworkers have been designed and built to the highest quality standards in the industry.
This profitable machine will serve any grueling fabrication shop for decades to come.
This machine is typically in stock for quick deliveries.
II. Main Function1. Punching

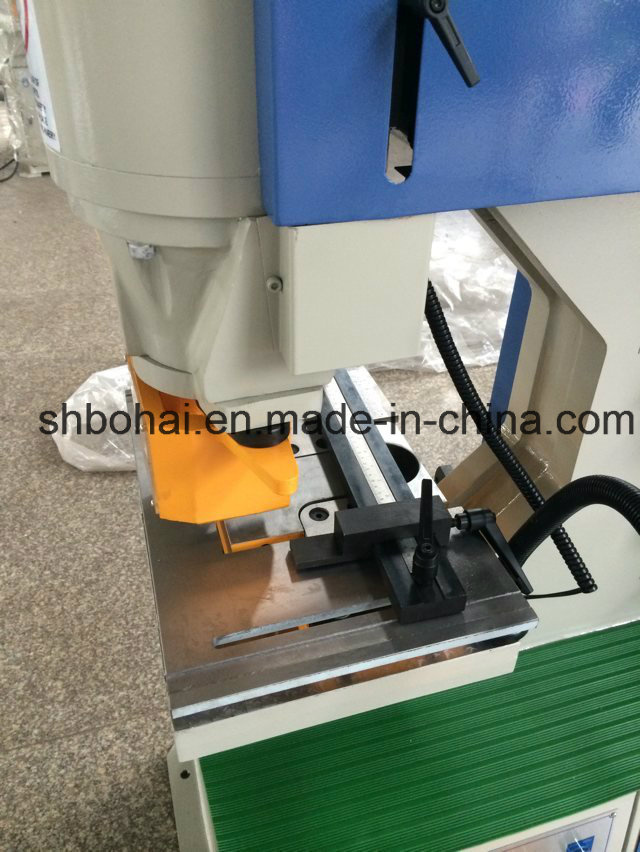

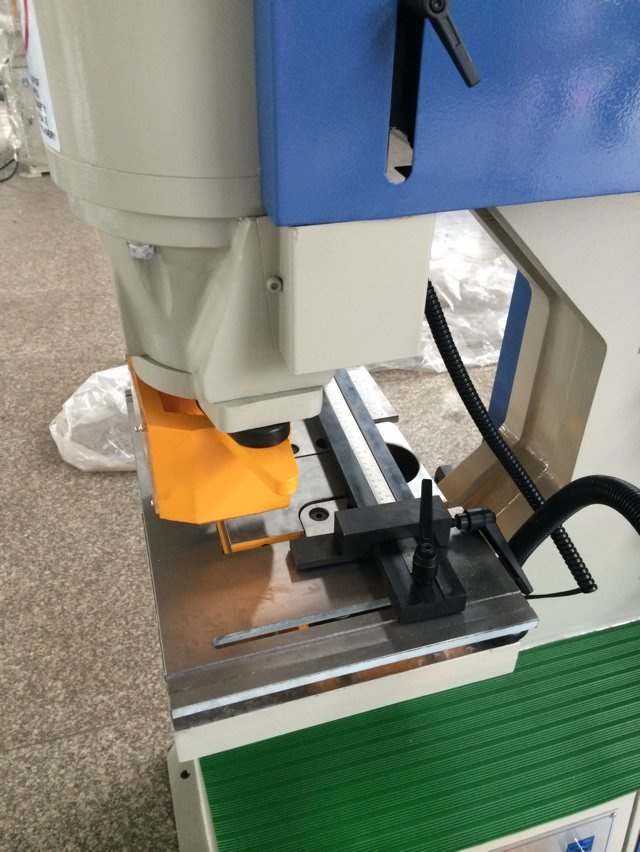

Full range of universal punches and dies are available.unique style allows for large angle iron punching and large channel punching. Large viewing window on stripper swing away design for ease of operation. large two piece gauging table with rulers and stop as standard fittings. Quick change coupling nut and sleeve for rapid replacement of change.
2. Shearing
Round and square bar shear has multiple holes for a variety of sizes. Adjustable hold down device for round/square bar,
channel/beam cutting. Large strong guarding for max safety. The angle shear has the ability to cut angle at 45°both top and bottom leg.
This gives the operator the ability to make a picture frame corner for perfect welds. Diamond shaped blade for quality cuts that is minimal
material lost and deformity. Easily adjustable hold-down device for accurate plate cutting.large 15″squaring arm with inlaid scale.Special anti-distorted blade for quality cutting.
Lower blade has four usable edges. There is screw allow for gap adjust no shim needed.
3 . Notching
Unique design allows for cutting of angle and flat bar. Electrical interlock safety guard and three gauging stops for precise positioning. The notching section of this hydraulic ironworker is perfect for notching out metal plate,
angle iron and much more. The notching station also has an oversized table with material stops. This section of the machine can also be outfitted with the optional vee notcher.
4. Bending
Also bend the plate below 500mm. All the components of Machine are of the highest quality in their safty, function, capability and maintenanceIII. Technical Data| No. | Function | Item | Unit | Q35Y-16 | Q35Y-20 | Q35Y-25 | Q35Y-30 |
| 1 | shearing plate | Angle of shearing | ° | 7° | 8° | 8° | 8° |
| Max. shearing thickness | mm | 16 | 20 | 25 | 30 |
| Flat bar | (W×T) mm | 250×16 | 330×20 | 330×25 | 355×30 |
| 400×8 | 480×10 | 600×16 | 600×20 |
| 2 | shearing bar | Round steel | mm | 45 | 50 | 60 | 65 |
| Square bar | mm | 40×40 | 45×45 | 50×50 | 55×55 |
| 90°shearingof equal-angle bar | mm | 120×120×12 | 140×140×12 | 160×160×14 | 180×180×16 |
| 45°shearing of equal-angle bar | mm | 70×70×8 | 70×70×10 | 80×80×7 | 80×80×10 |
| 90°shearing of T-bar | mm | 120×120×12 | 140×70×12 | 160×80×14 | 180×90×16 |
| I beam steel | mm | 126×74×5 | 160×86×6 | 200×102×9 | 280×124×10.5 |
| channel steel | mm | 126×53×5.5 | 160×60×6.5 | 200×75×9 | 280×86×11.5 |
| 3 | Notch | thickness | mm | 10 | 10 | 12 | 10 |
| width | mm | 80 | 80 | 80 | 90 |
| depth | mm | 100 | 100 | 100 | 100 |
| 4 | punching hole | Max. punching thickness | mm | 16 | 20 | 25 | 28 |
| Max. diameter of punching | mm | 25 | 30 | 35 | 38 |
| Punching force | Ton | 60 | 90 | 120 | 160 |
| Depth of throat | mm | 300 | 355 | 400 | 600 |
| Max. length of cylinder stroke | mm | 80 | 80 | 80 | 80 |
| Stroke times | times/min | 6 | 8 | 6 | 8 |
| 5 | Material strength | N/mm2 | ≤450 | ≤450 | ≤450 | ≤450 |
| 6 | Motor power | KW | 4 | 5.5 | 7.5/11 | 11 |
| 7 | Overall dimensions | (L×W×H) | 1650×800×1780 | 1950×900×1930 | 2350×980×2100 | 2680×1060×2380 |
| 8 | Net. weight | KG | 1900 | 2600 | 4400 | 6600 |
