Hydraulic Power Light Pole Press Brake

Hydraulic Power Light Pole Press Brake
Price: US $ 6300-6500/Set
Min Order: 1/Set
Pay Type: L/C,T/T,D/P
Prod Model: WC67Y
Color: Customized
Fence: Harsle
Mould: Harsle
Controller: E21

Product Description

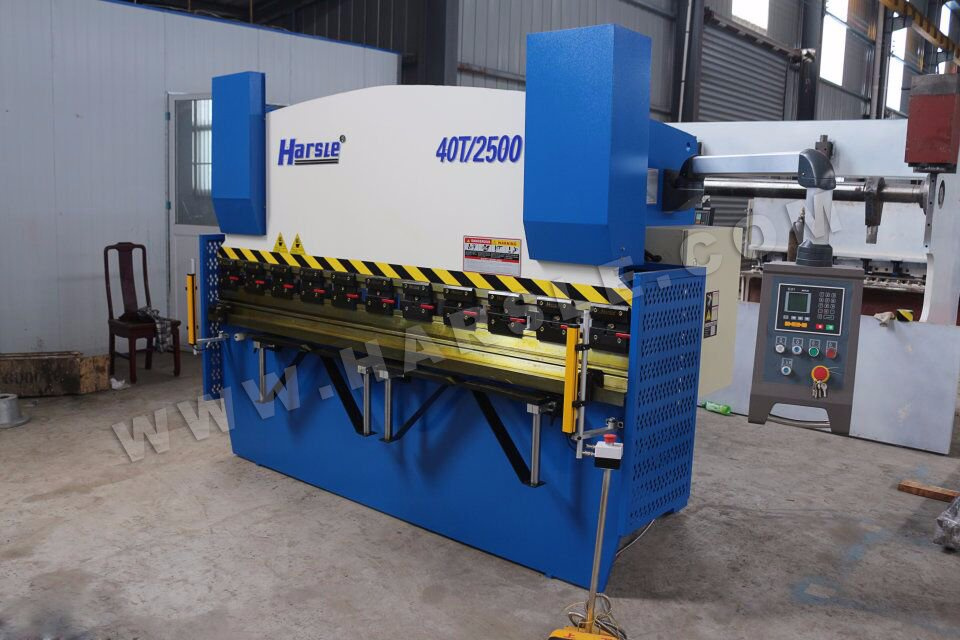

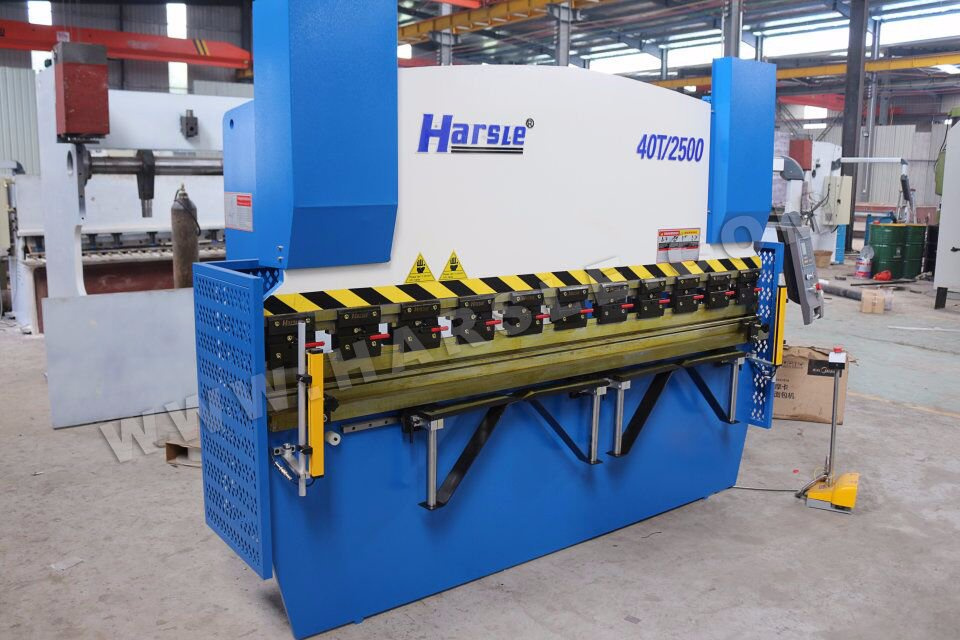

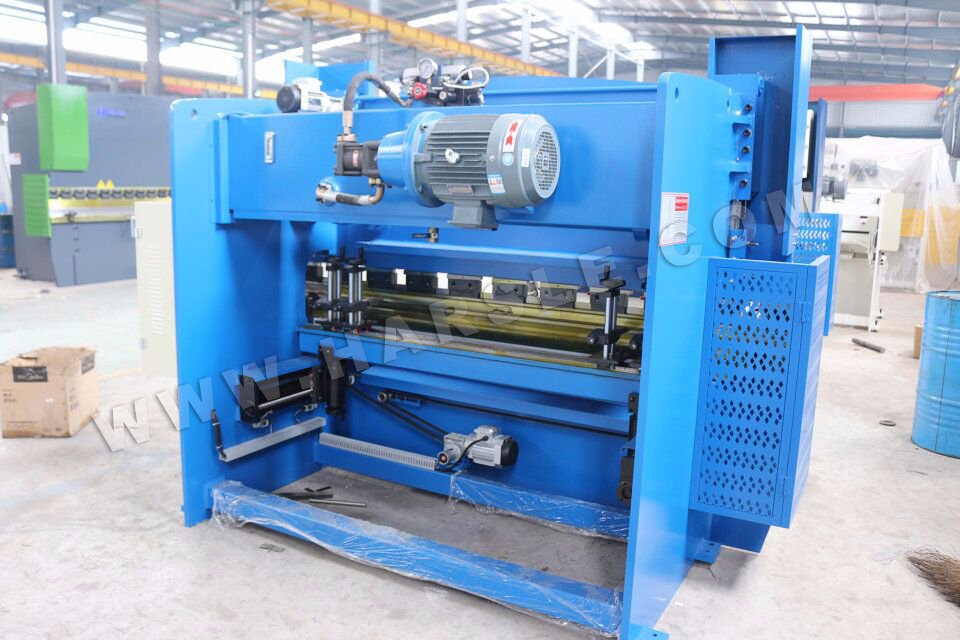

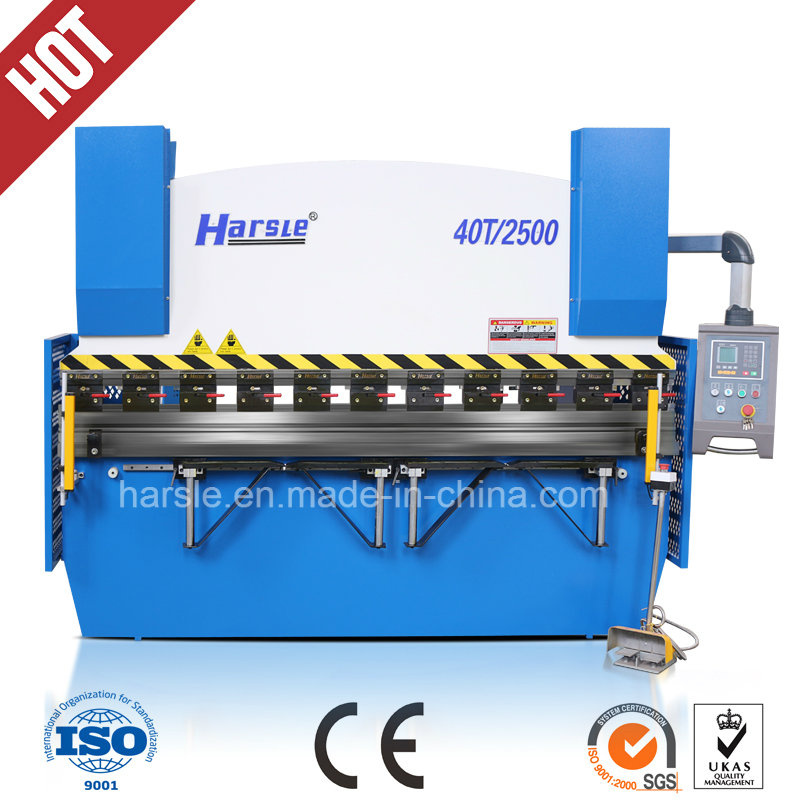

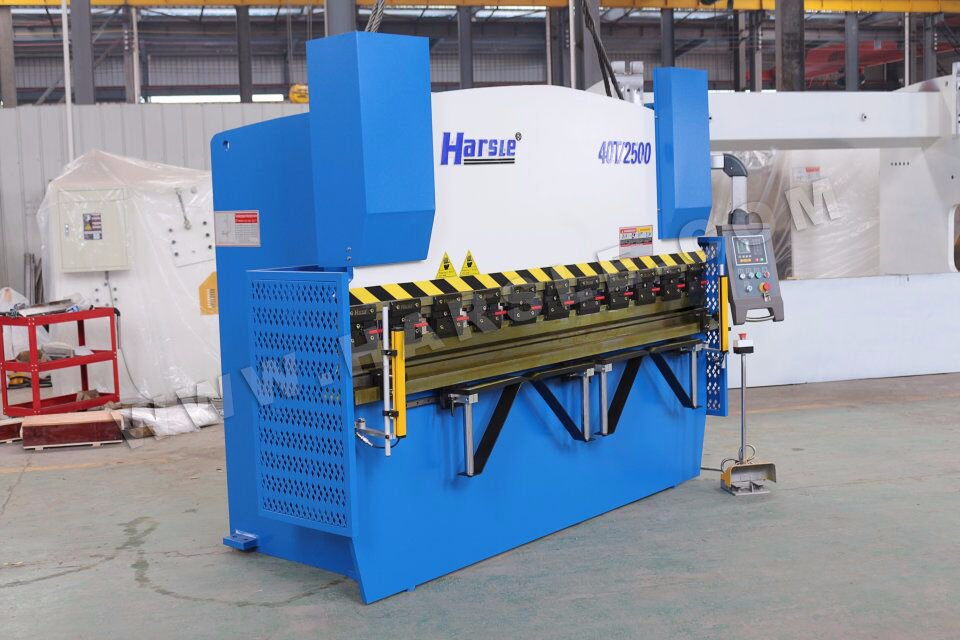

WC67Y series Hydraulic press bending machine for metal sheet







Features:
1. Totally European design, streamlined looking,Monoblock,Welded steel frame rigid to deflection moment and high tensile with ST44 A1 material.
2. HS PRESS BRAKE is Equipped with the Estun user-friendly user interface,the E21 provides all main press brake functionality.
3. Automatic tonnage and stroke adjustment for bending angles.Perfect bending results with easy angle input and operation of machine.
4. All tubes are connected by tube insertings to avoid oil lost and burst by welding tubes.
5. Ball screw and line guide was designed to improve precision.
6. E-Z fast wedge clamping was designed to change tools quickly.
7.Safe fence and the electric interlocker have been designed for the machine to ensure the operation safety.

Standard Equipment:
1.System Intermediate Upper clamps with Anti Wedges
2.Plate Support Arms
3. Powered Depth Axis
4. Backstop
5. Light guards
6. Top and Bottom Tooling
7. Estun E21 NC control
8. Germany Bosch-Rexroth Hydraulic
9. Telemecanique/SchneiderElectrics
10. Hydraulic and Electrical overload protection
11. Squaring Arm and Front Support Arms
12. Delta inverter with ball screw and polished rod with 0,05 mm accuracy.
13. Side guard is standard meeting CE regulations.

Estun E21 NC Press Brake Control system:
1. Monochrome LCD Box Panel.
2. Integral factor programmable freely
3. Automatic positioning control
4.Spindle allowance offset
5.Internal time relay
6.Stock counter
7.Backgauge position display, resolution in 0.01mm

Technical Parameters

Type

Nominal Force(KN)

Worktable size(mm)

Poles Distance (mm)

Throat Depth (mm)

Slider Travel (mm)

Max Open(mm)

Power(KW)

Dimension(mm)

40T/2200

400

2200

1875

230

100

320

5.5

2200*1200*1910

40T/2500

400

2500

1875

230

100

320

5.5

2500*1200*1910

50T/2500

500

2500

1875

230

100

320

5.5

2500*1210*2000

63T/2500

630

2500

2020

250

100

320

5.5

2500*1300*2210

63T/3200

630

3200

2575

250

100

320

5.5

3200*1300*2210

80T/2500

800

2500

2020

300

100

320

7.5

2500*1400*2300

80T/3200

800

3200

2590

320

100

350

7.5

3200*1500*2300

80T/4000

800

4000

3050

320

100

350

7.5

4000*1500*2400

100T/2500

100

2500

2020

320

120

320

7.5

2500*1600*2400

100T/3200

100

3200

2600

320

120

370

7.5

3200*1600*2600

100T/4000

100

4000

3050

320

120

370

7.5

4000*1600*2700

125T/3200

1250

3200

2600

320

120

370

7.5

3200*1600*2600

125T/4000

1250

4000

3050

320

120

370

7.5

4000*1600*2700

160T/3200

1600

3200

2600

320

200

460

11

3200*1700*2700

160T/4000

1600

4000

3000

320

200

460

11

4000*1700*2800

160T/5000

1600

5000

4000

320

200

460

11

5000*1900*3100

160T/6000

1600

6000

4940

320

200

460

11

6000*1900*3200

200T/3200

2000

3200

2600

320

200

460

11

3200*1950*2800

200T/4000

2000

4000

3000

320

200

460

11

4000*1950*2800

200T/5000

2000

5000

4000

320

200

460

11

5000*1950*3000

200T/6000

2000

6000

5000

320

200

460

11

6000*1950*3300

250T/3200

2500

3200

2500

400

250

590

18.5

3200*2000*3200

250T/4000

2500

4000

3000

400

250

590

18.5

4000*2000*3400

250T/5000

2500

5000

4000

400

250

590

18.5

5000*2000*3400

250T/6000

2500

6000

5000

400

250

590

18.5

6000*2000*3400

300T/3200

3000

3200

2530

400

250

590

22

3200*2000*3450

300T/4000

3000

4000

3000

400

250

590

22

4000*2000*3450

300T/5000

3000

5000

4000

400

250

590

22

5000*2000*3450

300T/6000

3000

6000

5000

400

250

590

22

6000*2000*3450

400T/4000

4000

4000

3000

400

250

590

30

4000*2180*3400

400T/5000

4000

5000

4000

400

250

590

30

5000*2180*3500

400T/6000

4000

6000

5000

400

250

590

30

6000*2180*3800

500T/5000

5000

5000

4000

400

250

590

45

5000*3500*3700

500T/6000

5000

6000

5000

400

320

590

45

6000*3500*3700

600T/4000

6000

4000

3000

400

320

590

55

4000*4500*3700

600T/6000

6000

6000

5000

400

320

590

55

6000*4500*3700

800T/6000

8000

6000

5000

400

320

590

55

6000*4500*6000


Package and Shipping
According to the standard package, but for the safe, we suggest you use the wooden case

If you have interest, Please contact me
Ivy zhang (Foreign Sales )
Nanjing Harsle Machine Tool Co., Ltd.
Add: Mingjue Industrial Park, Lishui, Jiangsu, China
Tel: +86-25-56200956
Mob: +86-15251795483 | Fax: +86-25-57260217
Web: www.harsle.com


Nanjing Harsle Machine Tool Co., Ltd. is a modern management enterprise producing various common and CNC bending machines, plate shearing machines, punch presses, three/four-roll plate coiling machines, combined punching and shearing machines, angle cutters and tool mold parts. With a knowledgeable and young team, the company is devoted to the development of sheet-metal working machine tools. The company's product development department applies CAD, CAPP, PDM or the like assisted design software, providing the company with very high development and design power. In addition, the internationally advanced management mode and introduced German mechanical process technique of the company constantly improves its product quality.

In the business policy of "Making Top-quality Machine Tools and Offering First-class Service", the company continuously intensifies its product structural adjustment. The leading products of the company include: WC67K CNC plate bending machine, QC12K CNC hydraulic swing-type plate shearing machines, WC67Y hydraulic plate bending machines, QC12Y hydraulic swing-type plate shearing machines, J23 punch presses, W11 three-roll plate coiling machines and Q35 combined punching and shearing machines. These products are widely used in professional production fields of decoration, metallurgy, ship, automobile, mechanics, aerospace, etc. In order to meet your special requirements on products, the company is willing to provide customized products for you.

Located in a special economic zone in Nanjing, the capital for 6 dynasties, the company employs various mechanical engineers to conduct research and development, production and after-sales service work, and these mechanical engineers account for over 30% of its staff. The company has built more than 30 offices in large cities all over China in order to provide more convenience services for customers. In the spirit of "Honest, Cooperative, Pragmatic and Innovative", it strives to make progress and would like to sincerely cooperate with you for brilliant future.

Its product application range has been expanded into air pipe manufacturing industry, auto industry, container production industry, building and building material industry, hardware and home appliance industry, and furniture production and decoration project industry. Its products are highly trusted in these industries. It believes that its assured high-quality products and excellent after-sales services will win us constant trust from customers.
