Hydraulic Pump and Cylinder for Brick Machine

Hydraulic Pump and Cylinder for Brick Machine
Price: US $ 6300-6800/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union
Prod Model: Henry
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Pressure: 5-21 MPa
Material: 45#Steel
Oil Type: Antiwear Hydraulic Oil
Over Size: 1100X850X700mm
Fuel Tank Volume: 40-160L
Connected Pipe Diameter: 1mm
Type: Hydraulic Control Unit

Product Description

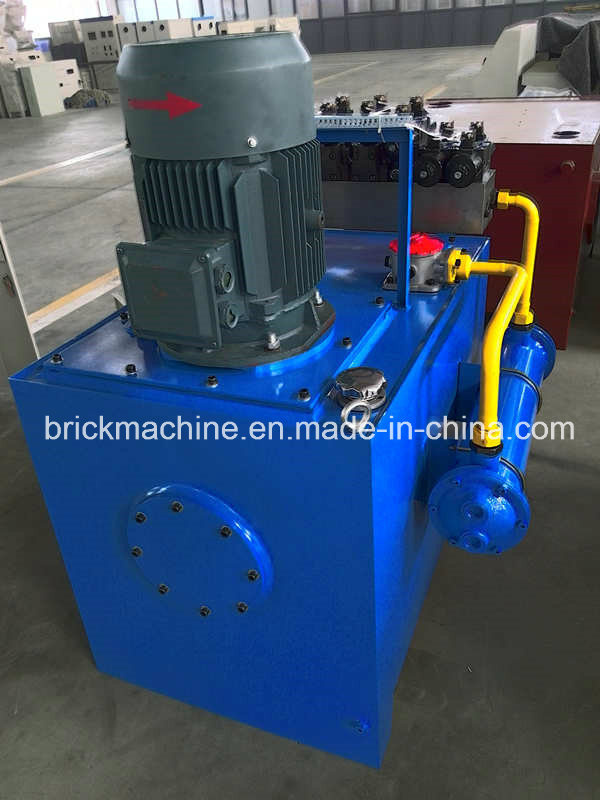

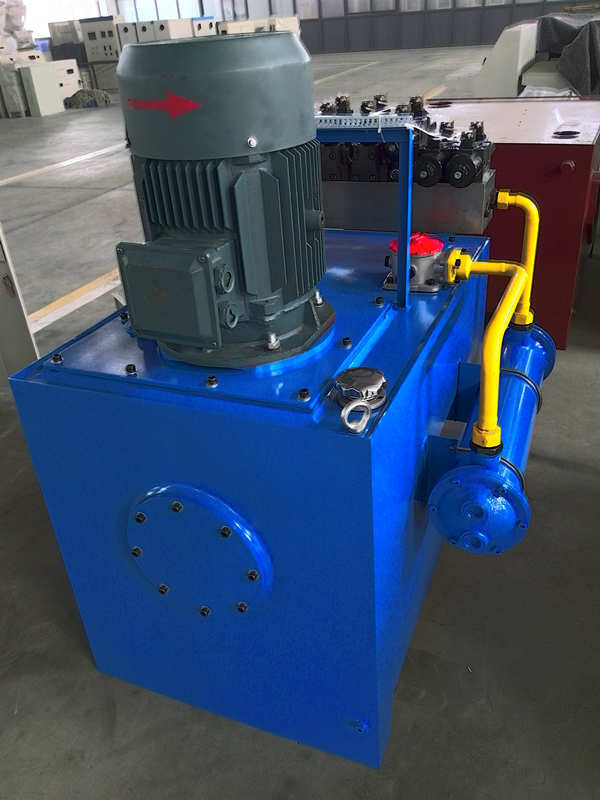

                  High pressure hydraulic pump


For automatic concrete blcok /pavers making machine using




Hydraulic station specification

   Pressure  5-21 Mpa
   Material  45#steel
   Installation way  Foundation bolt
   Oil type  Antiwear hydraulic oil
   Temperature  -30----80ºC
   Motor power  7.5kw
   Pump
  PV2R2-41
   Over size  1100x850x700mm
   Value bank  Proportional relief value
  one group

  Electro-hydraulic directional control value
  four groups
 Connected pipe diameter  1mm
 Fuel tank volume  40-160L






Advantages

1) Large volume and replace of paker hydraulic power system.
2) Within a given range steady automatically adjust the hauling speed, and the                    infinite speed adjustment can be realized.
3) Easy to change direction, can realize operating mechanism rotate and the
   straight line reciprocating movement while
 under the condition of without changing
    the motor direction of rotation
.
4) Tubing connection between hydraulic pump and hydraulic motor, each other is
     not subject to strict limits on space layout
.
5) Because of oil as working medium, the components of relative motion between
    surface can self lubrication, wear small
long service life.
6) Operate and control simply, high degree of automation.
7) Easy to achieve overload protection.

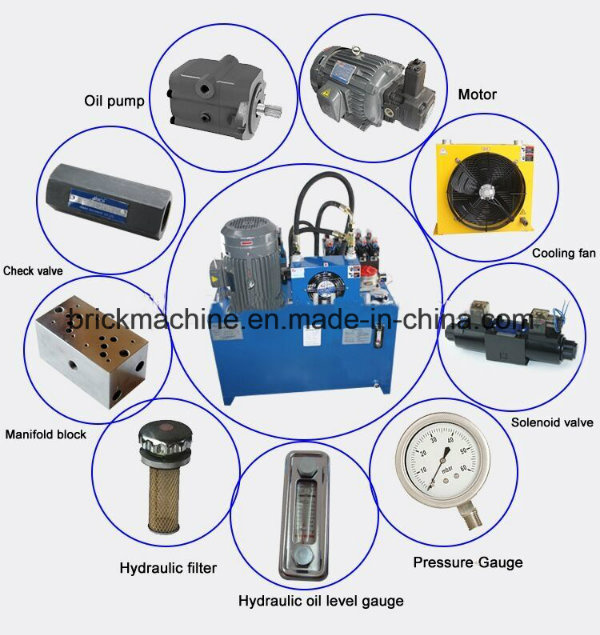

Standard design features include

Accumulators:
These are containers that can be attached to the hydraulic actuators. They collect
water form the pumping mechanism and are intended to build and maintain fluid
pressure to supplement the motor pumping system


Motor Pumps:
A hydraulic power unit can be equipped with a single motor pump, or multiple
devices each with their own accumulator value. With a multiple pump system,
usually only one operates at a time.


Tanks:
The tank is a storage unit designed with enough volume for the fluid in the pipes to
drain into it. Likewise, actuator fluid may sometimes need draining into the tank.


Filters:
A filter is typically installed along the top of the bank. It is a selfcontained bypass unit, with its own motor, pump, and filtering apparatus. It can be used to fill or empty the tank by activating a multi-directional value. Because they are self-contained, filters
can often be replaced while the power unit is functioning.


 Coolers and Heaters
As part of the temperature regulation process, an air cooler can be installed near or behind the filter unit to prevent temperatures from rising above operational parameters. Likewise, a heating system, such as an oil-based heater, can be used to elevate temperatures when necessary

Power Unit Controllers:
 The hydraulic controller unit is the operator interface containing power switches,
displays, and monitoring features. It is necessary for installing
and integrating a
power unit into a hydraulic systems, and can usually be found wired into the power
unit.


Power Unit Controllers:
The hydraulic controller unit is the operator interface containing power switches,
displays, and monitoring features. It is necessary for installing and integrating a
power unit into a hydraulic systems, and can usually be found wired into the power
unit.



      A hydraulic system employs enclosed fluid to transfer energy from one source to
another, and subsequently create rotary motion, linear motion, or
force. Hydraulic
power units apply the pressure that drives motors, cylinders,
and other
complementary
 parts of a hydraulic system. Unlike standard pumps, these
power units use multi-stage pressurization networks to move
fluid, and they often
incorporate temperature control devices. The mechanical
characteristics and
specifications of a hydraulic power unit dictate the type of projects for which it can
be effective.


     Some of the important factors that influence a hydraulic power unit's
performance are pressure limits,power capacity, and reservoir volume. In addition,
its physical characteristics, including size, power supply,and
pumping Strength are also significant considerations. To better understand the operating principles
and
 design features in a hydraulic power unit, it may be helpful to look at the basic
components of a standard
 model used in industrial hydraulic systems.


Packing details

We use wood packing for all hydraulic power units, it's more safe.



Our factory and workshop

                       Company profile
     Henry Industrial Co., Ltd has been committed to designer, manufacturer, saler of
construction machinery ,has the domestic advanced equipments, super professional skills. With over 23 years of experience, we produce a wide range of products like hollow block machine, soil brick machine, interlocking brick machine,
paving machine, crusher, mixer, block mould and paving mould.
     Among the same trade, the company took the lead in wining the ISO9001 and ISO14001environment management system certificate, CE certificate, the"China Well-Known
Trademark ", and "High and New Tech enterprise certificate" Our products have been
well sold to hundreds of countries and regions such as Europe, America, Africa, the
Middle east, Southeast Asia, etc, winning the high reputation of customers from domestic and overseas.now has 3 offices in foreign countries.
     Currently, we have perfected design of the machines, enhanced  the performance of the machine, improve the production process of the machine.and in price we made a substantial adjustment. Our R&D team develops new designs every two months. I believe that your customers will be always satisfied with our products and designs.


Shipping way

We have our own long cooperate shipping company, they can offer the best freight. And if you would like, we can use your shipping company to sent the machines.



Contact information:

Sarah Yang
Cell phone:+8615153982178




Henry Industrial Co., Ltd. Has been committed to the research and development, production and sales of block making machine, with a state-of-the-art equipment, professional and technical skills and 20 years of practical experience, R & D center is always in block making machine market developmentcutting-edge, watching the advanced technology at home and abroad, to develop products suitable for the investment needs of different users.

Block making machine, hydraulic tile machine, cement pipe machine, mixer company give top priority to the research and development of new technologies, new products, applications were filed 43 patent technology, the application of these new technologies to ensure the reasonableness of the equipment, stability, reliability, and received wide acclaim from users. With branches in Tanzania, Nigeria. With offices and 19 offices in Angola, the United Arab Emirates, Sudan, and exports to over 80 countries and regions, cooperation with the Ministry of Commerce to promote the the Commission procurement company block making machine as FAMP presented to the DRC government (batch: Providers together to promote batch [2004] No. 322 /...); Longnan City, Gansu Province earthquake reconstruction government procurement projects; Railway 20th Bureau Angola project; Seven Construction Company of CNPC Niger project; Guangxi Water and Power Authority Angola project Department; Third design and Research Institute of machinery Industry Ministry of Libyan project; 13th Bureau of the China Hydropower project Department in Zambia; The Australia the Matsuba Group of East Timor are sourced block machine equipment and has established long-term cooperative relations, the company adhere to the people-oriented, quality promoting enterprise, focusing on the development of the international market. Witnessed the hard work, good governance, and dare to vie Yong-class development course.

Company with high quality and efficiency as the guiding ideology for the corporate philosophy of integrity and pragmatic in order to obtain the maximum benefit for the purpose, hand in hand, and common development.

Henry Industrial Co., Ltd. is willing to carry out various forms of cooperation with the Chinese and foreign enterprises to seek common development!
