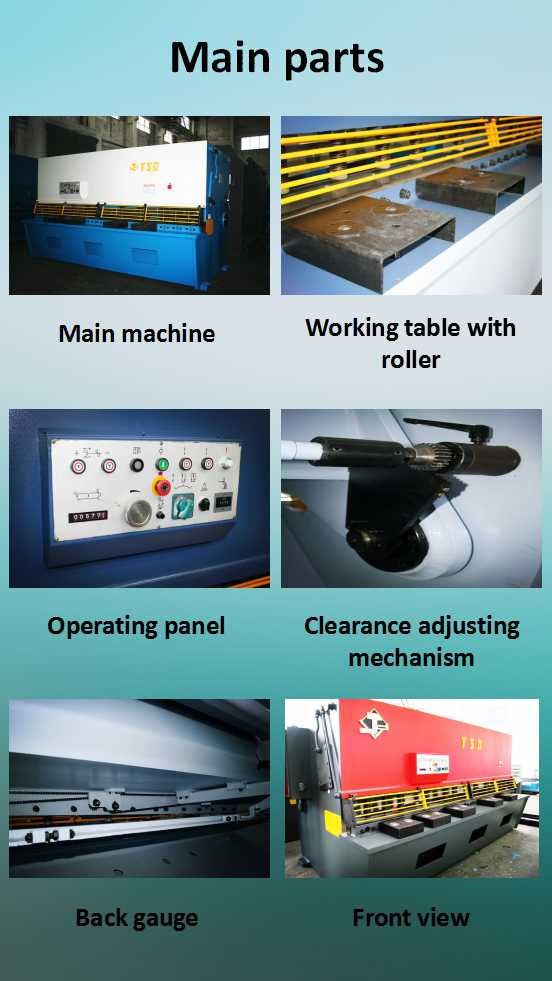

Features: - ASTM283M Gr.D steel to be used for fully welded construction - Knife beam returning by nitrogen gas cylinders - Inching, single & continuous actions - Holding-down force increased with cutting force - Cutting alignment light and steel wire - Integrated valve block - Manual clearance adjusting mechanism - Working table with balls to feed plate conveniently - 6CrW2Si blades - Back gauge stroke displayed by counter with manual trimming - Adjustable side stopper - Electrical cabinet wind cooling
Technical Specifications
Max. cutting thickness
8 mm
Max. cutting length
4000 mm
Shear angle
1.5 degree
Stroke
≥8 n/minute
Back gauge stroke
700 mm
Main motor power
15 kW
Overall dim.(L*W*H):
4612*1800*180mm
Weight
10250 kg
Name Type
Shear angle (°)
Strokes (n/min)
Throat depth (mm)
Throat height (mm)
Mounting dim (mm)
Back gauge ange (mm)
Motor power (kw)
Overall dim(mm)
Weight (kg)
QC12Y-6×2500
1°30′
≥22
300
810
2950×1100
10-600
11
3150×1550×1655
5900
QC12Y-6×3200
1°30′
≥18
300
810
3650×1200
10-700
11
3850×1600×1755
7280
QC12Y-6×4000
1°30′
≥15
300
810
4450×1300
10-800
11
4650×1700×1850
9000
QC12Y-6×5000
1°30′
≥10
/
910
5470×1400
10-800
11
5770×2380×2250
15500
QC12Y-7×6000
1°30′
≥7
/
910
6550×1800
10-800
15
6810×2350×2250
23000
QC12Y-8×2550
1°30′
≥11
300
800
2930×1250
10-700
15
3112×1800×1850
7200
QC12Y-8×3050
1°30′
≥10
300
800
3405×1250
10-700
15
3857×1800×1850
8000
QC12Y-8×4000
1°30′
≥8
300
800
4430×1250
10-700
15
4612×1800×1850
10250
QC12Y-8×5000
1°30′
≥7
/
800
5450×1400
20-800
15
5790×2530×2250
20000
QC12Y-8×6000
1°30′
≥7
100
800
6560×1800
20-700
15
6810×2530×2250
23000
QC12Y-10×2550
1°30′
≥12
300
800
2965×1360
20-800
18.5
3112×1800×1850
8000
QC12Y-10×3050
1°30′
≥11
300
800
3440×1360
20-800
18.5
3587×1800×1850
8600
QC12Y-10×4000
1°30′
≥9
300
800
4510×1600
20-800
18.5
4612×1800×1850
10400
QC12Y-12×2500
1°30′
≥9
300
800
3030×1300
10-800
18.5
3290×2215×2120
10000
QC12Y-12×3200
1°30′
≥8
300
800
3730×1300
10-800
18.5
3990×2215×2120
11800
QC12Y-12×4000
1°30′
≥7
300
860
4550×1550
10-800
18.5
4830×2390×2200
14230
QC12Y-16×2500
2°30′
≥8
300
800
3060×1560
10-800
22
3406×2350×2180
12700
QC12Y-16×3200
2°30′
≥8
300
900
3760×1680
10-800
22
4105×2325×2220
15000
QC12Y-16×4000
2°30′
≥7
300
900
4560×1780
10-800
22
4905×2385×2250
17150
QC12Y-20×2500
2°30′
≥6
300
880
3010×1650
20-1000
30
3400×2350×2700
19350
QC12Y-20×3200
2°30′
≥5
300
880
3710×1650
20-1000
30
4100×2350×2730
22000
QC12Y-20×4000
2°30′
≥5
300
880
4510×1650
20-1000
30
4900×2350×2760
25000
QC12Y-25×2500
3°
≥5
300
880
3116×1670
40-1000
30
3480×2410×2755
23500
QC12Y-25×3200
3°
≥5
300
880
3816×1670
40-1000
30
4180×2410×2690
27000
QC12Y-25×4000
3°
≥5
300
880
4610×1670
40-1000
37
4985×2410×2690
30550
QC12Y-32×2500
3°30′
≥4
/
1025
3340×1700
40-1000
55
3697×3450×3000
32800
QC12Y-32×3200
3°30′
≥4
/
1000
4040×1700
50-1000
55
4397×3450×3000
40000
QC12Y-32×4000
3°30′
≥4
/
1025
4840×1700
60-1000
55
5230×3450×3000
43000
QC12Y-40×2500
3°30′
≥3
/
1100
3610×2240
40-1000
75
4000×3770×3600
43000
Standard configuration: - Chinese famous brand's main electrical components - Motor: Xi'an SIMO, http://www.simo.com.cn - Hydraulic system: Beijing Huade, China- Seal rings of main cylinders: NOK, Japan- 380 Volts/3 Phases/50Hz
Options -Whole length blade -Cr12MoV/H13K material blade for stainless steel cutting -Pneumatic back supporter -Extended side arm
Packing:Coating with anti-rust oil on working surface, with plastic film layer for whole machine. Packed in container
After-sale-service: 1. The Seller has passed ISO9001 quality system certification since 1997, and always execute strictly this quality management system in our company and on our products. All products before ex-works have been strictly tested and are in conformity with technical agreement and standard. 2. Warranty is one year since the date of B/L, or final acceptance date of heavy duty machinery. Longer warranty could be purchased by the user. 3. Commissioning: For heavy-duty machinery, the Seller sends technicians (electrical hydraulic & mechanical) to guide the installation, testing and training the operators from 7 days to 45 days after the machine reaches the factory of user. But the round-trip air tickets, local accommodation and allowance (USD100/person·day) in the User's country will be burdened by the Buyer. The above charges do not be included in the offer. This clauses will be shown in the contract. 3. For middle and small standard machinery, it is easy to operate according to operating manual. The User is firstly suggested to carefully read operating manual, then start the machine. Any unclear issues, please feel free to contact the Seller. If the User insists on supplying the technical service at use's factory, please refer to No.2 clauses of after-sale- service. 4. All products of the Seller can be tracked by Ex-works number. Spare parts can be supplied same as the former, which is helpful for customers' special designing requirements. 5. Consumable parts can be supplied free of charge to customer within one year warranty from B/L date, and the long term technical consultant service is available. 6. Common failure could be solved by E-mail, Phone and long distance video diagnose. The User must supply full failure description, clear pictures and videos, if possible. Once the serious quality problem is appeared due to the Seller's manufacturing reason within one year since B/L date or final acceptance date of heavy duty machinery. The Seller will send their technician to repair it . 7. After one year warranty, the Seller will provide free technical consultation and spare parts and technician service at lowest cost.

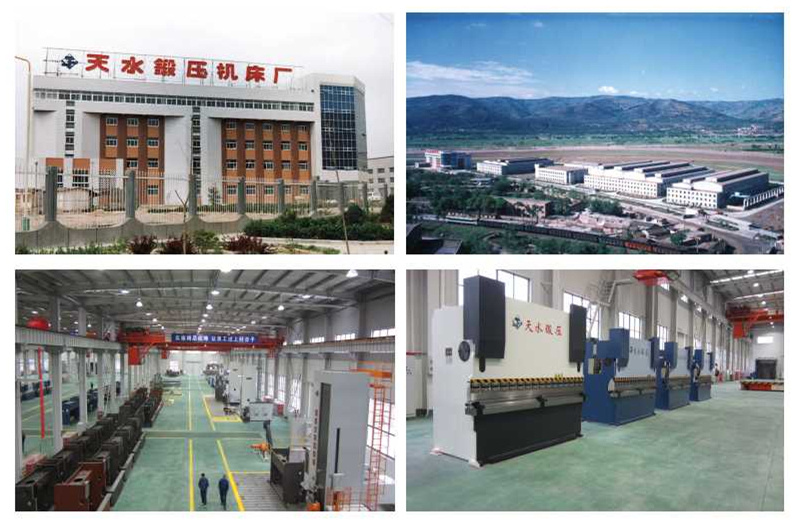

Tianshui Metalforming Machine Tool (Group) Co., Ltd(TSD)is located in Maiji District, Tianshui city, Gansu Province, China. The earliest name is Tianshui Metalforming Machine Tool Works.
