| Prod Model: |
DBL |
| Working Pressure: |
70MPa |
| Cylinder Capacity: |
50-500t |
| Cylinder Stroke: |
160-200mm |
| Spread Range: |
150-500mm |
| Reach: |
300-580mm |
| Centering Range: |
500-900mm |
| Motor Power: |
0.75-2.2kw |
| Voltage: |
380V |
| Color: |
Yellow |
| Payment: |
T/T |
Product Description
Product Description

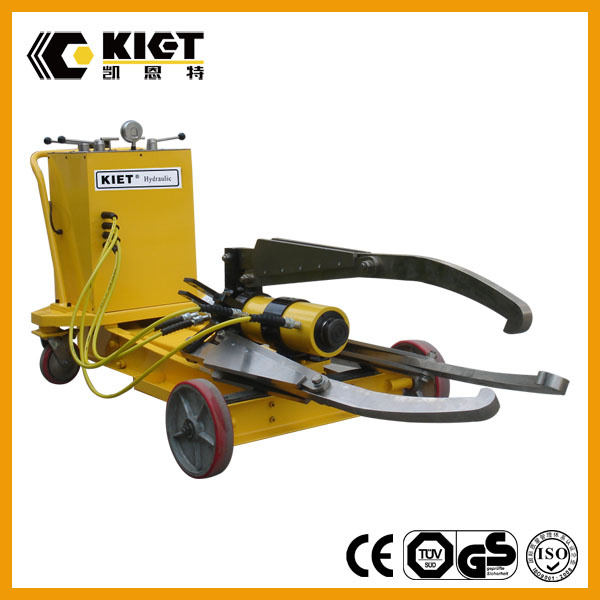

Hydraulic Tool 500T Automatic Lifting Type Electric Hydraulic Gear Puller
Product Features:
1.Equipped with hydraulic automatic lifting system, can locate the puller accurately.
2.Equipped with single pump synchronous valve, just needs single person to operate. The jaws can be moved up and down to locate.
3.Higher the pulling force, higher the tightening force of claws, no need extra chain to avoid the jaws skidding or the work-piece popped up.
4.Move conveniently with the wheels.
5.Widely used in dismanting large bearing, gears, couplings and other large work-piece.
Package and shipping
Packing:
1.Each hydraulic flange spreaders are packed with standard wooden case.
2.Shipping by air or by sea is designed by customer.
Shipping,
1. Small quantity: By international exress, such as DHL, TNT, FEDEX, UPS, etc. Depending on the customers' choice. Goods will arrive within 7 days in normal cicumstances;
2. Large quantity: By sea transportation. Goods will arrive in 30~45 days, according to the diatance.
Our Services
1. One year guarantee for free repair and mainenance
2. OEM service available
3. Wholehearted after-sales service
Product Application
Flange separator is widely used in petrochemical, electric power, steel, liquid, gas pipeline maintenance, repair the most ideal, the most secure special tool. The first stage is the design of the self-locking and moments of the flange, the separation of the work more safe and simple.
Company Information
Jiangsu Canete Machinery Manufacturing Co., Ltd. Is a manufacturer engaged in designing and manufacturing hydraulic cylinders, synchronous PLC hydraulic system, hydraulic pumps, torque wrenches, and hydraulic components.
Since the establishment in 1995, we successfully transformed from OEM manufacturer for many international brands to create our own brand KIET, and our factory has been approved by CE, ISO9001: 2008 consecutively.
Our customers includ many big Chinese industrial companies, such as China Petroleum, Baosteel, Sinopec, China State Grid, Jiangnan Shipyards, Sany Group, China Railway Construction Corporation. Our synchronous PLC hydraulic system had played a great role in the China high-speed railway constructions. In 2011, our sales revenue reached 30 million USD, making us one of the leaders in the Chinese hydraulic cylinders market especially in the extra-high hydraulic cylinders for industrial area and construction field.
Our products include:
Hydraulic cylinders, jacks (5-1000ton);
Hydraulic/ electric /pneumatic torque wrench (100-72000Nm);
Hydraulic bolt tensioner (100-11486NM);
Hydraulic pullers (5-100 ton);
Integrated hydraulic lifting system solutions;
Hydraulic parts.
Competitive Advantages
1. High quality in competitive price;
2. Low minimun order quantity;
3. Wide range of products for your reference;
4. Good customer service: Customer satisfaction is our promary goal. Prompt, professional service offered by passionate and patient international salespeople.
5. OEM services: Customer's LOGO engraving, customized packaging, and produce the products according to customers' design, etc.
WHY DO YOU NEED KIET?
Q1: What's the brand name of your products?
A: Own brand "KIET", WE ARE GERMANY OWNED FACTORY. OEM is also available as required.
Q2: Hydraulic cylinder internal leakage?
A: There are 3 main reasons causing internal leakage: Overload, polishing is not well controlled, bad seal kits. As is known to all, vehicles in China are often overload, our products all designed to bear the overload power. We have numerical control machine to assure the polish processing .And we use the imported seals to meet customers' demands.
Q3: Does your piston rod get ruptured easily?
A: Hard chrome plating quenched and tempered 45# steel for piston rod to assure sufficient hardness and toughness.
Q4: Is your design reasonable? What about your product safe coefficient?
A: We have R&D team with abundant design experience. We also established production, education, and research cooperation with universities. Rest assured.
Q5: How about the delivery time?
A: Over 1000 sets advanced equipments to meet customer's large demand in short delivery time. Generally, it's 7-20 days.
Q6: What's the after-service?
A: If the quality can't meet your requirement, we will pay all your lost and offer technical support to solve your problem.
Contact Information.
Miss Lily
Tel: +86-523-86186888
We make every effort to meet your requirement!
Thank you foe your watching! If you need any help, please contact us
Best wishes for you!
Technical Parameters:
| Model | Working Pressure
(MPa) | Cylinder Capacity
(T) | Cylinder Stroke
(mm) | Spread Range
(mm) | Reach
(mm) | Centering Range
(mm) | Motor Power
(KW) | Voltage
(V) |
| KET-DBL-50T | 70 | 50 | 160 | 150-500 | 300 | 500-900 | 0.75 | 380 |
| KET-DBL-100T | 70 | 100 | 160 | 240-600 | 300 | 500-900 | 0.75 | 380 |
| KET-DBL-200T | 70 | 200 | 160 | 310-700 | 300 | 500-900 | 2.2 | 380 |
| KET-DBL-300T | 70 | 300 | 200 | 410-800 | 310 | 530-950 | 2.2 | 380 |
| KET-DBL-400T | 70 | 400 | 200 | 450-920 | 480 | 540-950 | 2.2 | 380 |
| KET-DBL-500T | 70 | 500 | 200 | 560-950 | 580 | 570-950 | 2.2 | 380 |
Glad to know you are on market for hydraulic tools, and considering more about the quality goods, Like ENERPAC. Being named hydraulic tools manufacturing leader in China, and 20 years military factory experience in hydraulic area, KIET guarantee good quality and price for every hydraulic tools and equipments,
We have developed a strong market position with sales, service and repair of high force hydraulic equipment, along with the supply of spare parts to the hydraulic industry, while consistently providing a high standard of customer service.
We are a manufacturer in hydraulic tools, such as:
Hydraulic cylinders, jacks (5-1000ton), single acting and double acting, hollow plunger;
Hydraulic/ electric /pneumatic torque wrench (100-72000Nm);
Hydraulic bolt tensioner (100-11486NM); Hydraulic pullers (5-100 ton)
Hydraulic pumps, manual and electric type (max up to 3000bar);
Integrated hydraulic lifting system solutions ( 4-72 points lifting system for house translation or leveling, bridge supporting and tank welding supporting)
Hydraulic nut and couplings. (M50-Tr1000)
Our products have been widely used in industrial field such as steel plant, cement industry, chemical and refinery, bridge, railway construction and maintenance.
