Prod Model: |
35IBT square drive torque wrench |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Place Of Origin: |
Zhejiang, China (Mainland) |
Brand Name: |
Hongli |
Product Name: |
35ibt Series Hydraulic Torque Wrench |
Power Source: |
Hydraulic |
Rated Voltage: |
100V-120V, 200-240V, 350-420V |
Max. Torque: |
4866-48666n.M |
Bolt Size: |
M64~M120 |
Square Drive: |
2-1/2' |
Material: |
Aluminum Alloy |
Type: |
Torque Wrench |
Standard: |
European Type |
Feature: |
Anti-Magnetic |
Surface Treatment: |
Titanizing |
Brand: |
Hongli |
Product Description

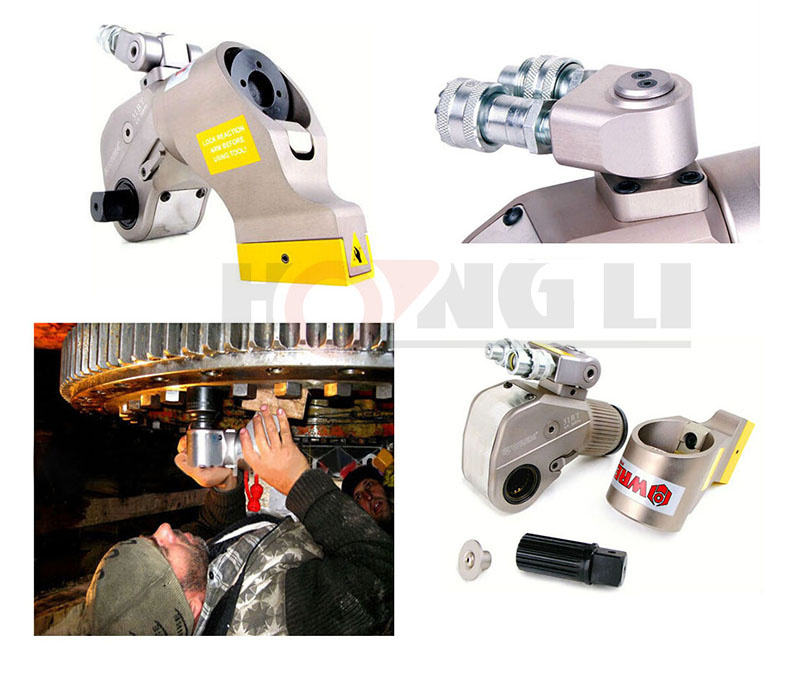

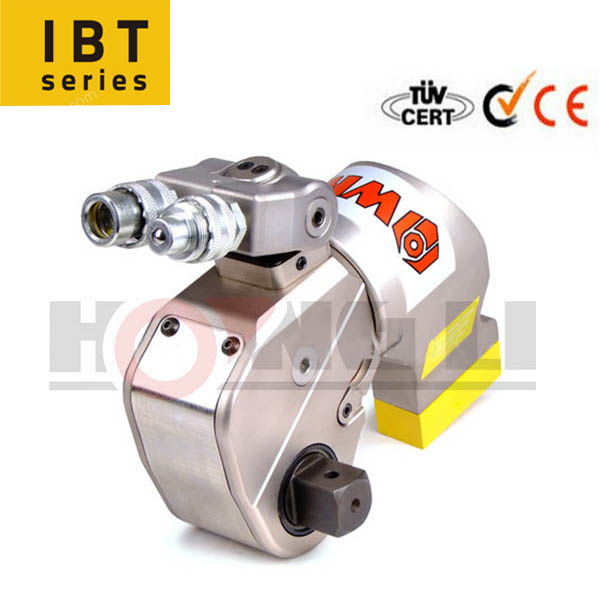

35IBT series hydraulic torque wrench

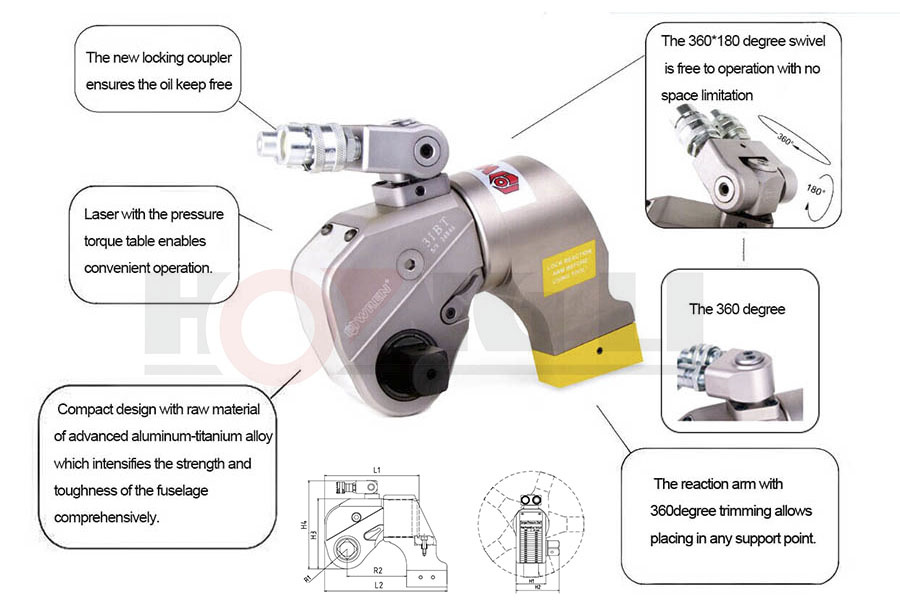

Specification:
1.All together 10 models with the range from 112N.m to 72000N.m,which covers the most bolts size,and be the most comprehensive available in the market.
2.70Mpa Max working pressure and the accuracy keep within ±3%
3.The 360*180 degree swivel is free to operation with no space limitation.
4.The square drive operate with the high intense socket and suitable with large range of bolts.
5.360 degree adjustable reaction arm allows placing in any support point.
6.Compact design with the raw material of advanced aluminum-titanium alloy, high intense.
7.The new locking coupler ensures the oil keep free access
IBT series is the professional hydraulic torque wrench . Its raw material is aluminum-titanium alloy which makes the wrench light and high intense. IBT series has 10 models with the range from 112N.m to 72000N.m; covers the most of bolts size, and be the most comprehensive available in the market. WREN provide after-sales service all over the world, and already got the approved by TUV certificate.
Company informations:
Hongli is a company that brings together technology and engineering to provide innovative solutions for our customers in the range of pipe machinery. Hangzhou Guanba Machinery Import & Export Co., Ltd is our sister company. Our priorityis to design, produce and deliver products and solutions that make your job been done easily.

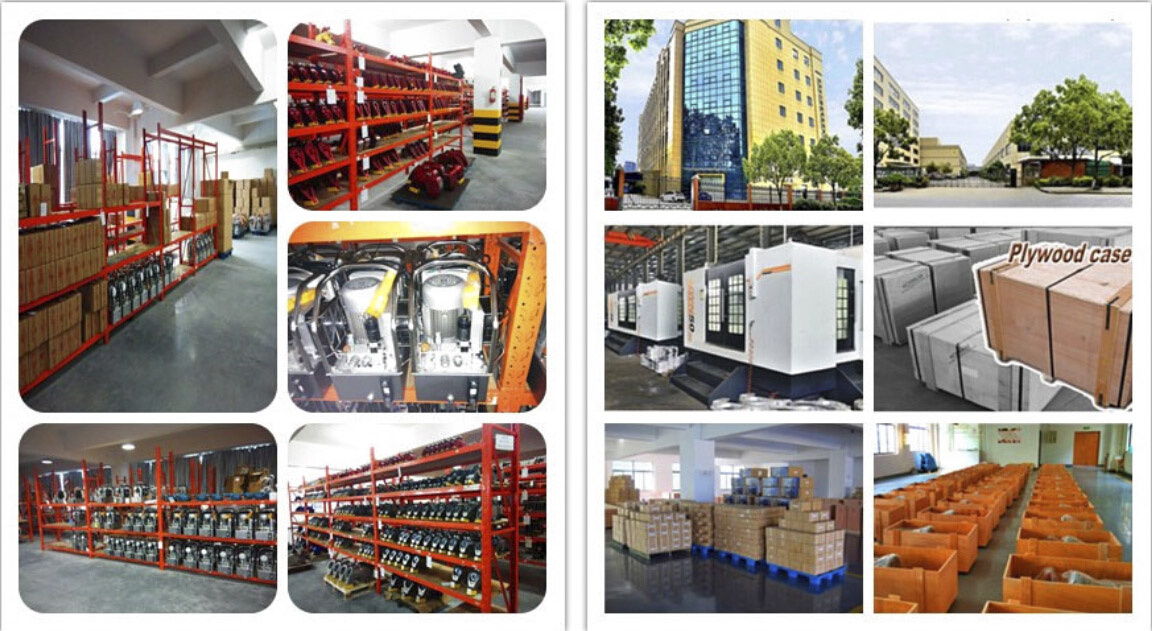

Workshop:
Our services
Our products is certified by CE or CSA. We supply buyer one year warranty
for our products. We will change the spares for free for any of the non-human damage in using, but not including the worn spares.
We also provide consulting service, spare parts list supply, or any other request.
Website: www.pipetool.com.cn
Welcome to contact us!
Name: Sarah
Tel: 0086-0571-86260602
Mobile: 0086-13958033942
Ordering information |
Model | 071IBT1 | 1IBT | 3IBT | 5IBT | 8IBT | 10IBT | 20IBT | 25IBT | 35IBT | 50IBT |
Torque (N.M) | 112~1120 | 183~1837 | 451~4512 | 752~7528 | 1078~10780 | 1551~15516 | 2666~26664 | 3472~34725 | 4866~48666 | 7200~72000 |
Bolt Size (M) | 14~30 | 16~36 | 22~48 | 27~56 | 30~64 | 36~72 | 42~90 | 48~100 | 64~120 | 72~125 |
Weight(kg) | 1.8 | 2.5 | 5 | 8 | 11 | 15 | 26.5 | 35 | 50 | 87 |
L1 | 110.8 | 144.5 | 178 | 210.5 | 222 | 245.5 | 307.5 | 323 | 372.5 | 400 |
L2 | 139.3 | 173.5 | 229 | 270.5 | 293 | 317.5 | 383.5 | 401 | 496.5 | 516 |
H1 | 42 | 50 | 68 | 80 | 90 | 100 | 120 | 137 | 153 | 160 |
H2 | 65.8 | 72 | 95 | 123 | 134 | 142 | 183 | 200 | 216 | 223 |
H3 | 76.2 | 96 | 127 | 149 | 167 | 182 | 220 | 247 | 282 | 291 |
H4 | 108.1 | 131 | 176.5 | 199 | 217 | 232 | 270 | 297 | 332 | 341 |
R1 | 20.5 | 26 | 34 | 39 | 47 | 51 | 29 | 66 | 77 | 81 |
R2 | 68.3 | 85 | 114 | 137 | 153 | 154 | 186 | 199 | 241 | 259 |
Square drive | 3/4" | 3/4" | 1" | 1-1/2" | 1-1/2" | 1-1/2" | 2-1/2" | 2-1/2" | 2-1/2" | 2-1/2" |
Our company has been in business since 1986. We have grown to become one of leading manufacturing companies in China with many customers around the globe.
Our BSQT consists of HONGLI and HUAXING. They share clear labor work in our research and manufacture. We have our own brand HUWANG in China.
For more than 20 years of efforts and strive, our HUWANG brand is really famous in our home China. Today, we are committed to helping our customers succeed and building long-term value in the global market.
We HONGLI, have a lot of trading companies selling goods for us. Right now, we are spreading our business products, producing lines and QC teams. We also want to be rank top in the whole world.
Last year, we set up our own trading company GUANBA. We HONGLI, HUAXING working together with GUANBA to promote Chinese Made Pipe Machinery to the globe.
We HONGLI, aims to make the same quality products with famous brands RIDGID, ROTHENBERGER, REX, ASADA and so on. And we also do OEM spares or tool parts for the users of the above brands.
We, HONGLI, aims to show you our best quality, best service and of course best prices!
You can surely trust us!
