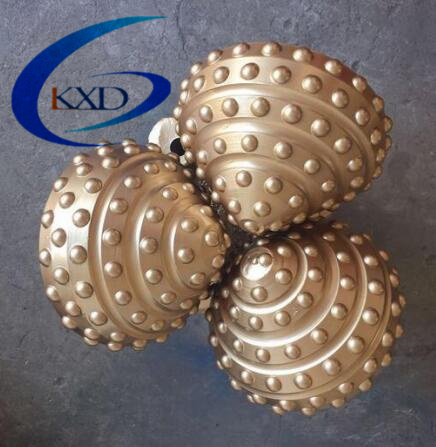

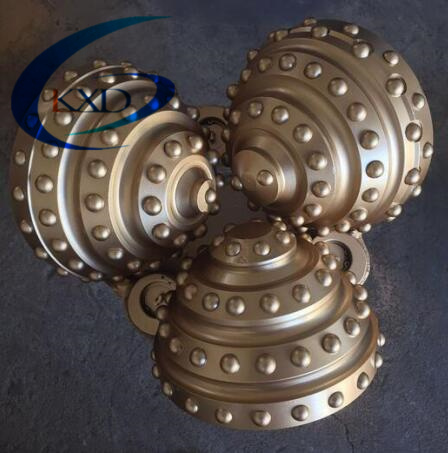

IADC 637 TCI Drill Bits Tricone Rock Bit Oil Drill Tools

Prod Model:	IADC 637
Color:	Red Green Blue China Oil Drilling Tools
Teeth:	Button Button
IADC Code:	IADC637
Connection:	API Reg Pin
Types Of Bearing:	Journal Bearing
Seal Bearing:	Metal or Rubber Sealed
Guarantee Period:	Perpetual

Product Description

Specifications about our tricone bit
TCI bits
1, Soft formations(417, 437, 517, 537)
Features large chisel-shaped inserts to provide the highest penetration rate in the softest formations such as shales, clays, limestone and sands.
2, Soft to medium formations(617, 637)
Designed to drill effectively in formations such as hard limestone, dolomite, hard sands, and other formations with hard cherty.
3, Medium to hard formations(737)
For extremely hard formations such as chert, granite, flint, and taconite. Features short, closely-spaced inserts to ensure maximum penetration rate and wear resistance
Milled tooth bits
1, Soft formations(114-117)
These bits are designed to drill the softest formations such as soft shales, red beds, and clays, with high durability and maximum penetration rates.
2, Soft to medium formations(121, 124, 126, 134, 136, 137)
These bits are designed to drill formations such as shales, medium soft limestone, Medium sandstone and other formations with intermittent hard streaks.
3, Medium to hard formations(213, 214, 215, 217)
These bits are designed to drill formations such as hard sandstone, dolomite, and broken formations with hard cherty streaks
Main features:
1. Cutting Structure of this type sealed and non-sealed TCI tricone bits:
The wear-resistance of teeth is enhanced with premium tungsten carbide hard facing on the tooth
Surfaces for steel tooth bit.
2. Gauge Structure of this type TCI tricone rock bits:
Multiple gauge protection with gauge trimmers on the heel and gauge inserts on the gauge surface of the cone, tungsten carbide inserts and hard facing on the shirttail increases gauge holding capability and bearing life.
3. Bearing Structure of this type TCI tricone rock bits:
High precision roller bearing with two thrust faces. Ball locks the cone. Thrust faces hard face with wear resistant alloy. Abrasion resistance and seizure resistance of the bearing are improved.
Air Cooling Roller Bearing Tricone Bit
----Cutting Structure
Tungsten Carbide Inserts: Various type high quality tungsten carbide inserts can be equipped on the bits, professional and scientific selection of the inserts as per the different application and drilling process to achieve high efficient drilling production.
----Gauge Structure
Multiple gauge protection with gauge inserts on the gauge surface of the cone, tungsten carbide inserts and hardfacing on the shirttail increases gauge holding capability.
----Bearing Structure
Air cooling roller bearing package. Balls lock the cone, which reduces the probability of cone-dropping to minimum.
---- IADC
Vary from 512--732 applicable for mining.
