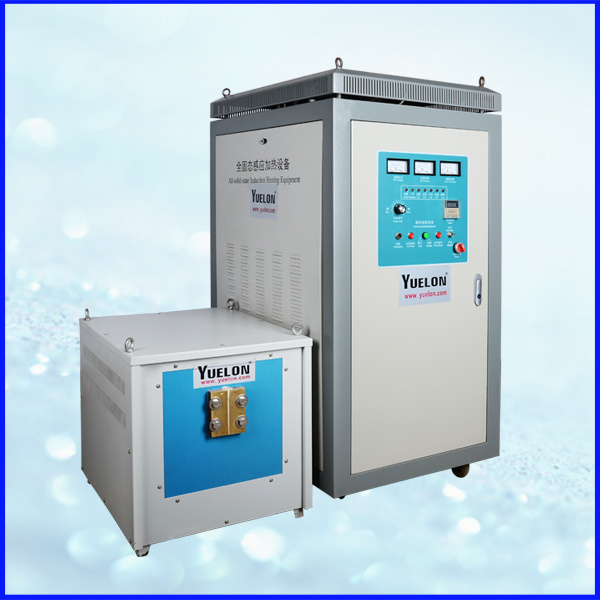

IGBT Superaudio Frequency Electric Furnace for Forging

Prod Model:	SF-160AB
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Used For:	Forging, Hardening, Melting, Heating and etc.
Place Of Origin:	Yongkang China (Mainland)
Condition:	New
Brand Name:	Yuelon
Work Condiction:	24hours
Cooling:	Water
Guaranty:	12month
Duty Cycle:	100%
Operation:	Safe&Easy
Certificate:	CE

Product Description

1. Main specification:

Model	Max  output  power	Frequency	Max  input  current	Working  voltage	Input  voltage	Duty  cycle	Water flow	Generator  weight	Transformer  weight	Generator  size
SF-30AB	30KW	10-40KHZ	48A	342-430V	3phase  380V 50/60HZ	100%	27L/(min)	(0.1Mpa)	61KG	31KG
SF-40AB	40KW	10-40KHZ	80A	342-430V			32L/(min)		73KG	37KG
SF-50AB	50KW	10-40KHZ	90A	342-430V			32L/(min)		75KG	41KG
SF-60AB	60KW	10-40KHZ	110A	342-430V			40L/(min)		80KG	46KG
SF-80AB	80KW	10-40KHZ	160A	342-430V			50L/(min)		106KG	68KG
SF-100AB	100KW	10-40KHZ	200A	342-430V			50L/(min)		121KG	91KG
SF-120AB	120KW	10-40KHZ	240A	342-430V			68L/(min)		138KG	95KG
SF-160AB	160KW	8-30KHZ	280A	342-430V			68L/(min)		151KG	121KG
SF-200AB	200KW	8-30KHZ	320A	342-430V			80L/(min)		172KG	125KG
SF-250AB	250KW	8-30KHZ	380A	342-430V			80L/(min)		180KG	131KG
SF-300AB	300KW	8-30KHZ	460A	342-430V			100L/(min)		185KG	136KG
SF-350AB	350KW	8-30KHZ	540A	342-430V			100L/(min)		192KG	141KG

Application:
Quenching: Quenching for various hardware and tools, such as plier, wrench, hammer, ax, screwing tools and shear(orchard shear).
Quench for various automobile and motorcycle fittings, such as crankshaft, connecting rod, piston pin, chain wheel, aluminum wheel, valve, rock arm shaft, drive shaft, small shaft and fork.

Various electric tools: Gears and axes.
Quench for machine tool: Lathe deck and guide rail.
Quench for various hardware metal parts and machined parts, such as shaft, gear(chain wheel), cam, chuck and clamp etc.
Quench for hardware molds, such as small size mold, mold accessory and inner hole of mold.

Main characteristics:
1. IGBT inversion technology based LC series circuit .
2. phase locking looping technology and soft switch ensure good reliability, realize power and frequency tracking automatically.
3. diode rectifier cause high power factor more than 0.95
4. working continuously with 100% duty cycle, power can be instantly turned on or shut off.
5. perfect protective circuit and cooling system design, which ensure the good reliability of machine.
6. low energy consumption: converts up to 97.5% above of the expended energy into useful heat. energy saving 15%-30% compared with SCR induction heating machine.
7. environment friendly, clean, non-polluting process which will help protect the environment, improves working conditions for your employees by eliminating smoke, waste heat, noxious emissions and loud noise.
8. operating and installation easily and safely
9. can substitute traditional heating methods.

Main characteristics:
>MOSFET power component and current inverting technologies have been used.
>simple structure and light weight.
> simple to operate, a few minutes is enough to learn it.
> simple to install, installation can be donne by unprofesstional person very easily.
> mul-tidisplay functions, with displays of over current, over voltage, water failure, phase failure and unfit lad
and so on, machine can be protected from destroys and machines can be repaired easily.
> light weight, small size.
> different shape and size of induction coil can be changed easily to heat different parts.
> advantages of the model with timer: the power and the operating time of the heating period and retain period can be preset respectively, to realize a simple heating curve, this model is suggested to use for batch
production to improve the repeatability.
> the separated models are designed to fit the dirty surroundings, the generator can be put in a clean space
to increase the reliability; with the small size and light weight of the separated transformer, it is conveient to
use in the production line and easily assembled inside the machinery or moved mechanism.

Main Application:
Rod forging
bolt, nut forging
heat treatment of shaft, gear, pin, etc.
shrink-fitting
annealing of pipe welding
etc.

We offer complete service :
Before sales
Our professional technical recommend the right machine,and can also customise special machine as customer's requirement and special parts.

Sales following
During machine production, watching the machine quality and testing machine.and take pictures or make video for customer checking.

After Sales
Machine have one year quality warranty ,0ne year free replacement spare parts ( 1 set of spare parts free for your stock, in case it need replacement).
Supply pictures or video help customer to install machine.
Provide long-terms technical support.
