| Price: | US $ 100-2000/Piece |
|---|---|
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,Western Union |
| Prod Model: | FY-FDB |
|---|---|
| Product Name: | Impact Wrench Force Multiplier Torque Multiplier |
| Max Torque: | 1500nm - 20000nm |
| Out Square: | 25mm - 60mm |
| Drive Ratio: | 4.8 -96.8 |
| Input Square: | 12.7mm |
| Bolt Size: | M20-46/M72-95 |
| Width Across Flat: | S30-46 / S105-135 |
| Dimensions: | 80 X 80 X 119-146 mm X 146 X 325 mm |
| Weight: | 2.6-32 Kg |
| Terms Of Payment: | T / T |
| Material: | Carbon Steel |
| Standard: | European Type |
| Surface Treatment: | Chrome |
| Feature: | Ordinary |
| Type: | Torque Multiplier |
| Brand: | Feiyao |

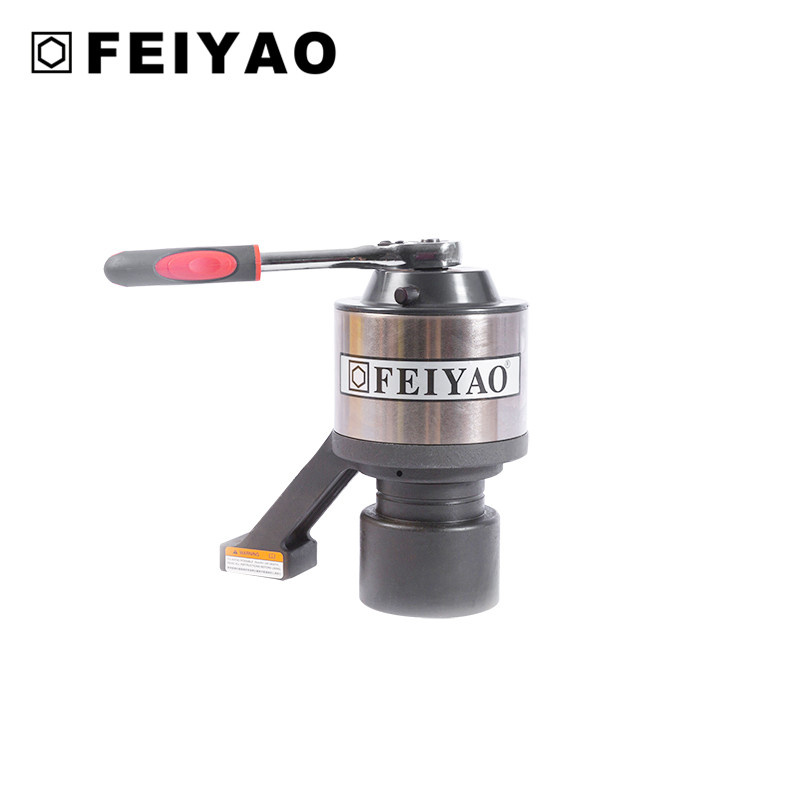

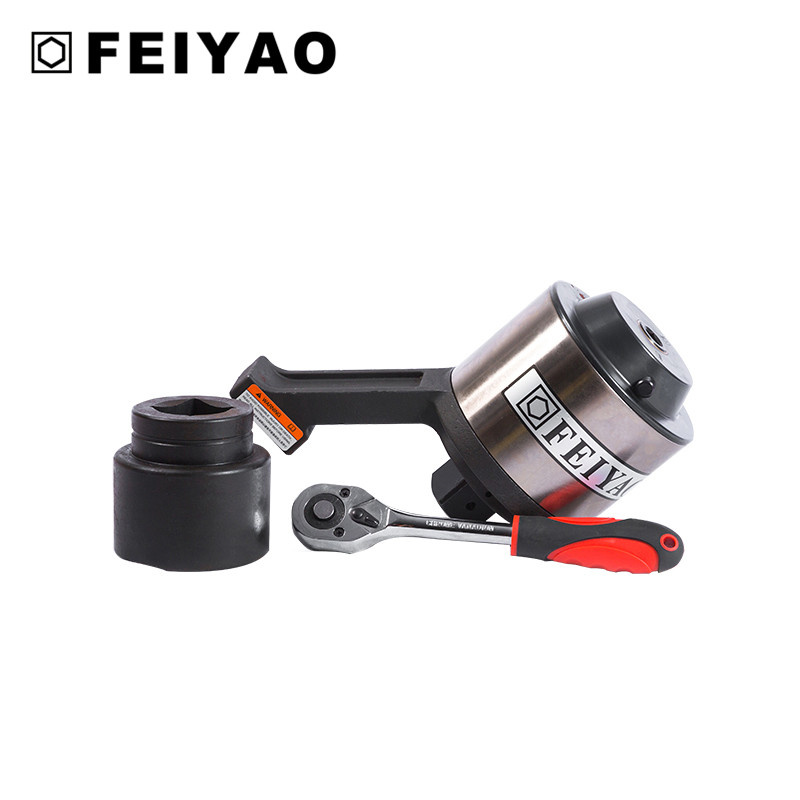

1.A device that can multiply the moment of force to 4-60 times
2.Used in the difficult situation and places that big torque wrench is unable to us
3.The product operates easily and can save the manpower
4.People even can operate it with small torque
5.Applies to small size and poor working environment
6.All kinds of reaction torque arms can be used for many conditions
7.Match with the torque transducer
Parameter
| Model | FY-FDB-15 | FY-FDB-20 | FY-FDB-35 | FY-FDB-55 | FY-FDB-75 | FY-FDB-100 | FY-FDB-150 | FY-FDB-200 |
| Max Torque(Nm) | 1500 | 2000 | 3500 | 5500 | 7500 | 10000 | 15000 | 20000 |
Drive Ratio | 4.8 | 14 | 17 | 19 | 22 | 61 | 74.8 | 96.8 |
Imput Square (mm) | 12.7 | 12.7 | 12.7 | 12.7 | 12.7 | 12.7 | 12.7 | 12.7 |
Output Square (mm) | 25 | 25 | 30 | 35 | 40 | 50 | 55 | 60 |
Bolt (mm) | M20-30 | M22-36 | M30-45 | M36-52 | M42-60 | M52-68 | M60-76 | M72-80 |
| Nut to Edge(mm) | S30-46 | S32-55 | S46-70 | S55-80 | S65-90 | S80-105 | S90-115 | S105-135 |
| Dimension(mm) | 80×80× 119 | 74×74× 147 | 95×95× 162 | 105×105× 190 | 115×115× 210 | 134×134× 244 | 146×146× 305 | 146×146× 325 |
| Weight (kg) | 2.6 | 3.9 | 5.5 | 7.5 | 10 | 17 | 25 | 31 |

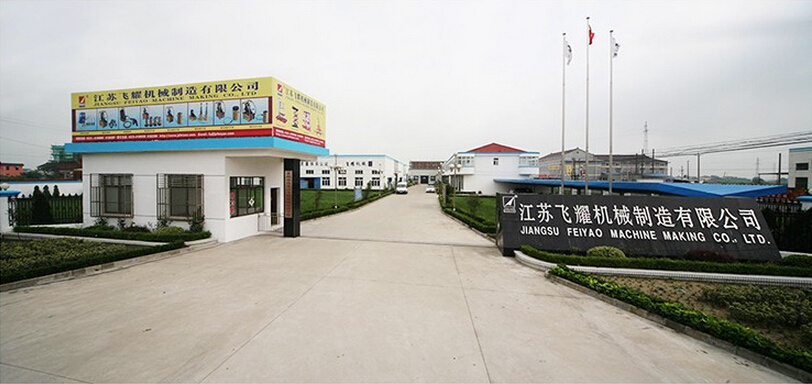

Brief Introduction of FEIYAO
Jiangsu Feiyao Machinery Manufacturing Co., Ltd. is a professional hydraulic tools manufacturer with 30-year experience in the design, production, sale and service of Hydraulic Products, Electrical Control Equipment and Mechanical Devices.
Jiangsu Feiyao has been in hydraulic tools industry since 1978. Mainly export:
Hydraulic cylinder jacks (5-1500ton), single double acting, hollow plunger; low height, lock nut;
Hydraulic torque wrenches(100-72000Nm);
PLC synchronous lifting system;
Hydraulic lifting pumps, manual and electric type;
Hydraulic pullers, manual and hydraulic type;
Hydraulic bolt tensioners;
Hydraulic flange spreader, manual and hydraulic type;
Hydraulic steel wire rope press machine
Hydraulic accessories(hoses, couplers, oil distributors, etc.)
Over the years we have grown into a diversified market based that now services customers all over the world. We enjoy listening to our customers needs and ideas while working hard to provide the best service and delivering the highest quality of parts.
We believe "service" is our number one customer. We hope our commitment to provide our customers quickly and efficiently with competitive prices will keep you coming back.
