| Prod Model: |
WLA WLB WLN WLN WLP TT T2 T6 LTK NWT TNW HWF |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Usage: |
Stone Cutting, Drilling |
| Manufacturing Arts: |
Sinter |
| Kind: |
Diamond Drill |
| Saw Blade External Diameter: |
Bq Nq Hq Pq |
Product Description

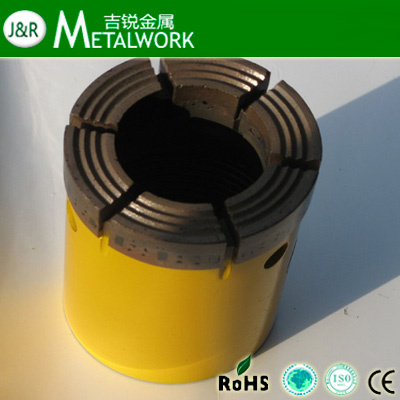

Impregnated Diamond Core Bits are manufactured with very small, high quality synthetic diamonds, mixed evenly through a metal alloy matrix. The matrix erodes away at the same rate as the diamonds become worn and rounded. Thus new sharp diamonds are exposed to continue cutting through the rock. In most geological formations, impregnated bits are more economical to use than other bits.
Material: Sintered diamond impregnated core dirll
Metrix hardness: F1-F10
Metrix height: 6mm, 8mm or more(Generally, 6mm height is recommended for conventional bits, 8mm or higher are recommended for wire line bits )
Crown profile: W profile, Flat profile, Cross profile, Semi-round profile, Multi-step profile
Waterway type: Standard type, wode type, turbo type, wide turbo type, round face discharge hole type, slot face discharge hole, Trapezoid type
4, Available size and type
Diamond core drill bits and diamond non-core drill bits
A-Gauge Core Bits: AQ, AQ-RSG, AWG(AX), AWM, AWT, LTK48
B-Gauge Core Bits: BQ(WLB), BQ-RSG, BQ-2.400, BQ3(WLB3), BWG(BX), BWM, BWT, LTK60, TBW
N-Gauge Core Bits: NQ(WLN), NQ-3.032, NQ2, NQ2-RSG, NQ3(WLN3)/NQTT, NQ3-RSG, NQ3-3.032, NMLC, NWG(NX), NWM, NWT, TNW
H-Gauge Core Bits: HQ(WLH), HQ-RSG, HQ-3.830, HQ-3.895, HQ3(WLH3)/HQTT, HQ3-RSG, HQ3-3.380, HQ3-3.895, HMLC, HWF-Long, HWF-Short, HWG(HX), HWT
P- Gauge Core Bits: PQ(WLP), PQ3(WLP3), PWF-Long, PWF-Short
S- Gauge Core Bits: SWF-Long, SWF-Short
U- Gauge Core Bits: UWF-Long, UWF-Short
Z- Gauge Core Bits: ZWF-Long, ZWF-Short
T, TT, T2 &TB Series Metric Core Bits: T36, TT46, T2-46, TB56, TT56, T2-56, T2-66, T2-76, T2-76 coreline, T2-86, T2-86 coreline, T2-101, T2-101 coreline
T6 Series Metric Core Bits: T6-76, T6-86, T6-101, T6-116, T6-131, T6-146
T6S Series Metric Core Bits: T6S-76, T6S-86, T6S-101, T6S-116, T6S-131, T6S-146
B36, B46, B56, B66, B76, B86, B101, B116, B131, B146
PCD non-coring bit
Available size: 56mm, 60mm, 65mm, 120mm, 3-7/8'', 5-7/8''
Three -wing drag bit (step type, chevron type) API standard
Available size: 2-7/8'', 3-1/2'', 3-3/4'', 4-1/2'', 4-3/4''
Casing shoe
Available size: RW, EW, AW, BW, NW, HW, PW, SWUW, ZW, RX, EX, AX, BX, NX, PX, SX, UX, ZX, 46, 56, 66, 76, 86, 101, 116, 131, 116
Casing bit
Available size: RW, EW, AW, BW, NW, HW, PW, SWUW, ZW, RX, EX, AX, BX, NX, PX, SX, UX, ZX, 46, 56, 66, 76, 86, 101, 116, 131
Core lifter and core lifter case
1. Available in all standard drilling sizes
2. Hardened alloy as raw material, it can serve in a long lifespan
3. Core lifters are divided into slotted and flutted. They have the advantages of good springness and long life.
Available size of the core lifter and core lifter case
Core lifter:
AQ, BQ, NQ, HQ, PQ, NQ3, HQ3, PQ3, T2-436, T2-46, T2-56, T2-66, T2-76, T2-86, T2-101, T6-76, T6-86, T6-101, T6-116, T6-131, T6-146, LTK48, LTK60, HWF, PWF, SWF, UWF, ZWF, EWG, AWG, BWG, NWG, HWG, EWM, AWM, BWM, NWM, HWM
Core lifter case:
AQ, BQ, NQ, HQ, PQ, NQ3, HQ3, PQ3, TT46, TT56, T2-46, T2-56, T2-66, T2-76, T2-86, T2-101, T6-76, T6-86, T6-101, T6-116, T6-131, T6-146, , LTK48, LTK60, HWF, PWF, SWF, UWF, ZWF, EWM, AWM, BWM, NWM, HWM
Water swivel and hoist plug
Relative accessories:
We also supply Drill Rod, NQ HQ Core Barrel, Casing Tube, Overshot Assembly, Hoist plug, water swivel, diamond bit, reaming shell, core lifter case, diamond core bit, casing bit, casing shoe, reaming shell, pipe wrench, rod wrench, circular wrench.
J AND R Metalwork Industry Co., Limited established in 2000 and located in Dongguan, Guangdong, China. After almost 13 years management development and technical improvment. Now, J&R Metalwork Industry Co., Limited has become a leading supplier in metalwork industry. Meanwhile, we are one of member of Fasteners industrial Association and Geologic drilling Import &Export Enterprise Association.
J AND R Metalwork Industry Co., Limited is specialized in the manufacturing and supply of various metalwork products. J&R main products include various types of bolts, hex nuts, thread rods, anchor bolts, and supporting washers in DIN, BS, ANSI and JIS.
J AND R also supply diamond drill bit, core barrel, drill rod and casing in Q (wireline) system and conventional system for geologic investigation project contractor.
After 13 years domestic and abroad market investigation, at present our products are sold to many countries and regions including the North America, Europe, Australia, the Middle East and Asia.
J AND R Metalwork Industry Co., Limited owned the advanced production equipments, complete inspection systems for chemical and physical property testing. And We have been constantly strengthening our management and consummate the quality guarantee system. In 2008, we acquired ISO9001: 2008 quality certification. Currently, the 5S management mode is implemented in the company.
Best quality and best service is and will be always our toppest concern.
