| Prod Model: |
BL1010,BL1015,BL1020,BL1515,BL2015,BL2020,BL3030 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Thickness: |
Less Than 7 Mm |
| Pushing Capacity: |
50 Tons- 450 Tons |
| Application: |
for Big Blocks and Walls Pushing |
| Low Cost: |
Repairable and Reusable |
| Control Platfrom: |
Air Pressue 0-6bar, 3 Outlet |
| Stone Type: |
Marble, Sandstone, Slate, etc |
| Color: |
Yellow/Red/Blue |
| Usage: |
After Cutting by Diamond Wire Saw Machine |
| Size: |
According to Your Special Requests |
| Delivery Time: |
Within 15days After Receipt Your Full Payment |
Product Description

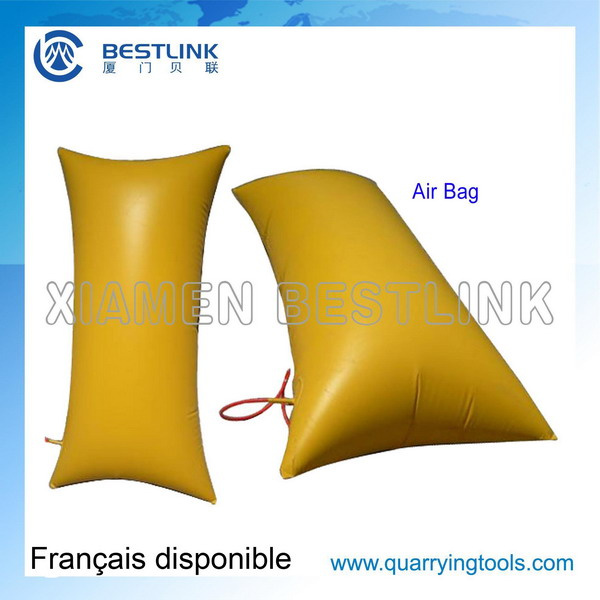

Reparable&Reusable!Used to push over block after it was cut by the diamond wire saw machine.
The thickness is less than 7 mm.It can be put into the cutting gap easily.
After inflation by air compressor, the pushing power of the air bags can reach 50 tons to 450 tons according to different sizes of the pushing bags.
Polymer blocks pushing air bag is used to separate the marble, granite, stones(rock mass) block from the basic rock achieving a maximum opening of 45cm at the top.The air bag can separate the block (rock mass) which is having all side wire saw cut faces.
The standard configuration set:
Each set contains two air bags, with one set of air pipe & air control panel.
Materials:
A:Ordinary material--You could repair it with glue when it is carelessly lacerated.
B:Special material--It's not easily lacerated, so it's no necessary to repair it.
Online Video:HTTP://www.Youtube.COM/watch?V=CJzIB9BBMEc
Pushing air bag is often used in stone quarrying after cutting by wire saw.High-materials
And special processing technique.
Advantages:
1.Less than 7mm thickness
2.Strong pushing power
3.High-tech materials and special processing techniques
4.No frequent problem in split and damage
5.Can be reused
It's max pushing capacity could reach to 200 tons.
IT CAN BE USED FOR MANY TIMES;SOME OF OUR CUSTOMERS JUST USE ONE BAG
ONE YEAR!
| Model | Specification | Theoretical pushing capacity | Weight(kg) |
| BL1010 | 1.0m×1.0m | 50tons | 4.5 |
| BL1015 | 1.0m×1.5m | 75tons | 6.8 |
| BL1020 | 1.0m×2.0m | 100tons | 9.0 |
| BL1515 | 1.5m×1.5m | 115tons | 10.2 |
| BL2015 | 2.0m×1.5m | 150tons | 13.5 |
| BL2020 | 2.0m×2.0m | 200tons | 18.0 |
| BL3030 | 3.0m×3.0m | 450tons | 40.5 |
| Control platfrom for above air bag | air pressue 0-6bar,3 outlet | 30.0
|
