| Prod Model: |
GA-ISR-P3.91 |
| Module Size: |
250mm*250 mm |
| Cabinet Size: |
500mm*500mm |
| Brightness: |
1200 Nits |
| Refresh Rate: |
1920Hz |
| Lifespan: |
100000 Hours |
| Weight: |
7.5kg/Cabinet |
| Tube Chip Color: |
Full Color |
| Display Function: |
Market Display |
| Pixel Configuration: |
1R,1G,1B |
| Display Type: |
LED Video Display |
| Application: |
Advertising |
| IP Rating: |
IP43 |
| Certification: |
ETL |
| Pixel Pitch: |
P3.91 |
| Pixel Density: |
65536 |
| Scanning Mode: |
1/16 |
Product Description

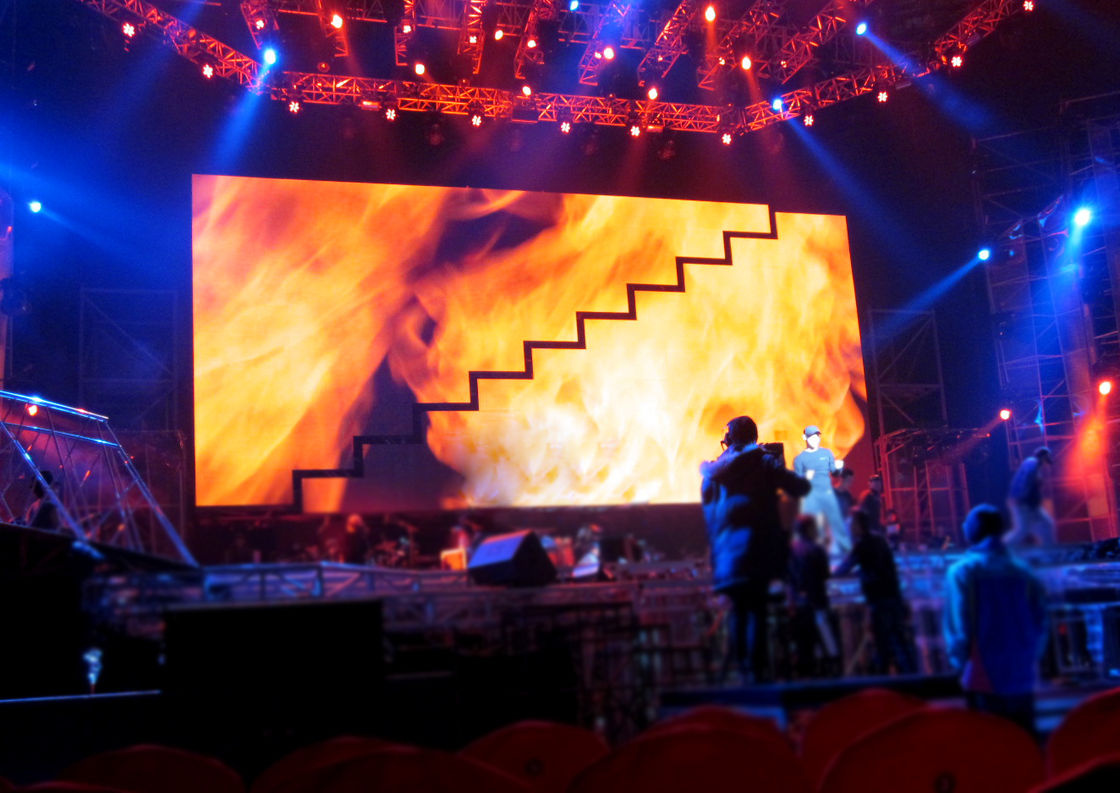

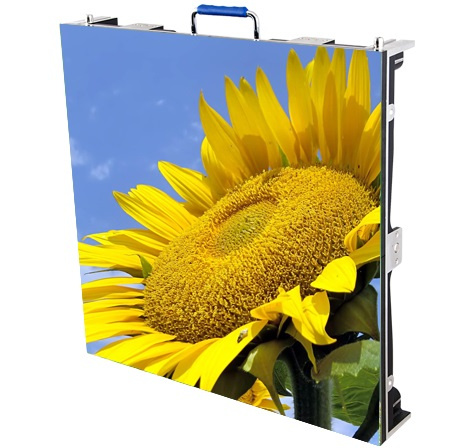

Application500*500 rental series is one of the most mature rental led display in stage performance, bar entertainment, ceremonial wedding, conference, exhibition, musical theater, etc. industry, etc. it came along announced the successful application of Aluminum Diecasting technology in led display market. With features of weight, portable, easy to install & dismantle.Fanless design and good heat dissipation make rental events labor-saving, high efficiency and cost-effective. Product feature 1. Seamless assembly
With CNC processing, the range of tolerance is controlled within 0.1mm that guarantees the seamless assembly and perfect performance is presented
2.Perfect Details Design
Chamfering designed cabinet corner protects the user from accidental damage.
3.Modularization design, Friendly Maintenance
Modularization design makes assembly and maintenance quickly and efficiently, and front and rear maintenance are available which is you're your choice.
4.Curve Installation compatible,creative design
Concave and convex radian design optional , helping your LED video wall creative and changeable.
5. Light weight and Ultra-thin
The weight of each cabinet is less that 7kg that makes it easy to carry and labor-saving, high efficiency and cost-effective.
Core technique solution of 500*500 Series1.High Quality Driver IC
MBI Series high quality Driver IC solution with Anti-ghost function help reducing your worry. And ≥ 1920Hz refresh rate enable us to do Live Broadcasting, lifelike animated picture and videos bring us an eye feast.
2.Low gray level adjustment effect
Light series with excellent gray level adjustment function ensuring your requirement on the brightness and color uniformity.
Specification| ITEM NO:GA-ISR-P3.91 |
| LED Module Parameters |
| Pixel Pitch | 3.91mm |
| Pixel Density | 65536dot/m2 |
| LED Configuration | 1R1G1B |
| LED Type | SMD2121 Black |
| Module resolution | 64*64dot |
| Module Size | 250*250 mm |
| LED Cabinet Parameters |
| No of module | 2*2 |
| Cabinet Size | 500*500*75mm |
| Cabinet Weight | 6.8Kg |
| Flatness | gap<0.2mm |
| Maintain Way | optional |
| IP Rating | IP 43 |
| Cabinet Material | Aluminium die casting |
| General Parameters |
| Driving method/Scan method | Constant current ;1/16 |
| Driving IC | MBI-5124 |
| Gray Scale | 65536 |
| Refresh rate | >1920Hz |
| Luminance of white balance | ≥1200cd/m2 |
| Color temperature | 4500K-9500K |
| View angle | H:120°, V:120° |
| Uniformity of the luminance and chromaticity | ≥97% |
| Max.Power Consumption | 800W/m2 |
| Avg.Power Consumption | 360W/m2 |
| Input Voltage | AC220V/50Hz |
| Frame Rate | 60Hz |
| MTBF | 100000 Hours |
| Operating Temperature/Humidity | -20 - 60°C/ 10%-90%RH |
| Certification | FCC,CE,Rosh |
| Blind spot rate | ≤0.01% |
| Support Input | Composite, S-video, DVI,HDMI, SDI,HD-SDI,VGA |
| Control Distance | Ethernet cable≤100m or Fiber Optic>100m |

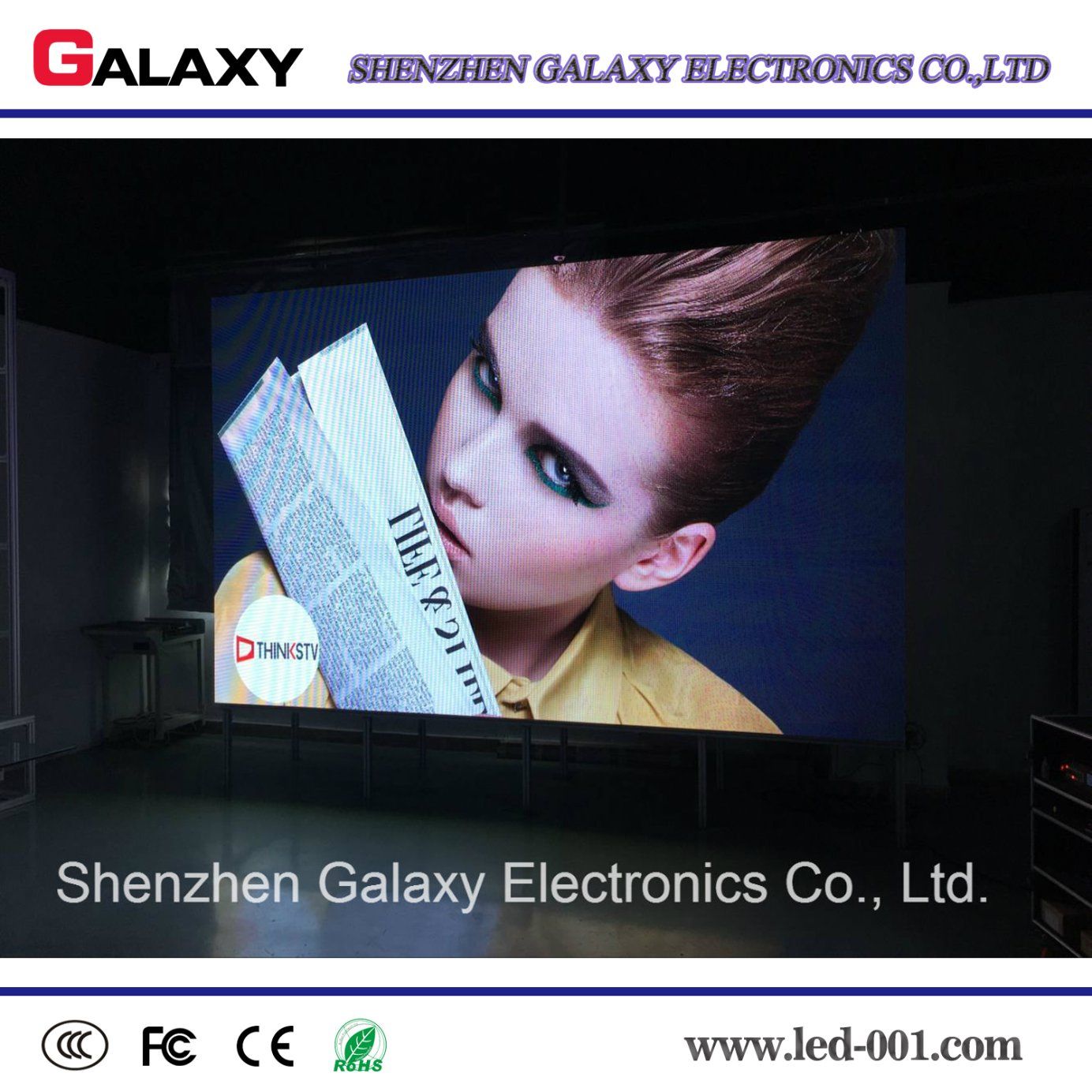

Case
Remark 1.Price term:Total quotation is based on FOB Shenzhen
2.Warranty period: 2 years
3.Payment term: 30% deposit,Balance before shipping.
4.Packing method: Flight case
5.Delivery time: 20 days after deposit
