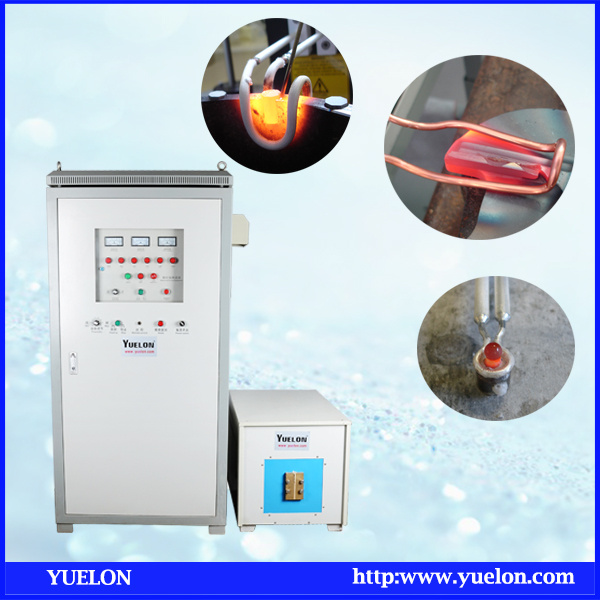

Induction Heating Equipment for Quenching (SF-300AB)

Prod Model:	SF-300AB
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Used For:	Forging, Hardening, Melting, Heating and etc.
Place Of Origin:	Yongkang China (Mainland)
Mining Object:	1 Set
Work Power:	380V 50-60Hz
Power(Kw):	300kw
Certificate:	CE
Work Condiction:	24hours
Cooling:	Water
System:	IGBT
Duty Cycle:	100%
Precision:	High Precision
Heating System:	Electric
Demoulding:	Automatic
Function:	High Temperature Resistance
Warranty:	12 Months
Customized:	Customized
Condition:	New
Certification:	CE
Mould Life:	<300,000 shots

Product Description

Model	Max output  power	Frequency	Max input  current	Working voltage	Input  voltage	Duty cycle	Water flow	Generator  weight	Transformer  weight	Generator  size
SF-30AB	30KW	10-40KHZ	48A	342-430V	3phase 380V 50/60HZ	100%	27L/(min)	(0.1Mpa)	61KG	31KG
SF-40AB	40KW	10-40KHZ	80A	342-430V			32L/(min)		73KG	37KG
SF-50AB	50KW	10-40KHZ	90A	342-430V			32L/(min)		75KG	41KG
SF-60AB	60KW	10-40KHZ	110A	342-430V			40L/(min)		80KG	46KG
SF-80AB	80KW	10-40KHZ	160A	342-430V			50L/(min)		106KG	68KG
SF- 100AB	100KW	10-40KHZ	200A	342-430V			50L/(min)		121KG	91KG
SF-120AB	120KW	10-40KHZ	240A	342-430V			68L/(min)		138KG	95KG
SF-160AB	160KW	8-30KHZ	280A	342-430V			68L/(min)		151KG	121KG
SF-200AB	200KW	8-30KHZ	320A	342-430V			80L/(min)		172KG	125KG
SF-250AB	250KW	8-30KHZ	380A	342-430V			80L/(min)		180KG	131KG
SF-300AB	300KW	8-30KHZ	460A	342-430V			100L/(min)		185KG	136KG
SF-350AB	350KW	8-30KHZ	540A	342-430V			100L/(min)		192KG	141KG

Application of medium frequency induction machine:
A. Heating (hot forging, hot fitting and smelting):
1 Hot forging aims to fabricate the work pieces of certain temperature (different materials require different temperatures) into other shapes through forging press with the help of punch press, forging machine or other equipments, for instances, hot extrusion of watch case, watch flan, handle, mold accessory, kitchen and table ware, art ware, standard part, fastener, fabricated mechanical part, bronze lock, rivet, steel pin and pin.
2. Hot fitting refers to the connection of different metals or metals with nonmetals through the heating based on the principle of hot expansion or hot smelting, for instances, embedded welding of copper core of computer radiator with aluminum sheet and speaker web, compound of steel and plastic tube, sealing of aluminum foil (tooth paste peel), motor rotor and sealing of tubular electric heating element.
3. Smelting mainly aims to melt the metal into liquid by using the high temperature, which is mainly applicable to the smelting of iron, steel, copper, aluminum, zinc as well as various noble metals.

B. Heat Treatment (surface quench):
It is mainly aims to change the rigidity of the metal materials through the heat treatment to work pieces. Detail applications are stated as follows:
1. Quench for various hardware and tools, such as plier, wrench, hammer, ax, screwing tools and shear (orchard shear).
2. Quench for various automobile and motorcycle fittings, such as crankshaft, connecting rod, piston pin, chain wheel, aluminum wheel, valve, rock arm shaft, semi drive shaft, small shaft and fork.

3. Various electric tools, such as gear and axes.
4. Quench for machine tools, such as lathe deck and guide rail.
5. Quench for various hardware metal parts and machined parts, such as shaft, gear (chain wheel), cam, chuck and clamp etc.
6. Quench for hardware molds, such as small-size mold, mold accessory and inner hole of mold.

C. Welding (braze welding, silver soldering and brazing)
It mainly aims to melt the solder by heating it to a certain temperature for the purpose of connecting two types of metals of the same material or different materials.

1. Welding of various hardware cutting tools, such as diamond tool, abrasive tool, drilling tool, alloy saw blade, hard alloy cutter, milling cutter, reamer, planning tool and solid center bit.
2. Welding of various hardware mechanical gadget: Silver soldering and brazing of metals of the same variety or different varieties, such as hardware toilet and kitchen products, refrigerating copper fitting, lamp decoration fitting, precision mold fitting, hardware handle, eggbeater, alloy steel and steel, steel and copper as well as copper and copper.

3. Compound pot bottom welding is mainly applicable to the braze welding of circular, square as well as other irregular plain pot bottom. It is also applicable to plain braze welding of other metals.
4. Welding of heating disc of electric hot-water kettle mainly refers to the braze welding of stainless steel flat base, aluminum sheet and tubular electric heating elements of various forms.

D. Annealing (tempering and modulation):
1. Annealing of various stainless steel products, such as stainless steel basin, annealed and extruded can, annealed folded edge, annealed sink, stainless steel tube, tableware and cup.
2. Annealing of various other metal work pieces, such as golf ball head, cue, brass lock, hardware copper fitting, kitchen knife handle, blade, aluminum pan, aluminum pail, aluminum radiator and various aluminum products.

1.Which countries your products are exported to?

Our products are sold all over the world, such as Brasil, Amercia, South africa, India, Iran, Pakistan and etc.



2.How about the warranty?

Machine have one year quality warranty ,one year free replacement spare parts ( 1 set of spare parts free for
your stock, in case it need replacement).



3.How to install your machine?

We have paper installation instructions and video, we will teach till you learn it.



4.Which export port you use?

Any china port, commonly we will use shanghai or ningbo and customer require.



5.How about the payment terms and delivery time?

Terms of payment:

small machine 100% T/T deposit in advance. big machine 50% deposit, 50% before shipment.

Time of Shipment:

small machine delivery time within 7 days. big machine delivery time within 30 days.
