Induction Welder for Diamond Saw Blade Brazing

Induction Welder for Diamond Saw Blade Brazing
Price: US $ 100-1000set
Min Order: 1set
Pay Type: L/C,T/T,Western Union,Money Gram
Prod Model: ZHY-GP-20
Operating Power Range: 170~240V
Oscillating Frequency Range: 50~150kHz
Maximum Oscillating Power: 20kw
Maximum Output Power: 16kw
Duty Cycle: 100%
Cooling Water Flow/Pressure: 20L/Min 0.1~0.3MPa
Weight: 24kg

Product Description

ZHY MOSFET series high frequency induction heating machine
High frequency induction heating machine
1.Adopt MOSFET. High frequency, energy saving and steady.
2.Heating speed is fast and high efficiency.
3.Only heat the part need to be heated, little distortion.
4.Short heating time. There is no oxide layer on the surface of the workpiece.
5.Easy operation, good working environment and no pollution.
6.Control heating temperature and heating time easily. Ensure heating quality and could achieve line           production.


Technical parameter
ModelZHY-GP-20ZHY-GP-20A
Input powersingle phase 220V 50/60HzThree phase 380V 50/60Hz
Operating power range170~240V340~440V
Oscillating frequency50KHz~150KHz50~150KHz
Maximum output power20KW20KW
Duty cycle90%90%
Cooling water pressure0.1~0.3MPa0.1~0.3MPa
Cooling water temperature40ºC40ºC

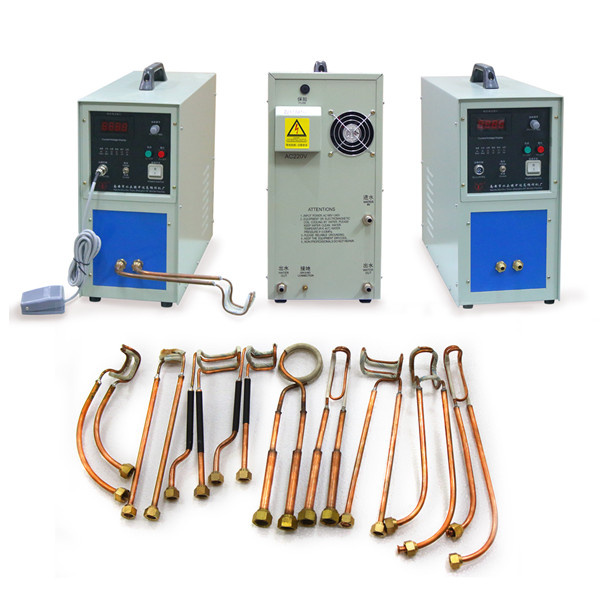

Spare parts with machine:
1. Foot switch       2. Induction coils
3. Hose clamp       4. Manual
5. Guarantee card

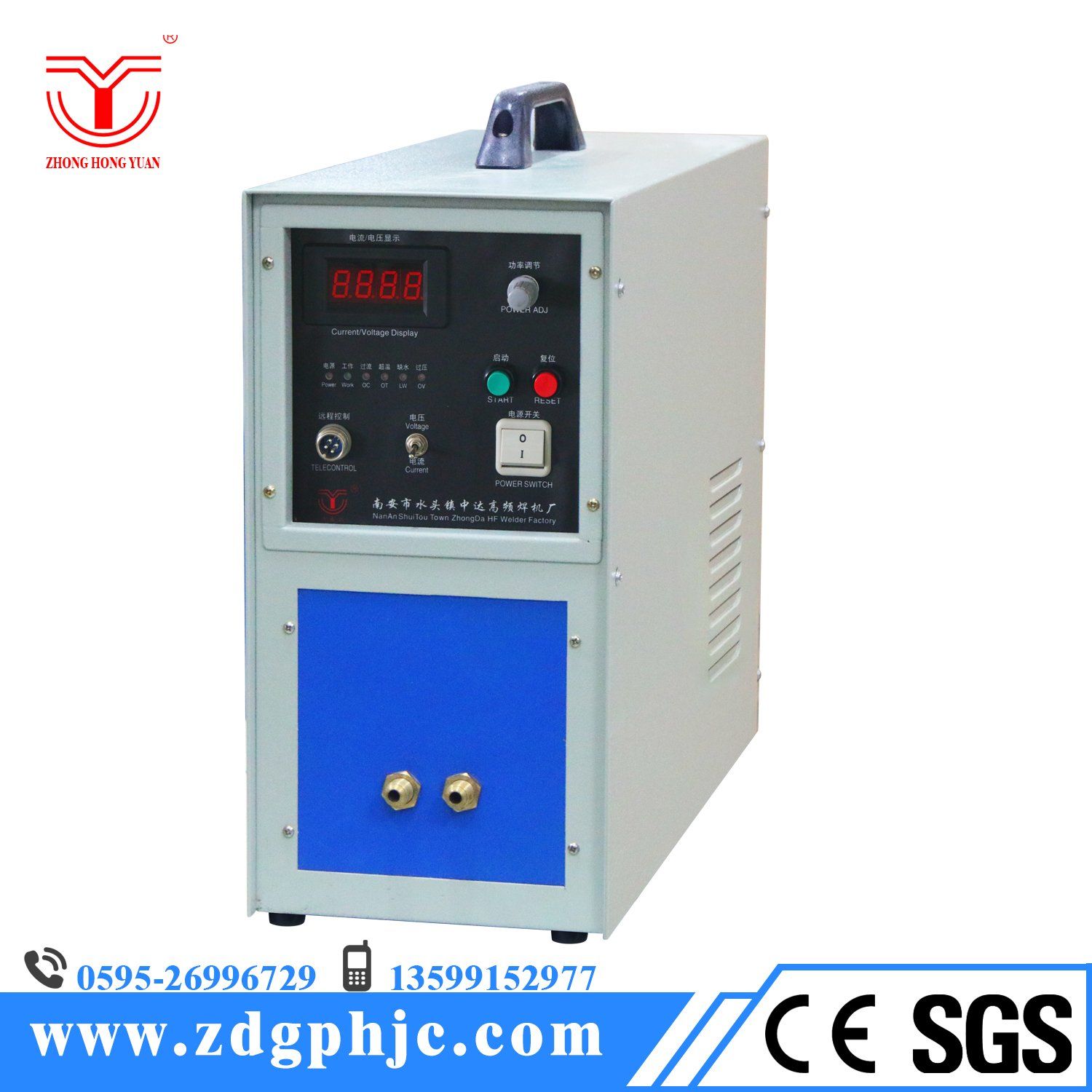

Front Panel

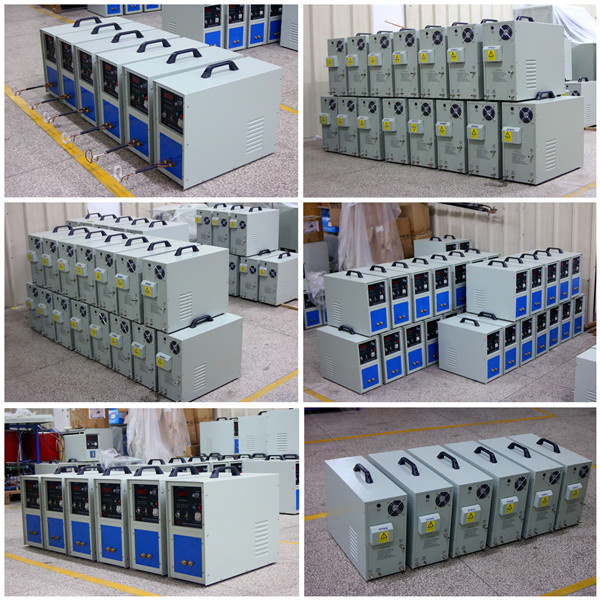

Machines







Zhongda HF Welder factory is located in the world's largest stone material market-Shuitou China.

Which is near Xiamen, Quanzhou, Fuzhou and other large and medium-sized cities which has convenient traffic. Early we produced high frequency welding machine and it's used in brazing diamond saw blade and diamond tools. Our first machine was produced in 1997. After so many years we are mainly engaged in the high efficient and energy-saving induction heating equipment, science and technology enterprise. And for now, our company is divided into research and development, production, sales and After-sales service department.

We have strong R&D center. We have numbers of senior professional and technical person who have been engaging in the induction heating equipment research and development in our company for years. With innovative design concept, we continuously introduce advance technology of new type of induction heating equipment. We follow the principle of quality first, established a perfect from material selection to the materials into the factory inspection, to production, debugging, aging, and then to factory inspection quality assurance system, to ensure the quality of each delivery.

After 20 years development, we have the ability of annual output of 10000 units(sets) and became one of major small induction heating equipment manufacturers in China. Products cover intermediate frequency(1~20kHz), super audio frequency(20~50kHz), ultra high frequency(above 300kHz) and dedicated induction heating machine. Power ranging from 3KW to 300KW. It is widely used in diamond cutting tool, crystal jewelry, fasteners, cutting tools, hardware tools, stainless steel products, automobile and motorcycle accessories, pipe heat distortion, smelting, heat treatment and other industries. The feature of our products is small, light, efficient and energy saving, easy to use, reliable and easy to maintain. Cause that we have won the trust of customers. Our products were sold around the whole country, included Hong Kong and Taiwan. We export to southeast Asia, Europe, North America, India and other countries as well.
